Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MPIA4015V2-4R7-RFIXED IND 4.7UH 2.2A 130MOHM SMD |
2,995 | 0.29 |
|
Datasheet |
MPIA40-V2 | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Molded | Metal Composite | 4.7 µH | ±20% | 2.2 A | 3A | Shielded | 130mOhm Max | - | 22MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.195" L x 0.165" W (4.95mm x 4.20mm) | 0.059" (1.50mm) |
|
74437356082FIXED IND 8.2UH 4.3A 0.0593OHM |
1,950 | 0.44 |
|
Datasheet |
WE-LHMI | 2-SMD | Tape & Reel (TR) | Active | Molded | Iron Powder | 8.2 µH | ±20% | 4.3 A | 14A | Shielded | 59.3mOhm Max | - | 11MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 8030 | 0.362" L x 0.335" W (9.20mm x 8.50mm) | 0.118" (3.00mm) |
|
|
74437356015FIXED IND 1.5UH 10.6A 0.0133OHM |
1,184 | 0.44 |
|
Datasheet |
WE-LHMI | 2-SMD | Tape & Reel (TR) | Active | Molded | Iron Powder | 1.5 µH | ±20% | 10.6 A | 27.2A | Shielded | 13.3mOhm Max | - | 32MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 8030 | 0.362" L x 0.335" W (9.20mm x 8.50mm) | 0.118" (3.00mm) |
|
|
744373560033FIXED IND 330NH 16A 0.00257OHM |
1,000 | 0.42 |
|
Datasheet |
WE-LHMI | 2-SMD | Tape & Reel (TR) | Active | Molded | Iron Powder | 330 nH | ±20% | 16 A | 51.9A | Shielded | 2.57mOhm Max | - | 95MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 8030 | 0.362" L x 0.335" W (9.20mm x 8.50mm) | 0.118" (3.00mm) |
|

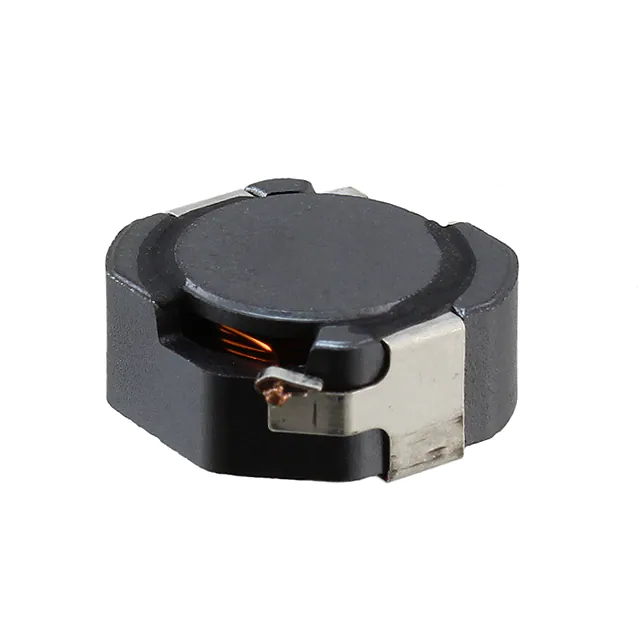

CLF12555T-680M-DFIXED IND 68UH 1.6A 150 MOHM SMD |
993 | 0.47 |
|
Datasheet |
CLF-D | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | 1.6 A | 2.6A | Shielded | 150mOhm Max | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.476" W (12.50mm x 12.10mm) | 0.230" (5.85mm) |
|
744373580022FIXED IND 220NH 22.5A 0.00135OHM |
799 | 0.42 |
|
Datasheet |
WE-LHMI | 2-SMD | Tape & Reel (TR) | Active | Molded | Iron Powder | 220 nH | ±20% | 22.5 A | 80.4A | Shielded | 1.35mOhm Max | - | 145MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 8040 | 0.362" L x 0.335" W (9.20mm x 8.50mm) | 0.157" (4.00mm) |
|
|
744373580082FIXED IND 820NH 14.5A 0.00388OHM |
774 | 0.42 |
|
Datasheet |
WE-LHMI | 2-SMD | Tape & Reel (TR) | Active | Molded | Iron Powder | 820 nH | ±20% | 14.5 A | 41.6A | Shielded | 3.88mOhm Max | - | 51MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 8040 | 0.362" L x 0.335" W (9.20mm x 8.50mm) | 0.157" (4.00mm) |
|
|
744373580033FIXED IND 330NH 18.5A 0.00215OHM |
704 | 0.44 |
|
Datasheet |
WE-LHMI | 2-SMD | Tape & Reel (TR) | Active | Molded | Iron Powder | 330 nH | ±20% | 18.5 A | 67.2A | Shielded | 2.15mOhm Max | - | 96MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 8040 | 0.362" L x 0.335" W (9.20mm x 8.50mm) | 0.157" (4.00mm) |
|
|
744373560082FIXED IND 820NH 13.5A 0.00487OHM |
570 | 0.44 |
|
Datasheet |
WE-LHMI | 2-SMD | Tape & Reel (TR) | Active | Molded | Iron Powder | 820 nH | ±20% | 13.5 A | 40.9A | Shielded | 4.87mOhm Max | - | 51MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 8030 | 0.362" L x 0.335" W (9.20mm x 8.50mm) | 0.118" (3.00mm) |
|
|
744373560047FIXED IND 470NH 15.5A 0.00333OHM |
471 | 0.42 |
|
Datasheet |
WE-LHMI | 2-SMD | Tape & Reel (TR) | Active | Molded | Iron Powder | 470 nH | ±20% | 15.5 A | 44.7A | Shielded | 3.33mOhm Max | - | 72MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 8030 | 0.362" L x 0.335" W (9.20mm x 8.50mm) | 0.118" (3.00mm) |
|

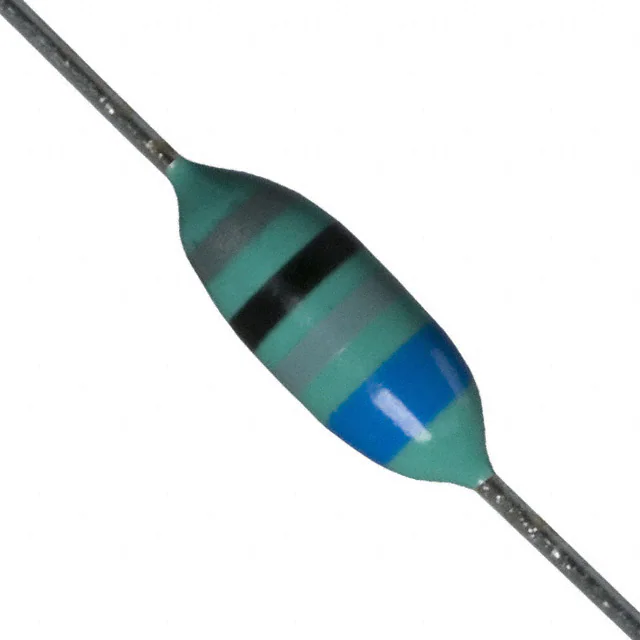

8230-64-RCFIXED IND 68UH 135MA 6.7 OHM TH |
184 | 0.53 |
|
Datasheet |
8230 | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±10% | 135 mA | - | Unshielded | 6.7Ohm Max | 50 @ 2.5MHz | 15MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | - |
|
|
744373580068FIXED IND 680NH 15A 0.00322OHM |
184 | 0.42 |
|
Datasheet |
WE-LHMI | 2-SMD | Tape & Reel (TR) | Active | Molded | Iron Powder | 680 nH | ±20% | 15 A | 37.8A | Shielded | 3.22mOhm Max | - | 45MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 8040 | 0.362" L x 0.335" W (9.20mm x 8.50mm) | 0.157" (4.00mm) |
|
78438356056HTWE-MAIA SMT POWER INDUCTOR |
2,927 | 0.45 |
|
Datasheet |
WE-MAIA | Nonstandard | Tape & Reel (TR) | Active | - | Iron Alloy | 5.6 µH | ±20% | 2.9 A | 3.5A | Shielded | 80.5mOhm Max | - | 17MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.161" L x 0.161" W (4.10mm x 4.10mm) | 0.083" (2.10mm) |
|
SBCP-80HY101HFIXED IND 100UH 1.1A 350 MOHM TH |
1,883 | 0.45 |
|
Datasheet |
SBCP | Radial, Vertical Cylinder | Cut Tape (CT) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 1.1 A | 1.6A | Unshielded | 350mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.374" Dia (9.50mm) | 0.433" (11.00mm) |
|
|
784383560068HTWE-MAIA SMT POWER INDUCTOR |
1,559 | 0.45 |
|
Datasheet |
WE-MAIA | Nonstandard | Tape & Reel (TR) | Active | - | Iron Alloy | 680 nH | ±20% | 8.1 A | 8.5A | Shielded | 9.2mOhm Max | - | 67MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.161" L x 0.161" W (4.10mm x 4.10mm) | 0.083" (2.10mm) |
|
744089430022FIXED IND 220NH 5A 14 MOHM SMD |
1,497 | 0.42 |
|
Datasheet |
WE-SPC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 nH | ±30% | 5 A | 13A | Shielded | 14mOhm Max | - | 250MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.189" L x 0.189" W (4.80mm x 4.80mm) | 0.161" (4.10mm) |
|
|
784383560033HTWE-MAIA SMT POWER INDUCTOR |
1,234 | 0.45 |
|
Datasheet |
WE-MAIA | Nonstandard | Tape & Reel (TR) | Active | - | Iron Alloy | 330 nH | ±30% | 9.9 A | 11A | Shielded | 7.5mOhm Max | - | 98MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.161" L x 0.161" W (4.10mm x 4.10mm) | 0.083" (2.10mm) |
 0.118 Height.jpg)
|
74408942220FIXED IND 22UH 850MA 354MOHM SMD |
1,184 | 0.45 |
|
Datasheet |
WE-SPC | 1919 (4848 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 850 mA | 1.3A | Shielded | 354mOhm Max | - | 14MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.189" L x 0.189" W (4.80mm x 4.80mm) | 0.118" (3.00mm) |
|
|
78438356022HTWE-MAIA SMT POWER INDUCTOR |
1,138 | 0.45 |
|
Datasheet |
WE-MAIA | Nonstandard | Tape & Reel (TR) | Active | - | Iron Alloy | 2.2 µH | ±20% | 4.5 A | 5.6A | Shielded | 32.2mOhm Max | - | 30MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.161" L x 0.161" W (4.10mm x 4.10mm) | 0.083" (2.10mm) |
|
|
784383560056HTWE-MAIA SMT POWER INDUCTOR |
950 | 0.45 |
|
Datasheet |
WE-MAIA | Nonstandard | Tape & Reel (TR) | Active | - | Iron Alloy | 560 nH | ±20% | 8.2 A | 9.55A | Shielded | 8.6mOhm Max | - | 72MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.161" L x 0.161" W (4.10mm x 4.10mm) | 0.083" (2.10mm) |
