Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 0.118 Height.jpg)
|

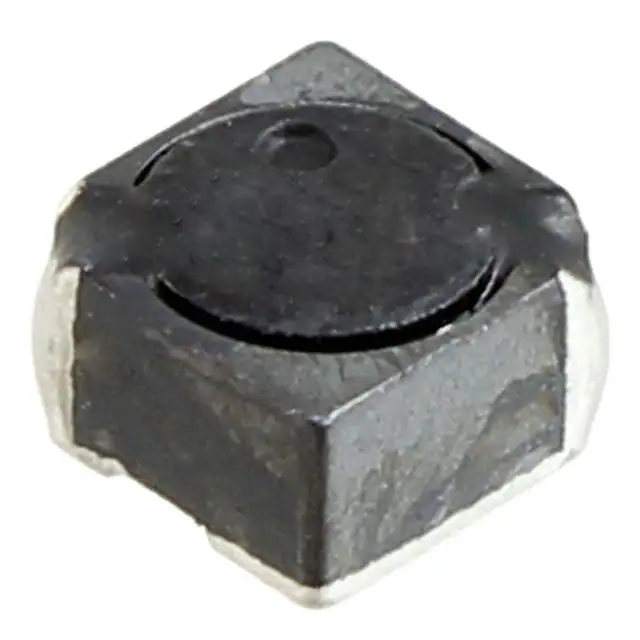

744089420039FIXED IND 390NH 4.2A 17.7MOHM SM |
911 | 0.42 |
|
Datasheet |
WE-SPC | 1919 (4848 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 390 nH | ±30% | 4.2 A | 10.3A | Shielded | 17.7mOhm Max | - | 160MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.189" L x 0.189" W (4.80mm x 4.80mm) | 0.118" (3.00mm) |
|
|

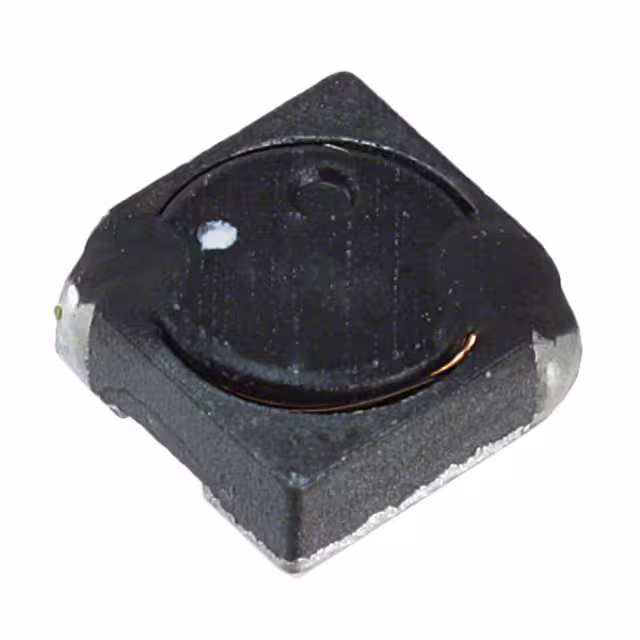

74408941089FIXED IND 8.9UH 950MA 240MOHM SM |
858 | 0.42 |
|
Datasheet |
WE-SPC | 1919 (4848 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 8.9 µH | ±20% | 950 mA | 1.7A | Shielded | 240mOhm Max | - | 33MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.189" L x 0.189" W (4.80mm x 4.80mm) | 0.083" (2.10mm) |
|
SBCP-87HY681HFIXED IND 680UH 330MA 1.66OHM TH |
830 | 0.45 |
|
Datasheet |
SBCP | Radial, Vertical Cylinder | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 680 µH | ±10% | 330 mA | 320mA | Unshielded | 1.66Ohm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.374" Dia (9.50mm) | 0.335" (8.50mm) |
|
78438356012HTWE-MAIA SMT POWER INDUCTOR |
827 | 0.45 |
|
Datasheet |
WE-MAIA | Nonstandard | Tape & Reel (TR) | Active | - | Iron Alloy | 1.2 µH | ±20% | 5.8 A | 6.9A | Shielded | 18.4mOhm Max | - | 45MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.161" L x 0.161" W (4.10mm x 4.10mm) | 0.083" (2.10mm) |
|
|
78438356018HTWE-MAIA SMT POWER INDUCTOR |
811 | 0.45 |
|
Datasheet |
WE-MAIA | Nonstandard | Tape & Reel (TR) | Active | - | Iron Alloy | 1.8 µH | ±20% | 4.6 A | 6.2A | Shielded | 29.9mOhm Max | - | 37.5MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.161" L x 0.161" W (4.10mm x 4.10mm) | 0.083" (2.10mm) |
|
|
74408941150FIXED IND 15UH 750MA 430MOHM SMD |
807 | 0.45 |
|
Datasheet |
WE-SPC | 1919 (4848 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 750 mA | 1.35A | Shielded | 430mOhm Max | - | 24MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.189" L x 0.189" W (4.80mm x 4.80mm) | 0.083" (2.10mm) |
|
|
74408942033FIXED IND 3.3UH 2.1A 57 MOHM SMD |
637 | 0.45 |
|
Datasheet |
WE-SPC | 1919 (4848 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 2.1 A | 3.5A | Shielded | 57mOhm Max | - | 44MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.189" L x 0.189" W (4.80mm x 4.80mm) | 0.118" (3.00mm) |
|
744089430056FIXED IND 560NH 3.8A 17 MOHM SMD |
500 | 0.42 |
|
Datasheet |
WE-SPC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 560 nH | ±30% | 3.8 A | 8.1A | Shielded | 17mOhm Max | - | 130MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.189" L x 0.189" W (4.80mm x 4.80mm) | 0.161" (4.10mm) |
|
|
744089430039FIXED IND 390NH 4.2A 16 MOHM SMD |
495 | 0.42 |
|
Datasheet |
WE-SPC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 390 nH | ±30% | 4.2 A | 9.3A | Shielded | 16mOhm Max | - | 160MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.189" L x 0.189" W (4.80mm x 4.80mm) | 0.161" (4.10mm) |
|
|
744089430082FIXED IND 820NH 3.4A 20 MOHM SMD |
494 | 0.42 |
|
Datasheet |
WE-SPC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 820 nH | ±20% | 3.4 A | 7.1A | Shielded | 20mOhm Max | - | 108MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.189" L x 0.189" W (4.80mm x 4.80mm) | 0.161" (4.10mm) |
|
|
74408941029FIXED IND 2.9UH 1.55A 101MOHM SM |
490 | 0.42 |
|
Datasheet |
WE-SPC | 1919 (4848 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.9 µH | ±20% | 1.55 A | 3A | Shielded | 101mOhm Max | - | 55MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.189" L x 0.189" W (4.80mm x 4.80mm) | 0.083" (2.10mm) |
|
|
74408941068FIXED IND 6.8UH 1.1A 190MOHM SMD |
482 | 0.45 |
|
Datasheet |
WE-SPC | 1919 (4848 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 1.1 A | 2.1A | Shielded | 190mOhm Max | - | 40MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.189" L x 0.189" W (4.80mm x 4.80mm) | 0.083" (2.10mm) |
|
|
744089410043FIXED IND 430NH 3.8A 17.6MOHM SM |
470 | 0.42 |
|
Datasheet |
WE-SPC | 1919 (4848 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 430 nH | ±30% | 3.8 A | 8A | Shielded | 17.6mOhm Max | - | 160MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.189" L x 0.189" W (4.80mm x 4.80mm) | 0.083" (2.10mm) |
|
|
744089420082FIXED IND 820NH 3.5A 24.8MOHM SM |
470 | 0.42 |
|
Datasheet |
WE-SPC | 1919 (4848 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 820 nH | ±20% | 3.5 A | 6.7A | Shielded | 24.8mOhm Max | - | 100MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.189" L x 0.189" W (4.80mm x 4.80mm) | 0.118" (3.00mm) |
|
|
744089410068FIXED IND 680NH 3.4A 22.1MOHM SM |
469 | 0.42 |
|
Datasheet |
WE-SPC | 1919 (4848 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 680 nH | ±30% | 3.4 A | 6.5A | Shielded | 22.1mOhm Max | - | 120MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.189" L x 0.189" W (4.80mm x 4.80mm) | 0.083" (2.10mm) |
|
|
74408942082FIXED IND 8.2UH 1.4A 134MOHM SMD |
468 | 0.42 |
|
Datasheet |
WE-SPC | 1919 (4848 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 8.2 µH | ±20% | 1.4 A | 2.2A | Shielded | 134mOhm Max | - | 26MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.189" L x 0.189" W (4.80mm x 4.80mm) | 0.118" (3.00mm) |
|
|
744089420022FIXED IND 220NH 5.3A 14.4MOHM SM |
440 | 0.42 |
|
Datasheet |
WE-SPC | 1919 (4848 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 nH | ±30% | 5.3 A | 13.5A | Shielded | 14.4mOhm Max | - | 220MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.189" L x 0.189" W (4.80mm x 4.80mm) | 0.118" (3.00mm) |
|
74408942012FIXED IND 1.2UH 3.2A 26 MOHM SMD |
421 | 0.42 |
|
Datasheet |
WE-SPC | 1919 (4848 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.2 µH | ±20% | 3.2 A | 5.5A | Shielded | 26mOhm Max | - | 82MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.189" L x 0.189" W (4.80mm x 4.80mm) | 0.079" (2.00mm) |
|
|
744089420056FIXED IND 560NH 4.1A 18.4MOHM SM |
400 | 0.42 |
|
Datasheet |
WE-SPC | 1919 (4848 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 560 nH | ±30% | 4.1 A | 8.3A | Shielded | 18.4mOhm Max | - | 120MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.189" L x 0.189" W (4.80mm x 4.80mm) | 0.118" (3.00mm) |
|
|
74408941078FIXED IND 7.8UH 1.05A 230MOHM SM |
370 | 0.42 |
|
Datasheet |
WE-SPC | 1919 (4848 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 7.8 µH | ±20% | 1.05 A | 1.9A | Shielded | 230mOhm Max | - | 35MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.189" L x 0.189" W (4.80mm x 4.80mm) | 0.083" (2.10mm) |
