Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MPX1D1040LR68FIXED IND 680NH 23.1A 3.2MOHM SM |
437 | 0.44 |
|
Datasheet |
METCOM MPX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 680 nH | ±20% | 23.1 A | 34.5A | Shielded | 3.2mOhm Max | - | 47MHz | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.425" L x 0.394" W (10.80mm x 10.00mm) | 0.157" (4.00mm) |
|
|
MPX1D1040L220FIXED IND 22UH 4.7A 76.1MOHM SMD |
436 | 0.44 |
|
Datasheet |
METCOM MPX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 22 µH | ±20% | 4.7 A | 7A | Shielded | 76.1mOhm Max | - | 7MHz | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.425" L x 0.394" W (10.80mm x 10.00mm) | 0.157" (4.00mm) |
|
|
MPX1D1040L1R5FIXED IND 1.5UH 17.7A 5.4MOHM SM |
435 | 0.44 |
|
Datasheet |
METCOM MPX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 1.5 µH | ±20% | 17.7 A | 26A | Shielded | 5.4mOhm Max | - | 30MHz | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.425" L x 0.394" W (10.80mm x 10.00mm) | 0.157" (4.00mm) |
|
|
MPX1D1040LR47FIXED IND 470NH 26.4A 2.4MOHM SM |
400 | 0.44 |
|
Datasheet |
METCOM MPX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 470 nH | ±20% | 26.4 A | 42A | Shielded | 2.4mOhm Max | - | 65MHz | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.425" L x 0.394" W (10.80mm x 10.00mm) | 0.157" (4.00mm) |
|
|
MPX1D1040L4R7FIXED IND 4.7UH 10.3A 15.9 MOHM |
229 | 0.44 |
|
Datasheet |
METCOM MPX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 4.7 µH | ±20% | 10.3 A | 14A | Shielded | 15.9mOhm Max | - | 17MHz | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.425" L x 0.394" W (10.80mm x 10.00mm) | 0.157" (4.00mm) |
|

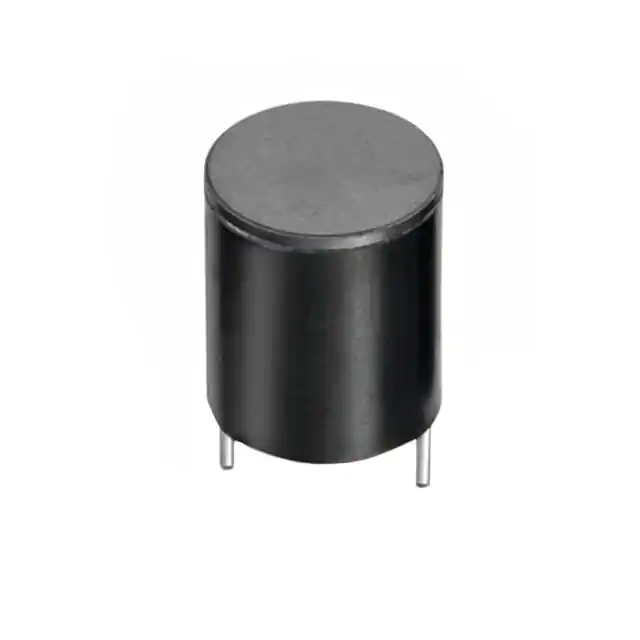

744750340047FIXED IND 4.7UH 9A 8.5 MOHM TH |
170 | 0.44 |
|
Datasheet |
WE-FAMI | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 9 A | 14.4A | Shielded | 8.5mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.425" Dia (10.80mm) | 0.512" (13.00mm) |
|
|
MPX1D1040L100FIXED IND 10UH 7A 34.1 MOHM SMD |
149 | 0.44 |
|
Datasheet |
METCOM MPX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 10 µH | ±20% | 7 A | 10.5A | Shielded | 34.1mOhm Max | - | 11MHz | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.425" L x 0.394" W (10.80mm x 10.00mm) | 0.157" (4.00mm) |
|

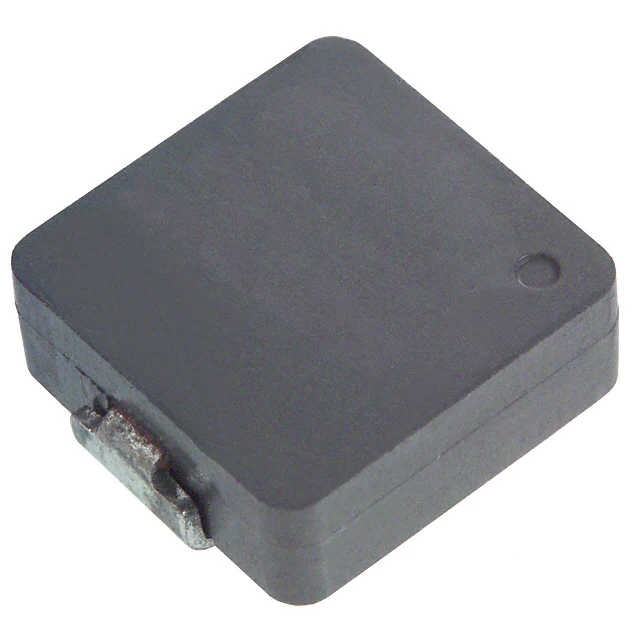

ETQ-P4LR24AFMFIXED IND 240NH 24A 1 MOHM SMD |
5,314 | 0.49 |
|
Datasheet |
PCC-M0740L (MC) | 2-SMD, J-Lead | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Metal Composite | 240 nH | ±20% | 24 A | - | Shielded | 1mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.343" L x 0.276" W (8.70mm x 7.00mm) | 0.157" (4.00mm) |
|
PA5175.822NLTFIXED IND 8.2UH 6.1A 32.5MOHM SM |
4,500 | 0.46 |
|
Datasheet |
PA5175.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | - | - | 8.2 µH | ±20% | 6.1 A | 6.1A | Unshielded | 32.5mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.217" L x 0.209" W (5.50mm x 5.30mm) | 0.197" (5.00mm) |
|
P1173.472NLTFIXED IND 4.7UH 7.9A 9.5MOHM SMD |
3,177 | 0.46 |
|
Datasheet |
P1173NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 4.7 µH | ±30% | 7.9 A | 8.2A | Shielded | 9.5mOhm Max | - | 33MHz | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.482" L x 0.482" W (12.24mm x 12.24mm) | 0.315" (8.00mm) |
|
ETQ-P4LR42AFMFIXED IND 420NH 17A 1.5 MOHM SMD |
2,591 | 0.49 |
|
Datasheet |
PCC-M0740L (MC) | 2-SMD, J-Lead | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Metal Composite | 420 nH | ±20% | 17 A | - | Shielded | 1.5mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.343" L x 0.276" W (8.70mm x 7.00mm) | 0.157" (4.00mm) |
|
|
ETQ-P4LR36AFMFIXED IND 360NH 20A 1.35MOHM SMD |
2,297 | 0.49 |
|
Datasheet |
PCC-M0740L (MC) | 2-SMD, J-Lead | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Metal Composite | 360 nH | ±20% | 20 A | - | Shielded | 1.35mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.343" L x 0.276" W (8.70mm x 7.00mm) | 0.157" (4.00mm) |
|
SBCP-87HY6R8HFIXED IND 6.8UH 2.8A 40 MOHM TH |
1,816 | 0.44 |
|
Datasheet |
SBCP | Radial, Vertical Cylinder | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 2.8 A | 3.4A | Unshielded | 40mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.374" Dia (9.50mm) | 0.335" (8.50mm) |
|

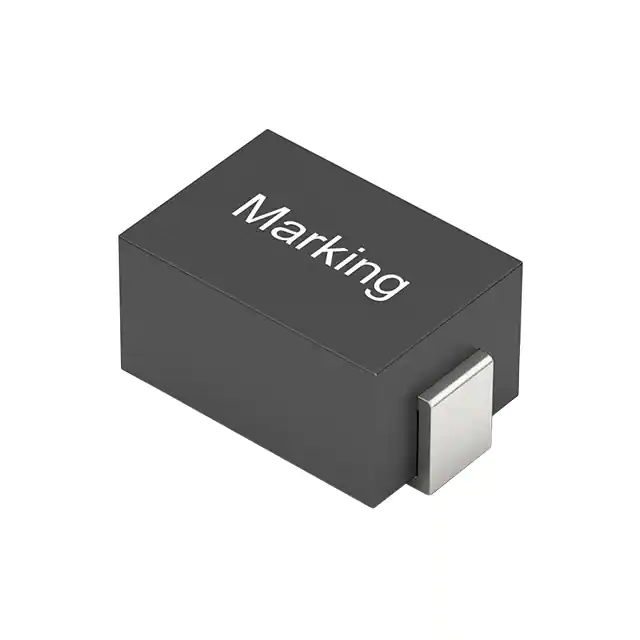

74434035010FIXED IND 100NH 29A 0.00038OHM |
1,530 | 0.44 |
|
Datasheet |
WE-HCM | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 100 nH | ±20% | 29 A | 19.1A | Shielded | 0.38mOhm | - | 69MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 4035 | 0.197" L x 0.122" W (5.00mm x 3.10mm) | 0.138" (3.50mm) |
|
FP1107R1-R40-RFIXED IND 400NH 55A 0.29MOHM SMD |
1,355 | 0.43 |
|
Datasheet |
FLAT-PAC, FP1107 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 400 nH | ±10% | 55 A | 25A | Unshielded | 0.29mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.283" W (11.00mm x 7.20mm) | 0.295" (7.50mm) |
|
FP1007R6-R22-RFIXED IND 220NH 61A 0.29MOHM SMD |
705 | 0.43 |
|
Datasheet |
FLAT-PAC, FP1007R6 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 nH | ±10% | 61 A | 50A | Unshielded | 0.29mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.413" L x 0.315" W (10.50mm x 8.00mm) | 0.276" (7.00mm) |
|
P1172.472NLTFIXED IND 4.7UH 7.9A 9.5MOHM SMD |
545 | 0.38 |
|
Datasheet |
P1172NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 4.7 µH | ±30% | 7.9 A | 8.2A | Shielded | 9.5mOhm Max | - | 33MHz | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.482" L x 0.482" W (12.24mm x 12.24mm) | 0.315" (8.00mm) |
|
MPIA4020V2-3R3-RFIXED IND 3.3UH 3.3A 85 MOHM SMD |
5,714 | 0.29 |
|
Datasheet |
MPIA40-V2 | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Molded | Metal Composite | 3.3 µH | ±20% | 3.3 A | 4A | Shielded | 85mOhm Max | - | 25MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.195" L x 0.165" W (4.95mm x 4.20mm) | 0.079" (2.00mm) |
|
IHLP5050EZERR82M01FIXED IND 820NH 31A 2.3 MOHM SMD |
1,197 | 0.47 |
|
Datasheet |
IHLP-5050EZ-01 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 820 nH | ±20% | 31 A | 53A | Shielded | 2.3mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.520" L x 0.508" W (13.20mm x 12.90mm) | 0.197" (5.00mm) |
|
HCM1A1305V2-150-RFIXED IND 15UH 6.5A 27.1MOHM SMD |
399 | 0.45 |
|
Datasheet |
HCM1AV2 | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 15 µH | ±20% | 6.5 A | 9.5A | Shielded | 27.1mOhm Max | - | 6MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.530" L x 0.496" W (13.45mm x 12.60mm) | 0.197" (5.00mm) |
