Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 0.118 Height.jpg)
|
74408941050FIXED IND 5UH 1.4A 140 MOHM SMD |
363 | 0.42 |
|
Datasheet |
WE-SPC | 1919 (4848 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 5 µH | ±20% | 1.4 A | 2.5A | Shielded | 140mOhm Max | - | 43MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.189" L x 0.189" W (4.80mm x 4.80mm) | 0.083" (2.10mm) |
|
|
74408942680FIXED IND 68UH 490MA 1.02OHM SMD |
350 | 0.45 |
|
Datasheet |
WE-SPC | 1919 (4848 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | 490 mA | 750mA | Shielded | 1.02Ohm Max | - | 8MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.189" L x 0.189" W (4.80mm x 4.80mm) | 0.118" (3.00mm) |
|
|
744089410022FIXED IND 220NH 4.5A 15 MOHM SMD |
334 | 0.42 |
|
Datasheet |
WE-SPC | 1919 (4848 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 nH | ±30% | 4.5 A | 9.5A | Shielded | 15mOhm Max | - | 230MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.189" L x 0.189" W (4.80mm x 4.80mm) | 0.083" (2.10mm) |
|
|
74408941470FIXED IND 47UH 400MA 1.133OHM SM |
320 | 0.45 |
|
Datasheet |
WE-SPC | 1919 (4848 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 400 mA | 750mA | Shielded | 1.133Ohm Max | - | 14MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.189" L x 0.189" W (4.80mm x 4.80mm) | 0.083" (2.10mm) |
|
|
74408942820FIXED IND 82UH 460MA 1.11OHM SMD |
267 | 0.42 |
|
Datasheet |
WE-SPC | 1919 (4848 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 82 µH | ±20% | 460 mA | 680mA | Shielded | 1.11Ohm Max | - | 7MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.189" L x 0.189" W (4.80mm x 4.80mm) | 0.118" (3.00mm) |
|
HCP0805-R68-RFIXED IND 680NH 17.5A 4.5MOHM SM |
18,713 | 0.50 |
|
Datasheet |
HCP0805 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 680 nH | ±20% | 17.5 A | 25A | Shielded | 4.5mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.303" L x 0.291" W (7.70mm x 7.40mm) | 0.197" (5.00mm) |
|

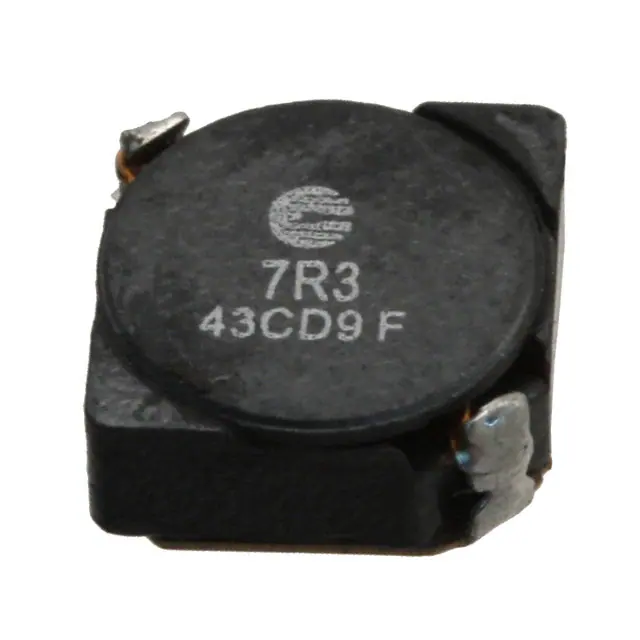

SD7030-7R3-RFIXED IND 7UH 2.3A 54 MOHM SMD |
1,119 | 0.44 |
|
Datasheet |
SD7030 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 7 µH | ±30% | 2.3 A | 2.1A | Shielded | 54mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.118" (3.00mm) |
|
74437346056FIXED IND 5.6UH 3.6A 0.048OHM SM |
989 | 0.45 |
|
Datasheet |
WE-LHMI | 2-SMD | Tape & Reel (TR) | Active | Molded | Iron Powder | 5.6 µH | ±20% | 3.6 A | 12.1A | Shielded | 48mOhm Max | - | 20MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.122" (3.10mm) |
|
7447713820FIXED IND 82UH 950MA 419MOHM SMD |
981 | 0.42 |
|
Datasheet |
WE-PD Performance | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 82 µH | ±20% | 950 mA | 1.5A | Shielded | 419mOhm Max | - | 8.8MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.118" (3.00mm) |
|
SBC8-152-581FIXED IND 1.5MH 580MA 1.3 OHM TH |
954 | 0.58 |
|
Datasheet |
SBC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 1.5 mH | ±10% | 580 mA | 920mA | Unshielded | 1.3Ohm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.591" Dia (15.00mm) | 0.886" (22.50mm) |
|
|
7447713015FIXED IND 1.5UH 6.2A 16 MOHM SMD |
927 | 0.45 |
|
Datasheet |
WE-PD Performance | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±30% | 6.2 A | 9.5A | Shielded | 16mOhm Max | - | 75MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.118" (3.00mm) |
|
SBCP-87HY3R3HFIXED IND 3.3UH 3.2A 30 MOHM TH |
820 | 0.45 |
|
Datasheet |
SBCP | Radial, Vertical Cylinder | Cut Tape (CT) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±30% | 3.2 A | 4.8A | Unshielded | 30mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.374" Dia (9.50mm) | 0.335" (8.50mm) |
|
|
7447713121FIXED IND 120UH 850MA 598MOHM SM |
771 | 0.42 |
|
Datasheet |
WE-PD Performance | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 120 µH | ±20% | 850 mA | 1.25A | Shielded | 598mOhm Max | - | 7MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.118" (3.00mm) |
|
1812R-221KFIXED IND 220NH 708MA 400MOHM SM |
734 | 0.40 |
|
Datasheet |
1812R | 1812 (4532 Metric) | Tape & Reel (TR) | Active | - | Iron | 220 nH | ±10% | 708 mA | - | Unshielded | 400mOhm Max | 30 @ 25MHz | 350MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
7447713331FIXED IND 330UH 480MA 1.5OHM SMD |
598 | 0.45 |
|
Datasheet |
WE-PD Performance | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 330 µH | ±20% | 480 mA | 730mA | Shielded | 1.5Ohm Max | - | 4.3MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.118" (3.00mm) |
|
7447713471FIXED IND 470UH 420MA 2.2OHM SMD |
482 | 0.45 |
|
Datasheet |
WE-PD Performance | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 µH | ±20% | 420 mA | 650mA | Shielded | 2.2Ohm Max | - | 3.4MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.118" (3.00mm) |
|
CDRH12D77BT150NP-100MCFIXED IND 10UH 7.5A 19 MOHM SMD |
144 | 0.49 |
|
Datasheet |
CDRH12D77B/T150 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 10 µH | ±20% | 7.5 A | 9.7A | Shielded | 19mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.516" L x 0.504" W (13.10mm x 12.80mm) | 0.315" (8.00mm) |
|

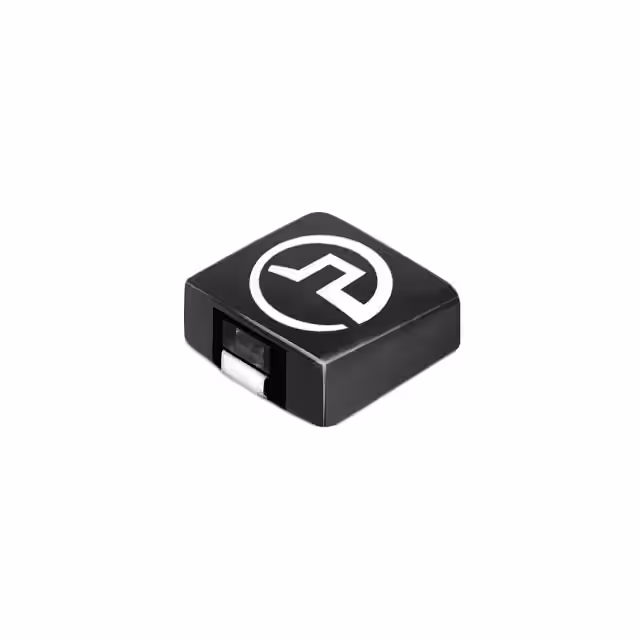

PG0255.601NLFIXED IND 600NH 27A 1.87MOHM SMD |
1,670 | - |
|
Datasheet |
PG0255NL | Nonstandard | Tray | Active | Wirewound | - | 600 nH | ±15% | 27 A | 28A | Shielded | 1.87mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.453" L x 0.406" W (11.50mm x 10.30mm) | 0.157" (4.00mm) |
|

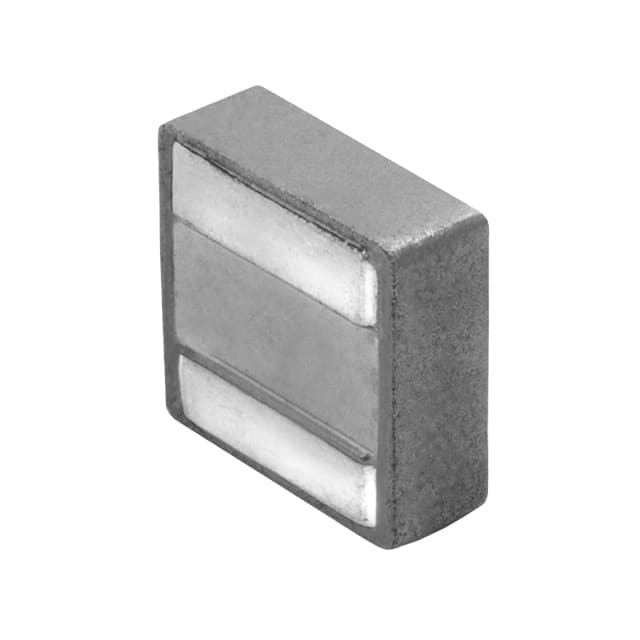

PA5007.682NLTFIXED IND 6.8UH 6.8A 42.5MOHM SM |
3,199 | 0.47 |
|
Datasheet |
PA5007.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | Ferrite | 6.8 µH | ±20% | 6.8 A | 12A | Shielded | 42.5mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.307" L x 0.299" W (7.80mm x 7.60mm) | 0.122" (3.10mm) |
|

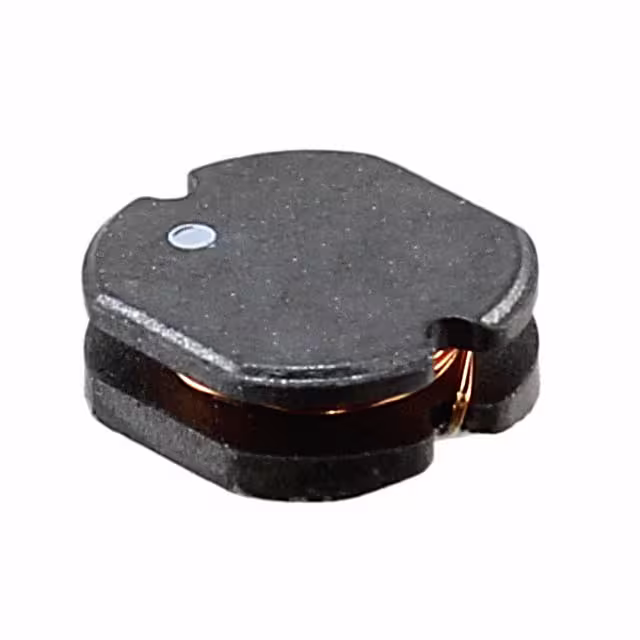

7447745330FIXED IND 33UH 900MA 520MOHM SMD |
2,833 | 0.45 |
|
Datasheet |
WE-PD2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 900 mA | 900mA | Unshielded | 520mOhm Max | - | 10MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 0.091" (2.30mm) |
