Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B82477P2334M000FIXED IND 330UH 950MA 460MOHM SM |
115 | 0.45 |
|
Datasheet |
B82477P2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 330 µH | ±20% | 950 mA | 680mA | Shielded | 460mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.256" (6.50mm) |
|
MPLC0730L1R0FIXED IND 1UH 10.6A 9 MOHM SMD |
12,085 | 0.44 |
|
Datasheet |
MPLC | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Wirewound | - | 1 µH | ±20% | 10.6 A | 11A | Shielded | 9mOhm Max | - | - | - | -20°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.303" L x 0.264" W (7.70mm x 6.70mm) | 0.118" (3.00mm) |
.6mm.jpg)
|

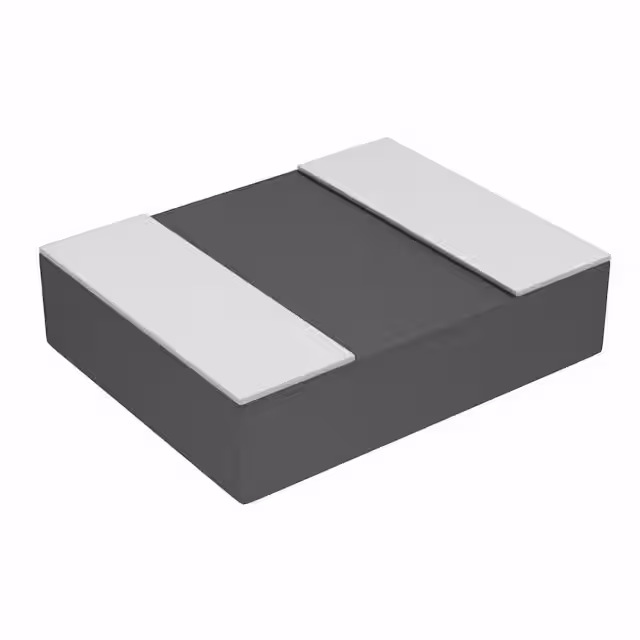

78438321010FIXED IND 1UH 1.25A 196 MOHM SMD |
2,996 | 0.40 |
|
Datasheet |
WE-MAIA | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Molded | Iron Alloy | 1 µH | ±30% | 1.25 A | 2.5A | Shielded | 196mOhm Max | - | 90MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2506 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.024" (0.60mm) |
|
|
784383210047FIXED IND 470NH 2.2A 95 MOHM SMD |
2,993 | 0.40 |
|
Datasheet |
WE-MAIA | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Molded | Iron Alloy | 470 nH | ±30% | 2.2 A | 3.7A | Shielded | 95mOhm Max | - | 165MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2506 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.024" (0.60mm) |
.8mm.jpg)
|

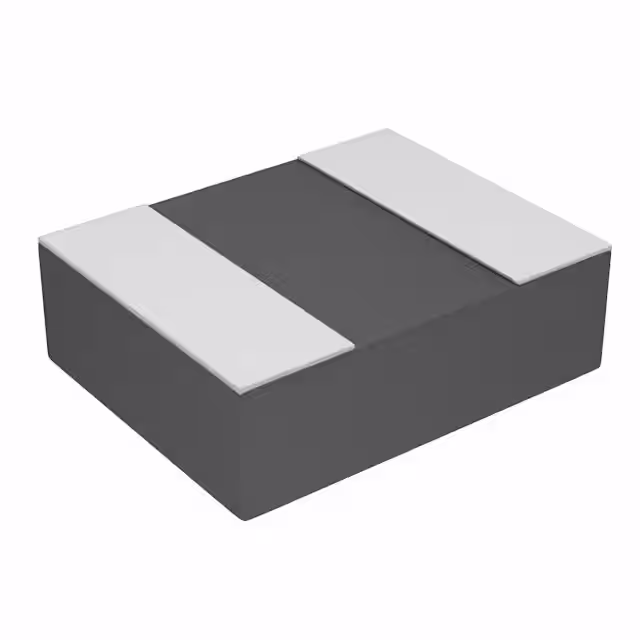

784383220047FIXED IND 470NH 2.25A 87MOHM SMD |
2,510 | 0.40 |
|
Datasheet |
WE-MAIA | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Molded | Iron Alloy | 470 nH | ±30% | 2.25 A | 4.4A | Shielded | 87mOhm Max | - | 160MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2508 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.031" (0.80mm) |
|
PA5004.222NLTFIXED IND 2.2UH 10A 12.2MOHM SMD |
2,285 | 0.44 |
|
Datasheet |
PA5004.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | Ferrite | 2.2 µH | ±20% | 10 A | 11A | Shielded | 12.2mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.268" L x 0.252" W (6.80mm x 6.40mm) | 0.118" (3.00mm) |
|
|
78438322022FIXED IND 2.2UH 1.34A 302MOHM SM |
2,198 | 0.40 |
|
Datasheet |
WE-MAIA | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Molded | Iron Alloy | 2.2 µH | ±30% | 1.34 A | 2.2A | Shielded | 302mOhm Max | - | 60MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2508 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.031" (0.80mm) |
|
MPLCH0740L4R7FIXED IND 4.7UH 5.8A 33 MOHM SMD |
2,057 | 0.44 |
|
Datasheet |
MPLCH | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 4.7 µH | ±20% | 5.8 A | 6.5A | Shielded | 33mOhm Max | - | - | - | -20°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.307" L x 0.264" W (7.80mm x 6.70mm) | 0.157" (4.00mm) |
|
|
MPLC0730L2R2FIXED IND 2.2UH 7.3A 19 MOHM SMD |
1,704 | 0.44 |
|
Datasheet |
MPLC | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Wirewound | - | 2.2 µH | ±20% | 7.3 A | 8.2A | Shielded | 19mOhm Max | - | - | - | -20°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.303" L x 0.264" W (7.70mm x 6.70mm) | 0.118" (3.00mm) |
|
SPM6530T-R68M-HZFIXED IND 680NH 16A 5.39MOHM SMD |
1,501 | 0.42 |
|
Datasheet |
SPM-HZ | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 680 nH | ±20% | 16 A | 12.5A | Shielded | 5.39mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.280" L x 0.256" W (7.10mm x 6.50mm) | 0.118" (3.00mm) |
|

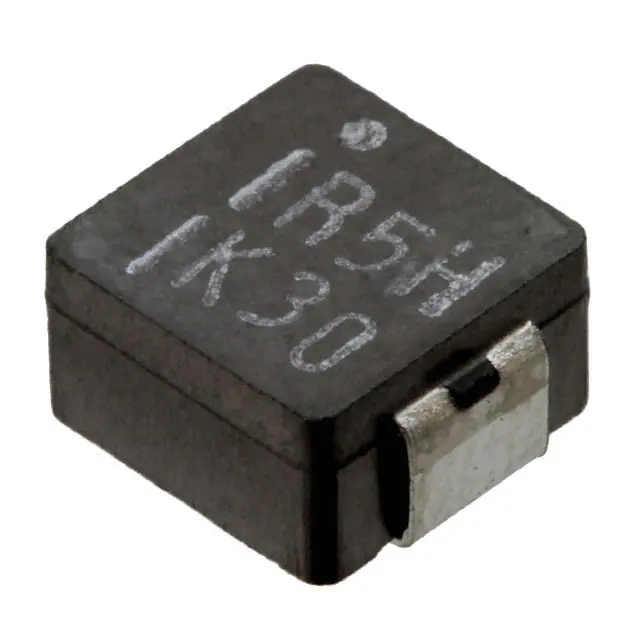

MPLCH0740L1R5FIXED IND 1.5UH 11.1A 9 MOHM SMD |
1,470 | 0.44 |
|
Datasheet |
MPLCH | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1.5 µH | ±20% | 11.1 A | 10.8A | Shielded | 9mOhm Max | - | - | - | -20°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.307" L x 0.264" W (7.80mm x 6.70mm) | 0.157" (4.00mm) |
|
74456268FIXED IND 680UH 500MA 2.6OHM SMD |
576 | 0.25 |
|
Datasheet |
WE-PD4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 680 µH | ±10% | 500 mA | 550mA | Unshielded | 2.6Ohm Max | - | 2.3MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.500" L x 0.394" W (12.70mm x 10.00mm) | 0.209" (5.30mm) |
|
PG0926.113NLFIXED IND 11.5UH 9.5A 12MOHM SMD |
1,190 | - |
|
Datasheet |
PG0926NL | Nonstandard | Tray | Active | Wirewound | - | 11.5 µH | ±20% | 9.5 A | 10.5A | Unshielded | 12mOhm | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.528" L x 0.528" W (13.40mm x 13.40mm) | 0.315" (8.00mm) |
|
|
PG0926.461NLFIXED IND 460NH 44A 0.55MOHM SMD |
1,190 | - |
|
Datasheet |
PG0926NL | Nonstandard | Tray | Active | Wirewound | - | 460 nH | ±20% | 44 A | 50A | Unshielded | 0.55mOhm | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.528" L x 0.528" W (13.40mm x 13.40mm) | 0.315" (8.00mm) |
|
|
PG0926.562NLFIXED IND 5.6UH 14A 4.1 MOHM SMD |
1,185 | - |
|
Datasheet |
PG0926NL | Nonstandard | Tray | Active | Wirewound | - | 5.6 µH | ±20% | 14 A | 14A | Unshielded | 4.1mOhm | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.528" L x 0.528" W (13.40mm x 13.40mm) | 0.315" (8.00mm) |
|

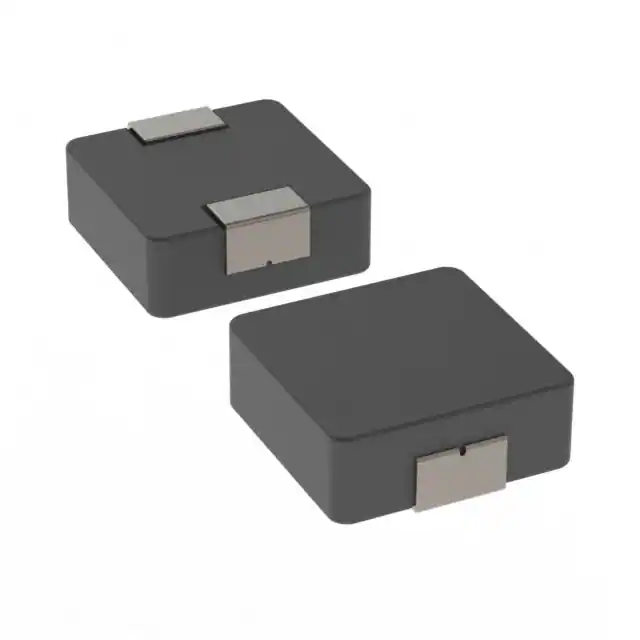

PA4346.103ANLTFIXED IND 10UH 9A 22 MOHM SMD |
6,504 | 0.44 |
|
Datasheet |
PA4346.XXXANLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 10 µH | ±20% | 9 A | 10.5A | Shielded | 22mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.496" W (13.50mm x 12.60mm) | 0.197" (5.00mm) |
|
MPIA4015V2-1R0-RFIXED IND 1UH 5.5A 27 MOHM SMD |
2,758 | 0.42 |
|
Datasheet |
MPIA40-V2 | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Molded | Metal Composite | 1 µH | ±20% | 5.5 A | 6A | Shielded | 27mOhm Max | - | 56MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.195" L x 0.165" W (4.95mm x 4.20mm) | 0.059" (1.50mm) |
|
|
PA4346.332ANLTFIXED IND 3.3UH 14A 7 MOHM SMD |
340 | 0.44 |
|
Datasheet |
PA4346.XXXANLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 3.3 µH | ±20% | 14 A | 20.5A | Shielded | 7mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.496" W (13.50mm x 12.60mm) | 0.197" (5.00mm) |
|

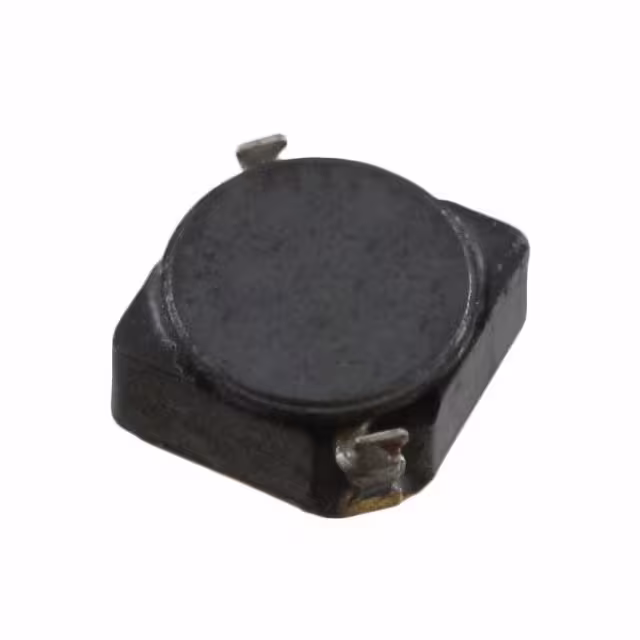

SD6030-3R3-RFIXED IND 3.3UH 3.54A 24MOHM SMD |
4,382 | 0.34 |
|
Datasheet |
SD6030 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±30% | 3.54 A | 2.4A | Shielded | 24mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.118" (3.00mm) |
|
P1170.153NLTFIXED IND 15UH 4A 30 MOHM SMD |
3,097 | 0.44 |
|
Datasheet |
P1170NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 15 µH | ±20% | 4 A | 4A | Shielded | 30mOhm Max | - | 16MHz | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.482" L x 0.482" W (12.24mm x 12.24mm) | 0.236" (6.00mm) |
