Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MPXV1D0650L1R0FIXED IND 1UH 15.6A 6 MOHM SMD |
3,072 | 0.45 |
|
Datasheet |
METCOM MPXV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 1 µH | ±20% | 15.6 A | 13A | Shielded | 6mOhm Max | - | 42MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.256" W (7.00mm x 6.50mm) | 0.197" (5.00mm) |
|
SBCP-87HY4R7HFIXED IND 4.7UH 3.2A 30 MOHM TH |
2,464 | 0.44 |
|
Datasheet |
SBCP | Radial, Vertical Cylinder | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 3.2 A | 4.3A | Unshielded | 30mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.374" Dia (9.50mm) | 0.335" (8.50mm) |
|
|
MPXV1D0650L1R5FIXED IND 1.5UH 13.2A 8.3MOHM SM |
1,922 | 0.45 |
|
Datasheet |
METCOM MPXV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 1.5 µH | ±20% | 13.2 A | 12A | Shielded | 8.3mOhm Max | - | 35MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.256" W (7.00mm x 6.50mm) | 0.197" (5.00mm) |
|

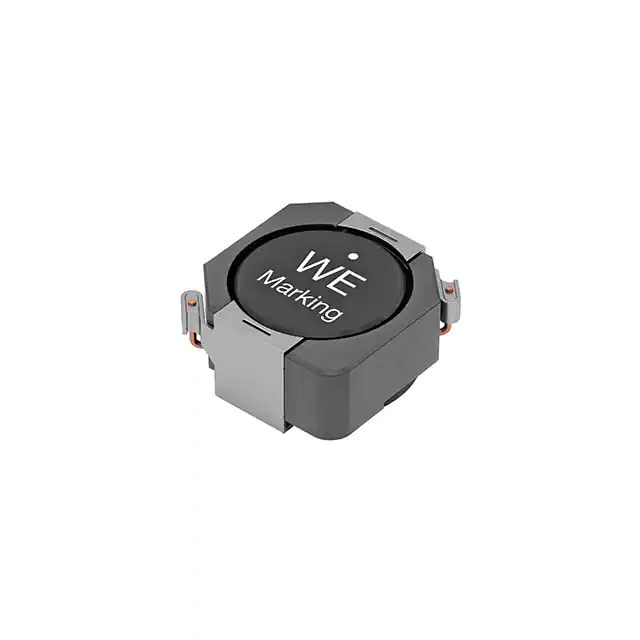

7447773471FIXED IND 470UH 430MA 1.7OHM SMD |
1,000 | 0.43 |
|
Datasheet |
WE-PD Performance | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 µH | ±20% | 430 mA | 550mA | Shielded | 1.7Ohm Max | - | 2.8MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | 7345 | 0.291" L x 0.287" W (7.40mm x 7.30mm) | 0.177" (4.50mm) |
|
|
MPXV1D0650L6R8FIXED IND 6.8UH 5.7A 44.2MOHM SM |
635 | 0.45 |
|
Datasheet |
METCOM MPXV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 6.8 µH | ±20% | 5.7 A | 5.5A | Shielded | 44.2mOhm Max | - | 17MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.256" W (7.00mm x 6.50mm) | 0.197" (5.00mm) |
|
MPX1D1040L330FIXED IND 33UH 3.7A 119.7MOHM SM |
294 | 0.44 |
|
Datasheet |
METCOM MPX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 33 µH | ±20% | 3.7 A | 5A | Shielded | 119.7mOhm Max | - | 5MHz | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.425" L x 0.394" W (10.80mm x 10.00mm) | 0.157" (4.00mm) |
|
7440710082FIXED IND 820NH 7.3A 9 MOHM SMD |
275 | 0.40 |
|
Datasheet |
WE-TPC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 820 nH | ±30% | 7.3 A | 8A | Shielded | 9mOhm Max | - | 130MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.181" (4.60mm) |
|
SRP7030CA-6R8MFIXED IND 6.8UH 6.8A 0.0425OHM |
214 | 0.44 |
|
Datasheet |
SRP7030CA | Nonstandard | Tape & Reel (TR) | Active | - | Carbonyl Powder | 6.8 µH | ±20% | 6.8 A | 12A | Shielded | 42.5mOhm Max | - | 14MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | Flat Wire, High Saturation | Surface Mount | - | 0.307" L x 0.299" W (7.80mm x 7.60mm) | 0.122" (3.10mm) |
|
PE-53602NLFIXED IND 29.7UH 1.4A 166MOHM SM |
166 | 0.41 |
|
Datasheet |
SLIC | Nonstandard | Bulk | Active | Toroidal | - | 29.7 µH | - | 1.4 A | - | Unshielded | 166mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.440" L x 0.435" W (11.18mm x 11.05mm) | 0.360" (9.14mm) |
|
MPIA4020V2-2R2-RFIXED IND 2.2UH 3.8A 48 MOHM SMD |
8,726 | 0.38 |
|
Datasheet |
MPIA40-V2 | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Molded | Metal Composite | 2.2 µH | ±20% | 3.8 A | 5.5A | Shielded | 48mOhm Max | - | 33MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.195" L x 0.165" W (4.95mm x 4.20mm) | 0.079" (2.00mm) |
|
PG0083.182NLFIXED IND 1.8UH 8A 16 MOHM SMD |
3,018 | 0.59 |
|
Datasheet |
PG0083 | Nonstandard | Tray | Active | Wirewound | - | 1.8 µH | ±25% | 8 A | 13A | Unshielded | 16mOhm Max | - | - | - | -40°C ~ 95°C | 100 kHz | - | Surface Mount | - | 0.268" L x 0.268" W (6.80mm x 6.80mm) | 0.157" (4.00mm) |
|

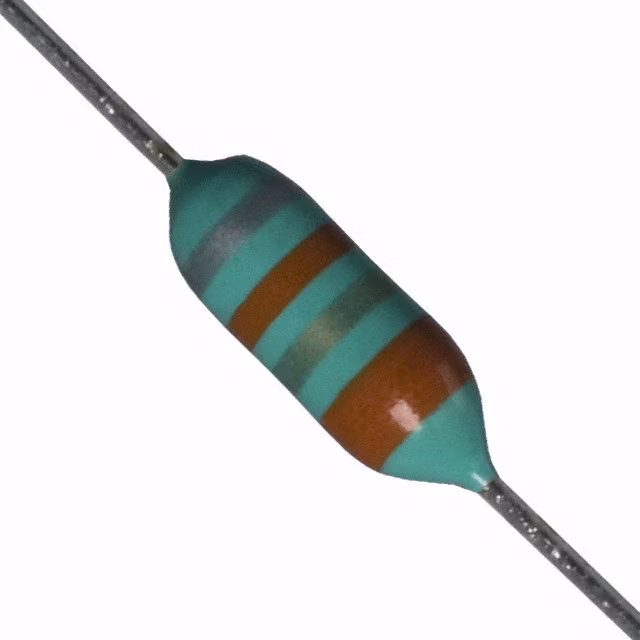

8230-32-RCFIXED IND 3.3UH 380MA 850MOHM TH |
1,949 | 0.45 |
|
Datasheet |
8230 | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±10% | 380 mA | - | Unshielded | 850mOhm Max | 45 @ 7.9MHz | 90MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | - |
|

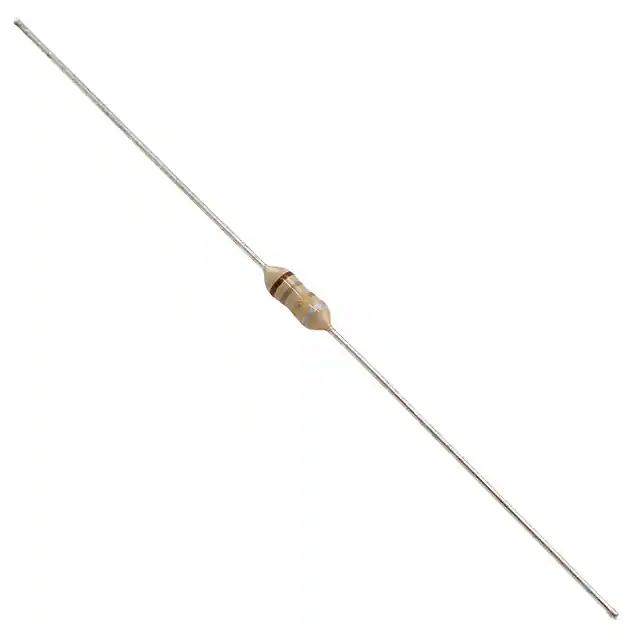

8230-26-RCFIXED IND 1.8UH 640MA 300MOHM TH |
1,174 | 0.43 |
|
Datasheet |
8230 | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 1.8 µH | ±10% | 640 mA | - | Unshielded | 300mOhm Max | 30 @ 7.9MHz | 125MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | - |
|

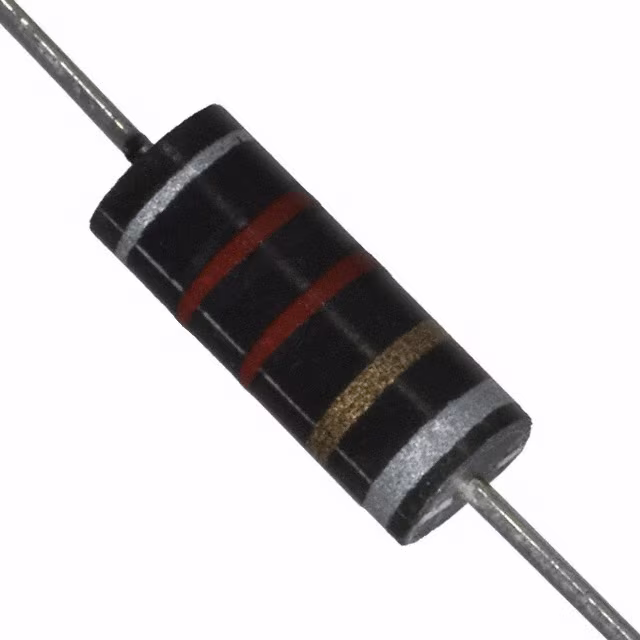

9250A-221-RCFIXED IND 220NH 1.1A 67 MOHM TH |
1,046 | 0.45 |
|
Datasheet |
9250A | Axial | Bulk | Active | Molded | Ferrite | 220 nH | ±10% | 1.1 A | 1.1A | Shielded | 67mOhm Max | 49 @ 25MHz | 250MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|

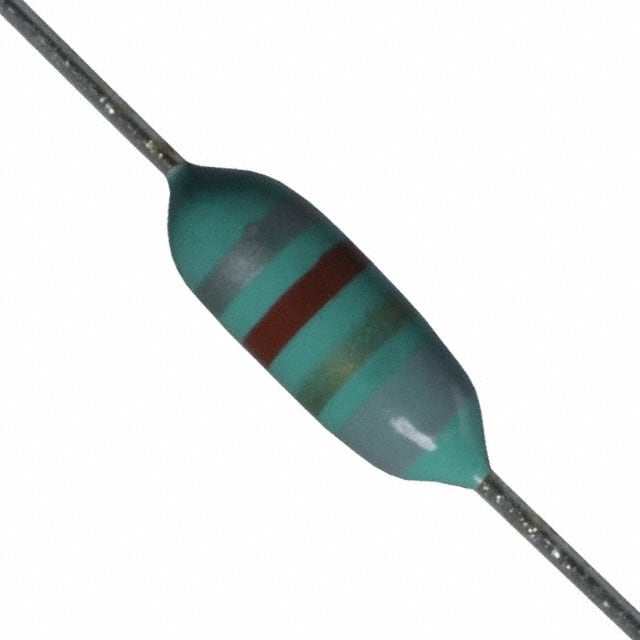

8230-42-RCFIXED IND 8.2UH 210MA 2.7 OHM TH |
994 | 0.45 |
|
Datasheet |
8230 | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 8.2 µH | ±10% | 210 mA | - | Unshielded | 2.7Ohm Max | 55 @ 7.9MHz | 55MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | - |
|

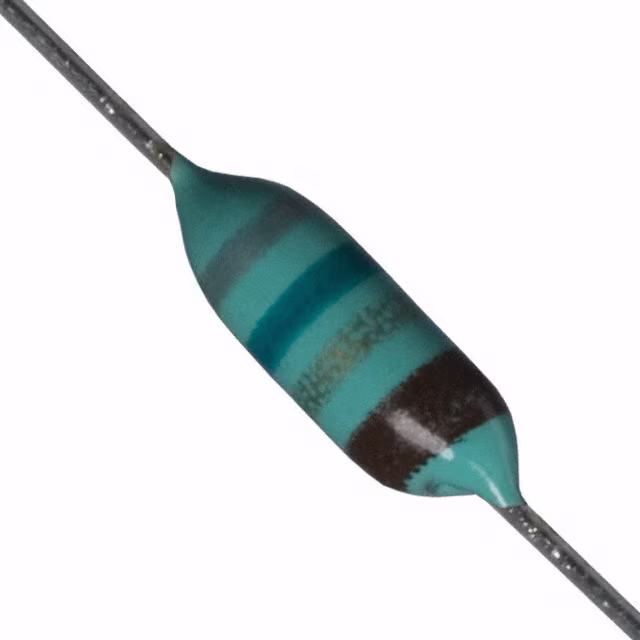

8230-24-RCFIXED IND 1.5UH 745MA 220MOHM TH |
985 | 0.45 |
|
Datasheet |
8230 | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±10% | 745 mA | - | Unshielded | 220mOhm Max | 28 @ 7.9MHz | 140MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | - |
|

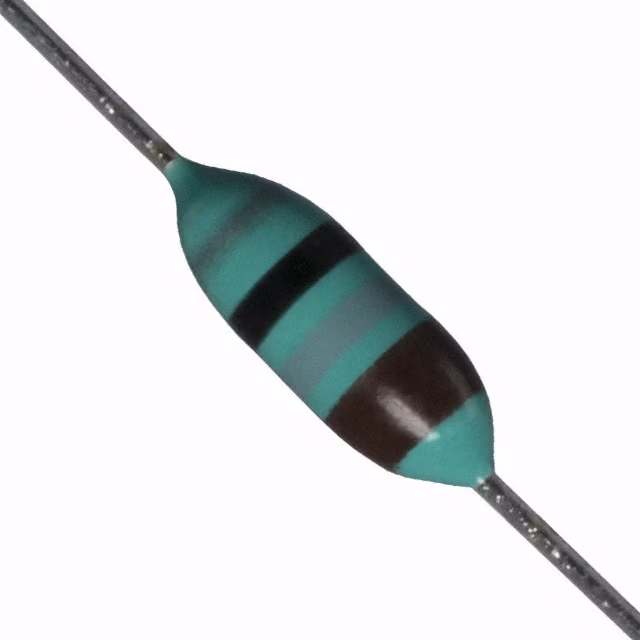

8230-50-RCFIXED IND 18UH 195MA 3.1 OHM TH |
985 | 0.45 |
|
Datasheet |
8230 | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 18 µH | ±10% | 195 mA | - | Unshielded | 3.1Ohm Max | 50 @ 2.5MHz | 32MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | - |
|

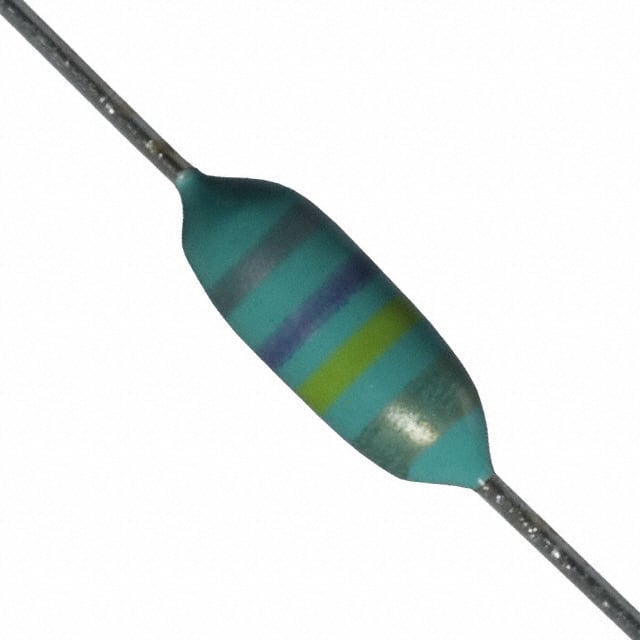

8230-12-RCFIXED IND 470NH 590MA 350MOHM TH |
928 | 0.45 |
|
Datasheet |
8230 | Axial | Bulk | Active | Wirewound | Phenolic | 470 nH | ±10% | 590 mA | - | Unshielded | 350mOhm Max | 30 @ 25MHz | 340MHz | - | -55°C ~ 105°C | 25 MHz | - | Through Hole | - | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | - |
|

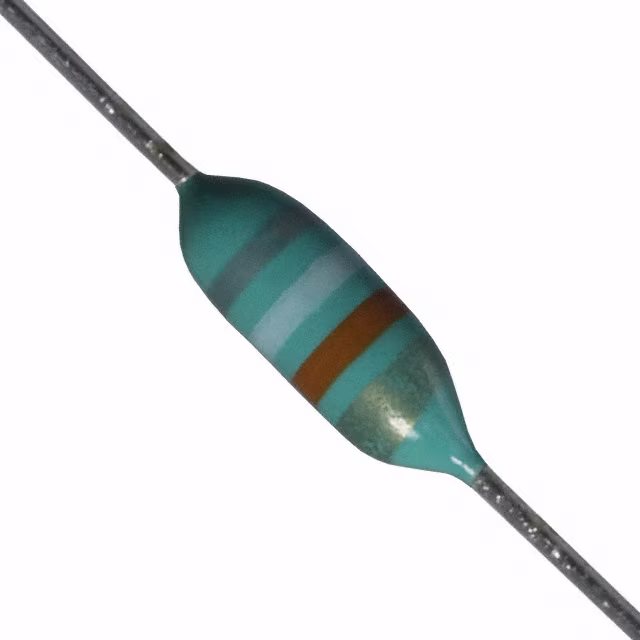

8230-10-RCFIXED IND 390NH 640MA 300MOHM TH |
853 | 0.45 |
|
Datasheet |
8230 | Axial | Bulk | Active | Wirewound | Phenolic | 390 nH | ±10% | 640 mA | - | Unshielded | 300mOhm Max | 30 @ 25MHz | 380MHz | - | -55°C ~ 105°C | 25 MHz | - | Through Hole | - | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | - |
|

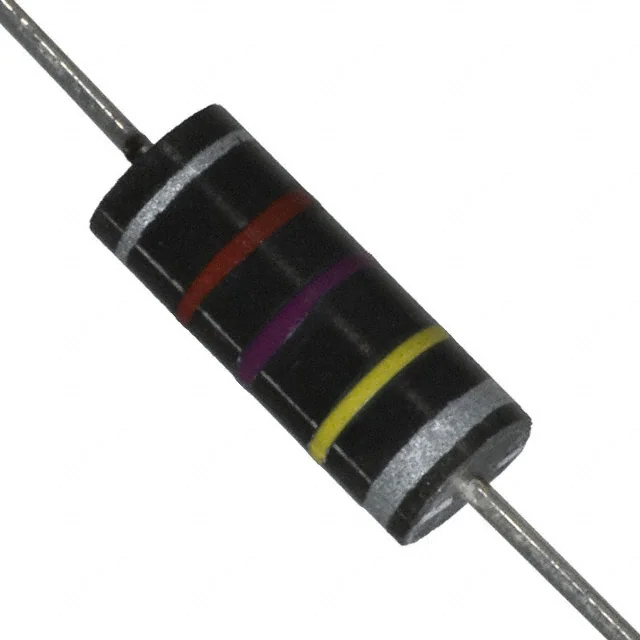

9250A-475-RCFIXED IND 4.7MH 31MA 81.6 OHM TH |
835 | 0.45 |
|
Datasheet |
9250A | Axial | Bulk | Active | Molded | Ferrite | 4.7 mH | ±10% | 31 mA | 19mA | Shielded | 81.6Ohm Max | 45 @ 250kHz | 740kHz | - | -55°C ~ 125°C | 250 kHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
