Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IHLP1616ABER1R2M11FIXED IND 1.2UH 3.75A 58.5 MOHM |
10,941 | 0.98 |
|
Datasheet |
IHLP-1616AB-11 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1.2 µH | ±20% | 3.75 A | 3.75A | Shielded | 58.5mOhm Max | - | 62MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.047" (1.20mm) |
|

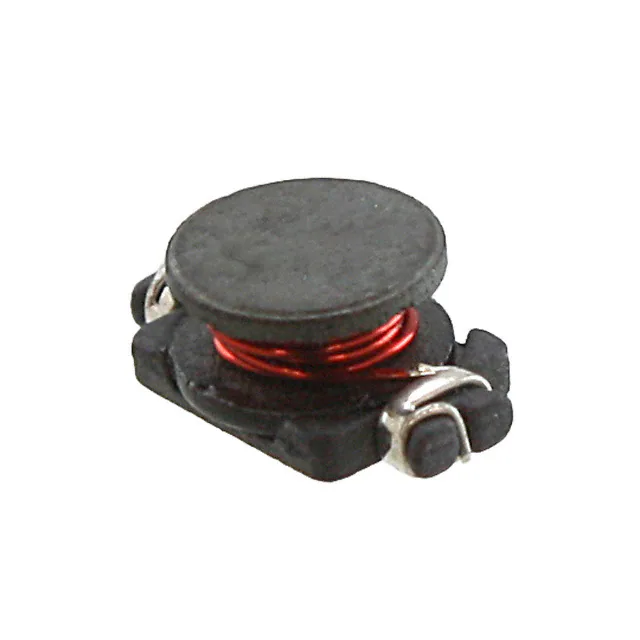

P0770.472NLTFIXED IND 4.7UH 1.5A 90 MOHM SMD |
5,559 | 0.96 |
|
Datasheet |
P0770NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 4.7 µH | ±20% | 1.5 A | 1.5A | Unshielded | 90mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|
PA5404.682NLTFIXED IND 6.8UH 5.5A 51.5MOHM SM |
3,966 | 0.96 |
|
Datasheet |
PA5404 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 6.8 µH | ±20% | 5.5 A | 8.5A | Shielded | 51.5mOhm Max | - | 18MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.197" (5.00mm) |
|
|
PA5404.103NLTFIXED IND 10UH 3.8A 69 MOHM SMD |
3,725 | 0.96 |
|
Datasheet |
PA5404 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 10 µH | ±20% | 3.8 A | 7.5A | Shielded | 69mOhm Max | - | 15MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.197" (5.00mm) |
|
SRP3020TA-8R2MFIXED IND 8.2UH 1.6A 390MOHM SMD |
2,742 | 0.98 |
|
Datasheet |
SRP3020TA | 2-SMD | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 8.2 µH | ±20% | 1.6 A | 1.9A | Shielded | 390mOhm Max | 10 @ 100kHz | 22MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | 2-SMD | 0.138" L x 0.126" W (3.50mm x 3.20mm) | 0.079" (2.00mm) |
|
P0250.105NLTFIXED IND 1MH 560MA 1.8 OHM SMD |
2,433 | 1.38 |
|
Datasheet |
P0250NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1 mH | ±15% | 560 mA | 1A | Unshielded | 1.8Ohm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.733" L x 0.596" W (18.62mm x 15.14mm) | 0.290" (7.36mm) |
|
DR1050-271-RFIXED IND 270UH 960MA 513MOHM SM |
719 | 0.91 |
|
Datasheet |
DR1050 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 270 µH | ±30% | 960 mA | 900mA | Shielded | 513mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.413" L x 0.406" W (10.50mm x 10.30mm) | 0.197" (5.00mm) |
|
SRR1208-151KLFIXED IND 150UH 1.3A 240MOHM SMD |
694 | 0.98 |
|
Datasheet |
SRR1208 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±10% | 1.3 A | 1.72A | Shielded | 240mOhm Max | 14 @ 796kHz | 3MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.500" L x 0.500" W (12.70mm x 12.70mm) | 0.335" (8.50mm) |
|
|
SRP3020TA-R10YFIXED IND 100NH 10.5A 9 MOHM SMD |
658 | 0.98 |
|
Datasheet |
SRP3020TA | 2-SMD | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 100 nH | ±30% | 10.5 A | 14A | Shielded | 9mOhm Max | 5 @ 100kHz | 340MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | 2-SMD | 0.138" L x 0.126" W (3.50mm x 3.20mm) | 0.079" (2.00mm) |
|
|
SRP3020TA-R22YFIXED IND 220NH 9A 14 MOHM SMD |
468 | 0.98 |
|
Datasheet |
SRP3020TA | 2-SMD | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 220 nH | ±30% | 9 A | 11.2A | Shielded | 14mOhm Max | 5 @ 100kHz | 185MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | 2-SMD | 0.138" L x 0.126" W (3.50mm x 3.20mm) | 0.079" (2.00mm) |
|
|
DR1050-6R8-RFIXED IND 6.8UH 5.45A 16.5 MOHM |
465 | 0.91 |
|
Datasheet |
DR1050 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±30% | 5.45 A | 5.8A | Shielded | 16.5mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.413" L x 0.406" W (10.50mm x 10.30mm) | 0.197" (5.00mm) |
1mm.jpg)
|
744383230082FIXED IND 820NH 2.6A 69 MOHM SMD |
8,901 | 0.90 |
|
Datasheet |
WE-MAPI | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Molded | Metal Composite | 820 nH | ±30% | 2.6 A | 4.25A | Shielded | 69mOhm Max | - | 105MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2510 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
SRU1038A-2R2YFIXED IND 2.2UH 6.8A 10.5MOHM SM |
7,818 | 1.00 |
|
Datasheet |
SRU1038A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±30% | 6.8 A | 6.5A | Shielded | 10.5mOhm Max | 12 @ 7.96MHz | 55MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.161" (4.10mm) |
|
|
SRU1038A-150YFIXED IND 15UH 2.8A 50 MOHM SMD |
6,258 | 1.00 |
|
Datasheet |
SRU1038A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±30% | 2.8 A | 2.7A | Shielded | 50mOhm Max | 24 @ 2.52MHz | 16MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.161" (4.10mm) |
|
|
SRU1038A-3R5YFIXED IND 3.5UH 5.5A 15 MOHM SMD |
6,107 | 1.00 |
|
Datasheet |
SRU1038A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.5 µH | ±30% | 5.5 A | 5.5A | Shielded | 15mOhm Max | 14 @ 7.96MHz | 35MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.161" (4.10mm) |
|
784383240047WE-MAIA SMT POWER INDUCTOR 0.47 |
5,961 | 0.97 |
|
Datasheet |
WE-MAIA | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Molded | Iron Alloy | 470 nH | ±30% | 3.4 A | 6.25A | Shielded | 40mOhm Max | - | 145MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
SRU1028A-100YFIXED IND 10UH 2.8A 53 MOHM SMD |
4,818 | 0.90 |
|
Datasheet |
SRU1028A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±30% | 2.8 A | 2.4A | Shielded | 53mOhm Max | 20 @ 2.52MHz | 25MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.122" (3.10mm) |
|
SRR6040A-5R0YFIXED IND 5UH 2.9A 25 MOHM SMD |
4,721 | 1.00 |
|
Datasheet |
SRR6040A | Nonstandard, Corner Terminals | Tape & Reel (TR) | Active | - | Ferrite | 5 µH | ±30% | 2.9 A | 2.63A | Shielded | 25mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.264" L x 0.264" W (6.70mm x 6.70mm) | 0.157" (4.00mm) |
|

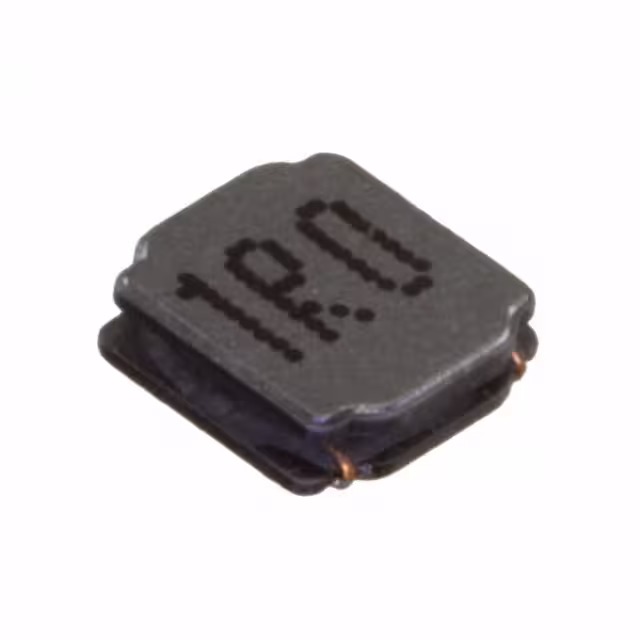

74404041010FIXED IND 1UH 2.52A 41 MOHM SMD |
4,410 | 0.90 |
|
Datasheet |
WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1 µH | ±30% | 2.52 A | 3.35A | Shielded | 41mOhm | - | 142MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.146" W (4.00mm x 3.70mm) | 0.047" (1.20mm) |
|
|
SRR6040A-820MFIXED IND 82UH 700MA 290MOHM SMD |
4,000 | 0.46 |
|
Datasheet |
SRR6040A | Nonstandard, Corner Terminals | Tape & Reel (TR) | Active | - | Ferrite | 82 µH | ±20% | 700 mA | 630mA | Shielded | 290mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.264" L x 0.264" W (6.70mm x 6.70mm) | 0.157" (4.00mm) |
