Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

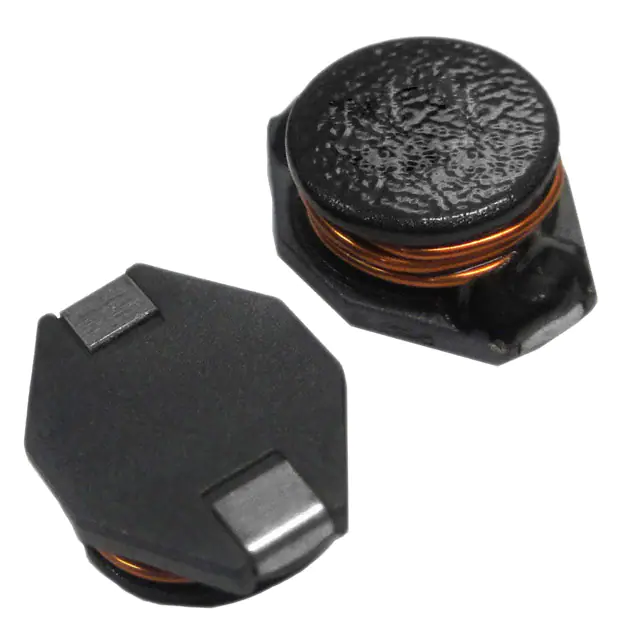

ASPI-0804T-470M-TFIXED IND 47UH 1.6A 140 MOHM SMD |
645 | 0.94 |
|
Datasheet |
ASPI-0804T | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 1.6 A | - | Unshielded | 140mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.205" (5.21mm) |
|

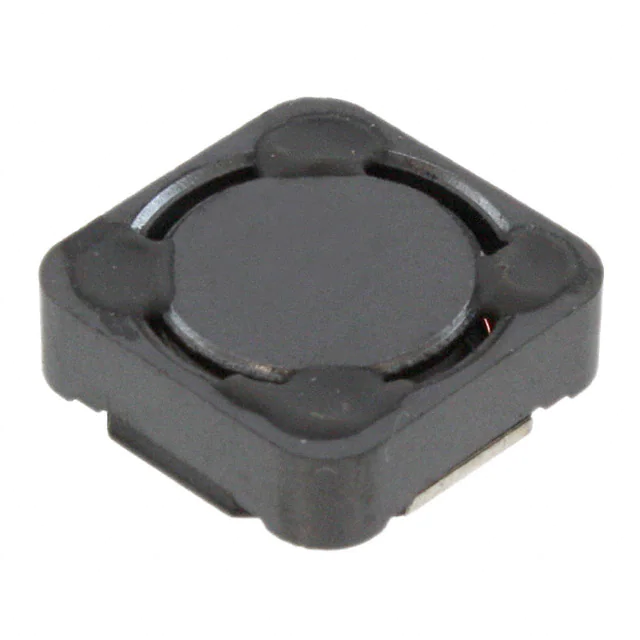

PM124SH-220M-RCFIXED IND 22UH 3A 67.5 OHM SMD |
478 | 0.94 |
|
Datasheet |
PM124SH | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 3 A | 2.6A | Shielded | 67.5mOhm Max | 18 @ 2.52MHz | 16MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.177" (4.50mm) |
|
RL622-270K-RCFIXED IND 27UH 1.7A 80 MOHM TH |
476 | 0.95 |
|
Datasheet |
RL622 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 27 µH | ±10% | 1.7 A | - | Unshielded | 80mOhm Max | 30 @ 2.52MHz | 8.5MHz | - | -55°C ~ 105°C | 2.52 MHz | - | Through Hole | - | 0.335" Dia (8.50mm) | 0.433" (11.00mm) |
|
74404031150AFIXED IND 15UH 810MA 403MOHM SMD |
463 | 0.93 |
|
Datasheet |
WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 15 µH | ±20% | 0.73 A | 800mA | Shielded | 403mOhm | - | 46MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.047" (1.20mm) |
|
|
RL622-153K-RCFIXED IND 15MH 40MA 37 OHM TH |
299 | 0.95 |
|
Datasheet |
RL622 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 15 mH | ±10% | 40 mA | - | Unshielded | 37Ohm Max | 40 @ 79.6kHz | 200kHz | - | -55°C ~ 105°C | 79.6 kHz | - | Through Hole | - | 0.335" Dia (8.50mm) | 0.433" (11.00mm) |
|
|
RL622-223K-RCFIXED IND 22MH 30MA 56 OHM TH |
124 | 0.95 |
|
Datasheet |
RL622 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 22 mH | ±10% | 30 mA | - | Unshielded | 56Ohm Max | 30 @ 79.6kHz | 100kHz | - | -55°C ~ 105°C | 79.6 kHz | - | Through Hole | - | 0.335" Dia (8.50mm) | 0.433" (11.00mm) |
|

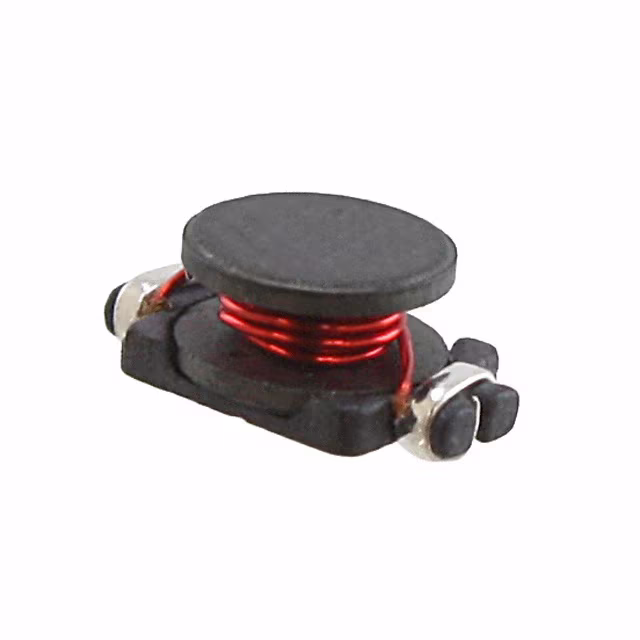

P0770.332NLTFIXED IND 3.3UH 2A 80 MOHM SMD |
6,760 | 0.96 |
|
Datasheet |
P0770NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 3.3 µH | ±20% | 2 A | 2A | Unshielded | 80mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|

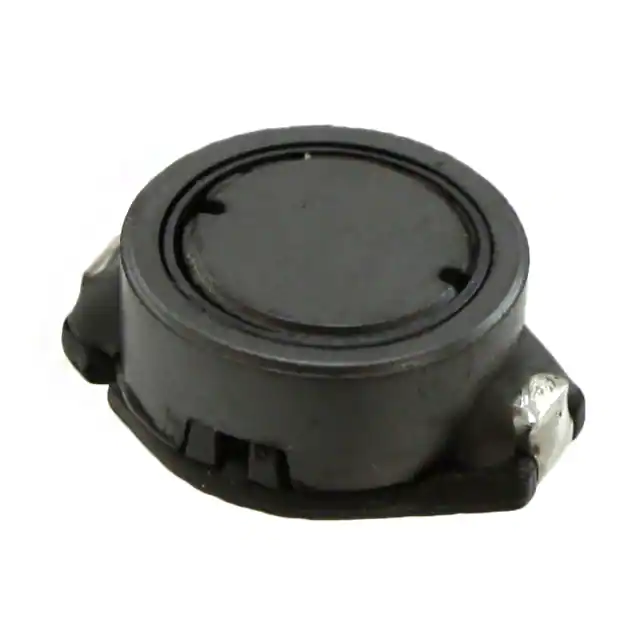

SRR1005-6R8MFIXED IND 6.8UH 2.2A 75 MOHM SMD |
3,540 | 0.96 |
|
- |
SRR1005 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 2.2 A | 2.8A | Shielded | 75mOhm Max | 22 @ 7.96MHz | 35MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.500" L x 0.394" W (12.70mm x 10.00mm) | 0.205" (5.20mm) |
|
0830CDMCCDS-2R2MCFIXED IND 2.2UH 10A 13 MOHM SMD |
1,611 | 0.97 |
|
Datasheet |
0830CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 2.2 µH | ±20% | 10 A | 11.7A | Shielded | 13mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.319" L x 0.307" W (8.10mm x 7.80mm) | 0.118" (3.00mm) |
|
|
SRR1005-222KFIXED IND 2.2MH 140MA 6.5OHM SMD |
1,470 | 0.96 |
|
- |
SRR1005 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 mH | ±10% | 140 mA | 210mA | Shielded | 6.5Ohm Max | 55 @ 252kHz | 1.4MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.500" L x 0.394" W (12.70mm x 10.00mm) | 0.205" (5.20mm) |
|

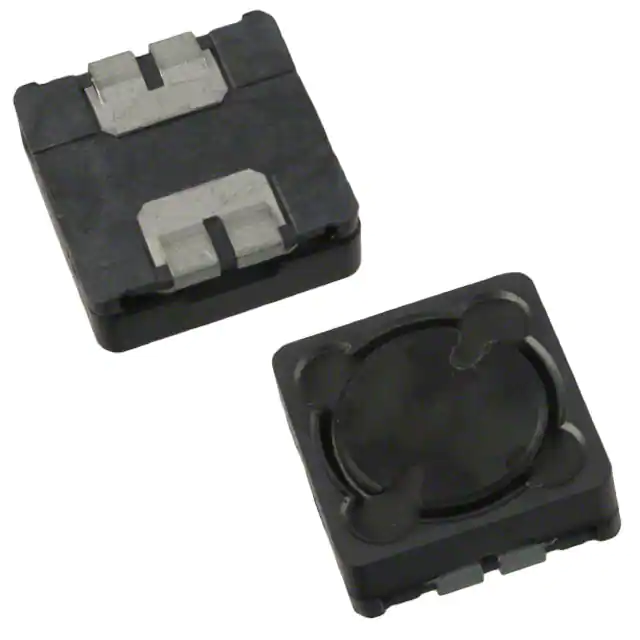

SRR1205-100MLFIXED IND 10UH 3A 54 MOHM SMD |
1,202 | 0.96 |
|
Datasheet |
SRR1205 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 3 A | 6A | Shielded | 54mOhm Max | 21 @ 2.52MHz | 15MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.500" L x 0.500" W (12.70mm x 12.70mm) | 0.217" (5.50mm) |
|

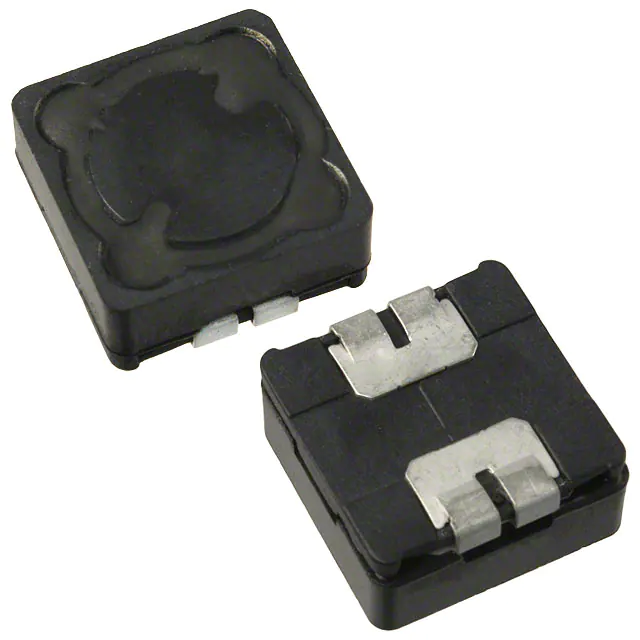

SRR1206-271KLFIXED IND 270UH 650MA 520MOHM SM |
1,180 | 0.96 |
|
Datasheet |
SRR1206 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 270 µH | ±10% | 650 mA | 1.1A | Shielded | 520mOhm Max | 11 @ 796kHz | 3.5MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.500" L x 0.500" W (12.70mm x 12.70mm) | 0.256" (6.50mm) |
|
|
SRR1005-821KFIXED IND 820UH 240MA 2.6OHM SMD |
1,171 | 0.96 |
|
- |
SRR1005 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 820 µH | ±10% | 240 mA | 360mA | Shielded | 2.6Ohm Max | 37 @ 796kHz | 2.5MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.500" L x 0.394" W (12.70mm x 10.00mm) | 0.205" (5.20mm) |
|
|
0830CDMCCDS-3R3MCFIXED IND 3.3UH 9.5A 19 MOHM SMD |
1,002 | 0.97 |
|
Datasheet |
0830CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 3.3 µH | ±20% | 9.5 A | 9.5A | Shielded | 19mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.319" L x 0.307" W (8.10mm x 7.80mm) | 0.118" (3.00mm) |
|
|
0830CDMCCDS-1R0MCFIXED IND 1UH 17A 5.4 MOHM SMD |
776 | 0.97 |
|
Datasheet |
0830CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 1 µH | ±20% | 17 A | 17A | Shielded | 5.4mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.319" L x 0.307" W (8.10mm x 7.80mm) | 0.118" (3.00mm) |
|
|
0830CDMCCDS-R47MCFIXED IND 470NH 23A 3.1 MOHM SMD |
753 | 0.97 |
|
Datasheet |
0830CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 470 nH | ±20% | 23 A | 23A | Shielded | 3.1mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.319" L x 0.307" W (8.10mm x 7.80mm) | 0.118" (3.00mm) |
|
|
0830CDMCCDS-R33MCFIXED IND 330NH 25A 2.6 MOHM SMD |
753 | 0.97 |
|
Datasheet |
0830CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 330 nH | ±20% | 25 A | 28A | Shielded | 2.6mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.319" L x 0.307" W (8.10mm x 7.80mm) | 0.118" (3.00mm) |
|
|
SRR1206-820YLFIXED IND 82UH 1.2A 185 MOHM SMD |
740 | 0.96 |
|
Datasheet |
SRR1206 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 82 µH | ±15% | 1.2 A | 2.1A | Shielded | 185mOhm Max | 16 @ 2.52MHz | 6MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.500" L x 0.500" W (12.70mm x 12.70mm) | 0.256" (6.50mm) |
|
|
SRR1206-150MLFIXED IND 15UH 2.8A 42 MOHM SMD |
629 | 0.96 |
|
Datasheet |
SRR1206 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 2.8 A | 5.1A | Shielded | 42mOhm Max | 19 @ 2.52MHz | 16MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.500" L x 0.500" W (12.70mm x 12.70mm) | 0.256" (6.50mm) |
|
|
SRR1005-681KFIXED IND 680UH 260MA 2.3OHM SMD |
599 | 0.96 |
|
- |
SRR1005 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 680 µH | ±10% | 260 mA | 380mA | Shielded | 2.3Ohm Max | 37 @ 796kHz | 2.6MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.500" L x 0.394" W (12.70mm x 10.00mm) | 0.205" (5.20mm) |
