Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SRU8028A-220YFIXED IND 22UH 1.6A 130 MOHM SMD |
989 | 0.95 |
|
Datasheet |
SRU8028A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±30% | 1.6 A | 1.5A | Shielded | 130mOhm Max | 22 @ 2.52MHz | 20MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.122" (3.10mm) |
|

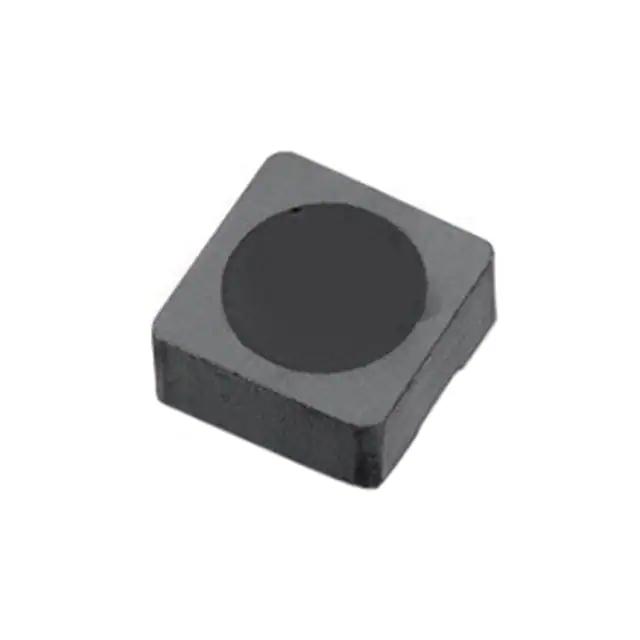

744043390FIXED IND 39UH 795MA 250MOHM SMD |
957 | 0.58 |
|
Datasheet |
WE-TPC | 1919 (4848 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 39 µH | ±30% | 795 mA | 500mA | Shielded | 250mOhm Max | - | 14MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1919 | 0.189" L x 0.189" W (4.80mm x 4.80mm) | 0.118" (3.00mm) |
|
PA4341.102ANLTFIXED IND 1UH 12A 7.4 MOHM SMD |
653 | 0.93 |
|
Datasheet |
PA4341.XXXANLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1 µH | ±20% | 12 A | 15A | Shielded | 7.4mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.280" L x 0.260" W (7.10mm x 6.60mm) | 0.118" (3.00mm) |
|
|
744043561FIXED IND 560UH 220MA 3 OHM SMD |
475 | 0.58 |
|
Datasheet |
WE-TPC | 1919 (4848 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 560 µH | ±30% | 220 mA | 110mA | Shielded | 3Ohm Max | - | 3MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1919 | 0.189" L x 0.189" W (4.80mm x 4.80mm) | 0.118" (3.00mm) |
|
SRU1063-4R7YFIXED IND 4.7UH 5.5A 14 MOHM SMD |
349 | 0.94 |
|
Datasheet |
SRU1063 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±30% | 5.5 A | 5.7A | Shielded | 14mOhm Max | 11 @ 7.96MHz | 30MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.268" (6.80mm) |
|
74404042015FIXED IND 1.5UH 2.95A 31MOHM SMD |
3,629 | 0.93 |
|
Datasheet |
WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±30% | 2.95 A | 4.3A | Shielded | 31mOhm | - | 100MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 4018 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.071" (1.80mm) |
|
RL622-821K-RCFIXED IND 820UH 380MA 1.8 OHM TH |
3,399 | 0.95 |
|
Datasheet |
RL622 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 820 µH | ±10% | 380 mA | - | Unshielded | 1.8Ohm Max | 20 @ 796kHz | 1.5MHz | - | -55°C ~ 105°C | 796 kHz | - | Through Hole | - | 0.335" Dia (8.50mm) | 0.433" (11.00mm) |
|

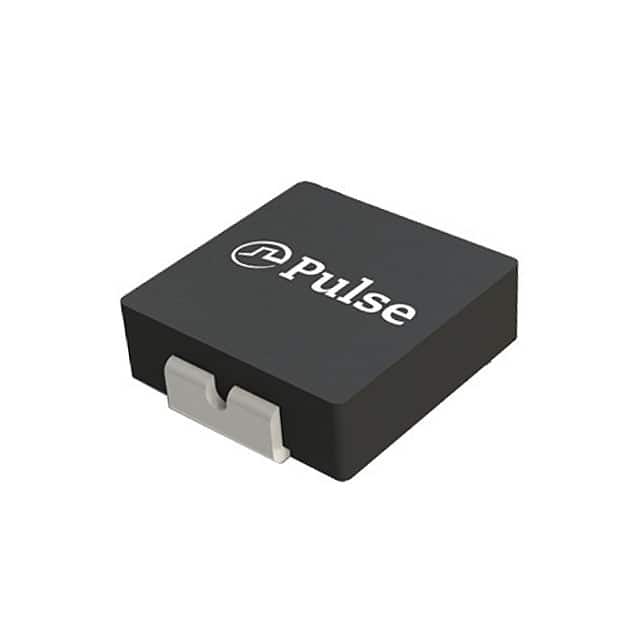

PA4345.241NLTFIXED IND 240NH 13A 7 MOHM SMD |
3,256 | 0.94 |
|
Datasheet |
PA4345.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 240 nH | ±20% | 13 A | 23A | Shielded | 7mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.213" W (6.00mm x 5.40mm) | 0.079" (2.00mm) |
|
36401CFIXED IND 400NH 14.5A 4 MOHM SMD |
2,276 | 0.83 |
|
Datasheet |
3600 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 400 nH | ±25% | 14.5 A | - | Unshielded | 4mOhm Max | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.268" L x 0.268" W (6.80mm x 6.80mm) | 0.165" (4.20mm) |
|

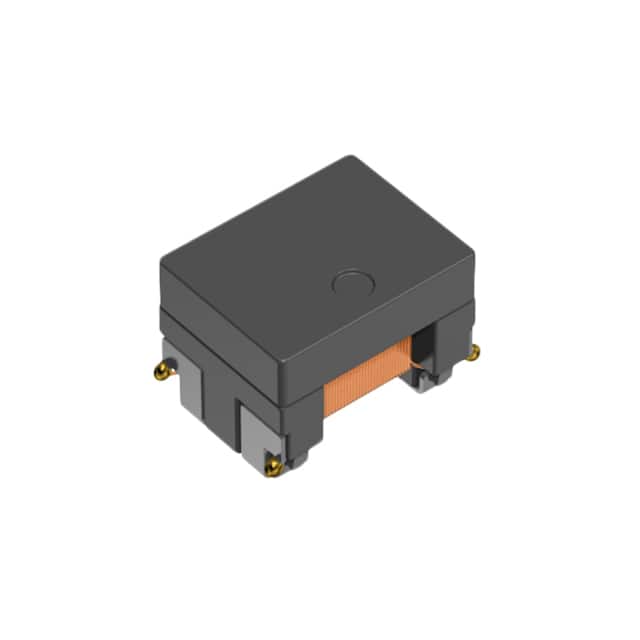

ADL3225VT-4R7M-TL000FIXED IND 4.7UH 720MA 100MOHM SM |
2,195 | 1.35 |
|
Datasheet |
ADL-VT | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 720 mA | 720mA | Shielded | 100mOhm | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.098" (2.50mm) |
|
EXLA1V0503-R27-RIND MOLDED SHLD 0.27UH 18.0A |
2,000 | - |
|
Datasheet |
EXLA1V05 | Nonstandard | Tape & Reel (TR) | Active | Molded | Alloy Powder | 270 nH | ±20% | 25.5 A | 28A | Shielded | 2.55mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.224" W (6.00mm x 5.70mm) | 0.122" (3.10mm) |
|
|
EXLA1V0503-R60-RIND MOLDED SHLD 0.60UH 14.0A |
2,000 | - |
|
Datasheet |
EXLA1V05 | Nonstandard | Tape & Reel (TR) | Active | Molded | Alloy Powder | 600 nH | ±20% | 18 A | 8.8A | Shielded | 4.3mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.224" W (6.00mm x 5.70mm) | 0.122" (3.10mm) |
|
|
RL622-472K-RCFIXED IND 4.7MH 50MA 16 OHM TH |
1,992 | 0.95 |
|
Datasheet |
RL622 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 4.7 mH | ±10% | 50 mA | - | Unshielded | 16Ohm Max | 20 @ 252kHz | 500kHz | - | -55°C ~ 105°C | 252 kHz | - | Through Hole | - | 0.335" Dia (8.50mm) | 0.433" (11.00mm) |
|
|
EXLA1V0503-2R2-RIND MOLDED SHLD 2.0UH 8.2A |
1,986 | - |
|
Datasheet |
EXLA1V05 | Nonstandard | Tape & Reel (TR) | Active | Molded | Alloy Powder | 2.2 µH | ±20% | 11.5 A | 4.3A | Shielded | 12mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.224" W (6.00mm x 5.70mm) | 0.122" (3.10mm) |
|

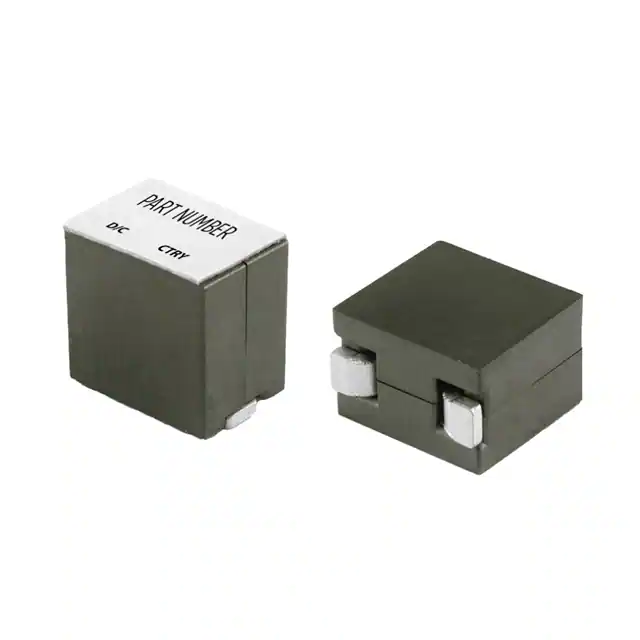

PA5041.331HLTFIXED IND 330NH 22A 0.29MOHM SMD |
1,980 | 1.03 |
|
Datasheet |
PA5041 | Nonstandard | Tape & Reel (TR) | Active | - | - | 330 nH | ±10% | 22 A | 28A | Shielded | 0.29mOhm | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.264" W (7.20mm x 6.70mm) | 0.441" (11.20mm) |
|
EST0645T151MDGAFIXED IND 150UH 720MA 475MOHM SM |
1,717 | 0.94 |
|
Datasheet |
ES, T Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±20% | 720 mA | 500mA | Shielded | 475mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | - | - | Surface Mount | - | 0.248" L x 0.240" W (6.30mm x 6.10mm) | 0.177" (4.50mm) |
|

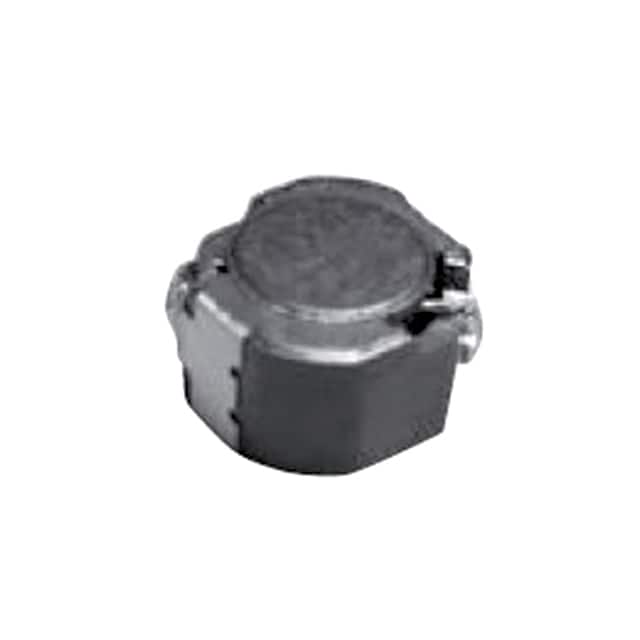

CDRH60D45BT150NP-221MCFIXED IND 220UH 570MA 864MOHM SM |
1,651 | 1.40 |
|
Datasheet |
CDRH60D45B/T150 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 220 µH | ±20% | 570 mA | 620mA | Shielded | 864mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.248" W (6.60mm x 6.30mm) | 0.189" (4.80mm) |
|
AIUR-06-123KFIXED IND 12MH 130MA 14.5 OHM TH |
1,588 | 0.94 |
|
Datasheet |
AIUR-06 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 12 mH | ±10% | 130 mA | 250mA | Unshielded | 14.5Ohm Max | - | - | - | -25°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.500" Dia (12.70mm) | 0.710" (18.03mm) |
|
744040240068FIXED IND 680NH 2.5A 35 MOHM SMD |
1,460 | 0.87 |
|
Datasheet |
WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 680 nH | ±20% | 2.5 A | 3.5A | Shielded | 35mOhm | - | 150MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 2520 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
|
744040240047FIXED IND 470NH 2.6A 32 MOHM SMD |
1,332 | 0.87 |
|
Datasheet |
WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 nH | ±20% | 2.6 A | 5.2A | Shielded | 32mOhm | - | 165MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 2520 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
