Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SRR1205-150MLFIXED IND 15UH 2.7A 70 MOHM SMD |
419 | 0.96 |
|
Datasheet |
SRR1205 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 2.7 A | 5.3A | Shielded | 70mOhm Max | 20 @ 2.52MHz | 11MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.500" L x 0.500" W (12.70mm x 12.70mm) | 0.217" (5.50mm) |
|
SBC3-150-232FIXED IND 15UH 2.3A 50 MOHM TH |
363 | 0.92 |
|
Datasheet |
SBC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 2.3 A | 2.6A | Unshielded | 50mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.354" Dia (9.00mm) | 0.354" (9.00mm) |
|

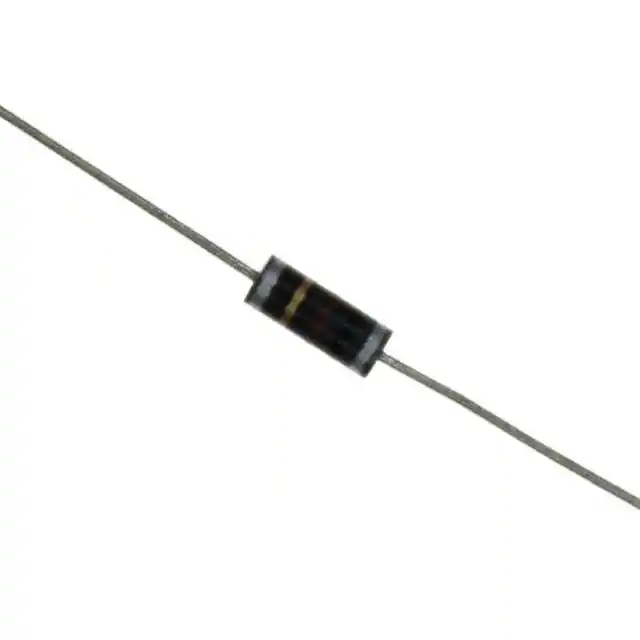

9230-04-RCFIXED IND 220NH 935MA 140MOHM TH |
301 | 1.14 |
|
Datasheet |
9230 | Axial | Bulk | Active | Molded | Phenolic | 220 nH | ±10% | 935 mA | - | Unshielded | 140mOhm Max | 33 @ 25MHz | 510MHz | - | -55°C ~ 105°C | 25 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
SRR1206-821KLFIXED IND 820UH 350MA 1.7OHM SMD |
287 | 0.96 |
|
Datasheet |
SRR1206 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 820 µH | ±10% | 350 mA | 650mA | Shielded | 1.7Ohm Max | 10 @ 796kHz | 2MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.500" L x 0.500" W (12.70mm x 12.70mm) | 0.256" (6.50mm) |
|

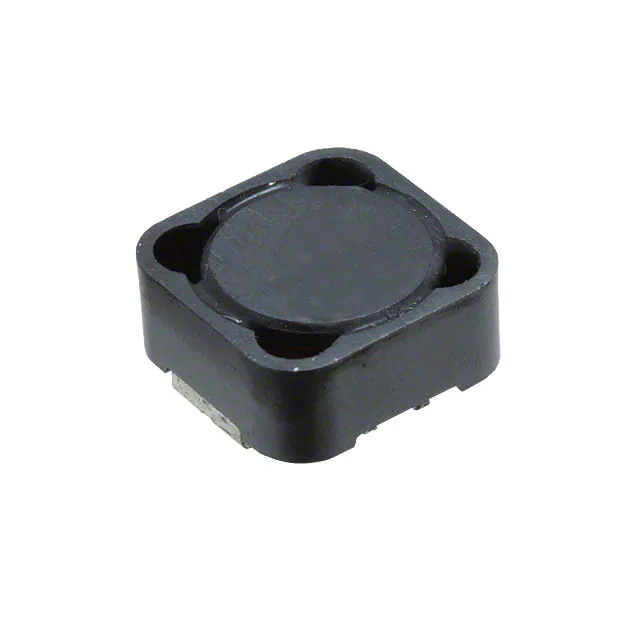

P1170.142NLTFIXED IND 1.4UH 11A 4.2 MOHM SMD |
1,500 | 0.93 |
|
Datasheet |
P1170NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1.4 µH | ±30% | 11 A | 13A | Shielded | 4.2mOhm Max | - | 40MHz | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.482" L x 0.482" W (12.24mm x 12.24mm) | 0.236" (6.00mm) |
|
SCRH124-330FIXED IND 33UH 2.43A 97 MOHM SMD |
3,003 | 0.94 |
|
Datasheet |
SCRH124 | Nonstandard | Tape & Reel (TR) | Active | - | - | 33 µH | ±20% | 2.43 A | 2.7A | Shielded | 97mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.177" (4.50mm) |
|
PA5121.231HLTFIXED IND 230NH 13A 0.65MOHM SMD |
2,634 | 1.06 |
|
Datasheet |
PA5121.XXXHL | Nonstandard | Tape & Reel (TR) | Active | - | - | 230 nH | ±10% | 13 A | 23A | Shielded | 0.65mOhm | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | SMD | 0.307" L x 0.283" W (7.80mm x 7.20mm) | 0.211" (5.35mm) |
|
P0770.154NLTFIXED IND 150UH 250MA 2 OHM SMD |
2,345 | 0.96 |
|
Datasheet |
P0770NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 150 µH | ±20% | 250 mA | 270mA | Unshielded | 2Ohm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|
PGL6478.281HLTINDUCTOR PWR BEAD 260NH 15A SMD |
1,995 | - |
|
Datasheet |
PGL6478.XXXHL | Nonstandard, 3 Lead | Tape & Reel (TR) | Active | - | - | 280 nH | ±15% | 33 A | 23A | Unshielded | 450mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 3-SMD | 0.386" L x 0.386" W (9.80mm x 9.80mm) | 0.140" (3.55mm) |
|
SCRH104R-680FIXED IND 68UH 1.42A 265MOHM SMD |
1,651 | 0.94 |
|
Datasheet |
SCRH104R | Nonstandard | Tape & Reel (TR) | Active | - | - | 68 µH | ±30% | 1.42 A | 1.5A | Shielded | 265mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.413" L x 0.406" W (10.50mm x 10.30mm) | 0.157" (4.00mm) |
|
|
EXLA1V0605-8R2-RIND MOLDED SHLD 8.2UH 6.2A |
1,335 | - |
|
Datasheet |
EXLA1V06 | Nonstandard | Tape & Reel (TR) | Active | Molded | Alloy Powder | 8.2 µH | ±20% | 6.2 A | 6.8A | Shielded | 31.5mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.272" W (7.20mm x 6.90mm) | 0.197" (5.00mm) |
|

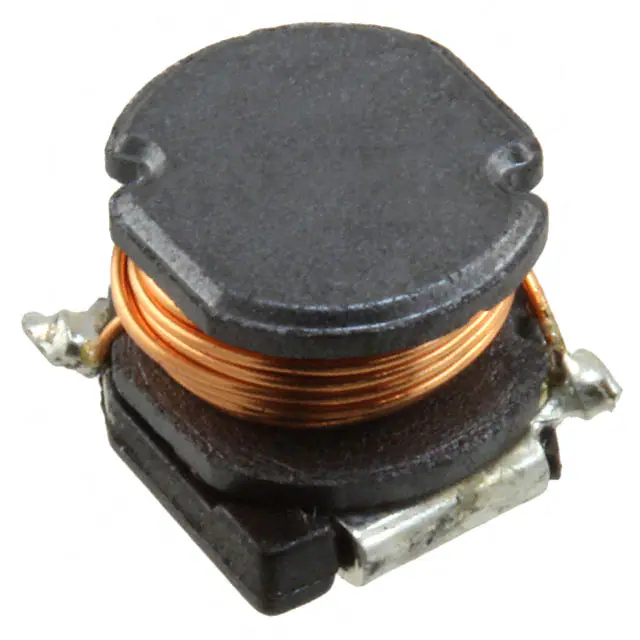

B82471A1103M000FIXED IND 10UH 1.44A 100MOHM SMD |
696 | 1.04 |
|
Datasheet |
B82471A1 | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 1.44 A | 1.8A | Unshielded | 100mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.240" L x 0.220" W (6.10mm x 5.60mm) | 0.193" (4.90mm) |
|

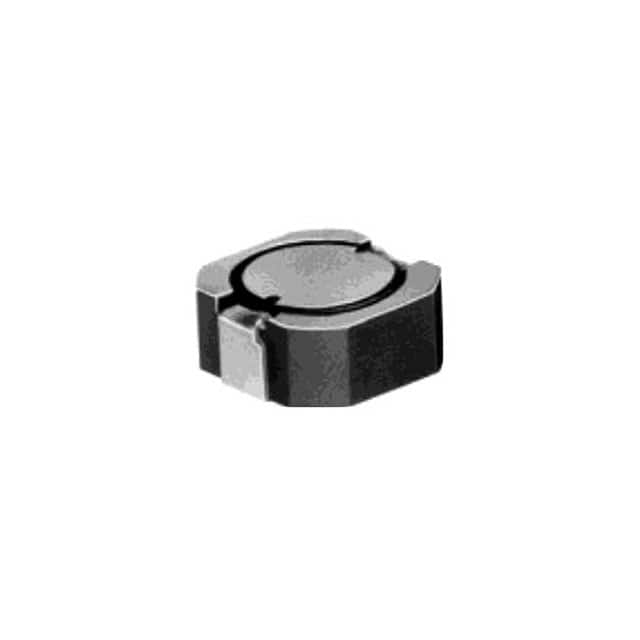

#B952AS-H-101M=P3FIXED IND 100UH 900MA 380MOHM SM |
615 | 0.94 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 900 mA | 1.1A | Shielded | 380mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.409" W (10.40mm x 10.40mm) | 0.189" (4.80mm) |
|
MWSA1004S-R47MTFIXED IND 470NH 30A 1.7MOHM SMD |
490 | 1.31 |
|
Datasheet |
MWSA-S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Alloy Powder | 470 nH | ±20% | 30 A | 40A | Shielded | 1.7mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.157" (4.00mm) |
|
|
MWSA1004S-R22MTFIXED IND 220NH 35A 1 MOHM SMD |
473 | 1.31 |
|
Datasheet |
MWSA-S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Alloy Powder | 220 nH | ±20% | 35 A | 60A | Shielded | 1mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.157" (4.00mm) |
|
|
MWSA1004S-101MTFIXED IND 100UH 340 MOHM SMD |
459 | 1.31 |
|
Datasheet |
MWSA-S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Alloy Powder | 100 µH | ±20% | - | - | Shielded | 340mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.157" (4.00mm) |
|
EXL1V0705-3R3-RFIXED IND 3.3UH 13A 11.44MOHM SM |
420 | 0.82 |
|
Datasheet |
EXL1V0705 | Nonstandard | Tape & Reel (TR) | Active | Molded | Iron Powder | 3.3 µH | ±20% | 13 A | 14A | Shielded | 11.44mOhm Max | - | 20MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.331" L x 0.315" W (8.40mm x 8.00mm) | 0.197" (5.00mm) |
|
|
#B952AS-H-150M=P3FIXED IND 15UH 2.3A 62 MOHM SMD |
374 | 0.94 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 2.3 A | 3.1A | Shielded | 62mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.409" W (10.40mm x 10.40mm) | 0.189" (4.80mm) |
|
|
#B952AS-H-470M=P3FIXED IND 47UH 1.3A 175 MOHM SMD |
296 | 0.94 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 1.3 A | 1.7A | Shielded | 175mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.409" W (10.40mm x 10.40mm) | 0.189" (4.80mm) |
|
|
SBC6-3R3-852FIXED IND 3.3UH 8.5A 10 MOHM TH |
182 | 1.30 |
|
Datasheet |
SBC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 8.5 A | 20A | Unshielded | 10mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.472" Dia (12.00mm) | 0.591" (15.00mm) |
