Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SRR6040A-101MFIXED IND 100UH 650MA 345MOHM SM |
1,819 | 1.00 |
|
Datasheet |
SRR6040A | Nonstandard, Corner Terminals | Tape & Reel (TR) | Active | - | Ferrite | 100 µH | ±20% | 650 mA | 570mA | Shielded | 345mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.264" L x 0.264" W (6.70mm x 6.70mm) | 0.157" (4.00mm) |
|
SRU1038A-221YFIXED IND 220UH 650MA 740MOHM SM |
1,770 | 0.91 |
|
Datasheet |
SRU1038A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±30% | 650 mA | 650mA | Shielded | 740mOhm Max | 22 @ 796kHz | 4MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.161" (4.10mm) |
|
74404063015FIXED IND 1.5UH 4.58A 13MOHM SMD |
1,601 | 0.90 |
|
Datasheet |
WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±30% | 4.58 A | 6.6A | Shielded | 13mOhm | - | 98MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 6028 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.110" (2.80mm) |
|
74404042151FIXED IND 150UH 300MA 2.853 OHM |
1,580 | 0.96 |
|
Datasheet |
WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 150 µH | ±20% | 300 mA | 450mA | Shielded | 2.853Ohm | - | 7.5MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.071" (1.80mm) |
|
|
74404063680FIXED IND 68UH 860MA 360MOHM SMD |
1,546 | 0.96 |
|
Datasheet |
WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | 860 mA | 880mA | Shielded | 360mOhm | - | 11MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 6028 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.110" (2.80mm) |
|

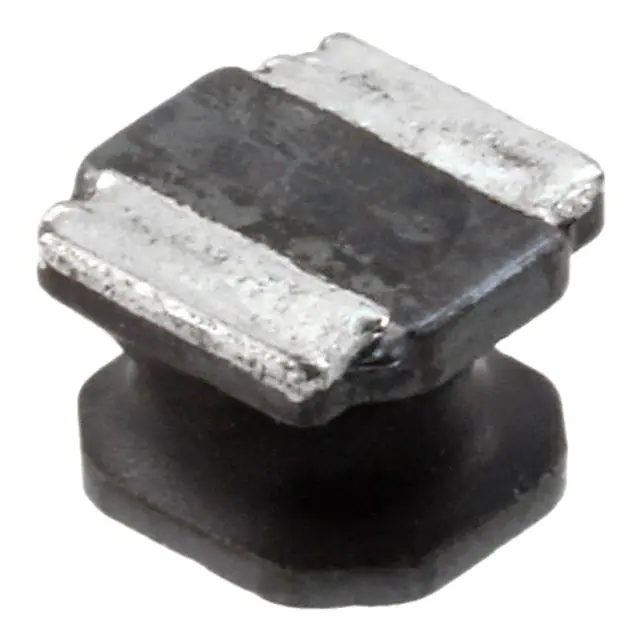

74404054015FIXED IND 1.5UH 4.3A 15 MOHM SMD |
1,111 | 0.96 |
|
Datasheet |
WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±30% | 4.3 A | 6.9A | Shielded | 15mOhm | - | 137MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 5040 | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.157" (4.00mm) |
|
74404064018FIXED IND 1.8UH 4.95A 12MOHM SMD |
1,096 | 0.90 |
|
Datasheet |
WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.8 µH | ±30% | 5.8 A | 8.5A | Shielded | 12mOhm | - | 79MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 6045 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|

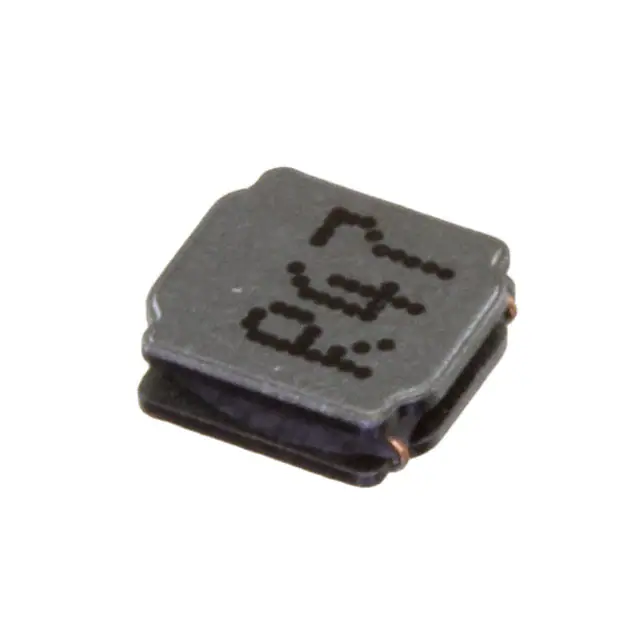

744040410047FIXED IND 470NH 3.25A 28MOHM SMD |
1,068 | 0.96 |
|
Datasheet |
WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 470 nH | ±30% | 3.25 A | 4.25A | Shielded | 28mOhm | - | 274MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 4012 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.047" (1.20mm) |
|
78438324082WE-MAIA SMT POWER INDUCTOR 8.2 U |
988 | 0.97 |
|
Datasheet |
WE-MAIA | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Molded | Iron Alloy | 8.2 µH | ±20% | 800 mA | 1.5A | Shielded | 720mOhm Max | - | 25MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
74479287222FIXED IND 2.2UH 1.5A 132MOHM SMD |
770 | 0.90 |
|
Datasheet |
WE-PMCI | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Molded | - | 2.2 µH | ±30% | 1.5 A | 2.5A | Shielded | 132mOhm Max | - | 30MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
|
74404063010FIXED IND 1UH 5.2A 10 MOHM SMD |
726 | 0.96 |
|
Datasheet |
WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±30% | 5.2 A | 7.5A | Shielded | 10mOhm | - | 130MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 6028 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.110" (2.80mm) |
1.2mm.jpg)
|
744383340056FIXED IND 560NH 3.6A 34.8MOHM SM |
722 | 0.90 |
|
Datasheet |
WE-MAPI | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Molded | Metal Composite | 560 nH | ±30% | 3.6 A | 8.5A | Shielded | 34.8mOhm Max | - | 108MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 3012 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.047" (1.20mm) |
|
|
74438334033FIXED IND 3.3UH 1.4A 179.7 MOHM |
529 | 0.96 |
|
Datasheet |
WE-MAPI | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Molded | Metal Composite | 3.3 µH | ±20% | 1.4 A | 4A | Shielded | 179.7mOhm Max | - | 36MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 3012 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.047" (1.20mm) |
|
SC1813FH-R18FIXED IND 180NH 11.2A 4.5MOHM SM |
525 | 0.94 |
|
Datasheet |
SC1813FH | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 180 nH | ±30% | 11.2 A | 14A | Unshielded | 4.5mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.350" L x 0.240" W (8.89mm x 6.10mm) | 0.197" (5.00mm) |
|

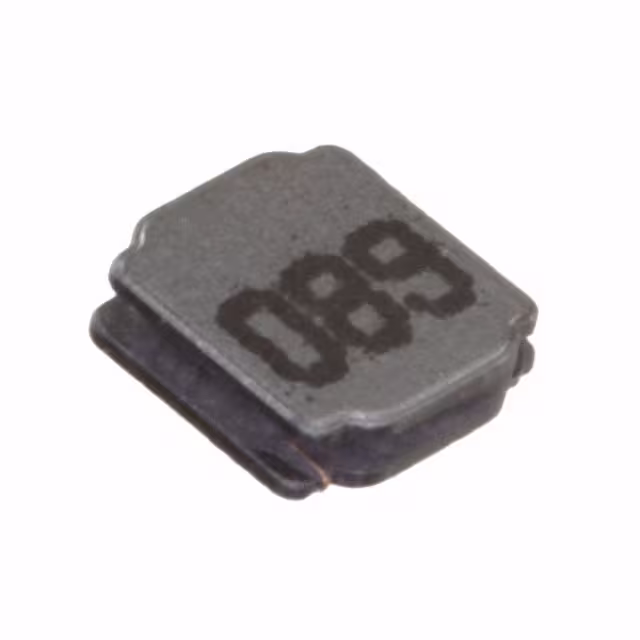

74404041680FIXED IND 68UH 450MA 1.495OHM SM |
222 | 0.96 |
|
Datasheet |
WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 68 µH | ±20% | 450 mA | 480mA | Shielded | 1.495Ohm | - | 13MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.047" (1.20mm) |
|
SRR1208-821KLFIXED IND 820UH 550MA 1.15OHM SM |
109 | 0.98 |
|
Datasheet |
SRR1208 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 820 µH | ±10% | 550 mA | 770mA | Shielded | 1.15Ohm Max | 12 @ 796kHz | 1.2MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.500" L x 0.500" W (12.70mm x 12.70mm) | 0.335" (8.50mm) |
|
BPSC00131380100M00FIXED IND 10UH 22 MOHM SMD |
5,451 | 0.99 |
|
Datasheet |
BPSC | Nonstandard | Tape & Reel (TR) | Active | - | - | 10 µH | ±20% | - | 8.9A | Shielded | 22mOhm Max | - | - | - | -40°C ~ 105°C | 1 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|

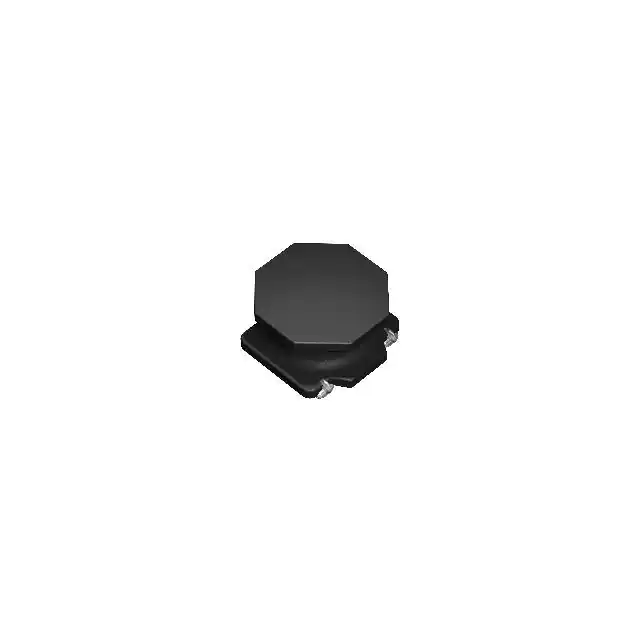

LCDND3030KKT100MMFIXED IND 10UH 850MA 575MOHM SMD |
3,889 | 0.46 |
|
Datasheet |
LCDN | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Wirewound | Metal | 10 µH | ±20% | 850 mA | 1.1A | Unshielded | 575mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1212 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.039" (1.00mm) |
|
MDKK3030T2R2MMVFIXED IND 2.2UH 2.2A 144MOHM SMD |
3,859 | 1.00 |
|
Datasheet |
MCOIL™, MD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 2.2 µH | ±20% | 2.2 A | 2.5A | Shielded | 144mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.039" (1.00mm) |
|
CMLB104T-470MSFIXED IND 47UH 3.3A 143MOHM SMD |
2,135 | 1.32 |
|
Datasheet |
CMLB104T | Nonstandard | Tape & Reel (TR) | Active | - | Metal | 47 µH | ±20% | 3.3 A | 3.7A | Shielded | 143mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.427" L x 0.394" W (10.85mm x 10.00mm) | 0.157" (4.00mm) |
