Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EXLA1V0603-1R5-RIND MOLDED SHLD 1.5UH 15.0A |
1,819 | - |
|
Datasheet |
EXLA1V06 | Nonstandard | Tape & Reel (TR) | Active | Molded | Alloy Powder | 1.5 µH | ±20% | 15 A | 15.5A | Shielded | 9.13mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.272" W (7.20mm x 6.90mm) | 0.122" (3.10mm) |
|
IHLP1616BZERR68M51FIXED IND 0.68UH 7.6 A 18.8 MOHM |
1,331 | 0.26 |
|
Datasheet |
IHLP-1616BZ-51 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 680 nH | ±20% | 7.6 A | 6.8A | Shielded | 18.8mOhm Max | - | 100MHz | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.079" (2.00mm) |
|
|
EXLA1V0603-4R5-RIND MOLDED SHLD 4.5UH 7.0A |
999 | - |
|
Datasheet |
EXLA1V06 | Nonstandard | Tape & Reel (TR) | Active | Molded | Alloy Powder | 4.5 µH | ±20% | 7 A | 8A | Shielded | 25.3mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.272" W (7.20mm x 6.90mm) | 0.122" (3.10mm) |
|
MPXV1D1054L2R2FIXED IND 2.2UH 18A 5.41MOHM SMD |
998 | 0.35 |
|
Datasheet |
METCOM MPXV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 2.2 µH | ±20% | 18 A | 16.5A | Shielded | 5.41mOhm Max | - | 21MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.425" L x 0.394" W (10.80mm x 10.00mm) | 0.213" (5.40mm) |
|
|
EXLA1V0603-4R7-RIND MOLDED SHLD 4.7UH 6.0A |
990 | - |
|
Datasheet |
EXLA1V06 | Nonstandard | Tape & Reel (TR) | Active | Molded | Alloy Powder | 4.7 µH | ±20% | 6 A | 7A | Shielded | 29.2mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.272" W (7.20mm x 6.90mm) | 0.122" (3.10mm) |
|
|
EXLA1V0603-R68-RIND MOLDED SHLD 0.68UH 20.0A |
990 | - |
|
Datasheet |
EXLA1V06 | Nonstandard | Tape & Reel (TR) | Active | Molded | Alloy Powder | 680 nH | ±20% | 20 A | 21A | Shielded | 5.17mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.272" W (7.20mm x 6.90mm) | 0.118" (3.00mm) |
|
|
EXLA1V0603-R56-RIND MOLDED SHLD 0.56UH 22.0A |
990 | - |
|
Datasheet |
EXLA1V06 | Nonstandard | Tape & Reel (TR) | Active | Molded | Alloy Powder | 560 nH | ±20% | 22 A | 25A | Shielded | 3.31mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.272" W (7.20mm x 6.90mm) | 0.118" (3.00mm) |
|
|
EXLA1V0603-2R2-RIND MOLDED SHLD 2.2UH 10.0A |
990 | - |
|
Datasheet |
EXLA1V06 | Nonstandard | Tape & Reel (TR) | Active | Molded | Alloy Powder | 2.2 µH | ±20% | 10 A | 11A | Shielded | 12.2mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.272" W (7.20mm x 6.90mm) | 0.122" (3.10mm) |
|
|
EXLA1V0603-1R2-RIND MOLDED SHLD 1.2UH 16.0A |
979 | - |
|
Datasheet |
EXLA1V06 | Nonstandard | Tape & Reel (TR) | Active | Molded | Alloy Powder | 1.2 µH | ±20% | 16 A | 16A | Shielded | 7.4mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.272" W (7.20mm x 6.90mm) | 0.118" (3.00mm) |
|
BPSC00131380470M00INDUCTOR POWER |
974 | 0.11 |
|
Datasheet |
BPSC | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 47 µH | ±20% | - | 3.6A | Shielded | 100mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|
|
EXLA1V0603-1R8-RIND MOLDED SHLD 1.8UH 14.0A |
916 | - |
|
Datasheet |
EXLA1V06 | Nonstandard | Tape & Reel (TR) | Active | Molded | Alloy Powder | 1.8 µH | ±20% | 14 A | 13A | Shielded | 10.2mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.272" W (7.20mm x 6.90mm) | 0.122" (3.10mm) |
|
|
EXLA1V0603-R18-RIND MOLDED SHLD 0.18UH 32.0A |
871 | - |
|
Datasheet |
EXLA1V06 | Nonstandard | Tape & Reel (TR) | Active | Molded | Alloy Powder | 180 nH | ±20% | 32 A | 36A | Shielded | 1.75mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.272" W (7.20mm x 6.90mm) | 0.118" (3.00mm) |
|
EXL1V0605-3R3-RFIXED IND 3.3UH 11A 12.5MOHM SMD |
651 | 0.21 |
|
Datasheet |
EXL1V0605 | Nonstandard | Tape & Reel (TR) | Active | Molded | Iron Powder | 3.3 µH | ±20% | 11 A | 10A | Shielded | 12.5mOhm Max | - | 25MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.272" W (7.20mm x 6.90mm) | 0.197" (5.00mm) |
|

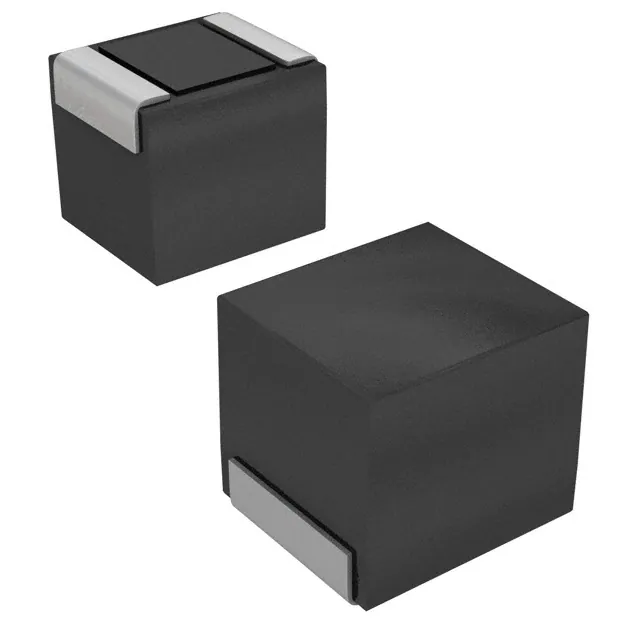

B82442T1224K050FIXED IND 220UH 330MA 2.21OHM SM |
645 | 0.26 |
|
Datasheet |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±10% | 330 mA | 500mA | Unshielded | 2.21Ohm Max | 20 @ 796kHz | 3.9MHz | AEC-Q200 | -55°C ~ 125°C | 2.52 MHz | - | Surface Mount | 2220 (5650 Metric) | 0.220" L x 0.197" W (5.60mm x 5.00mm) | 0.209" (5.30mm) |
|
SRU1028A-150YFIXED IND 15UH 2A 90 MOHM SMD |
595 | 0.25 |
|
Datasheet |
SRU1028A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±30% | 2 A | 2A | Shielded | 90mOhm Max | 26 @ 2.52MHz | 22MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.122" (3.10mm) |
|
|
BPSC001313801R5T00INDUCTOR POWER |
490 | 0.11 |
|
Datasheet |
BPSC | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 1.5 µH | ±30% | - | 21.6A | Shielded | 7.4mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|

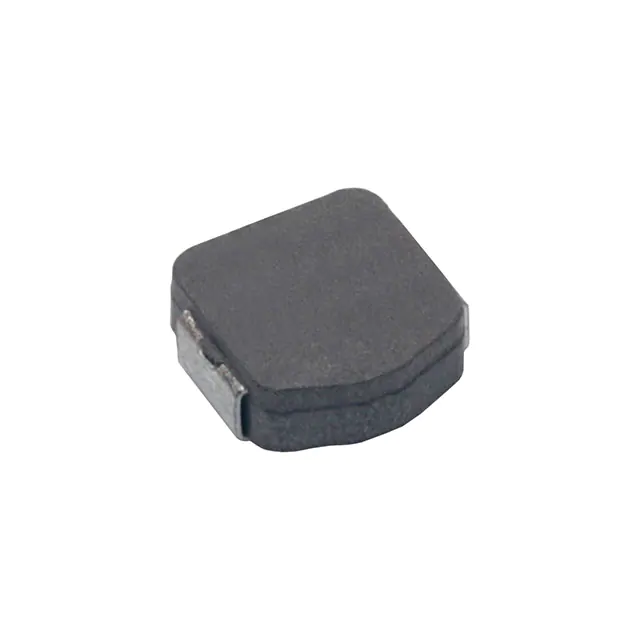

MPX1D0520L2R2FIXED IND 2.2UH 5.2A 40.4MOHM SM |
7,000 | 0.25 |
|
Datasheet |
METCOM MPX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 2.2 µH | ±20% | 5.2 A | 6.5A | Shielded | 40.4mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.209" L x 0.197" W (5.30mm x 5.00mm) | 0.079" (2.00mm) |
|
|
MPX1D0520L4R7FIXED IND 4.7UH 3.4A 96.6MOHM SM |
6,950 | 0.34 |
|
Datasheet |
METCOM MPX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 4.7 µH | ±20% | 3.4 A | 4.5A | Shielded | 96.6mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.209" L x 0.197" W (5.30mm x 5.00mm) | 0.079" (2.00mm) |
|
MPX1D0530L1R5FIXED IND 1.5UH 8.6A 17.7MOHM SM |
4,361 | 0.34 |
|
Datasheet |
METCOM MPX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 1.5 µH | ±20% | 8.6 A | 8A | Shielded | 17.7mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.209" L x 0.197" W (5.30mm x 5.00mm) | 0.118" (3.00mm) |
|
PF0464.223NLTFIXED IND 22UH 1.2A 113 MOHM SMD |
4,635 | 0.35 |
|
Datasheet |
PF0464NL | Nonstandard | Tape & Reel (TR) | Active | - | - | 22 µH | ±20% | 1.2 A | 1.2A | Shielded | 113mOhm Max | - | 21MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.283" W (7.20mm x 7.20mm) | 0.118" (3.00mm) |
