Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
0320CDMCCDS-2R2MCFIXED IND 2.2UH 3.5A 72MOHM SMD |
2,602 | 0.29 |
|
Datasheet |
0320CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 2.2 µH | ±20% | 3.5 A | 2.9A | Shielded | 72mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.134" L x 0.126" W (3.40mm x 3.20mm) | 0.079" (2.00mm) |
|

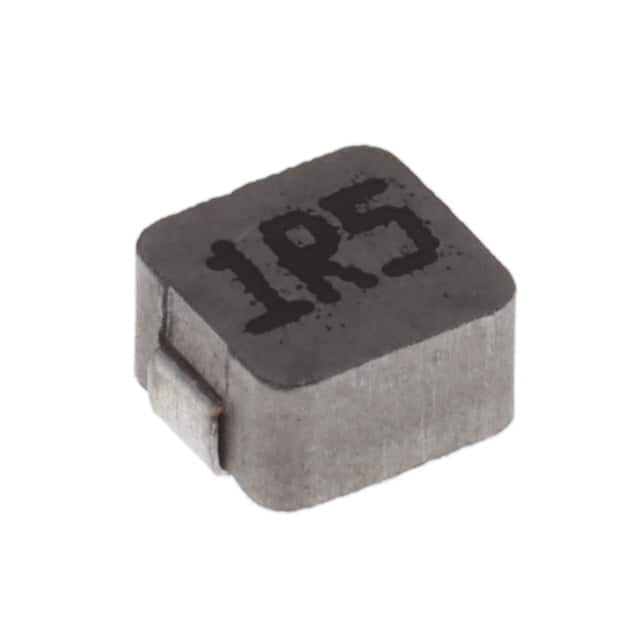

0320CDMCCDS-1R5MCFIXED IND 1.5UH 4A 45.6MOHM SMD |
2,050 | 0.29 |
|
Datasheet |
0320CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 1.5 µH | ±20% | 4 A | 3.2A | Shielded | 45.6mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.134" L x 0.126" W (3.40mm x 3.20mm) | 0.079" (2.00mm) |
|
IHSR2525CZER56NM51IHSR-2525CZ-51 .056 20% ER |
1,834 | 0.38 |
|
Datasheet |
IHSR-2525CZ-51 | Nonstandard | Tape & Reel (TR) | Active | - | - | 56 nH | ±20% | - | - | - | - | - | - | - | - | - | - | Surface Mount | - | - | - |
|

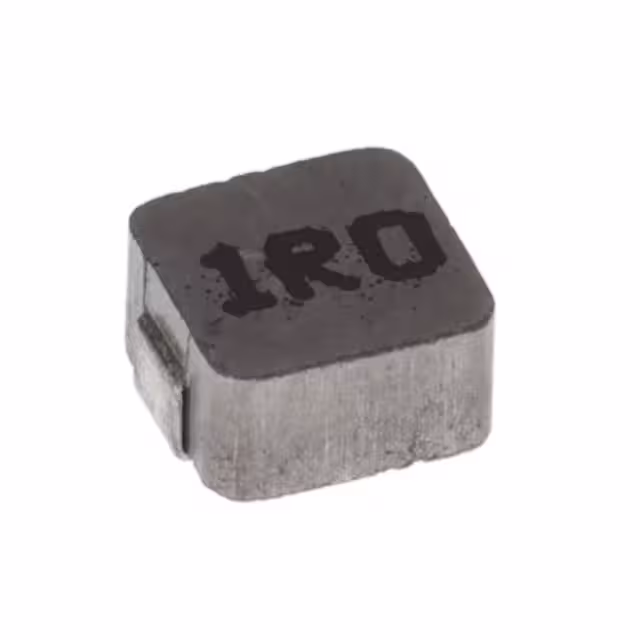

0320CDMCCDS-1R0MCFIXED IND 1UH 5.5A 31.2MOHM SMD |
1,822 | 0.29 |
|
Datasheet |
0320CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 1 µH | ±20% | 5.5 A | 4.4A | Shielded | 31.2mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.134" L x 0.126" W (3.40mm x 3.20mm) | 0.079" (2.00mm) |
|

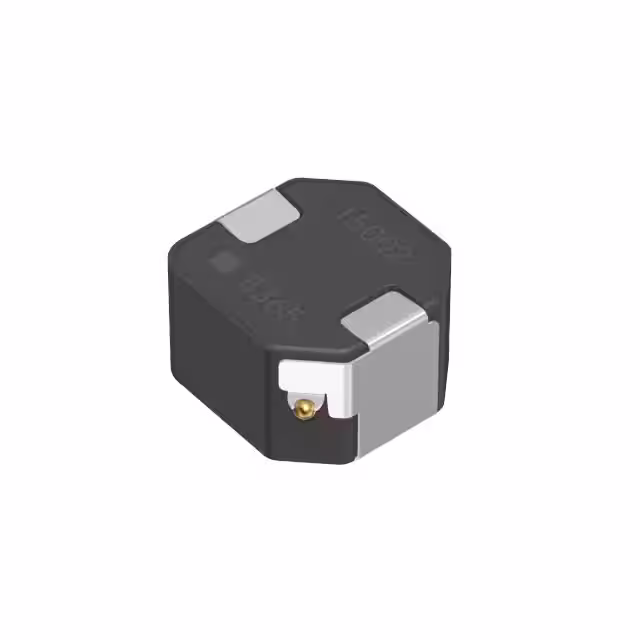

SPM6545VT-R15M-DFIXED IND 150NH 23.2A 0.0019OHM |
1,728 | 0.31 |
|
Datasheet |
SPM-VT-D | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 150 nH | ±20% | 23.2 A | 20.6A | Shielded | 1.9mOhm | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | 6545 | 0.276" L x 0.256" W (7.00mm x 6.50mm) | 0.177" (4.50mm) |
|
NS10145T680MNVVFIXED IND 68UH 1.45A 180MOHM SMD |
1,698 | 0.30 |
|
Datasheet |
NS | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 68 µH | ±20% | 1.45 A | 1.66A | Shielded | 180mOhm Max | - | 7.4MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.191" (4.85mm) |
|
|
78404054015WE-LQSA SMT SEMI-SHIELDED POWER |
1,497 | - |
|
Datasheet |
WE-LQSA | 2020 (5050 Metric) | Tape & Reel (TR) | Active | - | - | 1.5 µH | ±20% | 5.22 A | 6A | Shielded | 18mOhm | - | 137MHz | AEC-Q200 | -50°C ~ 150°C | 100 kHz | - | Surface Mount | 2020 | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.157" (4.00mm) |
|
|
78404064033WE-LQSA SMT SEMI-SHIELDED POWER |
1,495 | - |
|
Datasheet |
WE-LQSA | 2424 (6060 Metric) | Tape & Reel (TR) | Active | - | - | 3.3 µH | ±20% | 4.1 A | 6.5A | Shielded | 28mOhm Max | - | 42MHz | AEC-Q200 | -50°C ~ 150°C | 100 kHz | - | Surface Mount | 2424 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.181" (4.60mm) |
|
|
78404054150WE-LQSA SMT SEMI-SHIELDED POWER |
1,490 | - |
|
Datasheet |
WE-LQSA | 2020 (5050 Metric) | Tape & Reel (TR) | Active | - | - | 15 µH | ±20% | 2.01 A | 2.2A | Shielded | 108mOhm Max | - | 22MHz | AEC-Q200 | -50°C ~ 150°C | 100 kHz | - | Surface Mount | 2020 | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.157" (4.00mm) |
|
|
78404064015WE-LQSA SMT SEMI-SHIELDED POWER |
1,489 | - |
|
Datasheet |
WE-LQSA | 2424 (6060 Metric) | Tape & Reel (TR) | Active | - | - | 1.5 µH | ±20% | 6.1 A | 9.7A | Shielded | 13mOhm Max | - | 115MHz | AEC-Q200 | -50°C ~ 150°C | 100 kHz | - | Surface Mount | 2424 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.181" (4.60mm) |
|
|
78404064068WE-LQSA SMT SEMI-SHIELDED POWER |
1,458 | - |
|
Datasheet |
WE-LQSA | 2424 (6060 Metric) | Tape & Reel (TR) | Active | - | - | 6.8 µH | ±20% | 3.3 A | 4.3A | Shielded | 42mOhm Max | - | 27MHz | AEC-Q200 | -50°C ~ 150°C | 100 kHz | - | Surface Mount | 2424 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.181" (4.60mm) |
|
|
78404064220WE-LQSA SMT SEMI-SHIELDED POWER |
1,444 | - |
|
Datasheet |
WE-LQSA | 2424 (6060 Metric) | Tape & Reel (TR) | Active | - | - | 22 µH | ±20% | 1.9 A | 2.5A | Shielded | 120mOhm Max | - | 15MHz | AEC-Q200 | -50°C ~ 150°C | 100 kHz | - | Surface Mount | 2424 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.181" (4.60mm) |
|
SPM10040XT-R33MFIXED IND 330NH 25A 1.21MOHM SMD |
1,440 | 0.29 |
|
Datasheet |
SPM-XT | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 330 nH | ±20% | 25 A | 42A | Shielded | 1.21mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.157" (4.00mm) |
|
|
78404064010WE-LQSA SMT SEMI-SHIELDED POWER |
1,403 | - |
|
Datasheet |
WE-LQSA | 2424 (6060 Metric) | Tape & Reel (TR) | Active | - | - | 1 µH | ±30% | 6.7 A | 11.5A | Shielded | 11mOhm Max | - | 159MHz | AEC-Q200 | -50°C ~ 150°C | 100 kHz | - | Surface Mount | 2424 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.181" (4.60mm) |
|
|
78404064680WE-LQSA SMT SEMI-SHIELDED POWER |
1,382 | - |
|
Datasheet |
WE-LQSA | 2424 (6060 Metric) | Tape & Reel (TR) | Active | - | - | 68 µH | ±20% | 1.1 A | 1.4A | Shielded | 367mOhm Max | - | 8MHz | AEC-Q200 | -50°C ~ 150°C | 100 kHz | - | Surface Mount | 2424 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.181" (4.60mm) |
|
|
78404054680WE-LQSA SMT SEMI-SHIELDED POWER |
1,356 | - |
|
Datasheet |
WE-LQSA | 2020 (5050 Metric) | Tape & Reel (TR) | Active | - | - | 68 µH | ±20% | 970 mA | 990mA | Shielded | 516mOhm Max | - | 9MHz | AEC-Q200 | -50°C ~ 150°C | 100 kHz | - | Surface Mount | 2020 | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.157" (4.00mm) |
|
|
MGAH10053R3M-101005 INDUCTOR 3.3UH 12A |
1,347 | - |
|
Datasheet |
MGAH1005 | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal Composite | 3.3 µH | ±20% | 12 A | 16A | Shielded | 11mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.201" (5.10mm) |
|
|
78404064150WE-LQSA SMT SEMI-SHIELDED POWER |
1,175 | - |
|
Datasheet |
WE-LQSA | 2424 (6060 Metric) | Tape & Reel (TR) | Active | - | - | 15 µH | ±20% | 2.4 A | 3A | Shielded | 88mOhm Max | - | 17MHz | AEC-Q200 | -50°C ~ 150°C | 100 kHz | - | Surface Mount | 2424 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.181" (4.60mm) |
|
|
78404064101WE-LQSA SMT SEMI-SHIELDED POWER |
1,146 | - |
|
Datasheet |
WE-LQSA | 2424 (6060 Metric) | Tape & Reel (TR) | Active | - | - | 100 µH | ±20% | 900 mA | 1.2A | Shielded | 532mOhm Max | - | 6MHz | AEC-Q200 | -50°C ~ 150°C | 100 kHz | - | Surface Mount | 2424 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.181" (4.60mm) |
|
CDR7D28MNNP-1R2NCFIXED IND 1.2UH 4.5A 20.5MOHM SM |
990 | 0.31 |
|
Datasheet |
CDR7D28MN | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 1.2 µH | ±25% | 4.5 A | 5.9A | Shielded | 20.5mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.118" (3.00mm) |
