Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IHLE2020CDERR68M5AIHLE-2020CD-5A .68 20% ER E3 |
2,200 | 0.33 |
|
Datasheet |
IHLE-2020CD-5A | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 680 nH | ±20% | 11.3 A | 9.5A | Shielded | 9.74mOhm Max | - | 78MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.232" L x 0.216" W (5.89mm x 5.49mm) | 0.135" (3.43mm) |
|
|
IHLE2020CDER3R3M5AIHLE-2020CD-5A 3.3 20% ER E3 |
2,150 | 0.33 |
|
Datasheet |
IHLE-2020CD-5A | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 3.3 µH | ±20% | 5.2 A | 6.1A | Shielded | 47mOhm Max | - | 33.4MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.232" L x 0.216" W (5.89mm x 5.49mm) | 0.135" (3.43mm) |
|
SBC4-332-161FIXED IND 3.3MH 160MA 7.69OHM TH |
1,976 | 0.28 |
|
Datasheet |
SBC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 3.3 mH | ±10% | 160 mA | 260mA | Unshielded | 7.69Ohm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.354" Dia (9.00mm) | 0.571" (14.50mm) |
|
|
IHLE2020CDER6R8M5AIHLE-2020CD-5A 6.8 20% ER E3 |
1,955 | 0.33 |
|
Datasheet |
IHLE-2020CD-5A | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 6.8 µH | ±20% | 3.2 A | 2.9A | Shielded | 111mOhm Max | - | 18.8MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.232" L x 0.216" W (5.89mm x 5.49mm) | 0.135" (3.43mm) |
|

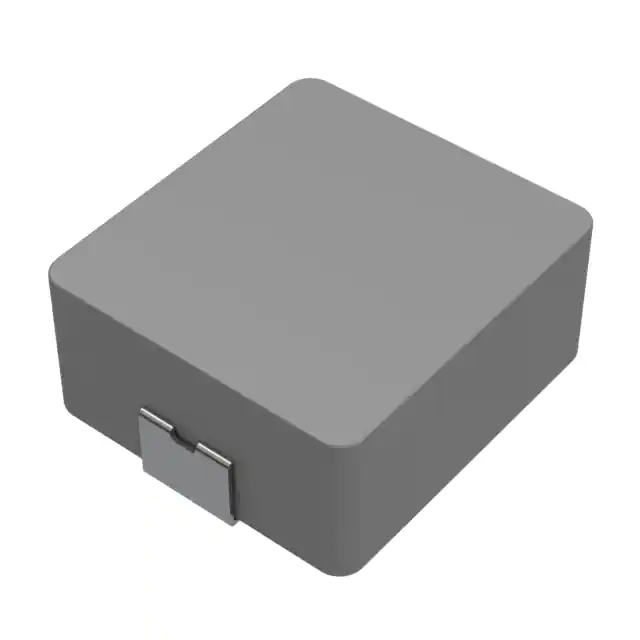

CMLB042T-2R2MSFIXED IND 2.2UH |
1,896 | 0.29 |
|
Datasheet |
CMLB042T | - | Tape & Reel (TR) | Active | Molded | Iron Powder | 2.2 µH | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SBC4-222-211FIXED IND 2.2MH 210MA 4.97OHM TH |
1,633 | 0.28 |
|
Datasheet |
SBC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 2.2 mH | ±10% | 210 mA | 320mA | Unshielded | 4.97Ohm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.354" Dia (9.00mm) | 0.571" (14.50mm) |
|
IHLP2020CZERR22M5AFIXED IND 220NH 18A 4.23MOHM SMD |
1,365 | 0.29 |
|
Datasheet |
IHLP-2020CZ-5A | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 220 nH | ±20% | 18 A | 11A | Shielded | 4.23mOhm Max | - | 190MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.204" L x 0.204" W (5.18mm x 5.18mm) | 0.118" (3.00mm) |
|

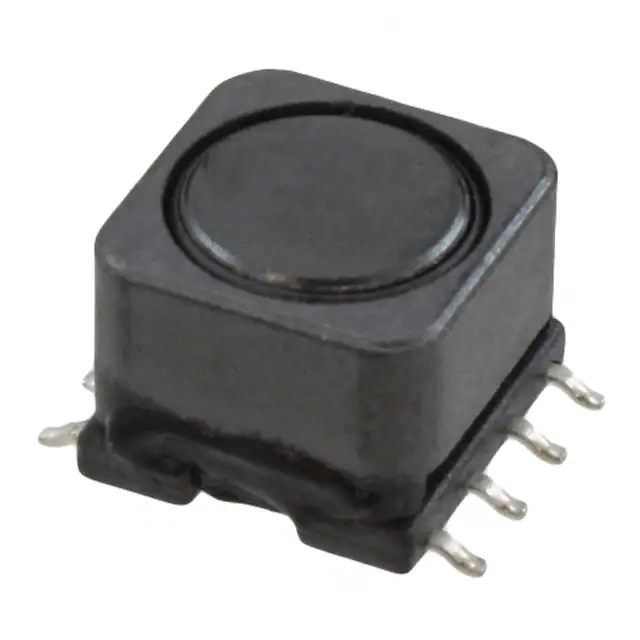

SRR0908-680MLFIXED IND 68UH 1.25A 184MOHM SMD |
1,200 | 0.27 |
|
Datasheet |
SRR0908 | 8-SMD, Gull Wing | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | 1.25 A | 1.9A | Shielded | 184mOhm Max | 30 @ 2.52MHz | 2.5MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.394" L x 0.374" W (10.00mm x 9.50mm) | 0.307" (7.80mm) |
|

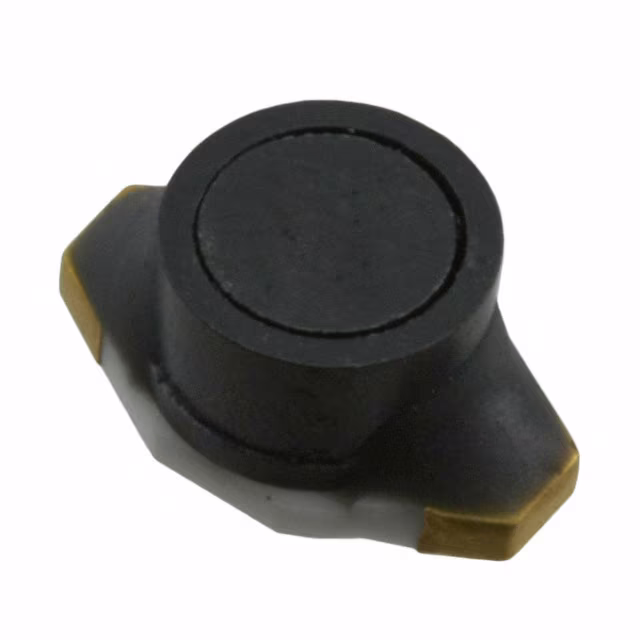

SRR6603-3R3MLFIXED IND 3.3UH 1.6A 55 MOHM SMD |
1,179 | 0.30 |
|
Datasheet |
SRR6603 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 1.6 A | 750mA | Shielded | 55mOhm Max | 40 @ 200kHz | 120MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.173" W (6.60mm x 4.40mm) | 0.118" (3.00mm) |
|
|
SRR6603-680MLFIXED IND 68UH 400MA 290MOHM SMD |
910 | 0.30 |
|
Datasheet |
SRR6603 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | 400 mA | 170mA | Shielded | 290mOhm Max | 40 @ 100kHz | 15MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.173" W (6.60mm x 4.40mm) | 0.118" (3.00mm) |
|
ISC1812ER330KFIXED IND 33UH 202MA 1.72OHM SMD |
867 | 0.30 |
|
Datasheet |
ISC-1812 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±10% | 202 mA | - | Shielded | 1.72Ohm Max | 50 @ 2.52MHz | 12MHz | - | -55°C ~ 125°C | 2.52 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
SRR6603-682MLFIXED IND 6.8MH 40MA 25 OHM SMD |
866 | 0.30 |
|
Datasheet |
SRR6603 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 mH | ±20% | 40 mA | 19mA | Shielded | 25Ohm Max | 50 @ 100kHz | 1MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.173" W (6.60mm x 4.40mm) | 0.118" (3.00mm) |
|
ETQ-P5M6R8YFMFIXED IND 6.8UH 6.9A 29.4MOHM SM |
727 | 0.32 |
|
Datasheet |
PCC-M0754M | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 6.8 µH | ±20% | 6.9 A | 12.1A | Shielded | 29.4mOhm Max | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.295" L x 0.276" W (7.50mm x 7.00mm) | 0.213" (5.40mm) |
|
SPM5010T-100M-LRFIXED IND 10UH 1.2A 488.7MOHM SM |
633 | 0.29 |
|
Datasheet |
SPM-LR | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 10 µH | ±20% | 1.2 A | 1.6A | Shielded | 488.7mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.213" L x 0.201" W (5.40mm x 5.10mm) | 0.039" (1.00mm) |
|

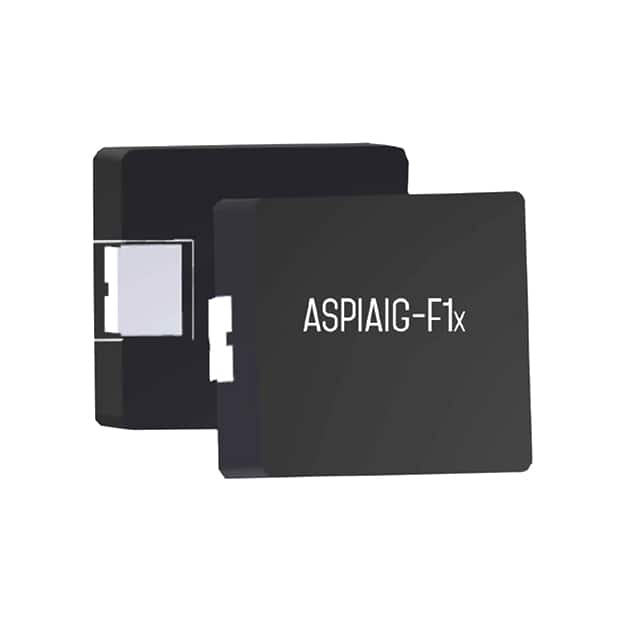

ASPIAIG-F1040-R68M-TFIXED IND 680NH 22A 2.7 MOHM SMD |
440 | 0.28 |
|
Datasheet |
ASPIAIG-F1 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 680 nH | ±20% | 22 A | 39A | Shielded | 2.7mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1040 | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.157" (4.00mm) |
|
|
ASPIAIG-F1040-R30M-TFIXED IND 300NH 32A 1.1 MOHM SMD |
424 | 0.30 |
|
Datasheet |
ASPIAIG-F1 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 300 nH | ±20% | 32 A | 60A | Shielded | 1.1mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1040 | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.157" (4.00mm) |
|
|
SRR6603-471MLFIXED IND 470UH 190MA 1.8OHM SMD |
183 | 0.30 |
|
Datasheet |
SRR6603 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 µH | ±20% | 190 mA | 60mA | Shielded | 1.8Ohm Max | 40 @ 100kHz | 4MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.173" W (6.60mm x 4.40mm) | 0.118" (3.00mm) |
|
SD20-471-RFIXED IND 470UH 263MA 3.74OHM SM |
24,812 | 0.42 |
|
Datasheet |
SD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 µH | ±20% | 263 mA | 129mA | Shielded | 3.74Ohm | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.079" (2.00mm) |
|
MHE0503R33M-10HIGH CURRENT LOW DCR POWER INDUC |
7,998 | 0.27 |
|
Datasheet |
MHE | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 330 nH | ±20% | 19.2 A | 26A | Shielded | 3.6mOhm Max | - | 102MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.224" L x 0.213" W (5.70mm x 5.40mm) | 0.118" (3.00mm) |
|
|
MHE0503R68M-10HIGH CURRENT LOW DCR POWER INDUC |
7,984 | 0.27 |
|
Datasheet |
MHE | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 680 nH | ±20% | 14.5 A | 22A | Shielded | 6.5mOhm Max | - | 70MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.224" L x 0.213" W (5.70mm x 5.40mm) | 0.118" (3.00mm) |
