Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

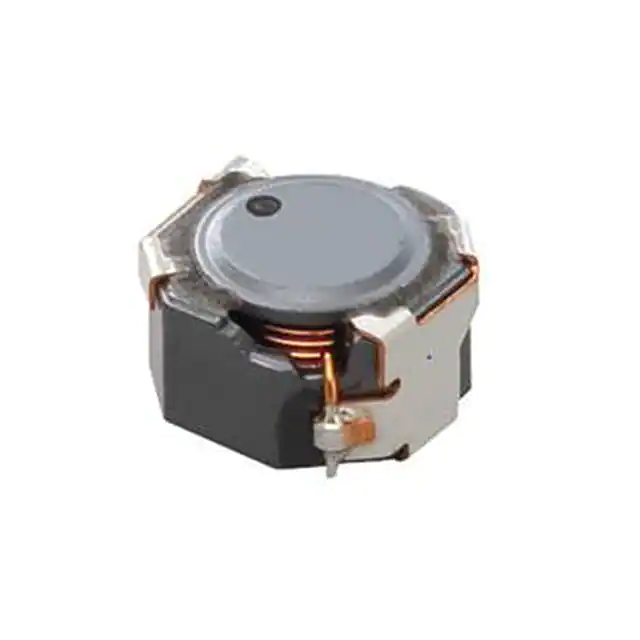

MDH6045C-2R2NA=P3FIXED IND 2.2UH 3.4A 15MOHM SMD |
3,612 | 0.30 |
|
Datasheet |
MDH6045C | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±30% | 3.4 A | 4.2A | Shielded | 15mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.248" L x 0.236" W (6.30mm x 6.00mm) | 0.189" (4.80mm) |
|

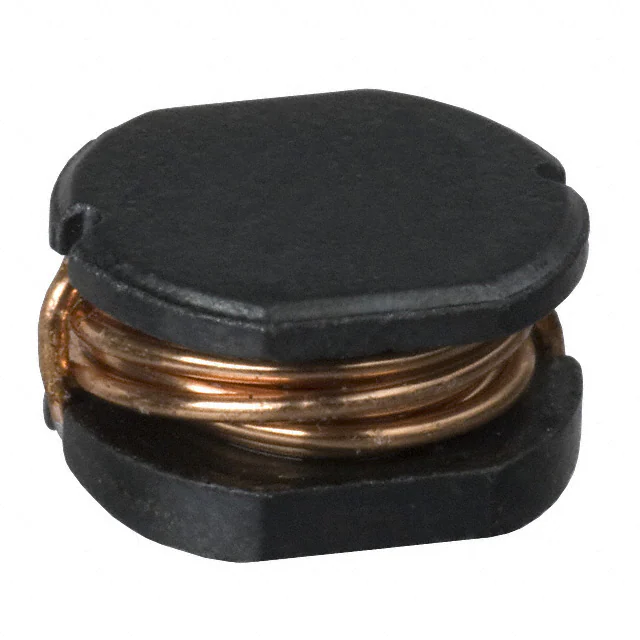

PM105-331K-RCFIXED IND 330UH 520MA 1.15OHM SM |
2,480 | 0.27 |
|
Datasheet |
PM105 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 330 µH | ±10% | 520 mA | 850mA | Unshielded | 1.15Ohm | 12 @ 796kHz | 3.2MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.386" L x 0.386" W (9.80mm x 9.80mm) | 0.228" (5.80mm) |
|
|
MDH6045C-220MB=P3FIXED IND 22UH 1.4A 80 MOHM SMD |
2,420 | 0.30 |
|
Datasheet |
MDH6045C | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 1.4 A | 1.2A | Shielded | 80mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.248" L x 0.236" W (6.30mm x 6.00mm) | 0.189" (4.80mm) |
|
|
PM105-221K-RCFIXED IND 220UH 660MA 730MOHM SM |
2,188 | 0.30 |
|
Datasheet |
PM105 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±10% | 660 mA | 1.1A | Unshielded | 730mOhm | 12 @ 796kHz | 3.8MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.386" L x 0.386" W (9.80mm x 9.80mm) | 0.228" (5.80mm) |
|
|
PM105-390M-RCFIXED IND 39UH 1.35A 140MOHM SMD |
1,991 | 0.30 |
|
Datasheet |
PM105 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 39 µH | ±20% | 1.35 A | 2.6A | Unshielded | 140mOhm | 20 @ 2.52MHz | 9MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.386" L x 0.386" W (9.80mm x 9.80mm) | 0.228" (5.80mm) |
|
HCM1A0503V2-4R7-RFIXED IND 4.7UH 4.1A 47MOHM SMD |
1,961 | 0.24 |
|
Datasheet |
HCM1AV2 | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 4.7 µH | ±20% | 4.1 A | 6A | Shielded | 47mOhm Max | - | 22MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.213" L x 0.205" W (5.40mm x 5.20mm) | 0.118" (3.00mm) |
|
|
MDH6045C-6R8NA=P3FIXED IND 6.8UH 2.5A 27MOHM SMD |
982 | 0.30 |
|
Datasheet |
MDH6045C | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±30% | 2.5 A | 2.5A | Shielded | 27mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.248" L x 0.236" W (6.30mm x 6.00mm) | 0.189" (4.80mm) |
|
|
MDH6045C-4R7NA=P3FIXED IND 4.7UH 2.7A 23MOHM SMD |
936 | 0.30 |
|
Datasheet |
MDH6045C | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±30% | 2.7 A | 2.9A | Shielded | 23mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.248" L x 0.236" W (6.30mm x 6.00mm) | 0.189" (4.80mm) |
|
|
PM105-220M-RCFIXED IND 22UH 1.95A 100MOHM SMD |
879 | 0.27 |
|
Datasheet |
PM105 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 1.95 A | 3.5A | Unshielded | 100mOhm | 25 @ 2.52MHz | 13MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.386" L x 0.386" W (9.80mm x 9.80mm) | 0.228" (5.80mm) |
|
B82464A4333K000FIXED IND 33UH 1.8A 100 MOHM SMD |
690 | 0.35 |
|
Datasheet |
B82464A4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±10% | 1.8 A | 2.2A | Unshielded | 100mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.409" W (10.40mm x 10.40mm) | 0.189" (4.80mm) |
|
|
PM105-121K-RCFIXED IND 120UH 890MA 400MOHM SM |
472 | 0.30 |
|
Datasheet |
PM105 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 120 µH | ±10% | 890 mA | 1.5A | Unshielded | 400mOhm | 15 @ 796kHz | 5MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.386" L x 0.386" W (9.80mm x 9.80mm) | 0.228" (5.80mm) |
|
|
PM105-470K-RCFIXED IND 47UH 1.25A 170MOHM SMD |
105 | 0.30 |
|
Datasheet |
PM105 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±10% | 1.25 A | 2.3A | Unshielded | 170mOhm | 20 @ 2.52MHz | 8MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.386" L x 0.386" W (9.80mm x 9.80mm) | 0.228" (5.80mm) |
|
PG0642.152NLFIXED IND 1.5UH 13.3A 6.8MOHM SM |
1,020 | - |
|
Datasheet |
PG0642NL | Nonstandard | Tray | Active | Wirewound | - | 1.5 µH | ±20% | 13.3 A | 18A | Shielded | 6.8mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.311" L x 0.299" W (7.90mm x 7.60mm) | 0.197" (5.00mm) |
|
ECS-HCMPI-0503Q-R80M-TFIXED IND 800NH 13.1A 5.65 MOHM |
3,000 | 0.31 |
|
Datasheet |
ECS-HCMPI-0503Q | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 800 nH | ±20% | 13.1 A | 18A | Shielded | 5.65mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 5030 | 0.217" L x 0.209" W (5.50mm x 5.30mm) | 0.122" (3.10mm) |
|
0315CDMCCDS-1R0MCFIXED IND 1UH 4.3A 41 MOHM SMD |
2,997 | 0.30 |
|
Datasheet |
0315CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 1 µH | ±20% | 4.3 A | 4.1A | Shielded | 41mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.134" L x 0.126" W (3.40mm x 3.20mm) | 0.059" (1.50mm) |
|
|
0315CDMCCDS-1R5MCFIXED IND 1.5UH 3.5A 65MOHM SMD |
2,985 | 0.30 |
|
Datasheet |
0315CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 1.5 µH | ±20% | 3.5 A | 3.4A | Shielded | 65mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.134" L x 0.126" W (3.40mm x 3.20mm) | 0.059" (1.50mm) |
|
|
0315CDMCCDS-R82MCFIXED IND 820NH 5A 32 MOHM SMD |
2,964 | 0.30 |
|
Datasheet |
0315CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 820 nH | ±20% | 5 A | 4.2A | Shielded | 32mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.134" L x 0.126" W (3.40mm x 3.20mm) | 0.059" (1.50mm) |
|
MPXV1D0830LR47FIXED IND 470NH 24A 3.1 MOHM SMD |
2,950 | 0.31 |
|
Datasheet |
METCOM MPXV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 470 nH | ±20% | 24 A | 30A | Shielded | 3.1mOhm Max | - | 80MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.341" L x 0.315" W (8.65mm x 8.00mm) | 0.118" (3.00mm) |
|
|
0315CDMCCDS-2R2MCFIXED IND 2.2UH 2.8A 94MOHM SMD |
2,920 | 0.30 |
|
Datasheet |
0315CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 2.2 µH | ±20% | 2.8 A | 3.6A | Shielded | 94mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.134" L x 0.126" W (3.40mm x 3.20mm) | 0.059" (1.50mm) |
|
|
0315CDMCCDS-4R7MCFIXED IND 4.7UH 1.8A 199MOHM SMD |
2,840 | 0.30 |
|
Datasheet |
0315CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 4.7 µH | ±20% | 1.8 A | 1.9A | Shielded | 199mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.134" L x 0.126" W (3.40mm x 3.20mm) | 0.059" (1.50mm) |
