Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

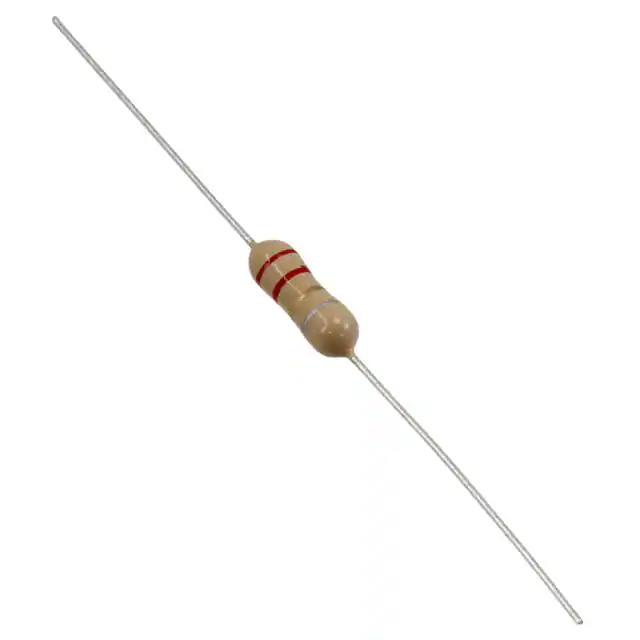

5300-05-RCFIXED IND 2.2UH 2.6A 31 MOHM TH |
871 | 0.29 |
|
Datasheet |
5300 | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±10% | 2.6 A | 2A | Unshielded | 31mOhm Max | - | 130MHz | - | -55°C ~ 105°C | 7.96 MHz | - | Through Hole | - | 0.160" Dia x 0.500" L (4.06mm x 12.70mm) | - |
|
NS10145T150MNVVFIXED IND 15UH 3A 45.8 MOHM SMD |
849 | 0.30 |
|
Datasheet |
NS | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 15 µH | ±20% | 3 A | 3.44A | Shielded | 45.8mOhm Max | - | 19MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.191" (4.85mm) |
|
IMC1812ER220KFIXED IND 22UH 180MA 3.2 OHM SMD |
819 | 0.28 |
|
Datasheet |
IMC-1812 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 22 µH | ±10% | 180 mA | - | Unshielded | 3.2Ohm Max | 50 @ 2.52MHz | 13MHz | - | -55°C ~ 125°C | 2.52 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
SPM5010T-3R3M-LRFIXED IND 3.3UH 1.8A 196.9 MOHM |
792 | 0.29 |
|
Datasheet |
SPM-LR | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 3.3 µH | ±20% | 1.8 A | 3A | Shielded | 196.9mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.213" L x 0.201" W (5.40mm x 5.10mm) | 0.039" (1.00mm) |
|
EXLA1V0606-1R0-RIND MOLDED SHLD 1.0UH 19.0A |
745 | - |
|
Datasheet |
EXLA1V06 | Nonstandard | Tape & Reel (TR) | Active | Molded | Alloy Powder | 1 µH | ±20% | 19 A | 16A | Shielded | 4.29mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.272" W (7.20mm x 6.90mm) | 0.236" (6.00mm) |
|

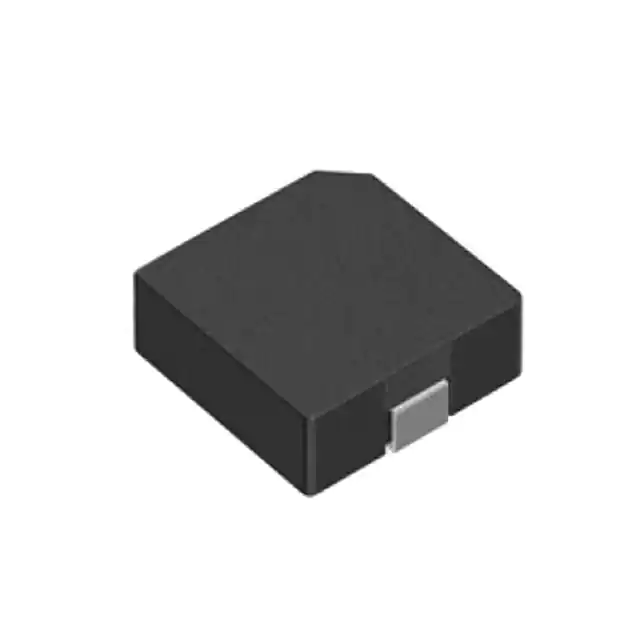

SPM10040XT-R47MFIXED IND 470NH 22A 1.32MOHM SMD |
734 | 0.29 |
|
Datasheet |
SPM-XT | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 470 nH | ±20% | 22 A | 25A | Shielded | 1.32mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.157" (4.00mm) |
|
MPXV1D0624LR33FIXED IND 330NH 17.2A 4.2MOHM SM |
712 | 0.28 |
|
Datasheet |
METCOM MPXV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 330 nH | ±20% | 17.2 A | 22.5A | Shielded | 4.2mOhm Max | - | 91MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.256" W (7.00mm x 6.50mm) | 0.094" (2.40mm) |
|
|
MPXV1D0624L6R8FIXED IND 6.8UH 4.3A 67.4MOHM SM |
693 | 0.28 |
|
Datasheet |
METCOM MPXV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 6.8 µH | ±20% | 4.3 A | 5.5A | Shielded | 67.4mOhm Max | - | 18MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.256" W (7.00mm x 6.50mm) | 0.094" (2.40mm) |
|

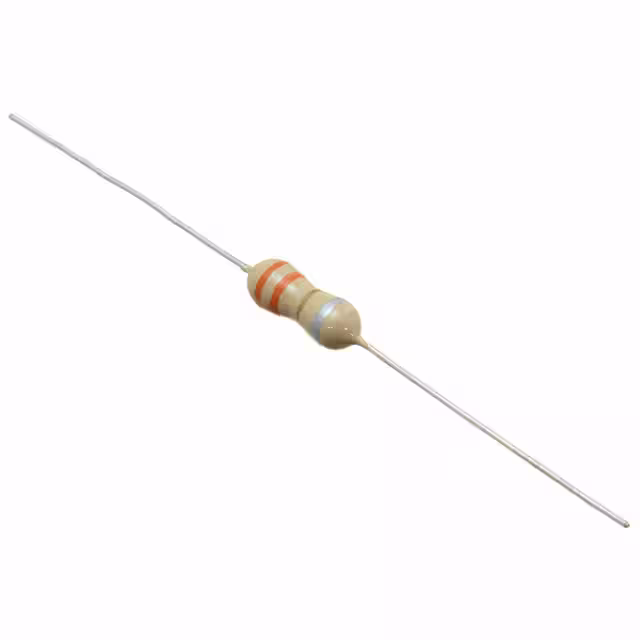

5300-07-RCFIXED IND 3.3UH 1.9A 54 MOHM TH |
682 | 0.29 |
|
Datasheet |
5300 | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±10% | 1.9 A | 1.7A | Unshielded | 54mOhm Max | - | 110MHz | - | -55°C ~ 105°C | 7.96 MHz | - | Through Hole | - | 0.160" Dia x 0.500" L (4.06mm x 12.70mm) | - |
|
|
MPXV1D0624L4R7FIXED IND 4.7UH 4.9A 50.6MOHM SM |
629 | 0.28 |
|
Datasheet |
METCOM MPXV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 4.7 µH | ±20% | 4.9 A | 6.5A | Shielded | 50.6mOhm Max | - | 22MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.256" W (7.00mm x 6.50mm) | 0.094" (2.40mm) |
|
NS12565T2R0NNFIXED IND 2UH 7.6A 9.6 MOHM SMD |
457 | 0.29 |
|
Datasheet |
NS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2 µH | ±30% | 7.6 A | 13.91A | Shielded | 9.6mOhm Max | - | 82.3MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.270" (6.85mm) |
|
|
SPM5012T-1R5M-LRFIXED IND 1.5UH 3.8A 46.2MOHM SM |
285 | 0.29 |
|
Datasheet |
SPM-LR | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 1.5 µH | ±20% | 3.8 A | 6A | Shielded | 46.2mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.213" L x 0.201" W (5.40mm x 5.10mm) | 0.047" (1.20mm) |
|
|
SPM5012T-4R7M-LRFIXED IND 4.7UH 2.1A 155.1 MOHM |
214 | 0.29 |
|
Datasheet |
SPM-LR | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 4.7 µH | ±20% | 2.1 A | 3.5A | Shielded | 155.1mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.213" L x 0.201" W (5.40mm x 5.10mm) | 0.047" (1.20mm) |
|

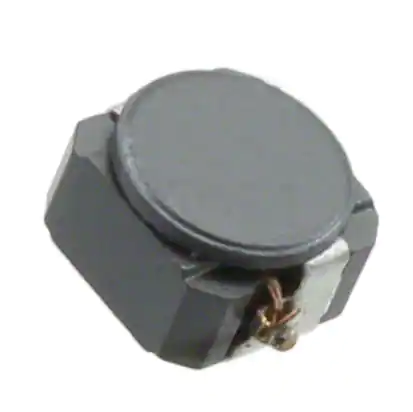

LTF3020T-100M-DFIXED IND 10UH 820MA 260MOHM SMD |
10,890 | 0.30 |
|
Datasheet |
LTF3020-D | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 820 mA | 590mA | Shielded | 260mOhm Max | - | - | AEC-Q200 | -40°C ~ 150°C | 1 MHz | - | Surface Mount | - | 0.177" L x 0.118" W (4.50mm x 3.00mm) | 0.079" (2.00mm) |
|

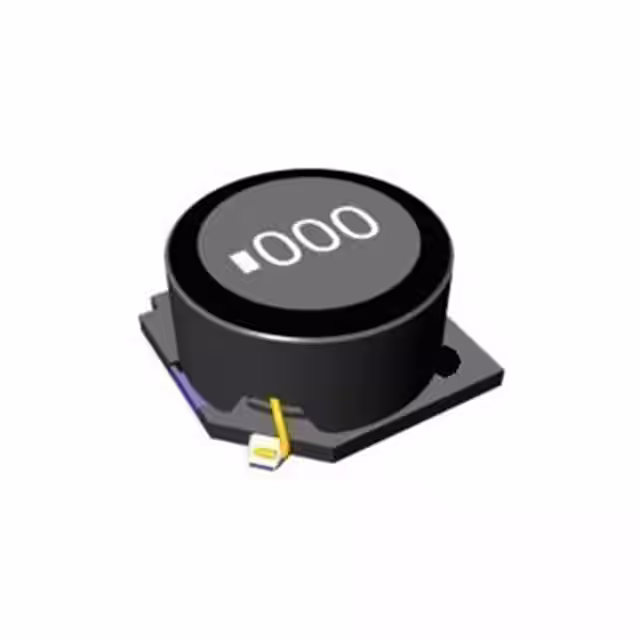

NS10145T471MNVVFIXED IND 470UH 520MA 1.236 OHM |
5,990 | 0.30 |
|
Datasheet |
NS | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 470 µH | ±20% | 520 mA | 610mA | Shielded | 1.236Ohm Max | - | 2.8MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.191" (4.85mm) |
|
|
LTF3020T-2R2N-DFIXED IND 2.2UH 1.58A 77MOHM SMD |
3,478 | 0.30 |
|
Datasheet |
LTF3020-D | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 2.2 µH | ±30% | 1.58 A | 1.2A | Shielded | 77mOhm Max | - | - | AEC-Q200 | -40°C ~ 150°C | 1 MHz | - | Surface Mount | - | 0.177" L x 0.118" W (4.50mm x 3.00mm) | 0.079" (2.00mm) |
|

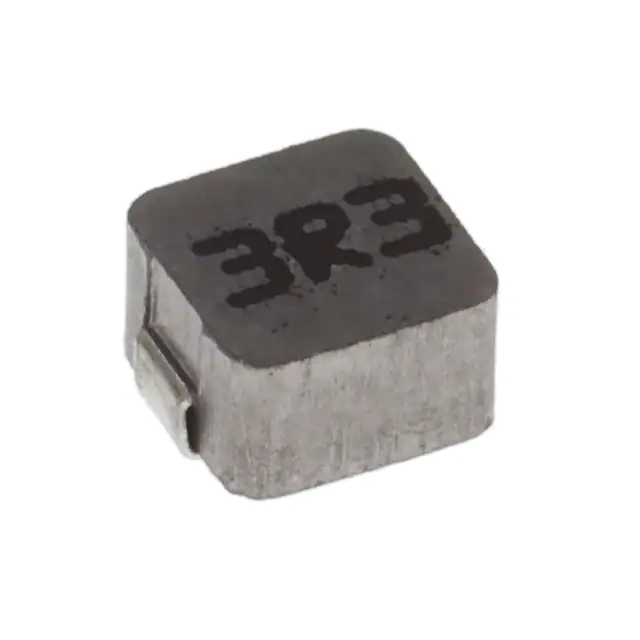

0320CDMCCDS-3R3MCFIXED IND 3.3UH 2.5A 108MOHM SMD |
2,995 | 0.29 |
|
Datasheet |
0320CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 3.3 µH | ±20% | 2.5 A | 2.1A | Shielded | 108mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.134" L x 0.126" W (3.40mm x 3.20mm) | 0.079" (2.00mm) |
|

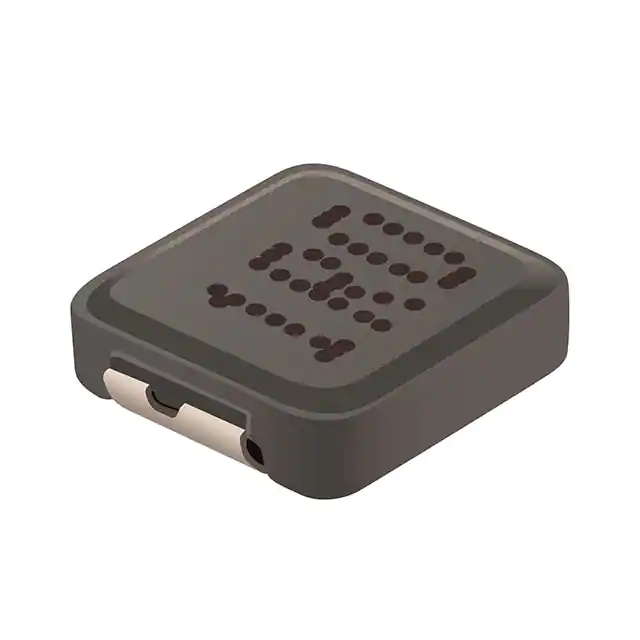

SRP5015TA-R20YFIXED IND 200NH 15A 4.2 MOHM SMD |
2,937 | 0.30 |
|
Datasheet |
SRP5015TA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 200 nH | ±30% | 15 A | 22.5A | Shielded | 4.2mOhm Max | 5 @ 100kHz | 180MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.224" L x 0.205" W (5.70mm x 5.20mm) | 0.059" (1.50mm) |
|

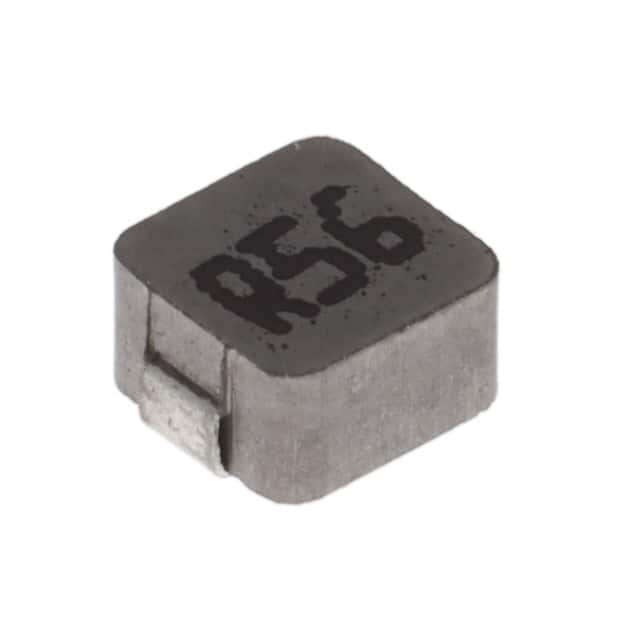

0320CDMCCDS-R56MCFIXED IND 560NH 7A 18 MOHM SMD |
2,870 | 0.29 |
|
Datasheet |
0320CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 560 nH | ±20% | 7 A | 4.8A | Shielded | 18mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.134" L x 0.126" W (3.40mm x 3.20mm) | 0.079" (2.00mm) |
|

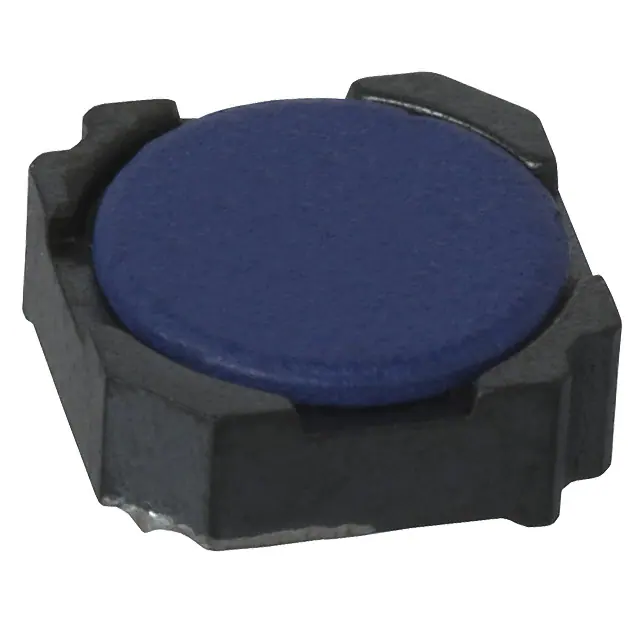

CDR7D28MNNP-3R6NCFIXED IND 3.6UH 3.45A 32.5 MOHM |
2,821 | 0.31 |
|
Datasheet |
CDR7D28MN | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 3.6 µH | ±25% | 3.45 A | 3.55A | Shielded | 32.5mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.118" (3.00mm) |
