Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PA3288.301HLTFIXED IND 300NH 64A 0.29MOHM SMD |
1,600 | 0.28 |
|
Datasheet |
PA3288.XXXHL | Nonstandard | Tape & Reel (TR) | Active | - | - | 300 nH | ±15% | 64 A | 34A | Unshielded | 0.29mOhm | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.362" L x 0.244" W (9.20mm x 6.20mm) | 0.315" (8.00mm) |
|
PGL6477.121HLTINDUCTOR PWR BEAD 116NH 22A SMD |
1,600 | - |
|
Datasheet |
PGL6477.XXXHL | Nonstandard, 3 Lead | Tape & Reel (TR) | Active | - | - | 117 nH | ±15% | 22 A | 43A | Unshielded | 400mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 3-SMD | 0.244" L x 0.244" W (6.20mm x 6.20mm) | 0.213" (5.40mm) |
|
|
PGL6477.221HLTINDUCTOR PWR BEAD 205NH 17.5A |
1,600 | - |
|
Datasheet |
PGL6477.XXXHL | Nonstandard, 3 Lead | Tape & Reel (TR) | Active | - | - | 215 nH | ±15% | 22 A | 23A | Unshielded | 400mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 3-SMD | 0.244" L x 0.244" W (6.20mm x 6.20mm) | 0.211" (5.35mm) |
|
|
PGL6477.181HLTINDUCTOR PWR BEAD 177NH 20A SMD |
1,600 | - |
|
Datasheet |
PGL6477.XXXHL | Nonstandard, 3 Lead | Tape & Reel (TR) | Active | - | - | 184 nH | ±15% | 22 A | 27A | Unshielded | 400mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 3-SMD | 0.244" L x 0.244" W (6.20mm x 6.20mm) | 0.211" (5.35mm) |
|
|
PGL6477.141HLTINDUCTOR PWR BEAD 138NH 22A SMD |
1,598 | - |
|
Datasheet |
PGL6477.XXXHL | Nonstandard, 3 Lead | Tape & Reel (TR) | Active | - | - | 140 nH | ±15% | 22 A | 36A | Unshielded | 400mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 3-SMD | 0.244" L x 0.244" W (6.20mm x 6.20mm) | 0.213" (5.40mm) |
|
SPM5012T-R47M-LRFIXED IND 470NH 5.4A 23.1MOHM SM |
1,512 | 0.29 |
|
Datasheet |
SPM-LR | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 470 nH | ±20% | 5.4 A | 9A | Shielded | 23.1mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.213" L x 0.201" W (5.40mm x 5.10mm) | 0.047" (1.20mm) |
|
MPEV1D0630LR47FIXED IND 470NH 18.7A 4MOHM SMD |
1,495 | 0.28 |
|
Datasheet |
METCOM MPEV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 470 nH | ±20% | 18.7 A | 21A | Shielded | 4mOhm Max | - | 70MHz | AEC-Q200 | -55°C ~ 180°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.256" W (7.00mm x 6.50mm) | 0.118" (3.00mm) |
|
|
MPEV1D0630L6R8FIXED IND 6.8UH 5.2A 50.9MOHM SM |
1,494 | 0.28 |
|
Datasheet |
METCOM MPEV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 6.8 µH | ±20% | 5.2 A | 5.5A | Shielded | 50.9mOhm Max | - | 16MHz | AEC-Q200 | -55°C ~ 180°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.256" W (7.00mm x 6.50mm) | 0.118" (3.00mm) |
|
|
MPEV1D0630L3R3FIXED IND 3.3UH 6.8A 30.3MOHM SM |
1,494 | 0.28 |
|
Datasheet |
METCOM MPEV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 3.3 µH | ±20% | 6.8 A | 7A | Shielded | 30.3mOhm Max | - | 26MHz | AEC-Q200 | -55°C ~ 180°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.256" W (7.00mm x 6.50mm) | 0.118" (3.00mm) |
|
|
MPEV1D0630L2R2FIXED IND 2.2UH 8.7A 18.3MOHM SM |
1,480 | 0.28 |
|
Datasheet |
METCOM MPEV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 2.2 µH | ±20% | 8.7 A | 9A | Shielded | 18.3mOhm Max | - | 30MHz | AEC-Q200 | -55°C ~ 180°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.256" W (7.00mm x 6.50mm) | 0.118" (3.00mm) |
|
|
MPEV1D0630L1R5FIXED IND 1.5UH 10.5A 12.7 MOHM |
1,470 | 0.28 |
|
Datasheet |
METCOM MPEV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 1.5 µH | ±20% | 10.5 A | 11A | Shielded | 12.7mOhm Max | - | 38MHz | AEC-Q200 | -55°C ~ 180°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.256" W (7.00mm x 6.50mm) | 0.118" (3.00mm) |
|
AMRU00040412R47MA1FIXED IND 470NH 5A 20 MOHM SMD |
1,398 | 0.29 |
|
Datasheet |
AMRU | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 470 nH | ±20% | 5 A | 9A | Shielded | 20mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.185" L x 0.165" W (4.70mm x 4.20mm) | 0.047" (1.20mm) |
|
|
MPEV1D0630L4R7FIXED IND 4.7UH 6.2A 36.7MOHM SM |
1,370 | 0.28 |
|
Datasheet |
METCOM MPEV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 4.7 µH | ±20% | 6.2 A | 6.5A | Shielded | 36.7mOhm Max | - | 21MHz | AEC-Q200 | -55°C ~ 180°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.256" W (7.00mm x 6.50mm) | 0.118" (3.00mm) |
|
|
SPM5015T-1R0M-LRFIXED IND 1UH 6.3A 24.8 MOHM SMD |
1,369 | 0.29 |
|
Datasheet |
SPM-LR | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 1 µH | ±20% | 6.3 A | 8A | Shielded | 24.8mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.213" L x 0.201" W (5.40mm x 5.10mm) | 0.059" (1.50mm) |
|

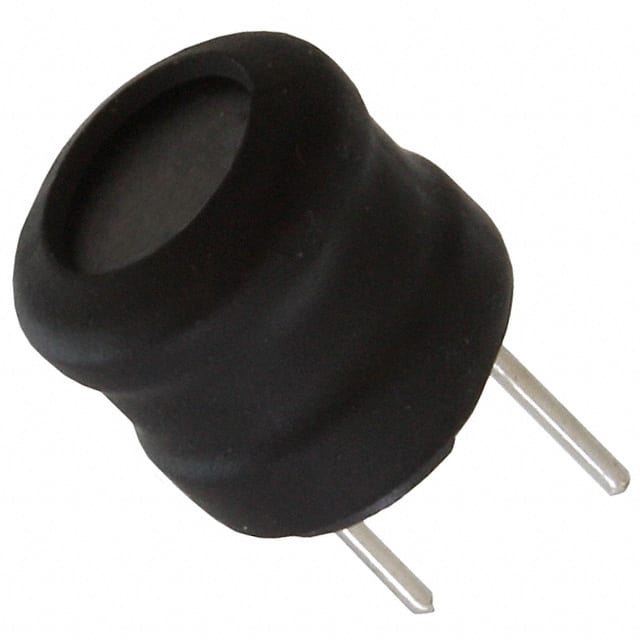

744732152FIXED IND 1.5MH 290MA 4.7 OHM TH |
730 | 0.28 |
|
Datasheet |
WE-TI | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | 1.5 mH | ±5% | 290 mA | 500mA | Unshielded | 4.7Ohm Max | - | 1.75MHz | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.307" Dia (7.80mm) | 0.295" (7.50mm) |
|
|
MPEV1D0630L1R0FIXED IND 1UH 13.1A 8.2MOHM SMD |
677 | 0.28 |
|
Datasheet |
METCOM MPEV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 1 µH | ±20% | 13.1 A | 13A | Shielded | 8.2mOhm Max | - | 43MHz | AEC-Q200 | -55°C ~ 180°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.256" W (7.00mm x 6.50mm) | 0.118" (3.00mm) |
|
|
SPM5012T-3R3M-LRFIXED IND 3.3UH 2.5A 110MOHM SMD |
591 | 0.29 |
|
Datasheet |
SPM-LR | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 3.3 µH | ±20% | 2.5 A | 4.5A | Shielded | 110mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.213" L x 0.201" W (5.40mm x 5.10mm) | 0.047" (1.20mm) |
|

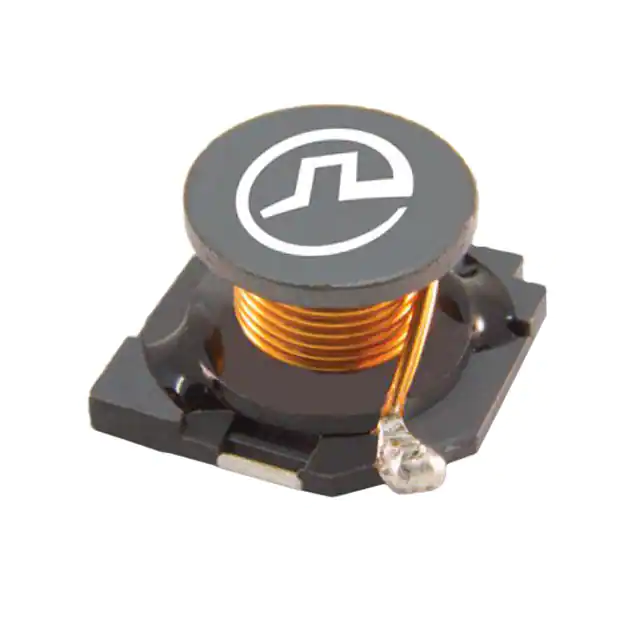

PA4310.103NLTFIXED IND 10UH 12A 37 MOHM SMD |
483 | 0.29 |
|
Datasheet |
PA4310.XXXNL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 10 µH | ±20% | 12 A | - | Unshielded | 37mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.504" L x 0.504" W (12.80mm x 12.80mm) | 0.315" (8.00mm) |
|

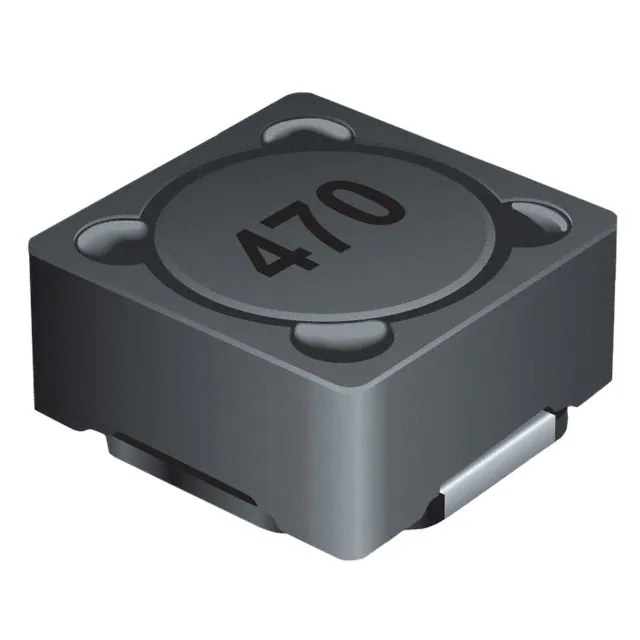

SRR1260A-121KFIXED IND 120UH 1.65A 210MOHM SM |
201 | 0.29 |
|
Datasheet |
SRR1260A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 120 µH | ±10% | 1.65 A | 1.65A | Shielded | 210mOhm Max | 26 @ 796kHz | 5.5MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.256" (6.50mm) |
|
IHLE2020CDERR47M51IHLE-2020CD-51 .47 20% ER E3 |
2,200 | 0.32 |
|
Datasheet |
IHLE-2020CD-51 | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 470 nH | ±20% | 14.6 A | 9.4A | Shielded | 6.44mOhm Max | - | 88MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.232" L x 0.216" W (5.89mm x 5.49mm) | 0.135" (3.43mm) |
