Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PE-53827SNLFIXED IND 248UH 830MA 600MOHM SM |
690 | 0.64 |
|
Datasheet |
- | Nonstandard | Bulk | Active | Toroidal | - | 248 µH | ±20% | 830 mA | - | Shielded | 600mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.620" L x 0.600" W (15.75mm x 15.24mm) | 0.390" (9.91mm) |
|
7447798050FIXED IND 500NH 18.5A 2.65 MOHM |
499 | 0.67 |
|
Datasheet |
WE-PDF | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Nickel Zinc Ferrite (NiZn) | 500 nH | ±30% | 18.5 A | 18A | Shielded | 2.65mOhm Max | - | 172MHz | - | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.402" L x 0.402" W (10.20mm x 10.20mm) | 0.252" (6.40mm) |
|
|
7447798470FIXED IND 4.7UH 9.5A 8.4MOHM SMD |
474 | 0.71 |
|
Datasheet |
WE-PDF | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Nickel Zinc Ferrite (NiZn) | 4.7 µH | ±30% | 9.5 A | 7.6A | Shielded | 8.4mOhm Max | - | 44MHz | - | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.402" L x 0.402" W (10.20mm x 10.20mm) | 0.252" (6.40mm) |
|
|
7447798110FIXED IND 1.1UH 16.5A 3.5MOHM SM |
202 | 0.67 |
|
Datasheet |
WE-PDF | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Nickel Zinc Ferrite (NiZn) | 1.1 µH | ±30% | 16.5 A | 16A | Shielded | 3.5mOhm Max | - | 104MHz | - | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.402" L x 0.402" W (10.20mm x 10.20mm) | 0.252" (6.40mm) |
|
|
7447798022FIXED IND 220NH 19A 1.95MOHM SMD |
118 | 0.67 |
|
Datasheet |
WE-PDF | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Nickel Zinc Ferrite (NiZn) | 220 nH | ±30% | 19 A | 20A | Shielded | 1.95mOhm Max | - | 337MHz | - | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.402" L x 0.402" W (10.20mm x 10.20mm) | 0.252" (6.40mm) |
|
UP4B-151-RFIXED IND 150UH 1.7A 239.2 MOHM |
5,704 | 0.57 |
|
Datasheet |
UNI-PAC™ | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±20% | 1.7 A | 3A | Unshielded | 239.2mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.870" L x 0.591" W (22.10mm x 15.00mm) | 0.310" (7.87mm) |
|

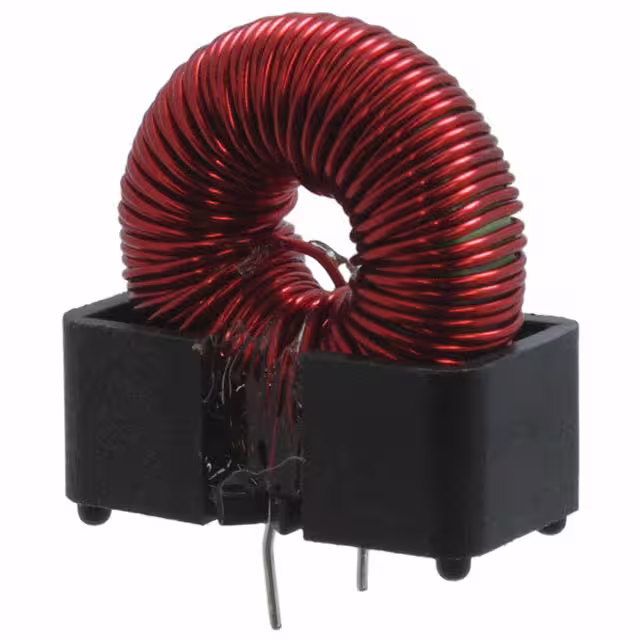

PE-54036NLFIXED IND 168UH 1.81A 180MOHM TH |
5,486 | 0.88 |
|
Datasheet |
- | Radial, Vertical (Open) | Tray | Active | Toroidal | - | 168 µH | ±20% | 1.81 A | - | Shielded | 180mOhm | - | - | - | -40°C ~ 130°C | 20 kHz | - | Through Hole | - | 0.830" L x 0.450" W (21.09mm x 11.43mm) | 0.950" (24.13mm) |
|
SD8350-680-RFIXED IND 68UH 1A 240 MOHM SMD |
3,913 | 0.50 |
|
Datasheet |
SD8350 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±30% | 1 A | 1.5A | Shielded | 240mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.374" L x 0.327" W (9.50mm x 8.30mm) | 0.177" (4.50mm) |
|
HC1-R57-RFIXED IND 570NH 37.83A 0.68 MOHM |
5,812 | 0.70 |
|
Datasheet |
HC1 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 570 nH | ±15% | 37.83 A | 33.4A | Unshielded | 0.68mOhm Max | - | - | - | -40°C ~ 125°C | 300 kHz | - | Surface Mount | - | 0.512" L x 0.512" W (13.00mm x 13.00mm) | 0.394" (10.00mm) |
|
4590R-224KFIXED IND 220UH 2.025A 162 MOHM |
2,247 | 1.04 |
|
Datasheet |
4590R | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±10% | 2.025 A | 1.2A | Unshielded | 162mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.455" Dia x 0.900" L (11.55mm x 22.86mm) | - |
|
FP1010R3-R120-RIND FLAT PAC 120NH 63A 2 PADS |
385 | 0.37 |
|
Datasheet |
FP1010 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 120 nH | ±10% | 78 A | 78A | Shielded | 0.145mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.378" L x 0.252" W (9.60mm x 6.40mm) | 0.398" (10.10mm) |
|
2309-H-RCFIXED IND 47UH 10.7A 16 MOHM TH |
306 | 0.93 |
|
Datasheet |
2300 | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Iron Powder | 47 µH | ±15% | 10.7 A | - | Unshielded | 16mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.280" Dia (32.51mm) | 0.650" (16.51mm) |
|
SPD62R-103MFIXED IND 10UH 1.4A 180 MOHM SMD |
9,576 | 0.64 |
|
Datasheet |
SPD62R | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 1.4 A | 1.4A | Shielded | 180mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.244" W (6.60mm x 6.20mm) | 0.118" (3.00mm) |
|
|
SPD62R-333MFIXED IND 33UH 820MA 500MOHM SMD |
4,980 | 0.64 |
|
Datasheet |
SPD62R | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 820 mA | 820mA | Shielded | 500mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.260" L x 0.244" W (6.60mm x 6.20mm) | 0.118" (3.00mm) |
|
B82559A0112A013FIXED IND 1.1UH 20A 1.72MOHM SMD |
3,984 | 0.81 |
|
Datasheet |
ERU13 - Flat Wire Inductor | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.1 µH | ±10% | 20 A | 20A | Shielded | 1.72mOhm | - | - | - | -40°C ~ 130°C | 10 kHz | - | Surface Mount | - | 0.512" L x 0.421" W (13.00mm x 10.70mm) | 0.195" (4.95mm) |
|
IHA202EBFIXED IND 50UH 3.1A 85 MOHM TH |
672 | 0.83 |
|
Datasheet |
IHA | Axial | - | Active | Drum Core, Wirewound | Ferrite | 50 µH | ±10% | 3.1 A | - | Unshielded | 85mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.500" Dia x 0.800" L (12.70mm x 20.32mm) | - |
|
DPO-5.0-100FIXED IND 100UH 5A 59 MOHM TH |
348 | 0.76 |
|
Datasheet |
DP | Radial, Vertical (Open) | Tray | Active | Toroidal | - | 100 µH | - | 5 A | - | Unshielded | 59mOhm Max | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 1.181" Dia x 0.512" W (30.00mm x 13.00mm) | - |
|
2210-V-RCFIXED IND 56UH 6.4A 26 MOHM TH |
3,644 | 0.94 |
|
Datasheet |
2200 | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 56 µH | ±15% | 6.4 A | - | Shielded | 26mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.950" Dia x 0.550" W (24.13mm x 13.97mm) | - |
|
|
2205-V-RCFIXED IND 22UH 10.3A 10 MOHM TH |
1,196 | 0.94 |
|
Datasheet |
2200 | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 22 µH | ±15% | 10.3 A | - | Shielded | 10mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.950" Dia x 0.550" W (24.13mm x 13.97mm) | - |
|
PG0006.312NLTFIXED IND 3.1UH 12A 7.5 MOHM SMD |
2,169 | 0.73 |
|
Datasheet |
PG0006NL | Nonstandard | Tape & Reel (TR) | Active | - | - | 3.1 µH | ±20% | 12 A | 12A | Unshielded | 7.5mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.528" L x 0.523" W (13.40mm x 13.28mm) | 0.236" (6.00mm) |
