Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PG0006.102NLTFIXED IND 1UH 20A 1.75 MOHM SMD |
944 | 0.73 |
|
Datasheet |
PG0006NL | Nonstandard | Tape & Reel (TR) | Active | - | - | 1 µH | ±20% | 20 A | 20A | Unshielded | 1.75mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.528" L x 0.523" W (13.40mm x 13.28mm) | 0.236" (6.00mm) |
|
DLH-14-0001FIXED IND 500UH 600MA 750MOHM TH |
253 | 0.66 |
|
Datasheet |
DLH | Radial, Horizontal - Corner Terminals | Bulk | Active | - | - | 500 µH | ±15% | 600 mA | - | Shielded | 750mOhm | - | - | - | -40°C ~ 125°C | - | - | Through Hole | - | 0.591" L x 0.413" W (15.00mm x 10.50mm) | - |
|

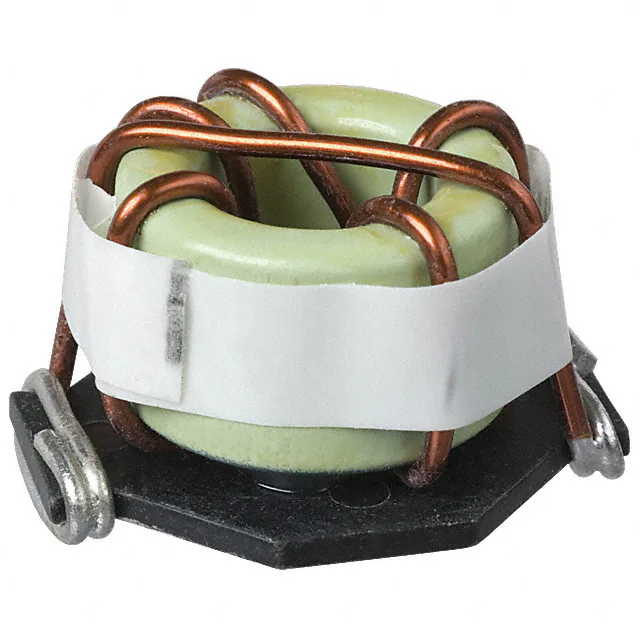

PM2120-101K-RCFIXED IND 100UH 6.1A 35 MOHM SMD |
677 | 0.73 |
|
Datasheet |
PM2120 | Nonstandard | Bulk | Active | Toroidal | Iron | 100 µH | ±10% | 6.1 A | - | Unshielded | 35mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Surface Mount | - | 1.201" L x 1.000" W (30.50mm x 25.40mm) | 0.870" (22.10mm) |
|
|
PM2120-151K-RCFIXED IND 150UH 5.5A 43 MOHM SMD |
543 | 0.73 |
|
Datasheet |
PM2120 | Nonstandard | Bulk | Active | Toroidal | Iron | 150 µH | ±10% | 5.5 A | - | Unshielded | 43mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Surface Mount | - | 1.201" L x 1.000" W (30.50mm x 25.40mm) | 0.870" (22.10mm) |
|
|
PM2120-390K-RCFIXED IND 39UH 9.6A 14 MOHM SMD |
538 | 0.73 |
|
Datasheet |
PM2120 | Nonstandard | Bulk | Active | Toroidal | Iron | 39 µH | ±10% | 9.6 A | - | Unshielded | 14mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Surface Mount | - | 1.201" L x 1.000" W (30.50mm x 25.40mm) | 0.820" (20.83mm) |
|
|
IHLP6767GZER470M8AFIXED IND 47UH 7.25A 56.4MOHM SM |
476 | 1.00 |
|
Datasheet |
IHLP-6767GZ-8A | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 47 µH | ±20% | 7.25 A | 7A | Shielded | 56.4mOhm Max | - | 3.72MHz | AEC-Q200 | -55°C ~ 180°C | 100 kHz | - | Surface Mount | - | 0.675" L x 0.675" W (17.15mm x 17.15mm) | 0.276" (7.00mm) |
|
PM2120-6R8M-RCFIXED IND 6.8UH 14.7A 6 MOHM SMD |
276 | 0.73 |
|
Datasheet |
PM2120 | Nonstandard | Bulk | Active | Toroidal | Iron | 6.8 µH | ±20% | 14.7 A | - | Unshielded | 6mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Surface Mount | - | 1.201" L x 1.000" W (30.50mm x 25.40mm) | 0.820" (20.83mm) |
|
|
PM2120-102K-RCFIXED IND 1MH 2.5A 215 MOHM SMD |
175 | 0.73 |
|
Datasheet |
PM2120 | Nonstandard | Bulk | Active | Toroidal | Iron | 1 mH | ±10% | 2.5 A | - | Unshielded | 215mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Surface Mount | - | 1.201" L x 1.000" W (30.50mm x 25.40mm) | 0.820" (20.83mm) |
|
|
PM2120-180K-RCFIXED IND 18UH 11.8A 9 MOHM SMD |
123 | 0.73 |
|
Datasheet |
PM2120 | Nonstandard | Bulk | Active | Toroidal | Iron | 18 µH | ±10% | 11.8 A | - | Unshielded | 9mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Surface Mount | - | 1.201" L x 1.000" W (30.50mm x 25.40mm) | 0.820" (20.83mm) |
|
|
PM2120-680K-RCFIXED IND 68UH 6.7A 29 MOHM SMD |
102 | 0.73 |
|
Datasheet |
PM2120 | Nonstandard | Bulk | Active | Toroidal | Iron | 68 µH | ±10% | 6.7 A | - | Unshielded | 29mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Surface Mount | - | 1.201" L x 1.000" W (30.50mm x 25.40mm) | 0.770" (19.56mm) |
|

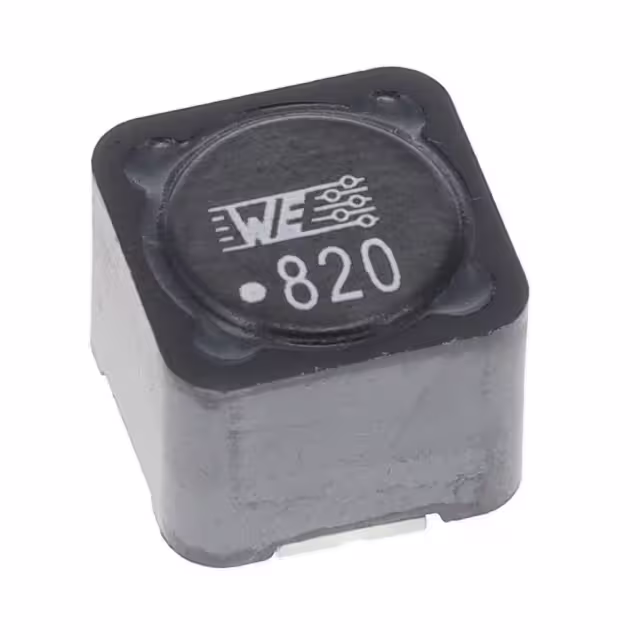

7447709820FIXED IND 82UH 2.75A 105MOHM SMD |
587 | 0.74 |
|
Datasheet |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 82 µH | ±20% | 2.75 A | 3.4A | Shielded | 105mOhm Max | - | 4.5MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.394" (10.00mm) |
|
PA5119.901NLTFIXED IND 900NH 14A 4.6 MOHM SMD |
2,024 | 0.52 |
|
Datasheet |
PA5119.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | - | - | 900 nH | ±10% | 14 A | 28A | Shielded | 4.6mOhm | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.480" L x 0.386" W (12.20mm x 9.80mm) | 0.197" (5.00mm) |
|

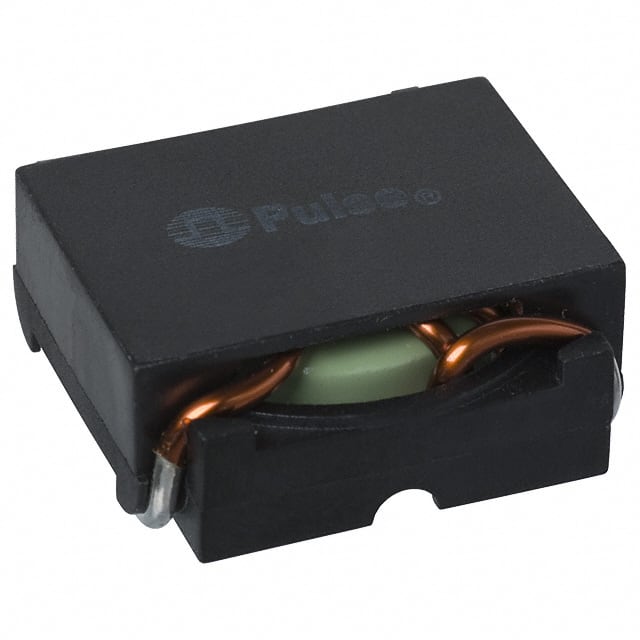

HC1-R22-RFIXED IND 220NH 51.42A 0.36 MOHM |
378 | 1.15 |
|
Datasheet |
HC1 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 nH | ±15% | 51.42 A | 40.5A | Unshielded | 0.36mOhm Max | - | - | - | -40°C ~ 125°C | 300 kHz | - | Surface Mount | - | 0.512" L x 0.512" W (13.00mm x 13.00mm) | 0.394" (10.00mm) |
|
1537-36KFIXED IND 10UH 335MA 900 MOHM TH |
991 | 0.39 |
|
Datasheet |
Military, MIL-PRF-M15305, MS14046 | Axial | Tape & Reel (TR) | Active | - | Iron | 10 µH | ±10% | 335 mA | - | Unshielded | 900mOhm Max | 55 @ 7.9MHz | 45MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.156" Dia x 0.375" L (3.96mm x 9.53mm) | - |
|
FIT50-2FIXED IND 35.48UH 3.4A 57.8 MOHM |
380 | 0.77 |
|
Datasheet |
FIT | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 35.48 µH | - | 3.4 A | - | Unshielded | 57.8mOhm Max | - | - | - | -40°C ~ 85°C | 10 kHz | - | Through Hole | - | 0.700" L x 0.475" W (17.78mm x 12.07mm) | 0.750" (19.05mm) |
|
PE-53700NLFIXED IND 5.2UH 15.4A 6.2MOHM SM |
3,582 | 0.64 |
|
Datasheet |
SLIC | Nonstandard | Bulk | Active | Toroidal | - | 5.2 µH | - | 15.4 A | - | Unshielded | 6.2mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.940" L x 0.940" W (23.88mm x 23.88mm) | 0.390" (9.91mm) |
|
|
7445920FIXED IND 100UH 1.7A 0.207OHM SM |
762 | 0.41 |
|
Datasheet |
WE-PD3 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | - | 100 µH | ±20% | 1.7 A | 2.4A | Shielded | 207mOhm Max | - | 5.5MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.730" L x 0.600" W (18.54mm x 15.24mm) | 0.300" (7.62mm) |
|
SD8350-220-RFIXED IND 22UH 1.8A 75 MOHM SMD |
1,400 | 0.66 |
|
Datasheet |
SD8350 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±30% | 1.8 A | 2.6A | Shielded | 75mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.374" L x 0.327" W (9.50mm x 8.30mm) | 0.177" (4.50mm) |
|
FIRCH-1FIXED IND 2.54UH 11.6A 5.5 MOHM |
182 | 0.78 |
|
Datasheet |
FIRCH | Radial, Vertical Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | 2.54 µH | ±15% | 11.6 A | - | Unshielded | 5.5mOhm Max | - | - | - | -40°C ~ 85°C | 10 kHz | - | Through Hole | - | 0.630" L x 0.465" W (16.00mm x 11.81mm) | 1.050" (26.67mm) |
|

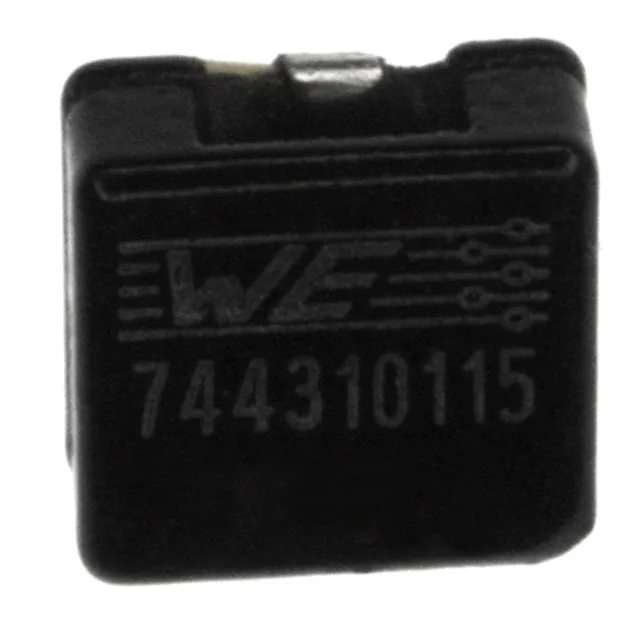

744310115FIXED IND 1.15UH 8.5A 8.6MOHM SM |
3,526 | 0.76 |
|
Datasheet |
WE-HCI | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1.15 µH | ±20% | 8.5 A | 13A | Shielded | 8.6mOhm | - | 84MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | 7030 | 0.276" L x 0.272" W (7.00mm x 6.90mm) | 0.130" (3.30mm) |
