Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
P1330R-222KFIXED IND 2.2UH 1.69A 75MOHM SMD |
2,092 | 0.64 |
|
Datasheet |
P1330R | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 2.2 µH | ±10% | 1.69 A | 1.104A | Unshielded | 75mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.313" L x 0.115" W (7.94mm x 2.92mm) | 0.145" (3.68mm) |
|
|
P1330R-182KFIXED IND 1.8UH 1.95A 48MOHM SMD |
1,706 | 0.64 |
|
Datasheet |
P1330R | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 1.8 µH | ±10% | 1.95 A | 1.18A | Unshielded | 48mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.313" L x 0.115" W (7.94mm x 2.92mm) | 0.145" (3.68mm) |
|

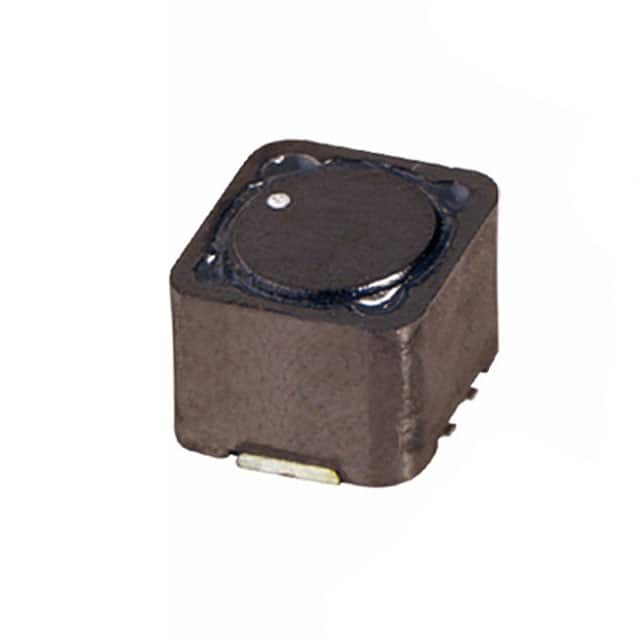

744778001FIXED IND 1UH 5.37A 12 MOHM SMD |
1,327 | 0.59 |
|
Datasheet |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±20% | 5.37 A | 6.4A | Shielded | 12mOhm Max | - | 115MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.134" (3.40mm) |
|
|
P1330R-823KFIXED IND 82UH 362MA 1.38OHM SMD |
799 | 0.64 |
|
Datasheet |
P1330R | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 82 µH | ±10% | 362 mA | 150mA | Unshielded | 1.38Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.313" L x 0.115" W (7.94mm x 2.92mm) | 0.145" (3.68mm) |
|

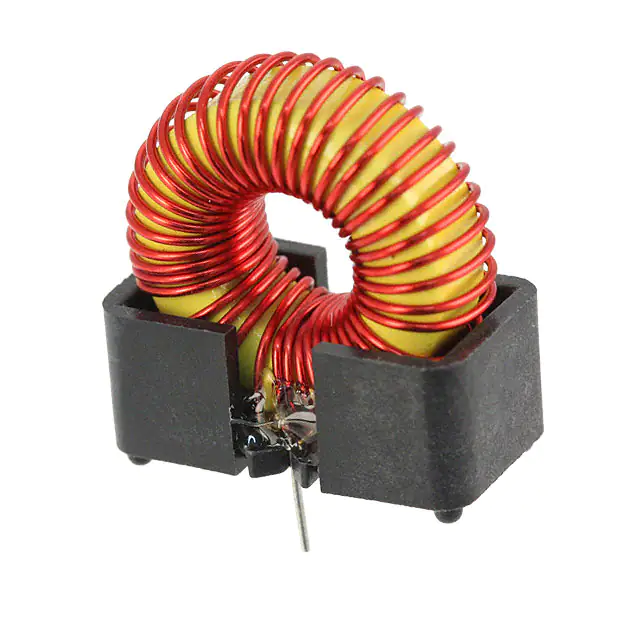

PE-92102KNLFIXED IND 100UH 2.6A 100 MOHM TH |
794 | 0.65 |
|
Datasheet |
- | Radial, Vertical (Open) | Tray | Active | Toroidal | - | 100 µH | ±20% | 2.6 A | - | Unshielded | 100mOhm Max | - | - | - | -40°C ~ 130°C | 20 kHz | - | Through Hole | - | 0.850" L x 0.450" W (21.59mm x 11.43mm) | 0.950" (24.13mm) |
|
PA2050.782NLFIXED IND 7.8UH 13.3A 5.1MOHM SM |
770 | 1.05 |
|
Datasheet |
PA2050NL | Nonstandard | Tray | Active | Wirewound | - | 7.8 µH | ±10% | 13.3 A | 18A | Shielded | 5.1mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.875" L x 0.750" W (22.23mm x 19.05mm) | 0.480" (12.20mm) |
|

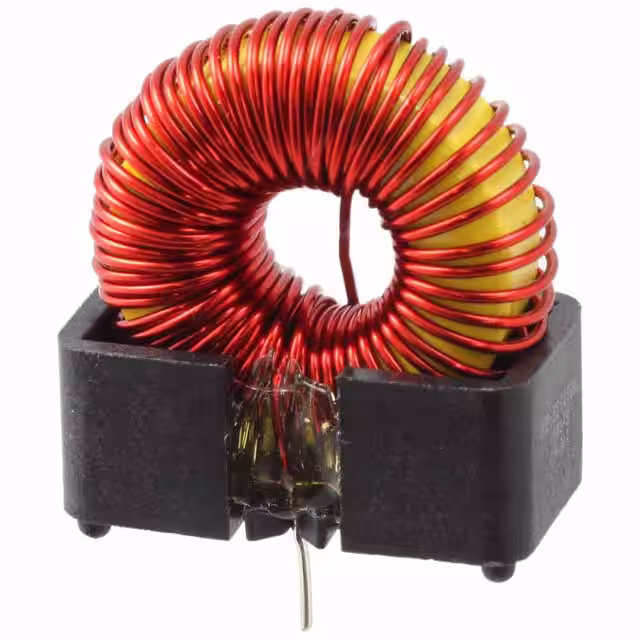

PE-53145NLFIXED IND 220UH 1.4A 140 MOHM TH |
391 | 0.65 |
|
Datasheet |
- | Radial, Vertical (Open) | Tube | Active | Toroidal | - | 220 µH | ±20% | 1.4 A | - | Unshielded | 140mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Through Hole | - | 0.830" L x 0.450" W (21.09mm x 11.43mm) | 0.950" (24.13mm) |
|

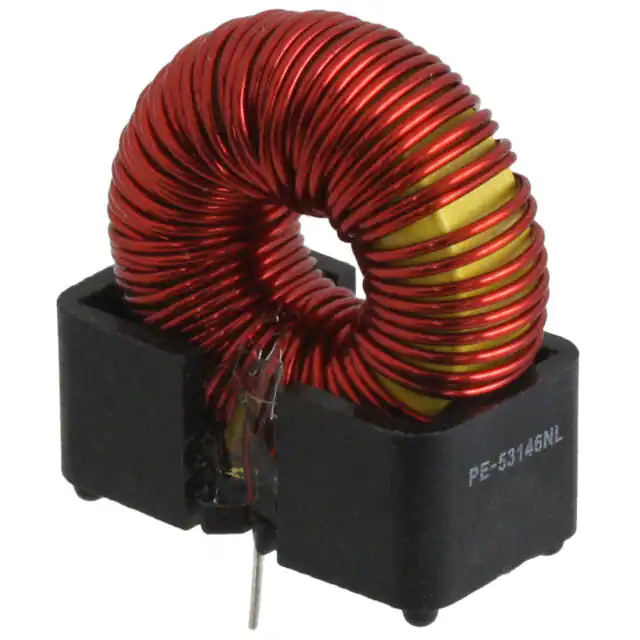

PE-53146NLFIXED IND 330UH 900MA 180MOHM TH |
210 | 0.64 |
|
Datasheet |
- | Radial, Vertical (Open) | Tube | Active | Toroidal | - | 330 µH | ±20% | 900 mA | - | Unshielded | 180mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Through Hole | - | 0.830" L x 0.450" W (21.09mm x 11.43mm) | 0.950" (24.13mm) |
|
PE-53827SNLTFIXED IND 248UH 830MA 600MOHM SM |
1,245 | 0.67 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 248 µH | ±20% | 830 mA | - | Shielded | 600mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.620" L x 0.600" W (15.75mm x 15.24mm) | 0.390" (9.91mm) |
|
HCV1206-3R0-RFIXED IND 3UH 11A 7.4 MOHM SMD |
161 | 0.66 |
|
Datasheet |
HCV1206 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3 µH | ±10% | 11 A | 13A | Unshielded | 7.4mOhm | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.480" L x 0.386" W (12.20mm x 9.80mm) | 0.201" (5.10mm) |
|
2100HT-470-V-RCFIXED IND 47UH 5.6A 36 MOHM TH |
1,316 | 0.88 |
|
Datasheet |
2100HT | Radial, Vertical (Open) | Bulk | Active | Toroidal | - | 47 µH | ±15% | 5.6 A | - | Shielded | 36mOhm Max | - | - | - | -55°C ~ 200°C | 1 kHz | - | Through Hole | - | 0.860" Dia x 0.450" W (21.84mm x 11.43mm) | - |
|
PA2729.443NLFIXED IND 44UH 6.2A 21.5MOHM SMD |
868 | 0.71 |
|
Datasheet |
PA2729.XXXNL | Nonstandard | Tray | Active | Wirewound | - | 44 µH | ±15% | 6.2 A | 7.3A | Shielded | 21.5mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.875" L x 0.750" W (22.23mm x 19.05mm) | 0.480" (12.20mm) |
|
|
PA2729.802NLFIXED IND 8.3UH 13.3A 5.1MOHM SM |
370 | 0.71 |
|
Datasheet |
PA2729.XXXNL | Nonstandard | Tray | Active | Wirewound | - | 8.3 µH | ±15% | 13.3 A | 16.8A | Shielded | 5.1mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.875" L x 0.750" W (22.23mm x 19.05mm) | 0.480" (12.20mm) |
|

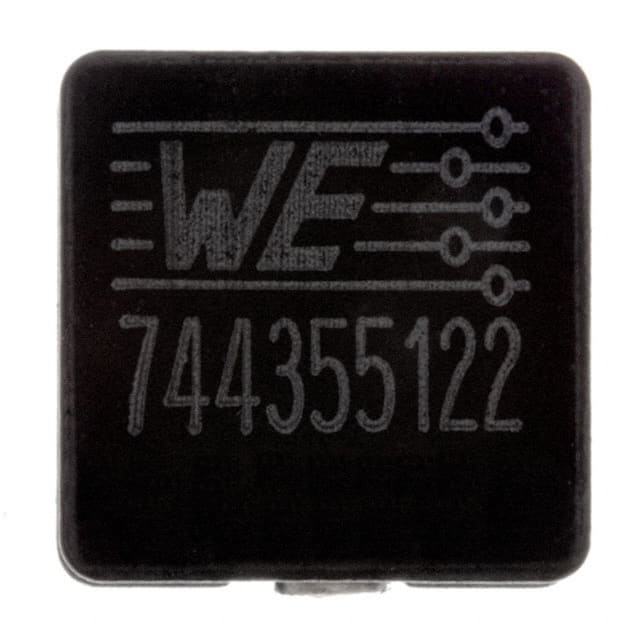

744355122FIXED IND 200NH 32A 0.35MOHM SMD |
1,805 | 0.70 |
|
Datasheet |
WE-HCI | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 200 nH | ±20% | 32 A | 65A | Shielded | 0.35mOhm | - | 230MHz | AEC-Q200 | -40°C ~ 155°C | 100 kHz | - | Surface Mount | 1365 | 0.512" L x 0.504" W (13.00mm x 12.80mm) | 0.256" (6.50mm) |
|

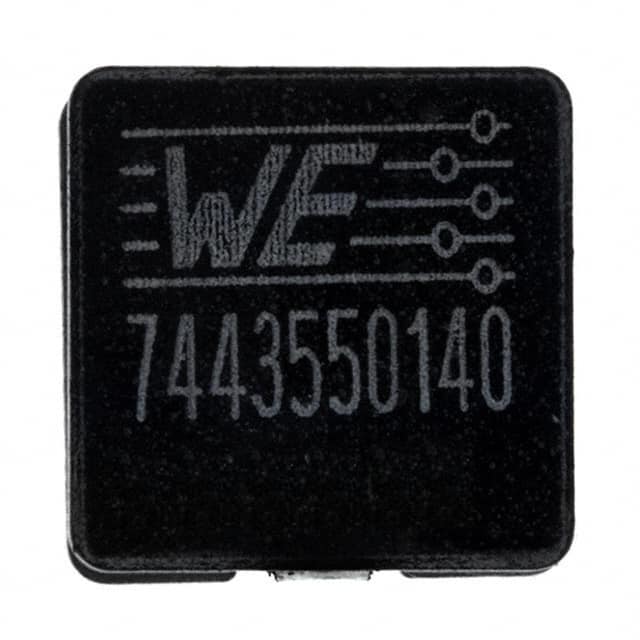

7443550140FIXED IND 1.4UH 22A 2.4 MOHM SMD |
1,075 | 0.70 |
|
Datasheet |
WE-HCI | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1.4 µH | ±20% | 22 A | 26A | Shielded | 2.4mOhm | - | 60MHz | AEC-Q200 | -40°C ~ 155°C | 100 kHz | - | Surface Mount | 1350 | 0.512" L x 0.504" W (13.00mm x 12.80mm) | 0.197" (5.00mm) |
|

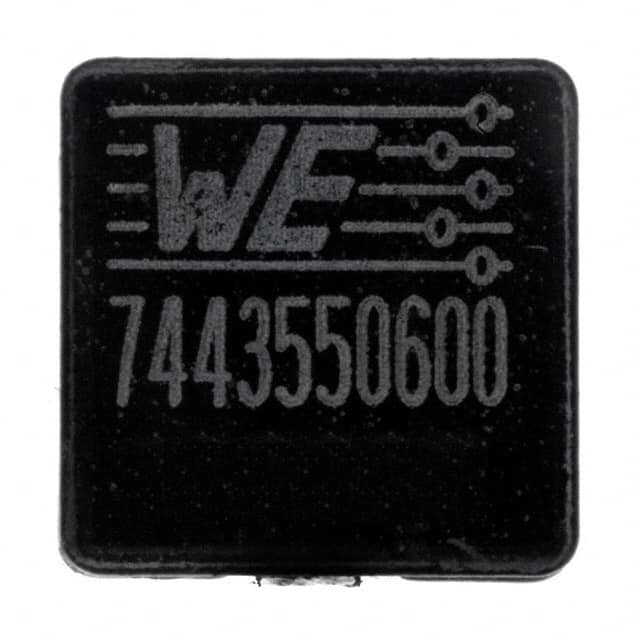

7443550600FIXED IND 6UH 9.5A 13.5 MOHM SMD |
631 | 0.70 |
|
Datasheet |
WE-HCI | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 6 µH | ±20% | 9.5 A | 11.5A | Shielded | 13.5mOhm | - | 22MHz | AEC-Q200 | -40°C ~ 155°C | 100 kHz | - | Surface Mount | 1350 | 0.512" L x 0.504" W (13.00mm x 12.80mm) | 0.197" (5.00mm) |
|

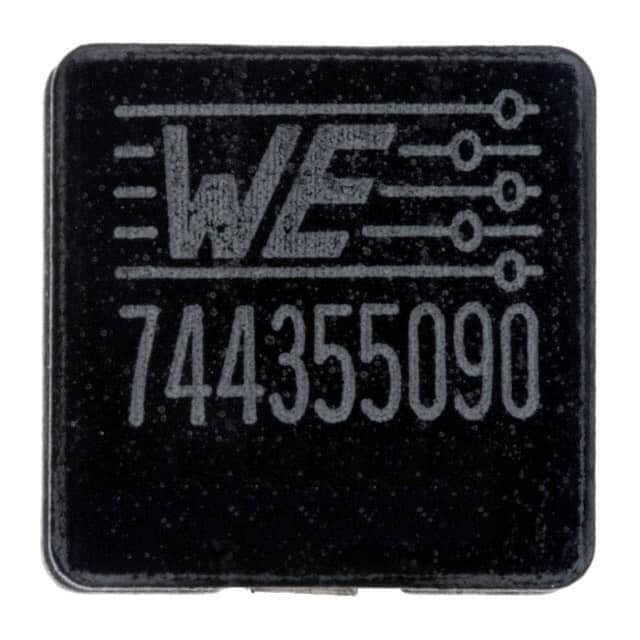

744355090FIXED IND 900NH 24A 1.6 MOHM SMD |
404 | 0.70 |
|
Datasheet |
WE-HCI | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 900 nH | ±20% | 24 A | 28A | Shielded | 1.6mOhm | - | 72MHz | AEC-Q200 | -40°C ~ 155°C | 100 kHz | - | Surface Mount | 1350 | 0.512" L x 0.504" W (13.00mm x 12.80mm) | 0.197" (5.00mm) |
|

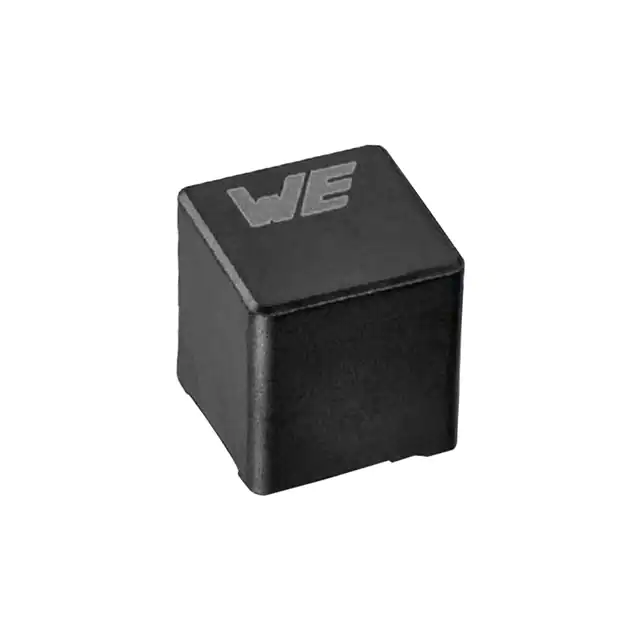

7843320470FIXED IND 4.7UH 12.2A 8.2MOHM SM |
282 | 0.70 |
|
Datasheet |
WE-CHSA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 12.2 A | 15.3A | Shielded | 8.2mOhm Max | - | 37MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | 1212 | 0.480" L x 0.480" W (12.20mm x 12.20mm) | 0.474" (12.05mm) |
|
7843321800WE-CHSA SMT HIGH CURRENT INDUCTO |
233 | 0.70 |
|
Datasheet |
WE-CHSA | Nonstandard | Tape & Reel (TR) | Active | - | - | 18 µH | ±20% | 5.5 A | 7.7A | Shielded | 38.4mOhm Max | - | 21MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.480" L x 0.480" W (12.20mm x 12.20mm) | 0.474" (12.05mm) |
|
|
7843320330FIXED IND 3.3UH 13.8A 6.4MOHM SM |
227 | 0.65 |
|
Datasheet |
WE-CHSA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 13.8 A | 19A | Shielded | 6.4mOhm Max | - | 45MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | 1212 | 0.480" L x 0.480" W (12.20mm x 12.20mm) | 0.474" (12.05mm) |
