Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1812R-824JFIXED IND 820UH 67MA 45 OHM SMD |
2,604 | 0.58 |
|
Datasheet |
1812R | 1812 (4532 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 820 µH | ±5% | 67 mA | - | Unshielded | 45Ohm Max | 30 @ 790kHz | 2.5MHz | - | -55°C ~ 125°C | 790 kHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
1812R-333JFIXED IND 33UH 224MA 4 OHM SMD |
2,015 | 0.58 |
|
Datasheet |
1812R | 1812 (4532 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 33 µH | ±5% | 224 mA | - | Unshielded | 4Ohm Max | 50 @ 2.5MHz | 11MHz | - | -55°C ~ 125°C | 2.5 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
1812R-472JFIXED IND 4.7UH 448MA 1 OHM SMD |
1,663 | 0.58 |
|
Datasheet |
1812R | 1812 (4532 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 4.7 µH | ±5% | 448 mA | - | Unshielded | 1Ohm Max | 50 @ 7.9MHz | 35MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
1812R-822JFIXED IND 8.2UH 375MA 1.4OHM SMD |
1,471 | 0.58 |
|
Datasheet |
1812R | 1812 (4532 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 8.2 µH | ±5% | 375 mA | - | Unshielded | 1.4Ohm Max | 50 @ 7.9MHz | 25MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
1812R-563JFIXED IND 56UH 191MA 5.5 OHM SMD |
1,454 | 0.58 |
|
Datasheet |
1812R | 1812 (4532 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 56 µH | ±5% | 191 mA | - | Unshielded | 5.5Ohm Max | 50 @ 2.5MHz | 9MHz | - | -55°C ~ 125°C | 2.5 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
1812R-222JFIXED IND 2.2UH 535MA 700MOHM SM |
1,134 | 0.58 |
|
Datasheet |
1812R | 1812 (4532 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 2.2 µH | ±5% | 535 mA | - | Unshielded | 700mOhm Max | 50 @ 7.9MHz | 55MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
.jpg)
|
AIRD-01-331KFIXED IND 330UH 1.3A 336 MOHM TH |
812 | 0.68 |
|
Datasheet |
AIRD-01 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 330 µH | ±10% | 1.3 A | 3.8A | Unshielded | 336mOhm Max | - | - | - | -25°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.650" Dia (16.50mm) | 0.827" (21.00mm) |
|
|
1812R-473JFIXED IND 47UH 200MA 5 OHM SMD |
675 | 0.58 |
|
Datasheet |
1812R | 1812 (4532 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 47 µH | ±5% | 200 mA | - | Unshielded | 5Ohm Max | 50 @ 2.5MHz | 10MHz | - | -55°C ~ 125°C | 2.5 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
1812R-183JFIXED IND 18UH 268MA 2.8 OHM SMD |
667 | 0.58 |
|
Datasheet |
1812R | 1812 (4532 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 18 µH | ±5% | 268 mA | - | Unshielded | 2.8Ohm Max | 50 @ 2.5MHz | 15MHz | - | -55°C ~ 125°C | 2.5 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
AIRD-01-100KFIXED IND 10UH 9A 10 MOHM TH |
638 | 0.64 |
|
Datasheet |
AIRD-01 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±10% | 9 A | 21.2A | Unshielded | 10mOhm Max | - | - | - | -25°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.650" Dia (16.50mm) | 0.827" (21.00mm) |
|
|
1812R-122JFIXED IND 1.2UH 604MA 550MOHM SM |
500 | 0.58 |
|
Datasheet |
1812R | 1812 (4532 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 1.2 µH | ±5% | 604 mA | - | Unshielded | 550mOhm Max | 50 @ 7.9MHz | 80MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
AIRD-01-330KFIXED IND 33UH 4A 40 MOHM TH |
447 | 0.68 |
|
Datasheet |
AIRD-01 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±10% | 4 A | 13.2A | Unshielded | 40mOhm Max | - | - | - | -25°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.650" Dia (16.50mm) | 0.827" (21.00mm) |
|
|
1812R-564JFIXED IND 560UH 82MA 30 OHM SMD |
408 | 0.58 |
|
Datasheet |
1812R | 1812 (4532 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 560 µH | ±5% | 82 mA | - | Unshielded | 30Ohm Max | 30 @ 790kHz | 3MHz | - | -55°C ~ 125°C | 790 kHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
1812R-182JFIXED IND 1.8UH 556MA 650MOHM SM |
368 | 0.58 |
|
Datasheet |
1812R | 1812 (4532 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 1.8 µH | ±5% | 556 mA | - | Unshielded | 650mOhm Max | 50 @ 7.9MHz | 60MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
AIRD-01-150KFIXED IND 15UH 7.2A 15 MOHM TH |
176 | 0.68 |
|
Datasheet |
AIRD-01 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±10% | 7.2 A | 17.5A | Unshielded | 15mOhm Max | - | - | - | -25°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.650" Dia (16.50mm) | 0.827" (21.00mm) |
|
5900-223-RCFIXED IND 22MH 150MA 18 OHM TH |
865 | 0.50 |
|
Datasheet |
5900 | Axial | Tray | Active | Drum Core, Wirewound | Ferrite | 22 mH | ±10% | 150 mA | 180mA | Unshielded | 18Ohm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.453" Dia x 0.900" L (11.51mm x 22.86mm) | - |
|
UP3B-100-RFIXED IND 10UH 4.3A 26 MOHM SMD |
662 | 0.56 |
|
Datasheet |
UNI-PAC™ | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 4.3 A | 5.2A | Unshielded | 26mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.760" L x 0.520" W (19.30mm x 13.21mm) | 0.268" (6.80mm) |
|

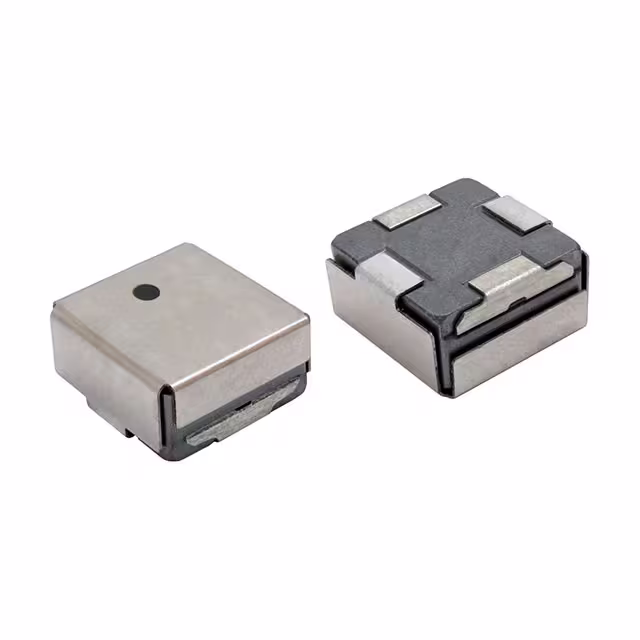

IHLE5050FHER100M5AIHLE-5050FH-5A 10 20% ER E3 |
208 | 0.88 |
|
Datasheet |
IHLE-5050FH-5A | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 10 µH | ±20% | 12.1 A | 7.8A | Shielded | 17.76mOhm Max | - | 10.7MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.550" L x 0.535" W (13.97mm x 13.59mm) | 0.268" (6.80mm) |
|
1536XFIXED IND 250UH 2.5A 170 MOHM TH |
2,704 | 0.66 |
|
Datasheet |
1536 | Axial | Bulk | Active | Drum Core, Wirewound | Iron Powder | 250 µH | ±20% | 2.5 A | - | Unshielded | 170mOhm | - | 1.5MHz | - | - | 1 kHz | - | Through Hole | - | 0.430" Dia x 1.250" L (10.92mm x 31.75mm) | - |
|
HCTI-270-5.5FIXED IND 270UH 5.5A 60 MOHM TH |
838 | 0.65 |
|
Datasheet |
HCTI | Radial, Vertical (Open) | Tray | Active | Toroidal | - | 270 µH | ±15% | 5.5 A | - | Shielded | 60mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.280" Dia x 0.650" W (32.51mm x 16.51mm) | - |
