Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FIT44-4FIXED IND 8.06UH 4.8A 15.9 MOHM |
456 | 0.66 |
|
Datasheet |
FIT | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 8.06 µH | - | 4.8 A | - | Unshielded | 15.9mOhm Max | - | - | - | -40°C ~ 85°C | 10 kHz | - | Through Hole | - | 0.625" L x 0.350" W (15.88mm x 8.89mm) | 0.700" (17.78mm) |
|
2118-V-RCFIXED IND 330UH 1.7A 230 MOHM TH |
383 | 0.64 |
|
Datasheet |
2100 | Radial, Vertical (Open) | Bulk | Active | Toroidal | - | 330 µH | ±15% | 1.7 A | - | Unshielded | 230mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.860" Dia x 0.450" W (21.84mm x 11.43mm) | - |
|
|
2101-V-RCFIXED IND 10UH 10.8A 6 MOHM TH |
345 | 0.64 |
|
Datasheet |
2100 | Radial, Vertical (Open) | Bulk | Active | Toroidal | - | 10 µH | ±15% | 10.8 A | - | Unshielded | 6mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.860" Dia x 0.450" W (21.84mm x 11.43mm) | - |
|
|
2107-V-RCFIXED IND 33UH 5A 29 MOHM TH |
344 | 0.64 |
|
Datasheet |
2100 | Radial, Vertical (Open) | Bulk | Active | Toroidal | - | 33 µH | ±15% | 5 A | - | Unshielded | 29mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.860" Dia x 0.450" W (21.84mm x 11.43mm) | - |
|
HEAWS-100M=P3FIXED IND 10UH 2.8A 25 MOHM SMD |
250 | 0.52 |
|
Datasheet |
HEAWS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 2.8 A | 5A | Shielded | 25mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.421" L x 0.409" W (10.70mm x 10.40mm) | 0.394" (10.00mm) |
|
|
2123-V-RCFIXED IND 820UH 1.4A 370 MOHM TH |
239 | 0.64 |
|
Datasheet |
2100 | Radial, Vertical (Open) | Bulk | Active | Toroidal | - | 820 µH | ±15% | 1.4 A | - | Unshielded | 370mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.860" Dia x 0.450" W (21.84mm x 11.43mm) | - |
|
2105-H-RCFIXED IND 22UH 7A 15 MOHM TH |
212 | 0.64 |
|
Datasheet |
2100 | Radial, Horizontal (Open) | Bulk | Active | Toroidal | - | 22 µH | ±15% | 7 A | - | Unshielded | 15mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.860" Dia (21.84mm) | 0.450" (11.43mm) |
|
|
2122-V-RCFIXED IND 680UH 1.4A 330 MOHM TH |
212 | 0.64 |
|
Datasheet |
2100 | Radial, Vertical (Open) | Bulk | Active | Toroidal | - | 680 µH | ±15% | 1.4 A | - | Unshielded | 330mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.860" Dia x 0.450" W (21.84mm x 11.43mm) | - |
|
|
2113-H-RCFIXED IND 120UH 2.2A 150 MOHM TH |
199 | 0.64 |
|
Datasheet |
2100 | Radial, Horizontal (Open) | Bulk | Active | Toroidal | - | 120 µH | ±15% | 2.2 A | - | Unshielded | 150mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.860" Dia (21.84mm) | 0.450" (11.43mm) |
|
|
2107-H-RCFIXED IND 33UH 5A 29 MOHM TH |
168 | 0.64 |
|
Datasheet |
2100 | Radial, Horizontal (Open) | Bulk | Active | Toroidal | - | 33 µH | ±15% | 5 A | - | Unshielded | 29mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.860" Dia (21.84mm) | 0.450" (11.43mm) |
|
SRP1265WA-220MIND,13.6X12.6X6.2MM,22UH20%,7.5A |
139 | 0.39 |
|
Datasheet |
SRP1265WA | Nonstandard | Tape & Reel (TR) | Active | - | Metal | 22 µH | ±20% | 7.5 A | 8A | Shielded | 39.2mOhm Max | 20 @ 100kHz | 7MHz | AEC-Q200 | -55°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.535" L x 0.496" W (13.60mm x 12.60mm) | 0.256" (6.50mm) |
|
|
2117-H-RCFIXED IND 270UH 1.8A 210 MOHM TH |
116 | 0.64 |
|
Datasheet |
2100 | Radial, Horizontal (Open) | Bulk | Active | Toroidal | - | 270 µH | ±15% | 1.8 A | - | Unshielded | 210mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.860" Dia (21.84mm) | 0.450" (11.43mm) |
|
SD8328-4R7-RFIXED IND 4.7UH 4.5A 24.7MOHM SM |
1,139 | 0.60 |
|
Datasheet |
SD8328 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±30% | 4.5 A | 3.6A | Shielded | 24.7mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.374" L x 0.327" W (9.50mm x 8.30mm) | 0.118" (3.00mm) |
|
SD8328-100-RFIXED IND 10UH 3.3A 45 MOHM SMD |
2,197 | 0.61 |
|
Datasheet |
SD8328 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±30% | 3.3 A | 2.6A | Shielded | 45mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.374" L x 0.327" W (9.50mm x 8.30mm) | 0.118" (3.00mm) |
|

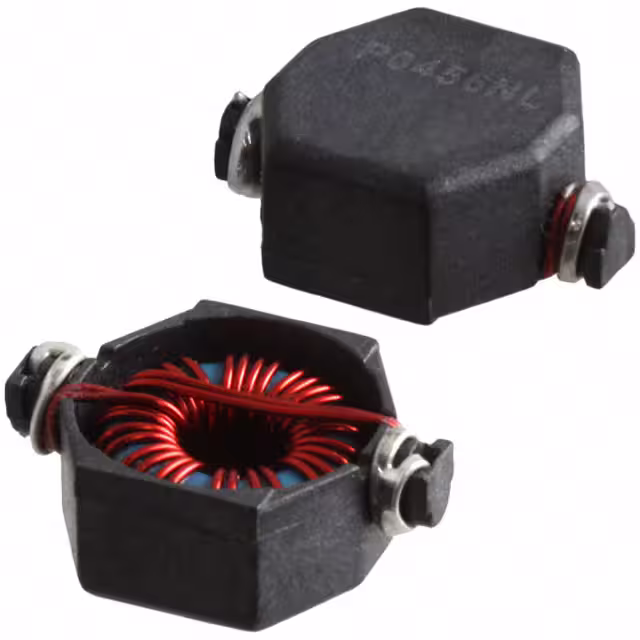

P0456NLTFIXED IND 6.3UH 2A 30 MOHM SMD |
600 | 0.64 |
|
Datasheet |
Ros 2 | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 6.3 µH | ±15% | 2 A | - | Shielded | 30mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.545" L x 0.390" W (13.84mm x 9.91mm) | 0.215" (5.46mm) |
|
ETQ-P8M4R7JFAFIXED IND 4.7UH 16.8A 5.39 MOHM |
378 | 0.73 |
|
Datasheet |
PCC-M1280MF | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 4.7 µH | ±20% | 16.8 A | 24.7A | Shielded | 5.39mOhm Max | - | - | AEC-Q200 | -40°C ~ 160°C | 100 kHz | - | Surface Mount | - | 0.496" L x 0.516" W (12.60mm x 13.10mm) | 0.315" (8.00mm) |
|
1812R-123JFIXED IND 12UH 317MA 2 OHM SMD |
26,050 | 0.58 |
|
Datasheet |
1812R | 1812 (4532 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 12 µH | ±5% | 317 mA | - | Unshielded | 2Ohm Max | 50 @ 2.5MHz | 18MHz | - | -55°C ~ 125°C | 2.5 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
1812R-274JFIXED IND 270UH 129MA 12 OHM SMD |
12,685 | 0.58 |
|
Datasheet |
1812R | 1812 (4532 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 270 µH | ±5% | 129 mA | - | Unshielded | 12Ohm Max | 40 @ 790kHz | 4MHz | - | -55°C ~ 125°C | 790 kHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
1812R-223JFIXED IND 22UH 250MA 3.2 OHM SMD |
4,295 | 0.58 |
|
Datasheet |
1812R | 1812 (4532 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 22 µH | ±5% | 250 mA | - | Unshielded | 3.2Ohm Max | 50 @ 2.5MHz | 13MHz | - | -55°C ~ 125°C | 2.5 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
1812R-102JFIXED IND 1UH 634MA 500 MOHM SMD |
3,166 | 0.58 |
|
Datasheet |
1812R | 1812 (4532 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 1 µH | ±5% | 634 mA | - | Unshielded | 500mOhm Max | 50 @ 7.9MHz | 100MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
