Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PG0426.471NLTFIXED IND 470NH 20A 3.4 MOHM SMD |
1,475 | 0.64 |
|
Datasheet |
PG0426NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 470 nH | ±20% | 20 A | 26A | Shielded | 3.4mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.295" L x 0.276" W (7.50mm x 7.00mm) | 0.126" (3.20mm) |
|
DRA127-100-RFIXED IND 10UH 6.02A 17 MOHM SMD |
1,456 | 0.62 |
|
Datasheet |
DRA | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 10 µH | ±20% | 6.02 A | 11.2A | Shielded | 17mOhm | - | - | AEC-Q200 | -40°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|
SBC8-332-421FIXED IND 3.3MH 420MA 2.5 OHM TH |
875 | 0.58 |
|
Datasheet |
SBC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 3.3 mH | ±10% | 420 mA | 630mA | Unshielded | 2.5Ohm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.591" Dia (15.00mm) | 0.886" (22.50mm) |
|
744373965470FIXED IND 47UH 3.7A 0.09OHM SMD |
463 | 0.60 |
|
Datasheet |
WE-LHMI | 2-SMD | Tape & Reel (TR) | Active | Molded | Iron Powder | 47 µH | ±20% | 3.7 A | 13.1A | Shielded | 90mOhm Max | - | 3.8MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1365 | 0.551" L x 0.504" W (14.00mm x 12.80mm) | 0.256" (6.50mm) |
|
DRA125-681-RFIXED IND 680UH 673MA 1.2OHM SMD |
426 | 0.57 |
|
Datasheet |
DRA | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 680 µH | ±20% | 673 mA | 834mA | Shielded | 1.2Ohm | - | - | AEC-Q200 | -40°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.236" (6.00mm) |
|
|
744373965015FIXED IND 1.5UH 18A 0.003OHM SMD |
349 | 0.60 |
|
Datasheet |
WE-LHMI | 2-SMD | Tape & Reel (TR) | Active | Molded | Iron Powder | 1.5 µH | ±20% | 18 A | 55.2A | Shielded | 3mOhm Max | - | 29.5MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1365 | 0.551" L x 0.504" W (14.00mm x 12.80mm) | 0.256" (6.50mm) |
|
|
744373965033FIXED IND 3.3UH 12.2A 0.0068OHM |
172 | 0.60 |
|
Datasheet |
WE-LHMI | 2-SMD | Tape & Reel (TR) | Active | Molded | Iron Powder | 3.3 µH | ±20% | 12.2 A | 41.5A | Shielded | 6.8mOhm Max | - | 20.3MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1365 | 0.551" L x 0.504" W (14.00mm x 12.80mm) | 0.256" (6.50mm) |
|

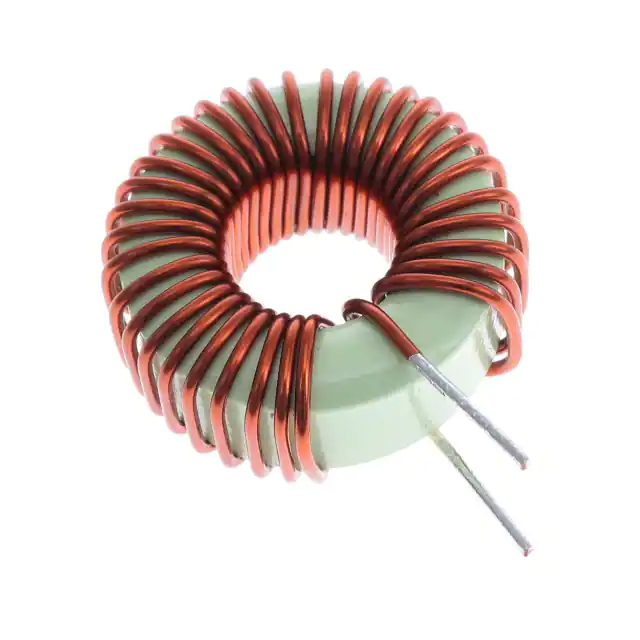

PE-92112NLFIXED IND 100UH 5A 34 MOHM TH |
645 | 1.03 |
|
Datasheet |
- | Radial, Vertical (Open) | Tray | Active | Toroidal | - | 100 µH | ±20% | 5 A | - | Unshielded | 34mOhm Max | - | - | - | -40°C ~ 130°C | 20 kHz | - | Through Hole | - | 1.400" Dia x 0.700" W (35.56mm x 17.78mm) | - |
|

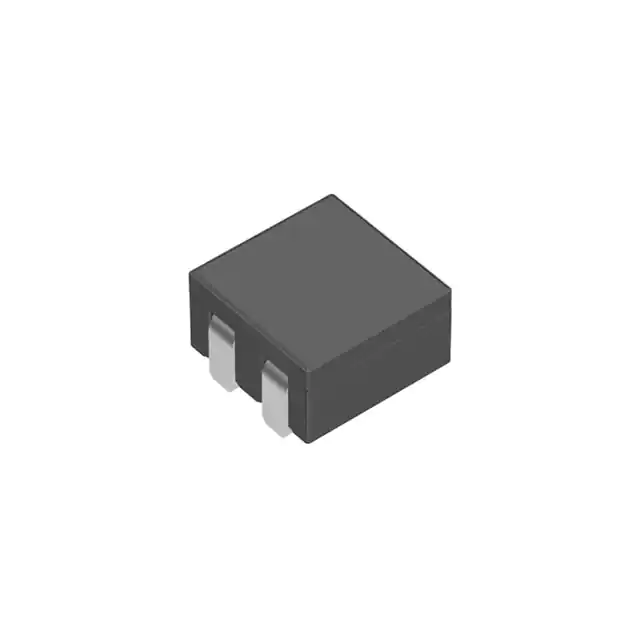

HPL758040FR22MRD3PFIXED IND 220NH 43A 0.61MOHM SMD |
2,708 | 0.63 |
|
Datasheet |
HPL | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 220 nH | ±20% | 43 A | 27.5A | Unshielded | 0.61mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.295" W (8.00mm x 7.50mm) | 0.157" (4.00mm) |
|
FP4-150-RFIXED IND 150NH 40A 0.65MOHM SMD |
1,840 | 0.47 |
|
Datasheet |
FLAT-PAC 4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 nH | ±15% | 40 A | 42A | Unshielded | 0.65mOhm Max | - | - | - | -40°C ~ 155°C | 1 MHz | - | Surface Mount | - | 0.402" L x 0.268" W (10.20mm x 6.80mm) | 0.197" (5.00mm) |
|

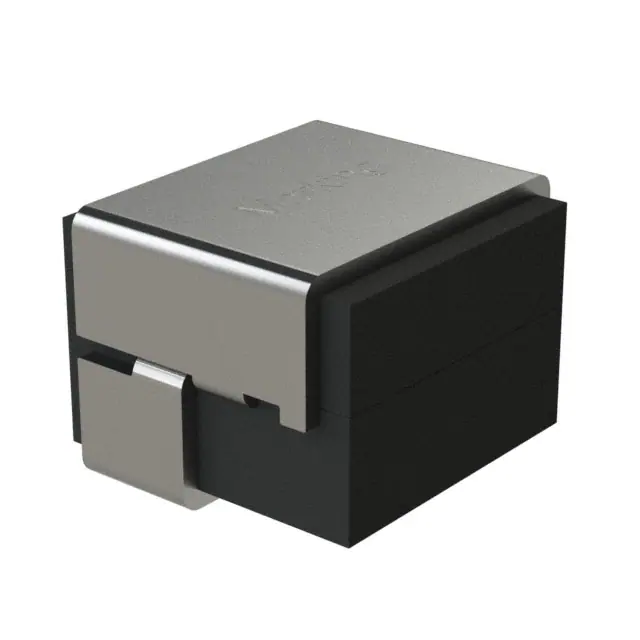

7443091100FIXED IND 1UH 34A 0.00042OHM SMD |
1,167 | 0.60 |
|
Datasheet |
WE-HCM | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 1 µH | ±20% | 34 A | 43.5A | Shielded | 0.42mOhm | - | 18MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1411 | 0.571" L x 0.531" W (14.50mm x 13.50mm) | 0.421" (10.70mm) |
|
2500-28JFIXED IND 1MH 88MA 16.5 OHM TH |
598 | 0.56 |
|
Datasheet |
Military, MIL-PRF-M15305, MS90539 | Axial | Tape & Reel (TR) | Active | Molded | Iron | 1 mH | ±5% | 88 mA | - | Unshielded | 16.5Ohm Max | 60 @ 790kHz | 2.8MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | - | 0.190" Dia x 0.440" L (4.83mm x 11.18mm) | - |
|
IHLD2525GGER4R7M5AFIXED IND 4.7UH 5.4A 38.2MOHM SM |
250 | 0.66 |
|
Datasheet |
IHLD-5A | Nonstandard, 4 Lead | Tape & Reel (TR) | Active | - | - | 4.7 µH | ±20% | 5.4 A | 4.2A | Shielded | 38.2mOhm Max | - | 26.7MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | Nonstandard, 4 Lead | 0.307" L x 0.286" W (7.80mm x 7.26mm) | 0.301" (7.65mm) |
|
FIT44-3FIXED IND 12.3UH 4A 23.4 MOHM TH |
190 | 0.66 |
|
Datasheet |
FIT | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 12.3 µH | - | 4 A | - | Unshielded | 23.4mOhm Max | - | - | - | -40°C ~ 85°C | 10 kHz | - | Through Hole | - | 0.625" L x 0.350" W (15.88mm x 8.89mm) | 0.700" (17.78mm) |
|
|
FIT44-2FIXED IND 14.75UH 3.4A 30.7 MOHM |
180 | 0.66 |
|
Datasheet |
FIT | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 14.75 µH | - | 3.4 A | - | Unshielded | 30.7mOhm Max | - | - | - | -40°C ~ 85°C | 10 kHz | - | Through Hole | - | 0.625" L x 0.350" W (15.88mm x 8.89mm) | 0.700" (17.78mm) |
|
SD3114-4R7-RFIXED IND 4.7UH 770MA 251MOHM SM |
1,995 | 0.62 |
|
Datasheet |
SD3114 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±30% | 770 mA | 1.14A | Shielded | 251mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.122" L x 0.122" W (3.10mm x 3.10mm) | 0.055" (1.40mm) |
|
PA5119.152NLTFIXED IND 1.5UH 12A 6.0 MOHM |
1,238 | 0.52 |
|
Datasheet |
PA5119.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | - | - | 1.5 µH | ±10% | 12 A | 21A | Shielded | 6mOhm | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.480" L x 0.386" W (12.20mm x 9.80mm) | 0.197" (5.00mm) |
|
PE-53608NLTFIXED IND 192UH 900MA 560MOHM SM |
279 | 0.61 |
|
Datasheet |
SLIC | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 192 µH | - | 900 mA | - | Unshielded | 560mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.570" L x 0.565" W (14.48mm x 14.35mm) | 0.360" (9.14mm) |
|
ETQ-P4LR36WFCFIXED IND 360NH 24A 1.1 MOHM SMD |
3,440 | 0.71 |
|
Datasheet |
PCC-M1040L (MC) | 2-SMD, J-Lead | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Metal Composite | 360 nH | ±20% | 24 A | - | Shielded | 1.1mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.157" (4.00mm) |
|
|
ETQ-P4LR56WFCFIXED IND 560NH 21A 1.56MOHM SMD |
2,079 | 0.71 |
|
Datasheet |
PCC-M1040L (MC) | 2-SMD, J-Lead | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Metal Composite | 560 nH | ±20% | 21 A | - | Shielded | 1.56mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.157" (4.00mm) |
