Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PE-53613NLFIXED IND 645UH 740MA 1.25OHM SM |
157 | 0.59 |
|
Datasheet |
SLIC | Nonstandard | Bulk | Active | Toroidal | - | 645 µH | - | 740 mA | - | Unshielded | 1.25Ohm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.620" L x 0.600" W (15.75mm x 15.24mm) | 0.390" (9.91mm) |
|
IHLP6767GZERR82M01FIXED IND 820NH 50A 1.29MOHM SMD |
351 | 0.93 |
|
Datasheet |
IHLP-6767GZ-01 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 820 nH | ±20% | 50 A | 73A | Shielded | 1.29mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.675" L x 0.675" W (17.15mm x 17.15mm) | 0.276" (7.00mm) |
|
UP3B-330-RFIXED IND 33UH 2.4A 68.8MOHM SMD |
320 | 0.55 |
|
Datasheet |
UNI-PAC™ | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 2.4 A | 3A | Unshielded | 68.8mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.760" L x 0.520" W (19.30mm x 13.21mm) | 0.268" (6.80mm) |
|
HCF1007-3R3-RFIXED IND 3.3UH 10A 7.5 MOHM SMD |
15,355 | 0.91 |
|
Datasheet |
HCF1007 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 10 A | 14.5A | Unshielded | 7.5mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.307" W (10.10mm x 7.80mm) | 0.262" (6.65mm) |
|
PE-53818SNLTFIXED IND 252UH 440MA 900MOHM SM |
232 | 0.55 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 252 µH | ±20% | 440 mA | - | Shielded | 900mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.570" L x 0.565" W (14.48mm x 14.35mm) | 0.360" (9.14mm) |
|
1025R-72KFIXED IND 150UH 61MA 15 OHM TH |
1,338 | 0.52 |
|
Datasheet |
1025R | Axial | Bulk | Active | Molded | Ferrite | 150 µH | ±10% | 61 mA | - | Unshielded | 15Ohm Max | 30 @ 790kHz | 11MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
1025R-60KFIXED IND 47UH 110MA 4.5 OHM TH |
1,123 | 0.52 |
|
Datasheet |
1025R | Axial | Bulk | Active | Molded | Ferrite | 47 µH | ±10% | 110 mA | - | Unshielded | 4.5Ohm Max | 45 @ 2.5MHz | 20MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
1025R-56KFIXED IND 33UH 130MA 3.4 OHM TH |
850 | 0.52 |
|
Datasheet |
1025R | Axial | Bulk | Active | Molded | Ferrite | 33 µH | ±10% | 130 mA | - | Unshielded | 3.4Ohm Max | 45 @ 2.5MHz | 24MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|

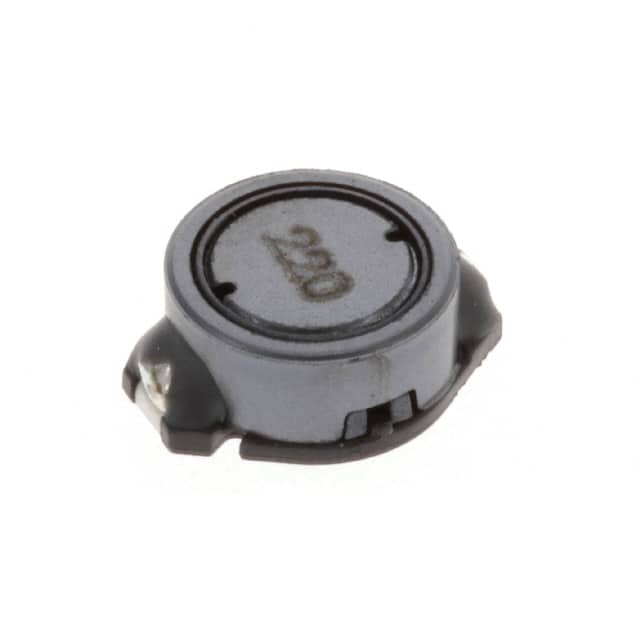

74454122FIXED IND 22UH 1.4A 0.1OHM SMD |
713 | 0.66 |
|
Datasheet |
WE-PD3 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | - | 22 µH | ±15% | 1.4 A | 2.3A | Shielded | 100mOhm Max | - | 16MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.500" L x 0.394" W (12.70mm x 10.00mm) | 0.205" (5.20mm) |
|
78439344033WE-XHMA SMT POWER INDUCTOR 6030; |
598 | 0.66 |
|
Datasheet |
WE-XHMA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 3.3 µH | ±20% | 6 A | 14.5A | Shielded | 19.2mOhm | - | 31MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.262" L x 0.254" W (6.65mm x 6.45mm) | 0.130" (3.30mm) |
|
|
78439344022WE-XHMA SMT POWER INDUCTOR 6030; |
586 | 0.66 |
|
Datasheet |
WE-XHMA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 2.2 µH | ±20% | 8 A | 16.25A | Shielded | 10.5mOhm | - | 37MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.262" L x 0.254" W (6.65mm x 6.45mm) | 0.130" (3.30mm) |
|

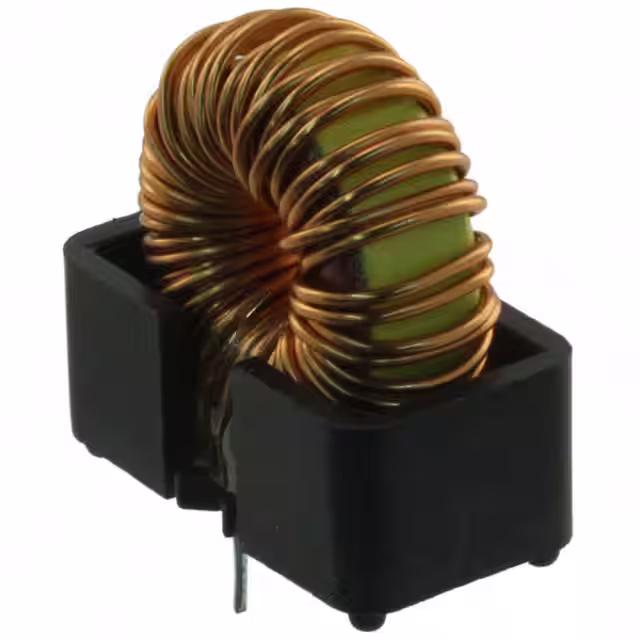

PE-54039NLFIXED IND 53UH 3A 80 MOHM TH |
415 | 0.88 |
|
Datasheet |
- | Radial, Vertical (Open) | Tray | Active | Toroidal | - | 53 µH | ±20% | 3 A | - | Shielded | 80mOhm | - | - | - | -40°C ~ 130°C | 20 kHz | - | Through Hole | - | 0.830" L x 0.450" W (21.09mm x 11.43mm) | 0.950" (24.13mm) |
|
HCTI-56-10.2FIXED IND 56UH 10.2A 17 MOHM TH |
1,089 | 0.62 |
|
Datasheet |
HCTI | Radial, Vertical (Open) | Tray | Active | Toroidal | - | 56 µH | ±15% | 10.2 A | - | Shielded | 17mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.280" Dia x 0.650" W (32.51mm x 16.51mm) | - |
|
PE-54041SNLFIXED IND 25UH 3A 40 MOHM SMD |
635 | 0.64 |
|
Datasheet |
- | Nonstandard | Bulk | Active | Toroidal | - | 25 µH | ±20% | 3 A | - | Shielded | 40mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.700" L x 0.670" W (17.78mm x 17.02mm) | 0.390" (9.91mm) |
|
|
IHLP6767GZER150M51FIXED IND 15UH 12.5A 16.96 MOHM |
427 | 0.95 |
|
Datasheet |
IHLP-6767GZ-51 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 15 µH | ±20% | 12.5 A | 13A | Shielded | 16.96mOhm Max | - | 8.55MHz | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.675" L x 0.675" W (17.15mm x 17.15mm) | 0.276" (7.00mm) |
|
1537-08KFIXED IND 680NH 1.22A 150MOHM TH |
3,070 | 0.34 |
|
Datasheet |
Military, MIL-PRF-M15305, MS18130 | Axial | Tape & Reel (TR) | Active | - | Phenolic | 680 nH | ±10% | 1.22 A | - | Unshielded | 150mOhm Max | 50 @ 25MHz | 250MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.156" Dia x 0.375" L (3.96mm x 9.53mm) | - |
|
|
1537-16KFIXED IND 1.5UH 670MA 500MOHM TH |
369 | 0.34 |
|
Datasheet |
Military, MIL-PRF-M15305, MS18130 | Axial | Tape & Reel (TR) | Active | - | Phenolic | 1.5 µH | ±10% | 670 mA | - | Unshielded | 500mOhm Max | 33 @ 7.9MHz | 160MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Through Hole | - | 0.156" Dia x 0.375" L (3.96mm x 9.53mm) | - |
|
|
1537-12KFIXED IND 1UH 880MA 290 MOHM TH |
186 | 0.34 |
|
Datasheet |
Military, MIL-PRF-M15305, MS18130 | Axial | Tape & Reel (TR) | Active | - | Phenolic | 1 µH | ±10% | 880 mA | - | Unshielded | 290mOhm Max | 50 @ 25MHz | 200MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.156" Dia x 0.375" L (3.96mm x 9.53mm) | - |
|
|
1537-18KFIXED IND 1.8UH 590MA 650MOHM TH |
173 | 0.34 |
|
Datasheet |
Military, MIL-PRF-M15305, MS18130 | Axial | Tape & Reel (TR) | Active | - | Phenolic | 1.8 µH | ±10% | 590 mA | - | Unshielded | 650mOhm Max | 33 @ 7.9MHz | 150MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Through Hole | - | 0.156" Dia x 0.375" L (3.96mm x 9.53mm) | - |
|
SD8328-101-RFIXED IND 100UH 800MA 430MOHM SM |
3,329 | 0.36 |
|
Datasheet |
SD8328 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±30% | 800 mA | 800mA | Shielded | 430mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.374" L x 0.327" W (9.50mm x 8.30mm) | 0.118" (3.00mm) |
