Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

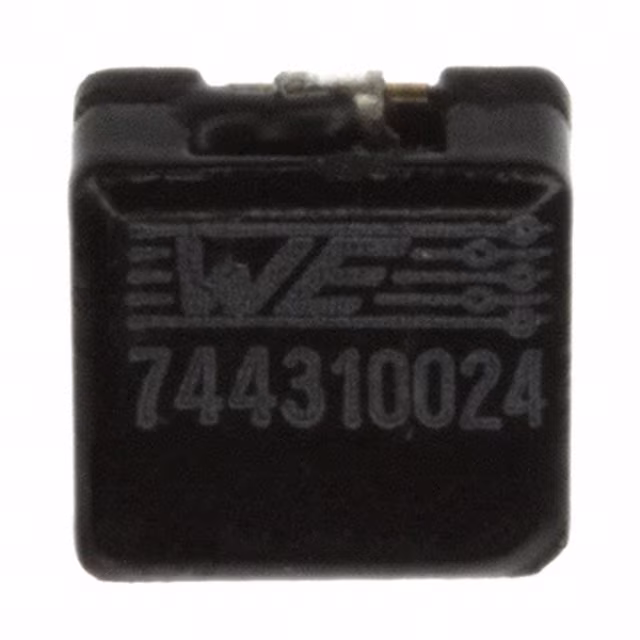

744310024FIXED IND 240NH 18A 1.8 MOHM SMD |
1,755 | 0.76 |
|
Datasheet |
WE-HCI | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 240 nH | ±20% | 18 A | 40A | Shielded | 1.8mOhm | - | 220MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | 7030 | 0.276" L x 0.272" W (7.00mm x 6.90mm) | 0.130" (3.30mm) |
|
HCTI-390-5.0FIXED IND 390UH 5A 72 MOHM TH |
1,538 | 0.76 |
|
Datasheet |
HCTI | Radial, Vertical (Open) | Tray | Active | Toroidal | - | 390 µH | ±15% | 5 A | - | Shielded | 72mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.280" Dia x 0.650" W (32.51mm x 16.51mm) | - |
|
744311022FIXED IND 220NH 21A 1.1 MOHM SMD |
887 | 0.76 |
|
Datasheet |
WE-HCI | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 220 nH | ±20% | 21 A | 32A | Shielded | 1.1mOhm | - | 290MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | 7040 | 0.276" L x 0.272" W (7.00mm x 6.90mm) | 0.157" (4.00mm) |
|

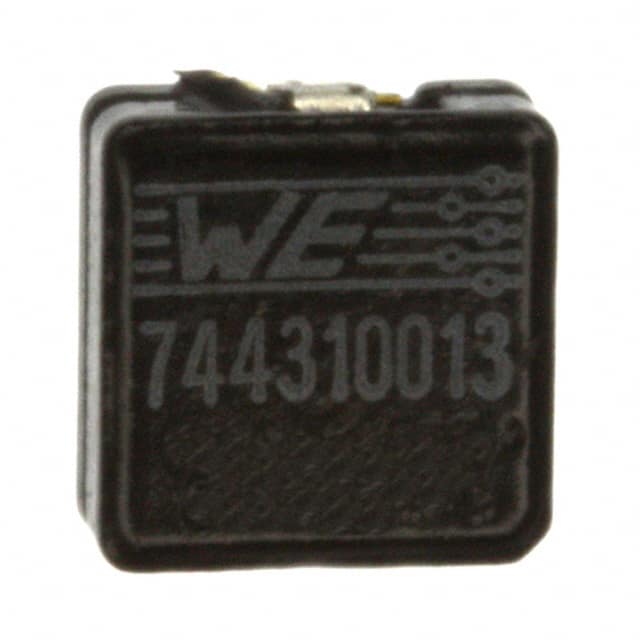

744310013FIXED IND 130NH 22A 0.91MOHM SMD |
528 | 0.76 |
|
Datasheet |
WE-HCI | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 130 nH | ±20% | 22 A | 48A | Shielded | 0.91mOhm | - | 400MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | 7030 | 0.276" L x 0.272" W (7.00mm x 6.90mm) | 0.130" (3.30mm) |
|
744314760FIXED IND 7.6UH 4.2A 30.2MOHM SM |
303 | 0.76 |
|
Datasheet |
WE-HCI | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 7.6 µH | ±20% | 4.2 A | 4.8A | Shielded | 30.2mOhm | - | 48MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | 7050 | 0.276" L x 0.272" W (7.00mm x 6.90mm) | 0.197" (5.00mm) |
|
P1812R-472KFIXED IND 4.7UH 650MA 401MOHM SM |
14,958 | 0.68 |
|
Datasheet |
P1812R | 1812 (4532 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 4.7 µH | ±10% | 650 mA | 1.131A | Unshielded | 401mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
P1812R-153KFIXED IND 15UH 450MA 780MOHM SMD |
665 | 0.68 |
|
Datasheet |
P1812R | 1812 (4532 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 15 µH | ±10% | 450 mA | 693mA | Unshielded | 780mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
P1812R-473KFIXED IND 47UH 260MA 2.064OHM SM |
485 | 0.68 |
|
Datasheet |
P1812R | 1812 (4532 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 47 µH | ±10% | 260 mA | 366mA | Unshielded | 2.064Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
P1812R-223KFIXED IND 22UH 370MA 1.2 OHM SMD |
305 | 0.68 |
|
Datasheet |
P1812R | 1812 (4532 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 22 µH | ±10% | 370 mA | 515mA | Unshielded | 1.2Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
74459122FIXED IND 22UH 3.4A 0.059OHM SMD |
782 | 0.42 |
|
Datasheet |
WE-PD3 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | - | 22 µH | ±20% | 3.4 A | 6A | Shielded | 59mOhm Max | - | 13MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.730" L x 0.600" W (18.54mm x 15.24mm) | 0.300" (7.62mm) |
|
FIT68-3FIXED IND 54.81UH 4A 59.9MOHM TH |
269 | 0.91 |
|
Datasheet |
FIT | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 54.81 µH | - | 4 A | - | Unshielded | 59.9mOhm Max | - | - | - | -40°C ~ 85°C | 10 kHz | - | Through Hole | - | 0.875" L x 0.475" W (22.22mm x 12.07mm) | 0.950" (24.13mm) |
|
AIRD-02-222KFIXED IND 2.2MH 800MA 1.54OHM TH |
278 | 0.81 |
|
Datasheet |
AIRD-02 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 2.2 mH | ±10% | 800 mA | 2A | Unshielded | 1.54Ohm Max | - | - | - | -25°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.827" Dia (21.00mm) | 0.827" (21.00mm) |
|
1025R-92KFIXED IND 1MH 28MA 72 OHM TH |
1,007 | 0.62 |
|
Datasheet |
1025R | Axial | Bulk | Active | Molded | Ferrite | 1 mH | ±10% | 28 mA | - | Unshielded | 72Ohm Max | 30 @ 790kHz | 3.4MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
PB2020.223NLTFIXED IND 22UH 8.1A 20 MOHM SMD |
978 | 0.79 |
|
Datasheet |
PB2020NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 22 µH | ±20% | 8.1 A | 13A | Unshielded | 20mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.940" L x 0.820" W (23.87mm x 20.83mm) | 0.400" (10.16mm) |
|
PA2050.583NLFIXED IND 57.8UH 5A 34.5MOHM SMD |
9,388 | 1.05 |
|
Datasheet |
PA2050NL | Nonstandard | Tray | Active | Wirewound | - | 57.8 µH | ±10% | 5 A | 6.2A | Shielded | 34.5mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.875" L x 0.750" W (22.23mm x 19.05mm) | 0.480" (12.20mm) |
|
|
WTH0415T1R0MTR01FIXED IND 1.020%UH 0.011OHM 7400 |
1,331 | - |
|
Datasheet |
WT | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 1 µH | ±20% | 8.3 A | 7.2A | Unshielded | 11.9mOhm Max | - | 40MHz | - | -55°C ~ 155°C | 1 MHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.059" (1.50mm) |
|
|
AIRD-02-470KFIXED IND 47UH 5.5A 35 MOHM TH |
1,730 | 0.81 |
|
Datasheet |
AIRD-02 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±10% | 5.5 A | 15A | Unshielded | 35mOhm Max | - | - | - | -25°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.827" Dia (21.00mm) | 0.827" (21.00mm) |
|
|
AIRD-02-122KFIXED IND 1.2MH 800MA 1.14OHM TH |
578 | 0.77 |
|
Datasheet |
AIRD-02 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 1.2 mH | ±10% | 800 mA | 2.7A | Unshielded | 1.14Ohm Max | - | - | - | -25°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.827" Dia (21.00mm) | 0.827" (21.00mm) |
|
|
AIRD-02-681KFIXED IND 680UH 1.6A 430 MOHM TH |
555 | 0.81 |
|
Datasheet |
AIRD-02 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 680 µH | ±10% | 1.6 A | 3.7A | Unshielded | 430mOhm Max | - | - | - | -25°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.827" Dia (21.00mm) | 0.827" (21.00mm) |
|
|
AIRD-02-221KFIXED IND 220UH 2.8A 150 MOHM TH |
334 | 0.81 |
|
Datasheet |
AIRD-02 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±10% | 2.8 A | 7A | Unshielded | 150mOhm Max | - | - | - | -25°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.827" Dia (21.00mm) | 0.827" (21.00mm) |
