Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
125CDMCCDS-4R7MCFIXED IND 4.7UH 14A 10 MOHM SMD |
2,783 | 0.34 |
|
Datasheet |
125CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 4.7 µH | ±20% | 14 A | 22A | Shielded | 10mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.530" L x 0.496" W (13.45mm x 12.60mm) | 0.197" (5.00mm) |
|
125CDMCCDS-3R3MCFIXED IND 3.3UH 17A 7.8MOHM SMD |
2,564 | 0.34 |
|
Datasheet |
125CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 3.3 µH | ±20% | 17 A | 27A | Shielded | 7.8mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.530" L x 0.496" W (13.45mm x 12.60mm) | 0.197" (5.00mm) |
|
SPM7054VC-2R2M-DFIXED IND 2.2UH 12A 0.0085OHM SM |
1,917 | - |
|
Datasheet |
SPM-VC-D | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 2.2 µH | ±20% | 12 A | 19.7A | Shielded | 8.5mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | 7054 | 0.295" L x 0.276" W (7.50mm x 7.00mm) | 0.213" (5.40mm) |
|
CDRH60D45BT150NP-4R7NCFIXED IND 4.7UH 3.4A 29.9MOHM SM |
1,451 | 0.35 |
|
Datasheet |
CDRH60D45B/T150 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 4.7 µH | ±30% | 3.4 A | 4.1A | Shielded | 29.9mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.248" W (6.60mm x 6.30mm) | 0.189" (4.80mm) |
|
AIAP-03-151KFIXED IND 150UH 2.22A 129MOHM TH |
1,314 | 0.36 |
|
Datasheet |
AIAP-03 | Axial | Tray | Active | Wirewound | - | 150 µH | ±10% | 2.22 A | - | Unshielded | 129mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.449" Dia x 0.902" L (11.40mm x 22.90mm) | - |
|
IHLP3232DZER330M8AIHLP-3232DZ-8A 33 20% ER E3 |
978 | 0.33 |
|
Datasheet |
IHLP-3232DZ-8A | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 33 µH | ±20% | 3.1 A | 3.2A | Shielded | 159.43mOhm Max | - | 6.1MHz | AEC-Q200 | -55°C ~ 180°C | 100 kHz | - | Surface Mount | - | 0.340" L x 0.322" W (8.64mm x 8.18mm) | 0.157" (4.00mm) |
|
|
AIAP-03-182KFIXED IND 1.8MH 640MA 1.56OHM TH |
952 | 0.36 |
|
Datasheet |
AIAP-03 | Axial | Bulk | Active | Wirewound | - | 1.8 mH | ±10% | 640 mA | - | Unshielded | 1.56Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.449" Dia x 0.902" L (11.40mm x 22.90mm) | - |
|
IHLP4040DZER3R3M5AFIXED IND 3.3UH 11A 11.81MOHM SM |
865 | 0.34 |
|
Datasheet |
IHLP-4040DZ-5A | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 3.3 µH | ±20% | 11 A | 12A | Shielded | 11.81mOhm Max | - | 25.5MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 4040 | 0.425" L x 0.400" W (10.80mm x 10.16mm) | 0.157" (4.00mm) |
|
MPX1D0530L150FIXED IND 15UH 2.5A 214.6MOHM SM |
660 | 0.34 |
|
Datasheet |
METCOM MPX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 15 µH | ±20% | 2.5 A | 3A | Shielded | 214.6mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.209" L x 0.197" W (5.30mm x 5.00mm) | 0.118" (3.00mm) |
|
3631B470LLFIXED IND 47UH 1.6A 130 MOHM SMD |
516 | 0.36 |
|
Datasheet |
3631, Sigma Inductors | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 47 µH | ±15% | 1.6 A | - | Shielded | 130mOhm Max | - | - | - | -25°C ~ 105°C | 1 kHz | - | Surface Mount | - | 0.500" L x 0.500" W (12.70mm x 12.70mm) | 0.256" (6.50mm) |
|
MWSA1004S-470MTFIXED IND 47UH 3.3A 145MOHM SMD |
290 | 0.33 |
|
Datasheet |
MWSA-S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Alloy Powder | 47 µH | ±20% | 3.3 A | 3.5A | Shielded | 145mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.157" (4.00mm) |
|
|
MWSA1004S-2R2MTFIXED IND 2.2UH 12A 7 MOHM SMD |
236 | 0.33 |
|
Datasheet |
MWSA-S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Alloy Powder | 2.2 µH | ±20% | 12 A | 16.5A | Shielded | 7mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.157" (4.00mm) |
|
|
MWSA1004S-R15MTFIXED IND 150NH 45A 0.65MOHM SMD |
130 | 0.33 |
|
Datasheet |
MWSA-S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Alloy Powder | 150 nH | ±20% | 45 A | 75A | Shielded | 0.65mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.157" (4.00mm) |
|
P0250.154NLTFIXED IND 150UH 1.5A 250MOHM SMD |
4,486 | 0.29 |
|
Datasheet |
P0250NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 150 µH | ±15% | 1.5 A | 2.6A | Unshielded | 250mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.733" L x 0.596" W (18.62mm x 15.14mm) | 0.290" (7.36mm) |
|
VLBS1007083T-R15LFIXED IND 150NH 70A 0.18MOHM SMD |
3,291 | 0.51 |
|
Datasheet |
VLBS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 nH | ±15% | 70 A | 71A | Shielded | 0.18mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.276" W (10.00mm x 7.00mm) | 0.327" (8.30mm) |
|
1225AS-H-100M=P2FIXED IND 10UH 850MA 300MOHM SMD |
2,857 | 0.13 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 850 mA | 580mA | Shielded | 300mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.126" L x 0.118" W (3.20mm x 3.00mm) | 0.047" (1.20mm) |
|

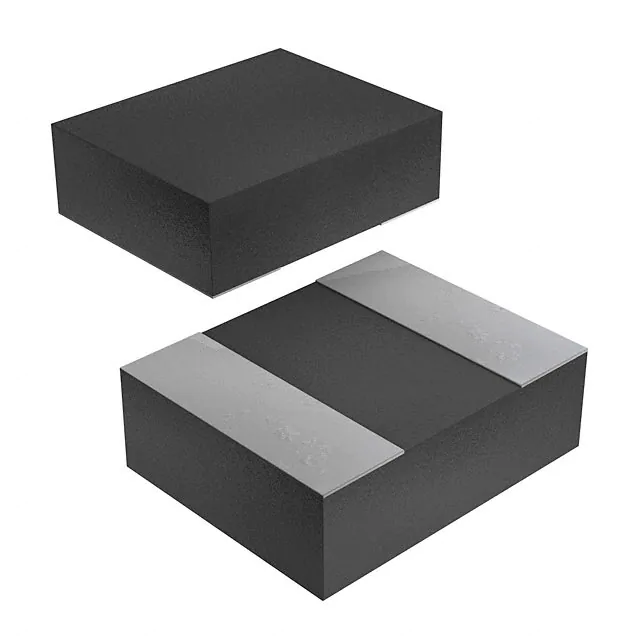

78438336047FIXED IND 4.7UH 1.9A 158MOHM SMD |
2,541 | 0.34 |
|
Datasheet |
WE-MAIA | Nonstandard | Tape & Reel (TR) | Active | Molded | Iron Alloy | 4.7 µH | ±20% | 1.9 A | 3.9A | Shielded | 158mOhm Max | - | 30MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.866" L x 0.591" W (22.00mm x 15.00mm) | 0.079" (2.00mm) |
|
HCM1A0503-6R8-RFIXED IND 6.8UH 2.3A 97.2MOHM SM |
2,000 | 0.35 |
|
Datasheet |
HCM1A | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 6.8 µH | ±20% | 2.3 A | 3.8A | Shielded | 97.2mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.203" L x 0.201" W (5.15mm x 5.10mm) | 0.118" (3.00mm) |
|
|
HCM1A0503-100-RFIXED IND 10UH 2.4A 108MOHM SMD |
1,580 | 0.33 |
|
Datasheet |
HCM1A | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 10 µH | ±20% | 2.4 A | 2.3A | Shielded | 108mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.203" L x 0.201" W (5.15mm x 5.10mm) | 0.118" (3.00mm) |
|
SBC6-331-871FIXED IND 330UH 870MA 410MOHM TH |
937 | 0.34 |
|
Datasheet |
SBC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 330 µH | ±10% | 870 mA | 1.9A | Unshielded | 410mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.472" Dia (12.00mm) | 0.591" (15.00mm) |
