Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IHLP4040DZER220M1AIHLP-4040DZ-1A 22 20% ER E3 |
983 | 0.32 |
|
Datasheet |
IHLP-4040DZ-1A | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 22 µH | ±20% | 5 A | 4.5A | Shielded | 66mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.425" L x 0.400" W (10.80mm x 10.16mm) | 0.157" (4.00mm) |
|

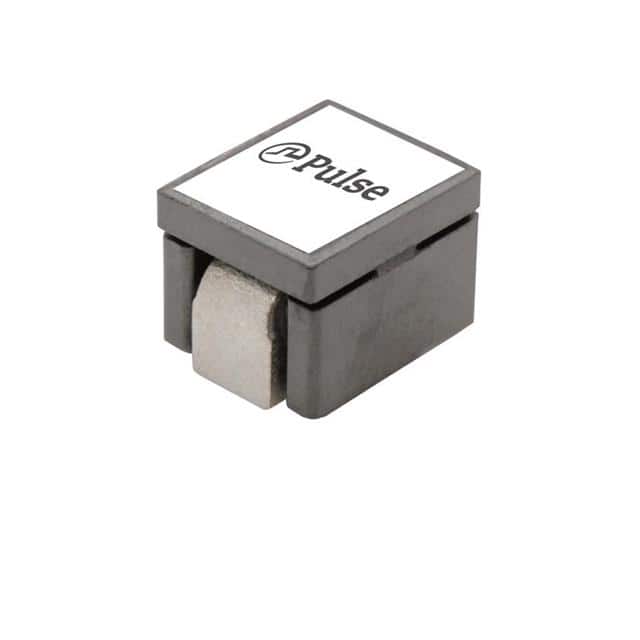

PGL6189.500HLTINDUCTOR PWR BEAD 50NH 148A |
537 | 0.33 |
|
Datasheet |
PGL6189.XXXHLT | Nonstandard | Tape & Reel (TR) | Active | - | - | 50 nH | ±15% | 80 A | 148A | Unshielded | 0.04mOhm | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.327" W (10.00mm x 8.30mm) | 0.315" (8.00mm) |
|
744025006FIXED IND 6.8UH 1.1A 165MOHM SMD |
457 | 0.33 |
|
Datasheet |
WE-TPC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 1.1 A | 1.3A | Shielded | 165mOhm Max | - | 59MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2828 | 0.110" L x 0.110" W (2.80mm x 2.80mm) | 0.118" (3.00mm) |
|
FP0705R2-R07-RFIXED IND 72NH 38A 0.32 MOHM SMD |
341 | 0.33 |
|
Datasheet |
FLAT-PAC, FP0705 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 72 nH | ±10% | 38 A | 65A | Unshielded | 0.32mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.195" (4.95mm) |
|
SRP5030CA-R56MFIXED IND 560NH 17.7A 4.52 MOHM |
4,485 | 0.36 |
|
Datasheet |
SRP5030CA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 560 nH | ±20% | 17.7 A | 22.2A | Shielded | 4.52mOhm Max | - | 73MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.217" L x 0.209" W (5.50mm x 5.30mm) | 0.122" (3.10mm) |
|
|
SRP5030CA-1R8MFIXED IND 1.8UH 10.1A 12.7 MOHM |
4,392 | 0.36 |
|
Datasheet |
SRP5030CA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 1.8 µH | ±20% | 10.1 A | 12.3A | Shielded | 12.7mOhm Max | - | 36MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.217" L x 0.209" W (5.50mm x 5.30mm) | 0.122" (3.10mm) |
|
PCMB104T-1R5MSFIXED IND 1.5UH 16A 4.2 MOHM SMD |
3,915 | 0.35 |
|
Datasheet |
PCMB | Nonstandard | Tape & Reel (TR) | Active | - | - | 1.5 µH | ±20% | 16 A | 32A | Unshielded | 4.2mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.150" (3.80mm) |
|
|
SRP5030CA-R60MFIXED IND 600NH 17.7A 4.52 MOHM |
3,251 | 0.36 |
|
Datasheet |
SRP5030CA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 600 nH | ±20% | 17.7 A | 22A | Shielded | 4.52mOhm Max | - | 68MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.217" L x 0.209" W (5.50mm x 5.30mm) | 0.122" (3.10mm) |
|
SPM6550T-1R0M-HZFIXED IND 1UH 17.9A 4.95MOHM SMD |
2,285 | 0.44 |
|
Datasheet |
SPM-HZ | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 1 µH | ±20% | 17.9 A | 11.8A | Shielded | 4.95mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.280" L x 0.256" W (7.10mm x 6.50mm) | 0.197" (5.00mm) |
|
CLF10040T-680M-DFIXED IND 68UH 1.1A 216 MOHM SMD |
2,144 | 0.35 |
|
Datasheet |
CLF-D | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | 1.1 A | 1.6A | Shielded | 216mOhm Max | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.382" W (10.00mm x 9.70mm) | 0.161" (4.10mm) |
|
|
PCMB104T-1R0MTFIXED IND 1UH 18A 3.3 MOHM SMD |
1,805 | 0.35 |
|
Datasheet |
PCMB | Nonstandard | Tape & Reel (TR) | Active | - | - | 1 µH | ±20% | 18 A | 28A | Unshielded | 3.3mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.150" (3.80mm) |
|
SLF12565T-221M1R0-PFFIXED IND 220UH 1.2A 328MOHM SMD |
1,387 | 0.34 |
|
Datasheet |
SLF | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 220 µH | ±20% | 1.2 A | 1A | Shielded | 328mOhm Max | - | - | - | -20°C ~ 105°C | 1 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.270" (6.85mm) |
|
|
PCMB104T-3R3MSFIXED IND 3.3UH 10A 11.8MOHM SMD |
996 | 0.35 |
|
Datasheet |
PCMB | Nonstandard | Tape & Reel (TR) | Active | - | - | 3.3 µH | ±20% | 10 A | 16A | Unshielded | 11.8mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.150" (3.80mm) |
|
LMLP1313MR68DTASFIXED IND 680NH 34A 1.7MOHM SMD |
482 | 0.35 |
|
Datasheet |
LMLP | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 680 nH | ±20% | 34 A | 54A | Shielded | 1.7mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.504" W (13.50mm x 12.80mm) | 0.197" (5.00mm) |
|
|
CLF10040T-1R0N-DFIXED IND 1UH 6.3A 5.7 MOHM SMD |
336 | 0.35 |
|
Datasheet |
CLF-D | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 1 µH | ±30% | 6.3 A | 12A | Shielded | 5.7mOhm | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.382" W (10.00mm x 9.70mm) | 0.161" (4.10mm) |
|
PM2203.472NLTFIXED IND 4.7UH 5.9A 36.3MOHM SM |
1,184 | 0.48 |
|
Datasheet |
PM2203.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | - | - | 4.7 µH | ±20% | 5.9 A | 8.2A | Unshielded | 36.3mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | SMD | 0.217" L x 0.209" W (5.50mm x 5.30mm) | 0.122" (3.10mm) |
|
|
SLF12565T-680M2R0-PFFIXED IND 68UH 2.4A 94.4MOHM SMD |
1,157 | 0.34 |
|
Datasheet |
SLF | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | 2.4 A | 2A | Shielded | 94.4mOhm Max | - | - | - | -20°C ~ 105°C | 1 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.270" (6.85mm) |
|
|
SLF12565T-470M2R4-PFFIXED IND 47UH 2.8A 69.4MOHM SMD |
975 | 0.34 |
|
Datasheet |
SLF | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 2.8 A | 2.4A | Shielded | 69.4mOhm Max | - | - | - | -20°C ~ 105°C | 1 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.270" (6.85mm) |
|
PM5430.472NLTFIXED IND 4.7UH 5.1A 44.1MOHM SM |
9,014 | 0.37 |
|
Datasheet |
PM5430.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | - | - | 4.7 µH | ±20% | 5.1 A | - | Shielded | 44.1mOhm Max | - | 36MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | SMD | 0.161" L x 0.161" W (4.10mm x 4.10mm) | 0.122" (3.10mm) |
|
FP1110V1-R27-RFIXED IND 270NH 61A 0.23MOHM SMD |
7,700 | 0.35 |
|
Datasheet |
FP1110V | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 270 nH | ±10% | 61 A | 44A | Unshielded | 0.23mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.421" L x 0.295" W (10.70mm x 7.50mm) | 0.374" (9.50mm) |
