Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B82472P6682M000FIXED IND 6.8UH 2.15A 42MOHM SMD |
1,792 | 0.35 |
|
Datasheet |
B82472P6 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 2.15 A | 1.7A | Shielded | 42mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.177" (4.50mm) |
|
IHLP4040DZERR47M8AFIXED IND 470NH 30A 1.66MOHM SMD |
1,550 | 0.34 |
|
Datasheet |
IHLP-4040DZ-8A | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 470 nH | ±20% | 30 A | 28.5A | Shielded | 1.66mOhm Max | - | 72.1MHz | AEC-Q200 | -55°C ~ 180°C | 100 kHz | - | Surface Mount | 4040 | 0.425" L x 0.400" W (10.80mm x 10.16mm) | 0.157" (4.00mm) |
|
|
IHLP4040DZER1R0M8AFIXED IND 1UH 23.5A 3.07MOHM SMD |
1,235 | 0.34 |
|
Datasheet |
IHLP-4040DZ-8A | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1 µH | ±20% | 23.5 A | 24A | Shielded | 3.07mOhm Max | - | 37.2MHz | AEC-Q200 | -55°C ~ 180°C | 100 kHz | - | Surface Mount | 4040 | 0.425" L x 0.400" W (10.80mm x 10.16mm) | 0.157" (4.00mm) |
|
LD1-100-RFIXED IND 10UH 1.13A 182MOHM SMD |
655 | 0.28 |
|
Datasheet |
LD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 1.13 A | 1.28A | Unshielded | 182mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 0.126" (3.20mm) |
|
B82479A1224M000FIXED IND 220UH 1.2A 380MOHM SMD |
552 | 0.35 |
|
Datasheet |
B82479A1 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±20% | 1.2 A | 2.4A | Unshielded | 380mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.730" L x 0.600" W (18.54mm x 15.24mm) | 0.280" (7.11mm) |
|
|
B82479A1474M000FIXED IND 470UH 820MA 850MOHM SM |
148 | 0.35 |
|
Datasheet |
B82479A1 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 µH | ±20% | 820 mA | 1.4A | Unshielded | 850mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.730" L x 0.600" W (18.54mm x 15.24mm) | 0.280" (7.11mm) |
|
CLF10040T-101M-DFIXED IND 100UH 1A 288 MOHM SMD |
1,906 | 0.35 |
|
Datasheet |
CLF-D | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 1 A | 1.3A | Shielded | 288mOhm Max | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.382" W (10.00mm x 9.70mm) | 0.161" (4.10mm) |
|
BCL322520RT-2R2M-DINDUCTORS FOR POWER CIRCUITS, AU |
1,641 | 0.34 |
|
Datasheet |
BCL | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 2.2 µH | ±20% | 3.21 A | 3.45A | Shielded | 640mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 1 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.079" (2.00mm) |
|
ASPIAIG-F1040-220M-TFIXED IND 22UH 5A 74 MOHM SMD |
1,411 | 0.35 |
|
Datasheet |
ASPIAIG-F1 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 22 µH | ±20% | 5 A | 7A | Shielded | 74mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1040 | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.157" (4.00mm) |
|
|
CLF10040T-470M-DFIXED IND 47UH 1.3A 150 MOHM SMD |
1,287 | 0.35 |
|
Datasheet |
CLF-D | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 1.3 A | 1.9A | Shielded | 150mOhm Max | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.382" W (10.00mm x 9.70mm) | 0.161" (4.10mm) |
|

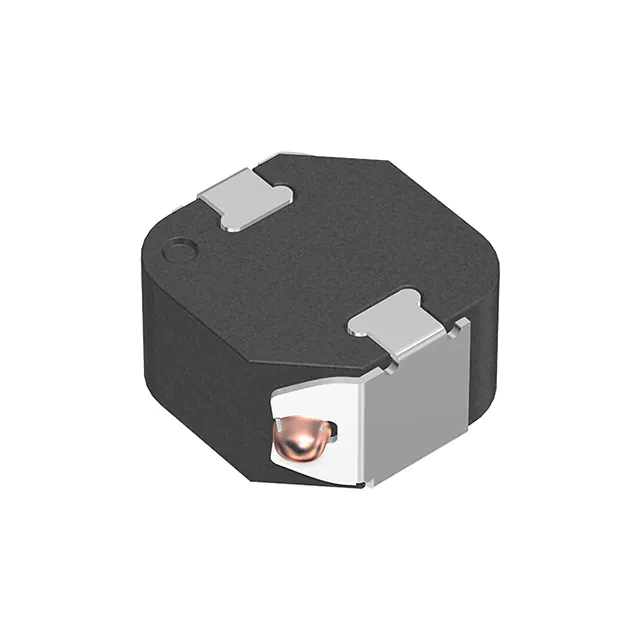

SPM5030T-3R3MFIXED IND 3.3UH 6A 29.48MOHM SMD |
911 | 0.34 |
|
Datasheet |
SPM | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 3.3 µH | ±20% | 6 A | 4.3A | Shielded | 29.48mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.205" L x 0.197" W (5.20mm x 5.00mm) | 0.118" (3.00mm) |
|
9230-72-RCFIXED IND 150UH 85MA 15 OHM TH |
846 | 0.35 |
|
Datasheet |
9230 | Axial | Bulk | Active | Molded | Ferrite | 150 µH | ±10% | 85 mA | - | Unshielded | 15Ohm Max | 30 @ 790kHz | 11MHz | - | -55°C ~ 125°C | 790 kHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
SPM6530T-150M-HZFIXED IND 15UH 3.3A 119.9MOHM SM |
661 | 0.42 |
|
Datasheet |
SPM-HZ | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 15 µH | ±20% | 3.3 A | 2.2A | Shielded | 119.9mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.280" L x 0.256" W (7.10mm x 6.50mm) | 0.118" (3.00mm) |
|
|
IHLP4040DZER150M8AFIXED IND 15UH 5.1A 50.29MOHM SM |
465 | 0.34 |
|
Datasheet |
IHLP-4040DZ-8A | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 15 µH | ±20% | 5.1 A | 7.7A | Shielded | 50.29mOhm Max | - | 10.4MHz | AEC-Q200 | -55°C ~ 180°C | 100 kHz | - | Surface Mount | 4040 | 0.425" L x 0.400" W (10.80mm x 10.16mm) | 0.157" (4.00mm) |
|
|
SPM5030T-4R7MFIXED IND 4.7UH 4.7A 49.5MOHM SM |
191 | 0.34 |
|
Datasheet |
SPM | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 4.7 µH | ±20% | 4.7 A | 3A | Shielded | 49.5mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.205" L x 0.197" W (5.20mm x 5.00mm) | 0.118" (3.00mm) |
|
FP0906R1-R30-RFIXED IND 300NH 51A 0.29MOHM SMD |
10,154 | 0.33 |
|
Datasheet |
FP0906 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 300 nH | ±10% | 51 A | 27.5A | Unshielded | 0.29mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.370" L x 0.244" W (9.40mm x 6.20mm) | 0.315" (8.00mm) |
|
IHLE2525CDER150M5AIHLE-2525CD-5A 15 20% ER E3 |
2,150 | 0.35 |
|
Datasheet |
IHLE-2525CD-5A | Nonstandard, 4 Lead | Tape & Reel (TR) | Active | - | Metal Composite | 15 µH | ±20% | 2.9 A | 2.8A | Shielded | 127mOhm Max | - | 10.4MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | Nonstandard, 4 Lead | 0.284" L x 0.280" W (7.21mm x 7.12mm) | 0.132" (3.35mm) |
|
744025330FIXED IND 33UH 400MA 960MOHM SMD |
1,950 | 0.33 |
|
Datasheet |
WE-TPC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 400 mA | 620mA | Shielded | 960mOhm Max | - | 12MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2828 | 0.110" L x 0.110" W (2.80mm x 2.80mm) | 0.118" (3.00mm) |
|
CMLE105T-6R8MSFIXED IND 6.8UH 9A 16.3 MOHM SMD |
1,756 | 0.33 |
|
Datasheet |
CMLE105T | Nonstandard | Tape & Reel (TR) | Active | - | Metal | 6.8 µH | ±20% | 9 A | 12A | Shielded | 16.3mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.427" L x 0.394" W (10.85mm x 10.00mm) | 0.197" (5.00mm) |
|
|
CMLE105T-1R0MSFIXED IND 1UH 25.5A 2.5 MOHM SMD |
1,700 | 0.33 |
|
Datasheet |
CMLE105T | Nonstandard | Tape & Reel (TR) | Active | - | Metal | 1 µH | ±20% | 25.5 A | 36A | Shielded | 2.5mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.439" L x 0.394" W (11.15mm x 10.00mm) | 0.197" (5.00mm) |
