Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
0840CDMCCDS-100MCFIXED IND 10UH 4.8A 54 MOHM SMD |
1,785 | 0.36 |
|
Datasheet |
0840CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 10 µH | ±20% | 4.8 A | 5.4A | Shielded | 54mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.319" L x 0.307" W (8.10mm x 7.80mm) | 0.157" (4.00mm) |
|
EXLA1V0703-2R7-RIND MOLDED SHLD 2.7UH 9.2A |
1,258 | - |
|
Datasheet |
EXLA1V07 | Nonstandard | Tape & Reel (TR) | Active | Molded | Alloy Powder | 2.7 µH | ±20% | 11.4 A | 13.5A | Shielded | 15.4mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.331" L x 0.315" W (8.40mm x 8.00mm) | 0.122" (3.10mm) |
|
IHLE4040DDER330M5AFIXED IND 33UH 3.7A 117.7MOHM SM |
322 | 0.46 |
|
Datasheet |
IHLE-4040DD-5A | 4-SMD | Tape & Reel (TR) | Active | Wirewound | - | 33 µH | ±20% | 3.7 A | 4.2A | Shielded | 117.7mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.426" L x 0.426" W (10.82mm x 10.82mm) | 0.169" (4.30mm) |
|
9230-96-RCFIXED IND 120NH 1.1A 80 MOHM TH |
173 | 0.41 |
|
Datasheet |
9230 | Axial | Bulk | Active | Molded | Phenolic | 120 nH | ±10% | 1.1 A | - | Unshielded | 80mOhm Max | 40 @ 25MHz | 650MHz | - | -55°C ~ 105°C | 25 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
ADL3225VM-2R2M-TL000INDUCTORS FOR DECOUPLING CIRCUIT |
13,688 | 0.34 |
|
Datasheet |
ADL-VM | Horizontal, 4 PC Pad | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 1.22 A | 1A | Unshielded | 180mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | Horizontal, 4 PC Pad | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.098" (2.50mm) |
|
HCM0703-6R8-RFIXED IND 6.8UH 4.5A 60 MOHM SMD |
6,956 | 0.32 |
|
Datasheet |
HCM0703 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 6.8 µH | ±20% | 4.5 A | 8A | Shielded | 60mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.280" L x 0.260" W (7.10mm x 6.60mm) | 0.118" (3.00mm) |
|
ETQ-P3M220HFNFIXED IND 22UH 2.5A 158.4MOHM SM |
4,000 | 0.37 |
|
Datasheet |
PCC-M0630M-H | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 22 µH | ±20% | 2.5 A | 4A | Shielded | 158.4mOhm Max | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.256" L x 0.236" W (6.50mm x 6.00mm) | 0.118" (3.00mm) |
|
|
HCM0703-3R3-RFIXED IND 3.3UH 6A 30 MOHM SMD |
3,885 | 0.32 |
|
Datasheet |
HCM0703 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 3.3 µH | ±20% | 6 A | 13.5A | Shielded | 30mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.280" L x 0.260" W (7.10mm x 6.60mm) | 0.118" (3.00mm) |
|
B82472P6472M000FIXED IND 4.7UH 2.5A 33 MOHM SMD |
3,810 | 0.35 |
|
Datasheet |
B82472P6 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 2.5 A | 2A | Shielded | 33mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.177" (4.50mm) |
|
|
HCM0703-8R2-RFIXED IND 8.2UH 4A 68 MOHM SMD |
3,620 | 0.32 |
|
Datasheet |
HCM0703 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 8.2 µH | ±20% | 4 A | 7.5A | Shielded | 68mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.280" L x 0.260" W (7.10mm x 6.60mm) | 0.118" (3.00mm) |
|
|
HCM0703-R15-RFIXED IND 150NH 26A 2.5 MOHM SMD |
3,035 | 0.32 |
|
Datasheet |
HCM0703 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 150 nH | ±20% | 26 A | 52A | Shielded | 2.5mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.280" L x 0.260" W (7.10mm x 6.60mm) | 0.118" (3.00mm) |
|
|
HCM0703-R22-RFIXED IND 220NH 23A 2.8 MOHM SMD |
2,867 | 0.32 |
|
Datasheet |
HCM0703 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 220 nH | ±20% | 23 A | 40A | Shielded | 2.8mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.280" L x 0.260" W (7.10mm x 6.60mm) | 0.118" (3.00mm) |
|
ECS-HCMPI-0503Q-1R0M-TFIXED IND 1UH 12.2A 7.6 MOHM SMD |
2,592 | 0.31 |
|
Datasheet |
ECS-HCMPI-0503Q | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1 µH | ±20% | 12.2 A | 14.3A | Shielded | 7.6mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 5030 | 0.217" L x 0.209" W (5.50mm x 5.30mm) | 0.122" (3.10mm) |
|

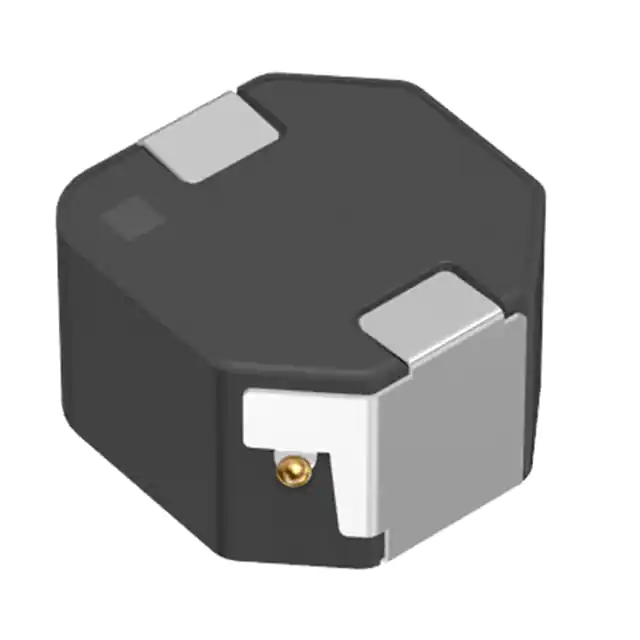

SPM10065VT-150M-DFIXED IND 15UH 6.5A 0.0327OHM SM |
1,725 | 0.34 |
|
Datasheet |
SPM-VT-D | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 15 µH | ±20% | 6.5 A | 11.7A | Shielded | 32.7mOhm | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | 1006 | 0.413" L x 0.394" W (10.50mm x 10.00mm) | 0.256" (6.50mm) |
|
RL824-221K-RCFIXED IND 220UH 820MA 280MOHM TH |
1,096 | 0.35 |
|
Datasheet |
RL824 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±10% | 820 mA | - | Unshielded | 280mOhm Max | 35 @ 790kHz | 1.9MHz | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.413" Dia (10.50mm) | 0.610" (15.50mm) |
|
7449150111FIXED IND 111NH 22A 2.11MOHM SMD |
1,012 | 0.32 |
|
Datasheet |
WE-ACHC | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | 111 nH | ±20% | 22 A | - | Unshielded | 2.11mOhm Max | 186 @ 100MHz | 374MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1010 | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.272" (6.90mm) |
|
|
7449150046FIXED IND 46.5NH 28A 1.62MOHM SM |
726 | 0.32 |
|
Datasheet |
WE-ACHC | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | 46.5 nH | ±20% | 28 A | - | Unshielded | 1.62mOhm Max | 223 @ 100MHz | 581MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1010 | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.197" (5.00mm) |
|
HCM1104-2R2-RFIXED IND 2.2UH 12A 7 MOHM SMD |
564 | 0.32 |
|
Datasheet |
HCM1104 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 2.2 µH | ±20% | 12 A | 18A | Shielded | 7mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.437" L x 0.394" W (11.10mm x 10.00mm) | 0.157" (4.00mm) |
|
VCMT104T-100MN5FIXED IND 10UH 6A 33 MOHM SMD |
319 | 0.34 |
|
Datasheet |
VCMT104T | Nonstandard | Tape & Reel (TR) | Active | - | Metal | 10 µH | ±20% | 6 A | 6A | Unshielded | 33mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.427" L x 0.394" W (10.85mm x 10.00mm) | 0.157" (4.00mm) |
|
DFEH7030D-3R3M=P3FIXED IND 3.3UH 5.4A 29MOHM SMD |
2,290 | 0.34 |
|
Datasheet |
DFEH7030D | Nonstandard | Tape & Reel (TR) | Not For New Designs | - | Iron Powder | 3.3 µH | ±20% | 5.4 A | 7.1A | Shielded | 29mOhm Max | - | - | AEC-Q200 | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.118" (3.00mm) |
