Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CMLS104T-R15MSFIXED IND 150NH 52A 0.65MOHM SMD |
923 | 0.33 |
|
Datasheet |
CMLS104T | Nonstandard | Tape & Reel (TR) | Active | - | Metal | 150 nH | ±20% | 52 A | 90A | Shielded | 0.65mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.439" L x 0.394" W (11.15mm x 10.00mm) | 0.157" (4.00mm) |
|
IHLP4040DZER2R2M8AFIXED IND 2.2UH 15A 8.76MOHM SMD |
885 | 0.34 |
|
Datasheet |
IHLP-4040DZ-8A | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 2.2 µH | ±20% | 15 A | 12A | Shielded | 8.76mOhm Max | - | 3.1MHz | AEC-Q200 | -55°C ~ 180°C | 100 kHz | - | Surface Mount | 4040 | 0.425" L x 0.400" W (10.80mm x 10.16mm) | 0.157" (4.00mm) |
|
|
CMLS104T-1R5MSFIXED IND 1.5UH 16A 4.2MOHM SMD |
733 | 0.33 |
|
Datasheet |
CMLS104T | Nonstandard | Tape & Reel (TR) | Active | - | Metal | 1.5 µH | ±20% | 16 A | 33A | Shielded | 4.2mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.439" L x 0.394" W (11.15mm x 10.00mm) | 0.157" (4.00mm) |
|
CMLB104T-150MSFIXED IND 15UH 6.3A 45 MOHM SMD |
592 | 0.33 |
|
Datasheet |
CMLB104T | Nonstandard | Tape & Reel (TR) | Active | - | Metal | 15 µH | ±20% | 6.3 A | 6.9A | Shielded | 45mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.427" L x 0.394" W (10.85mm x 10.00mm) | 0.157" (4.00mm) |
|
|
CMLB104T-1R0MSFIXED IND 1UH 19A 3.3 MOHM SMD |
570 | 0.33 |
|
Datasheet |
CMLB104T | Nonstandard | Tape & Reel (TR) | Active | - | Metal | 1 µH | ±20% | 19 A | 26A | Shielded | 3.3mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.439" L x 0.394" W (11.15mm x 10.00mm) | 0.157" (4.00mm) |
|
|
CMLS104T-2R2MSFIXED IND 2.2UH 12.5A 7MOHM SMD |
427 | 0.33 |
|
Datasheet |
CMLS104T | Nonstandard | Tape & Reel (TR) | Active | - | Metal | 2.2 µH | ±20% | 12.5 A | 23A | Shielded | 7mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.427" L x 0.394" W (10.85mm x 10.00mm) | 0.157" (4.00mm) |
|
|
CMLS104T-4R7MSFIXED IND 4.7UH 9.6A 16.5MOHM SM |
380 | 0.33 |
|
Datasheet |
CMLS104T | Nonstandard | Tape & Reel (TR) | Active | - | Metal | 4.7 µH | ±20% | 9.6 A | 17A | Shielded | 16.5mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.427" L x 0.394" W (10.85mm x 10.00mm) | 0.157" (4.00mm) |
|
P0250.223NLTFIXED IND 22UH 3.5A 47 MOHM SMD |
356 | 0.34 |
|
Datasheet |
P0250NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 22 µH | ±15% | 3.5 A | 7A | Unshielded | 47mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.733" L x 0.596" W (18.62mm x 15.14mm) | 0.290" (7.36mm) |
|
SRP1270-8R2MFIXED IND 8.2UH 11A 15.5MOHM SMD |
5,457 | 0.35 |
|
Datasheet |
SRP1270 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron | 8.2 µH | ±20% | 11 A | 17A | Shielded | 15.5mOhm Max | - | 11MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.539" L x 0.539" W (13.70mm x 13.70mm) | 0.276" (7.00mm) |
|
SRP1265A-1R8MFIXED IND 1.8UH 24A 4 MOHM SMD |
5,154 | 0.35 |
|
Datasheet |
SRP1265A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 1.8 µH | ±20% | 24 A | 40A | Shielded | 4mOhm Max | 20 @ 100kHz | 30MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.492" W (13.50mm x 12.50mm) | 0.252" (6.40mm) |
|

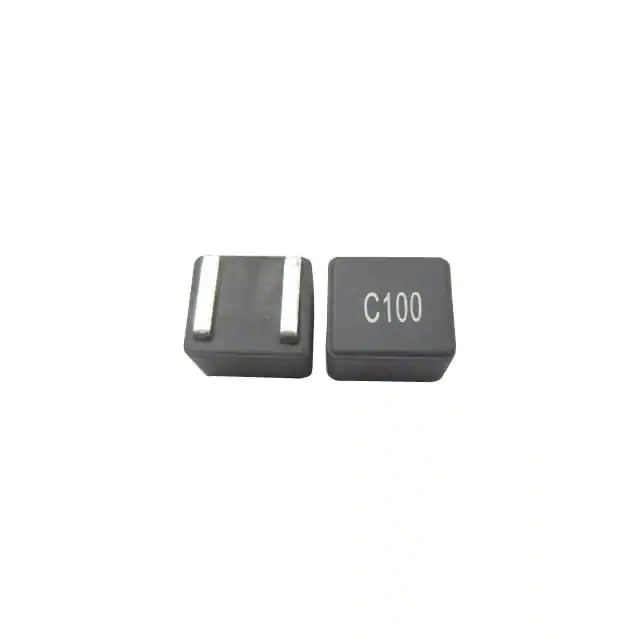

AFSI001211091R5M05INDUCTOR POWER |
5,015 | 0.15 |
|
Datasheet |
AFSI | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 1.5 µH | ±20% | 33 A | 36A | Shielded | 2.5mOhm Max | - | - | AEC-Q200 | -50°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.433" W (12.00mm x 11.00mm) | 0.346" (8.80mm) |
|

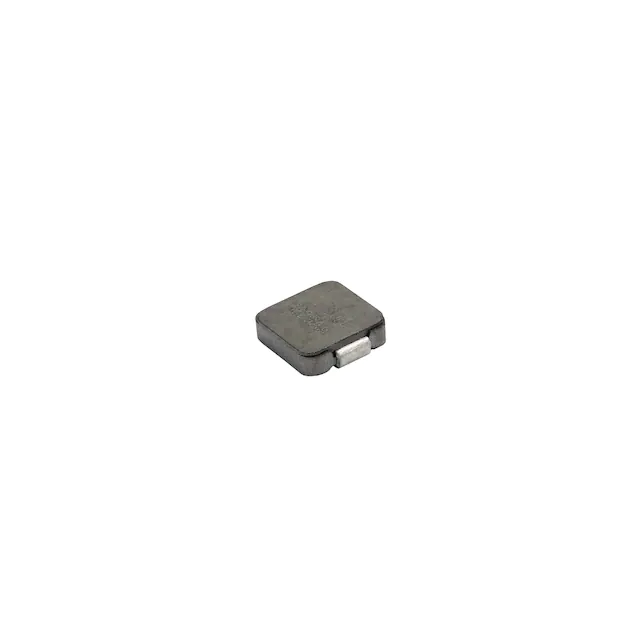

IHSR1616ABER68NM01FIXED IND 68NH 22A 3.2 MOHM SMD |
3,755 | 0.37 |
|
Datasheet |
IHSR-1616AB-01 | Nonstandard | Tape & Reel (TR) | Active | - | - | 68 nH | ±20% | 22 A | 30A | Shielded | 3.2mOhm | - | 418MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.180" L x 0.160" W (4.57mm x 4.06mm) | 0.047" (1.20mm) |
|
|
SRP1265A-6R0MFIXED IND 6UH 12A 10 MOHM SMD |
1,445 | 0.35 |
|
Datasheet |
SRP1265A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 6 µH | ±20% | 12 A | 23A | Shielded | 10mOhm Max | 20 @ 100kHz | 14MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.492" W (13.50mm x 12.50mm) | 0.252" (6.40mm) |
|
|
SRP1270-1R0MFIXED IND 1UH 32A 2.1 MOHM SMD |
1,190 | 0.35 |
|
Datasheet |
SRP1270 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron | 1 µH | ±20% | 32 A | 50A | Shielded | 2.1mOhm Max | - | 45MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.539" L x 0.539" W (13.70mm x 13.70mm) | 0.276" (7.00mm) |
|
IHLE2525CDER1R5M5AIHLE-2525CD-5A 1.5 20% ER E3 |
1,133 | 0.35 |
|
Datasheet |
IHLE-2525CD-5A | Nonstandard, 4 Lead | Tape & Reel (TR) | Active | - | Metal Composite | 1.5 µH | ±20% | 10.6 A | 11.6A | Shielded | 13.2mOhm Max | - | 45.9MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | Nonstandard, 4 Lead | 0.284" L x 0.280" W (7.21mm x 7.12mm) | 0.132" (3.35mm) |
|
MPXV1D1054L220FIXED IND 22UH 5.7A 54.05MOHM SM |
952 | 0.35 |
|
Datasheet |
METCOM MPXV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 22 µH | ±20% | 5.7 A | 7A | Shielded | 54.05mOhm Max | - | 6.5MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.425" L x 0.394" W (10.80mm x 10.00mm) | 0.213" (5.40mm) |
|
|
SRP1265A-R56MFIXED IND 560NH 37A 1.2 MOHM SMD |
918 | 0.35 |
|
Datasheet |
SRP1265A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 560 nH | ±20% | 37 A | 58A | Shielded | 1.2mOhm Max | 10 @ 100kHz | 65MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.492" W (13.50mm x 12.50mm) | 0.252" (6.40mm) |
|
|
SRP1270-1R5MFIXED IND 1.5UH 27A 2.6 MOHM SMD |
721 | 0.35 |
|
Datasheet |
SRP1270 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron | 1.5 µH | ±20% | 27 A | 48A | Shielded | 2.6mOhm Max | - | 31MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.539" L x 0.539" W (13.70mm x 13.70mm) | 0.276" (7.00mm) |
|
|
SRP1265A-R47MFIXED IND 470NH 41A 1.2 MOHM SMD |
639 | 0.35 |
|
Datasheet |
SRP1265A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 470 nH | ±20% | 41 A | 63A | Shielded | 1.2mOhm Max | 10 @ 100kHz | 75MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.492" W (13.50mm x 12.50mm) | 0.252" (6.40mm) |
|
|
SRP1265A-R33MFIXED IND 330NH 46A 0.8 MOHM SMD |
633 | 0.35 |
|
Datasheet |
SRP1265A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 330 nH | ±20% | 46 A | 68A | Shielded | 0.8mOhm Max | 10 @ 100kHz | 90MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.492" W (13.50mm x 12.50mm) | 0.252" (6.40mm) |
