Toggle Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Panel Cutout Dimensions | Bushing Thread | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
S32/CULSWITCH TOGGLE 3PDT 20A 125V |
3,940 | 3.51 |
|
Datasheet |
S | Bulk | Active | Panel Mount | 3PDT | On-On | 20A (AC/DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | - | - | -10°C ~ 70°C |
|
|
645H2X2071TOGGLE SWITCH 600H HIGH POWER |
2,241 | - |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
1TL1-3-NHSWITCH TOGGLE SPDT 15A 125V |
2,386 | - |
|
Datasheet |
TL | Bulk | Obsolete | Panel Mount | SPDT | On-On | 15A (AC) | 125 V | - | Standard Round | 17.27mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.40mm Dia | 15/32-32 | Environment Sealed | - | -65°C ~ 71°C |
|
|
A127T11TZQSWITCH TOGGLE SPDT 6A 125V |
4,208 | 3.64 |
|
Datasheet |
A | Bulk | Active | Panel Mount | SPDT | Mom-Off-Mom | 6A (AC/DC) | 125 V | 28 V | Standard Round | 11.89mm | Non-Illuminated | - | - | Solder Lug | - | 15/32-32 | - | Epoxy Sealed Terminals | -30°C ~ 90°C |
|
|
S41/CULSWITCH TOGGLE 4PST 20A 125V |
4,882 | 3.52 |
|
Datasheet |
S | Bulk | Active | Panel Mount | 4PST | On-Off | 20A (AC/DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | - | - | -10°C ~ 70°C |
|
|
5246AKB17TOGGLE SWITCH 5000 MINIATURE |
2,788 | - |
|
Datasheet |
5000 | Bulk | Active | Panel Mount | DPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 10.50mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | 1/4-40 | - | - | -40°C ~ 85°C |
|
|
5644CTA3VTOGGLE SWITCH 5000 MINIATURE |
2,294 | - |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MN42LL4W01SWITCH TOGGLE |
2,108 | - |
|
- |
M | Bulk | Active | Panel Mount | 4PDT | On-On | 4A (AC), 3A (DC) | 125 V | 30 V | Locking Lever | 16.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | M6 x 0.75 | IP67 - Dust Tight, Waterproof | - | -30°C ~ 85°C |
|

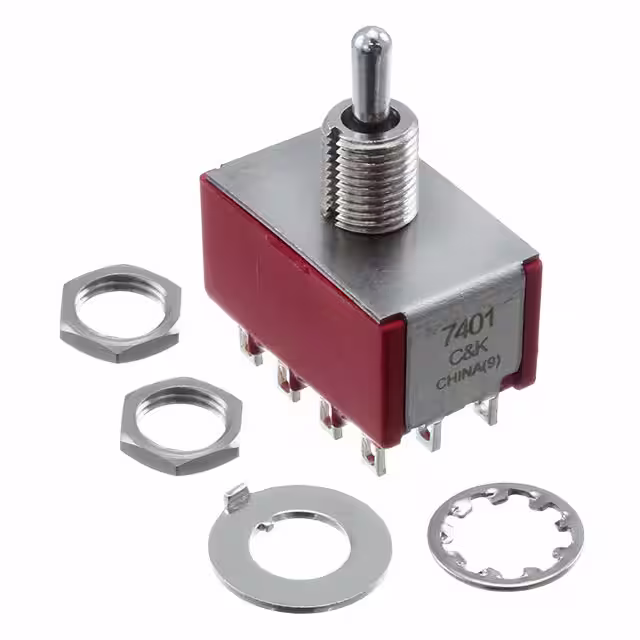

7401MDZQESWITCH TOGGLE 4PDT 5A 120V |
2,658 | 4.83 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | 4PDT | On-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 6.86mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
7401MYZQESWITCH TOGGLE 4PDT 5A 120V |
1,964 | 3.97 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | 4PDT | On-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 5.08mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
6GG6E-73SWITCH TOGGLE DPDT 6A 125V |
4,848 | 4.12 |
|
- |
G | Bulk | Active | Panel Mount | DPDT | Mom-On-Off | 6A (AC) | 125 V | - | Standard Round | 17.45mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.70mm Dia | 15/32-32 | - | - | 0°C ~ 85°C |
|
|
SW232CD8X696TOGGLE SWITCH S PCB MOUNT |
1,347 | - |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
631H/2GTOGGLE SWITCH 600H HIGH POWER |
3,194 | - |
|
Datasheet |
600H | Bulk | Active | Panel Mount | SPST | On-Off | 15A (AC) | 250 V | 12 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder, Quick Connect - 0.250" (6.3mm) | Circular - 12.20mm Dia | M12 x 0.75 | - | - | -20°C ~ 55°C |
|
|
A123K12KZBSWITCH TOGGLE SPDT 0.5VA 28V |
2,927 | 4.48 |
|
Datasheet |
A | Bulk | Active | Panel Mount | SPDT | On-On | 0.5VA (AC/DC) | 28 V | 28 V | Locking Lever | 15.47mm | Non-Illuminated | - | - | Solder Lug | - | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 90°C |
|
|
A123P32YZGSWITCH TOGGLE SPDT 6A 125V |
4,054 | 4.48 |
|
Datasheet |
A | Bulk | Active | Panel Mount | SPDT | On-On | 6A (AC/DC) | 125 V | 28 V | Flatted | 11.38mm | Non-Illuminated | - | - | Solder Lug | - | 1/4-40 | - | Satin Chrome Actuator | -30°C ~ 90°C |
|
|
A123T1TV60BPSWITCH TOGGLE SPDT 0.5VA 28V |
2,488 | 3.88 |
|
Datasheet |
A | Bulk | Active | Panel Mount | SPDT | On-On | 0.5VA (AC/DC) | 28 V | 28 V | Anti-Rotation | 17.45mm | Non-Illuminated | - | - | PC Pin | - | 15/32-32 | - | Epoxy Sealed Terminals | -30°C ~ 90°C |
|
|
A221S3CWABSWITCH TOGGLE DPDT 0.5VA 28V |
3,279 | 4.48 |
|
Datasheet |
A | Bulk | Active | Panel Mount, Right Angle | DPDT | On-Off-On | 0.5VA (AC/DC) | 28 V | 28 V | Standard Round | 10.41mm | Non-Illuminated | - | - | PC Pin | - | 1/4-40 | Splash Proof | Epoxy Sealed Terminals | -30°C ~ 90°C |
|
|
A232P31Y5CBPSWITCH TOGGLE SP3T 0.5VA 28V |
3,933 | 4.48 |
|
Datasheet |
A | Bulk | Active | Panel Mount | SP3T | On-On-On | 0.5VA (AC/DC) | 28 V | 28 V | Flat Anti-Rotation | 11.38mm | Non-Illuminated | - | - | PC Pin | - | 1/4-40 | - | Jumper needed to achieve triple throw | -30°C ~ 90°C |
|
|
WT235M1D1ABSWITCH TOGGLE SP3T 0.5VA 28V |
4,826 | 4.48 |
|
Datasheet |
WT | Bulk | Active | Through Hole, Right Angle | SP3T | Mom-On-Mom | 0.5VA (AC/DC) | 28 V | 28 V | Standard Round | 7.60mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
551843SWITCH TOGGLE SPDT 15A 24V |
3,334 | 3.86 |
|
- |
551 | Bulk | Obsolete | Panel Mount | SPDT | Mom-Off-On | 15A (DC) | - | 24 V | Standard Round | 26.92mm | Non-Illuminated | - | - | Screw Terminal | Circular - 11.90mm Dia | 15/32-32 | - | - | - |
