Toggle Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Panel Cutout Dimensions | Bushing Thread | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MN22B2B1G01-AT4181SWITCH TOGGLE |
3,716 | - |
|
- |
M | Bulk | Active | Panel Mount | DPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | - | - | -30°C ~ 85°C |
|
|
LT-1534-610-012SWITCH TOGGLE SPST-NO 15A 125V |
4,952 | 4.00 |
|
Datasheet |
LT | Bulk | Active | Panel Mount | SPST-NO | Off-Mom | 15A (AC/DC) | 125 V | 28 V | Standard Round | 18.16mm | Illuminated | Incandescent, Red | 12 VAC/DC | Screw Terminal | Circular - 12.70mm Dia | 15/32-32 | - | - | 0°C ~ 85°C |
|
|
LT-1534-640-012SWITCH TOGGLE SPST-NO 15A 125V |
4,613 | 3.92 |
|
Datasheet |
LT | Bulk | Active | Panel Mount | SPST-NO | Off-Mom | 15A (AC/DC) | 125 V | 28 V | Standard Round | 18.16mm | Illuminated | Incandescent, Blue | 12 VAC/DC | Screw Terminal | Circular - 12.70mm Dia | 15/32-32 | - | - | 0°C ~ 85°C |
|
|
LT-1534-540-012SWITCH TOGGLE SPST-NO 15A 125V |
3,209 | 4.00 |
|
Datasheet |
LT | Bulk | Active | Panel Mount | SPST-NO | Off-Mom | 15A (AC/DC) | 125 V | 28 V | Standard Round | 18.16mm | Illuminated | Incandescent, Blue | 12 VAC/DC | Screw Terminal | Circular - 12.70mm Dia | 15/32-32 | - | - | 0°C ~ 85°C |
|
|
6GL5B-73/2 HEXSWITCH TOGGLE DPDT 15A 125V |
1,206 | 4.36 |
|
- |
G | Bulk | Active | Panel Mount | DPDT | On-Mom | 15A (AC) | 125 V | - | Standard Round | 17.45mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.70mm Dia | 15/32-32 | - | - | 0°C ~ 85°C |
|
|
7301P3DAV2QESWITCH TOGGLE 3PDT 5A 120V |
3,403 | 3.13 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount, Right Angle, Vertical | 3PDT | On-On | 5A (AC/DC) | 120 V | 28 V | Flat Anti-Rotation | 13.21mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
7415SHZQESWITCH TOGGLE DP3T 5A 120V |
4,398 | 5.04 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | DP3T | Mom-On-Mom | 5A (AC/DC) | 120 V | 28 V | Standard Round | 10.67mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
551849SWITCH TOGGLE DPDT 15A 24V |
2,782 | 0.40 |
|
- |
551 | Bulk | Obsolete | Panel Mount | DPDT | On-On-Off | 15A (DC) | - | 24 V | Standard Round | 26.92mm | Non-Illuminated | - | - | Screw Terminal | Circular - 11.90mm Dia | 15/32-32 | - | - | - |
|
|
5644CTAGTOGGLE SWITCH 5000 MINIATURE |
3,715 | - |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
5239CDBX408TOGGLE SWITCH 5000 MINIATURE |
1,231 | - |
|
Datasheet |
5000 | Bulk | Active | Panel Mount | SPDT | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 10.50mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | 1/4-40 | - | - | -40°C ~ 85°C |
|
|
MN38BB1W01BUSHING MOUNT MINIATURE TOGGLE |
2,011 | - |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MN35BB1W01BUSHING MOUNT MINIATURE TOGGLE |
1,361 | - |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

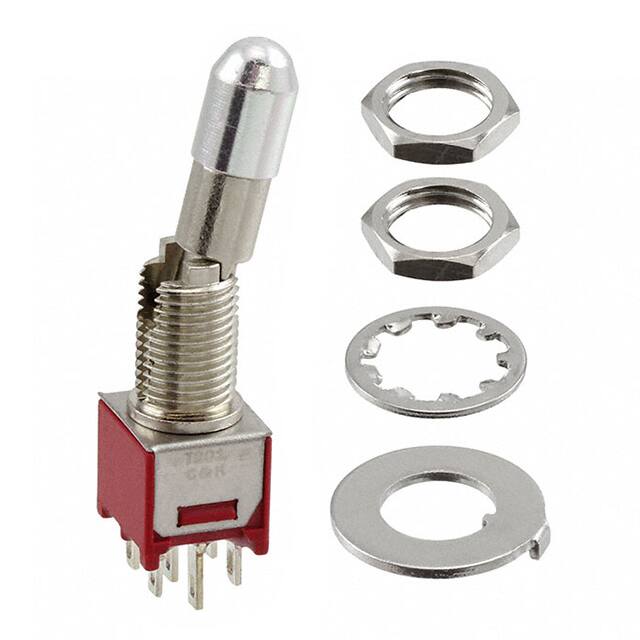

T201KZQESWITCH TOGGLE DPDT 3A 120V |
3,772 | 3.92 |
|
Datasheet |
T | Tray | Obsolete | Panel Mount | DPDT | On-On | 3A (AC/DC) | 120 V | 28 V | Locking Lever | 16.26mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
6GL6A-68SWITCH TOGGLE DPDT 6A 125V |
1,779 | 4.03 |
|
- |
G | Bulk | Active | Panel Mount | DPDT | On-Mom | 6A (AC) | 125 V | - | Standard Round | 14.28mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.70mm Dia | 15/32-32 | - | - | 0°C ~ 85°C |
|
|
6FC54-E8SWITCH TOGGLE SPDT 15A 125V |
4,577 | 4.03 |
|
- |
F | Bulk | Active | Panel Mount | SPDT | Mom-Off-Mom | 15A (AC) | 125 V | - | Standard Round | 50.80mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.70mm Dia | 15/32-32 | - | - | -17.8°C ~ 65.6°C |
|
|
5666CDB9TOGGLE SWITCH 5000 MINIATURE |
4,550 | - |
|
Datasheet |
5000 | Bulk | Active | Panel Mount | 4PDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 10.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | - | -40°C ~ 85°C |
|
|
A221S1Y9V30QSWITCH TOGGLE DPDT 6A 125V |
4,019 | 4.44 |
|
Datasheet |
A | Bulk | Active | Through Hole | DPDT | On-Off-On | 6A (AC/DC) | 125 V | 28 V | Standard Round | 10.41mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 90°C |
|
|
A221S1YW3QSWITCH TOGGLE DPDT 6A 125V |
1,444 | 4.44 |
|
Datasheet |
A | Bulk | Active | Panel Mount | DPDT | On-Off-On | 6A (AC/DC) | 125 V | 28 V | Standard Round | 10.41mm | Non-Illuminated | - | - | Wire Wrap | - | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 90°C |
|
|
A227S1YZ3QSWITCH TOGGLE DPDT 6A 125V |
2,163 | 4.44 |
|
Datasheet |
A | Bulk | Active | Panel Mount | DPDT | Mom-Off-Mom | 6A (AC/DC) | 125 V | 28 V | Standard Round | 10.41mm | Non-Illuminated | - | - | Solder Lug | - | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 90°C |
|
|
S332F/U-AT401SSWITCH TOGGLE DPDT 20A 125V |
1,486 | - |
|
Datasheet |
S | Bulk | Active | Panel Mount | DPDT | On-On | 20A (AC/DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder, Quick Connect - 0.250" (6.3mm) | Circular - 12.50mm Dia | M12 x 1 | - | - | -10°C ~ 70°C |
