Toggle Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Panel Cutout Dimensions | Bushing Thread | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
S332F/U-AT402CSWITCH TOGGLE DPDT 20A 125V |
1,580 | - |
|
Datasheet |
S | Bulk | Active | Panel Mount | DPDT | On-On | 20A (AC/DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder, Quick Connect - 0.250" (6.3mm) | Circular - 12.50mm Dia | M12 x 1 | - | - | -10°C ~ 70°C |
|
|
S332F/U-AT402ASWITCH TOGGLE DPDT 20A 125V |
4,756 | - |
|
Datasheet |
S | Bulk | Active | Panel Mount | DPDT | On-On | 20A (AC/DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder, Quick Connect - 0.250" (6.3mm) | Circular - 12.50mm Dia | M12 x 1 | - | - | -10°C ~ 70°C |
|
|
5646AD2VTOGGLE SWITCH 5000 MINIATURE |
2,043 | - |
|
Datasheet |
5000 | Bulk | Active | Panel Mount | DPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 10.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | - | -40°C ~ 85°C |
|
|
MN33BB1W01-AT402SSWITCH TOGGLE |
2,945 | - |
|
- |
M | Bulk | Active | Panel Mount | 3PDT | On-Off-On | 4A (AC), 2A (DC) | 125 V | 30 V | Standard Round | 11.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | - | - | -30°C ~ 85°C |
|
|
LT-1534-510-012SWITCH TOGGLE SPST-NO 15A 125V |
3,599 | 4.00 |
|
Datasheet |
LT | Bulk | Active | Panel Mount | SPST-NO | Off-Mom | 15A (AC/DC) | 125 V | 28 V | Standard Round | 18.16mm | Illuminated | Incandescent, Red | 12 VAC/DC | Screw Terminal | Circular - 12.70mm Dia | 15/32-32 | - | - | 0°C ~ 85°C |
|
31NT91-3SWITCH TOGGLE SPDT 15A 125V |
4,160 | 4.32 |
|
Datasheet |
NT | Bulk | Active | Panel Mount | SPDT | On-On | 15A (AC) | 125 V | - | Standard Round | 17.02mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.40mm Dia | 15/32-32 | IP67/IP68 - Dust Tight, Waterproof | Sealed | -40°C ~ 71°C |
|
|
STA151-Y8SWITCH TOGGLE SPDT 15A 125V |
1,001 | 5.56 |
|
- |
ST | Bulk | Active | Panel Mount | SPDT | On-Off | 15A (AC) | 125 V | - | Paddle | 22.35mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.70mm Dia | - | IP68 - Dust Tight, Waterproof | - | -40°C ~ 85°C |
|
|
STA151-B8SWITCH TOGGLE SPDT 15A 125V |
3,528 | 5.56 |
|
- |
ST | Bulk | Active | Panel Mount | SPDT | On-Off | 15A (AC) | 125 V | - | Paddle | 22.35mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.70mm Dia | - | IP68 - Dust Tight, Waterproof | - | -40°C ~ 85°C |
|
|
STA151-R8SWITCH TOGGLE SPDT 15A 125V |
1,636 | 5.56 |
|
- |
ST | Bulk | Active | Panel Mount | SPDT | On-Off | 15A (AC) | 125 V | - | Paddle | 22.35mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.70mm Dia | - | IP68 - Dust Tight, Waterproof | - | -40°C ~ 85°C |
|
|
STA151-W8SWITCH TOGGLE SPDT 15A 125V |
4,598 | 5.56 |
|
- |
ST | Bulk | Active | Panel Mount | SPDT | On-Off | 15A (AC) | 125 V | - | Paddle | 22.35mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.70mm Dia | - | IP68 - Dust Tight, Waterproof | - | -40°C ~ 85°C |
|
|
316-B-73SWITCH TOGGLE DPDT 3A 125V |
1,083 | 3.96 |
|
- |
316 | Bulk | Active | Panel Mount | DPDT | On-On | 3A (AC/DC) | 125 V | 125 V | Standard Round | 17.45mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.70mm Dia | 15/32-32 | - | - | -17.8°C ~ 65.6°C |
|
|
1NT91-2-NHSWITCH TOGGLE SPST 15A 125V |
2,622 | 3.93 |
|
- |
NT | Bulk | Active | Panel Mount | SPST | On-Off | 15A (AC) | 125 V | - | Standard Round | 17.02mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.40mm Dia | 15/32-32 | IP67/IP68 - Dust Tight, Waterproof | Sealed | -40°C ~ 71°C |
|

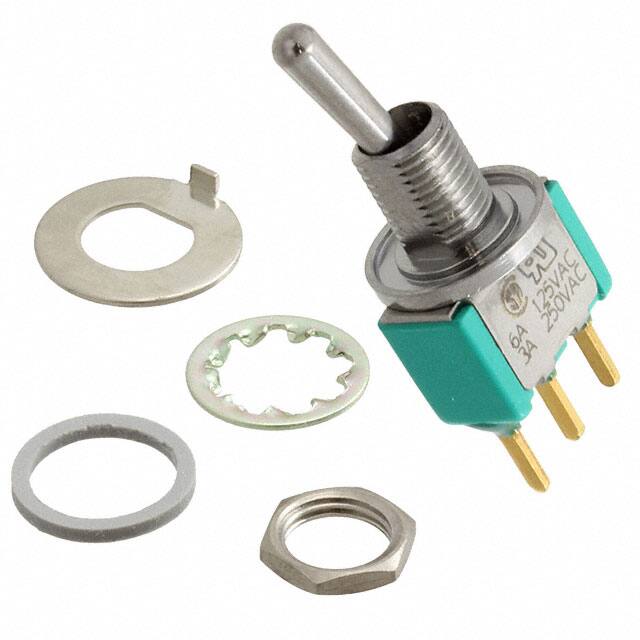

A123S1CWCG-M8SWITCH TOGGLE SPDT 6A 125V |
4,863 | 3.76 |
|
Datasheet |
A | Bulk | Active | Panel Mount | SPDT | On-On | 6A (AC/DC) | 125 V | 28 V | Standard Round | 10.41mm | Non-Illuminated | - | - | PC Pin | - | 1/4-40 | Splash Proof | Epoxy Sealed Terminals | -30°C ~ 90°C |
|
|
A123M1D9AGSWITCH TOGGLE SPDT 6A 125V |
3,446 | 3.57 |
|
Datasheet |
A | Bulk | Active | Through Hole, Right Angle | SPDT | On-On | 6A (AC/DC) | 125 V | 28 V | Standard Round | 5.08mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 90°C |
|
|
A126S1CWZG-M8SWITCH TOGGLE SPDT 6A 125V |
1,645 | 3.76 |
|
Datasheet |
A | Bulk | Active | Panel Mount | SPDT | On-Mom | 6A (AC/DC) | 125 V | 28 V | Standard Round | 10.41mm | Non-Illuminated | - | - | Solder Lug | - | 1/4-40 | Splash Proof | Epoxy Sealed Terminals | -30°C ~ 90°C |
|
|
A126T1TZBSWITCH TOGGLE SPDT 0.5VA 28V |
4,885 | 3.76 |
|
Datasheet |
A | Bulk | Active | Panel Mount | SPDT | On-Mom | 0.5VA (AC/DC) | 28 V | 28 V | Standard Round | 10.41mm | Non-Illuminated | - | - | Solder Lug | - | 15/32-32 | - | Epoxy Sealed Terminals | -30°C ~ 90°C |
|
|
A127P32Y5ZQSWITCH TOGGLE SPDT 6A 125V |
2,490 | 4.36 |
|
Datasheet |
A | Bulk | Active | Panel Mount | SPDT | Mom-Off-Mom | 6A (AC/DC) | 125 V | 28 V | Flatted | 11.38mm | Non-Illuminated | - | - | Solder Lug | - | 1/4-40 | - | Satin Chrome Actuator | -30°C ~ 90°C |
|
|
A221S1YZ3QSWITCH TOGGLE DPDT 6A 125V |
4,797 | 4.36 |
|
Datasheet |
A | Bulk | Active | Panel Mount | DPDT | On-Off-On | 6A (AC/DC) | 125 V | 28 V | Standard Round | 10.41mm | Non-Illuminated | - | - | Solder Lug | - | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 90°C |
|
|
A223S1HZ3QPSWITCH TOGGLE DPDT 6A 125V |
3,513 | 3.76 |
|
Datasheet |
A | Bulk | Active | Panel Mount | DPDT | On-On | 6A (AC/DC) | 125 V | 28 V | Anti-Rotation | 10.41mm | Non-Illuminated | - | - | Solder Lug | - | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 90°C |
|
|
A223S1YW3QSWITCH TOGGLE DPDT 6A 125V |
2,176 | 4.36 |
|
Datasheet |
A | Bulk | Active | Panel Mount | DPDT | On-On | 6A (AC/DC) | 125 V | 28 V | Standard Round | 10.41mm | Non-Illuminated | - | - | Wire Wrap | - | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 90°C |
