Toggle Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Panel Cutout Dimensions | Bushing Thread | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
7301K2CWZQE22SWITCH TOGGLE 3PDT 5A 120V |
3,256 | 4.71 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | 3PDT | On-On | 5A (AC/DC) | 120 V | 28 V | Locking Lever | 17.88mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | IP67 - Dust Tight, Waterproof | Black Anodized | -30°C ~ 85°C |
|
|
5637CDBX408TOGGLE SWITCH 5000 MINIATURE |
4,352 | - |
|
Datasheet |
5000 | Bulk | Active | Panel Mount | SPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 10.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | - | -40°C ~ 85°C |
|

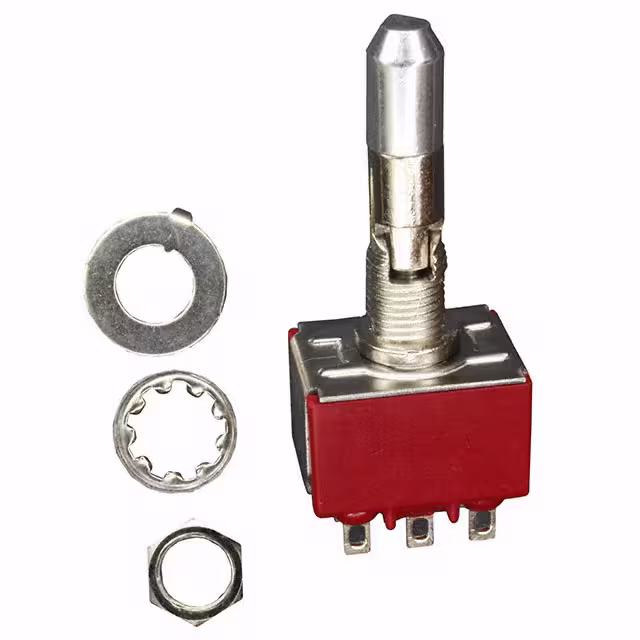

7303K12ZQESWITCH TOGGLE 3PDT 5A 120V |
2,993 | 4.92 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | 3PDT | On-Off-On | 5A (AC/DC) | 120 V | 28 V | Locking Lever | 18.59mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
A123S1YAGSWITCH TOGGLE SPDT 6A 125V |
4,909 | 3.88 |
|
Datasheet |
A | Bulk | Active | Panel Mount, Right Angle | SPDT | On-On | 6A (AC/DC) | 125 V | 28 V | Standard Round | 10.41mm | Non-Illuminated | - | - | PC Pin | - | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 90°C |
|
|
WT232M1D1AV2BSWITCH TOGGLE SP3T 0.5VA 28V |
2,567 | 4.12 |
|
Datasheet |
WT | Bulk | Active | Through Hole, Right Angle, Vertical | SP3T | On-On-On | 0.5VA (AC/DC) | 28 V | 28 V | Standard Round | 7.60mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
|
A123S2CXZQSWITCH TOGGLE SPDT 6A 125V |
1,110 | 4.56 |
|
Datasheet |
A | Bulk | Active | Panel Mount | SPDT | On-On | 6A (AC/DC) | 125 V | 28 V | Standard Round | 10.41mm | Non-Illuminated | - | - | Solder Lug | - | 1/4-40 | Splash Proof | Epoxy Sealed Terminals | -30°C ~ 90°C |
|
|
A126P31D9AQSWITCH TOGGLE SPDT 6A 125V |
4,848 | 3.88 |
|
Datasheet |
A | Bulk | Active | Through Hole, Right Angle | SPDT | On-Mom | 6A (AC/DC) | 125 V | 28 V | Flatted | 11.38mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 90°C |
|
|
A223S1YZQPSWITCH TOGGLE DPDT 6A 125V |
3,910 | 4.56 |
|
Datasheet |
A | Bulk | Active | Panel Mount | DPDT | On-On | 6A (AC/DC) | 125 V | 28 V | Anti-Rotation | 10.41mm | Non-Illuminated | - | - | Solder Lug | - | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 90°C |
|
|
A227P33H3ZBSWITCH TOGGLE DPDT 0.5VA 28V |
4,007 | 4.56 |
|
Datasheet |
A | Bulk | Active | Panel Mount | DPDT | Mom-Off-Mom | 0.5VA (AC/DC) | 28 V | 28 V | Flatted | 11.38mm | Non-Illuminated | - | - | Solder Lug | - | 1/4-40 | - | Black Actuator | -30°C ~ 90°C |
|
|
A231P31YZQSWITCH TOGGLE DPDT 6A 125V |
3,304 | 4.56 |
|
Datasheet |
A | Bulk | Active | Panel Mount | DPDT | On-Off-Mom | 6A (AC/DC) | 125 V | 28 V | Flatted | 11.38mm | Non-Illuminated | - | - | Solder Lug | - | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 90°C |
|
|
MTG426NSWITCH TOGGLE 4PDT 6A 125V |
3,500 | - |
|
Datasheet |
MTG Green | Bulk | Obsolete | Panel Mount | 4PDT | On-On | 6A (AC), 4A (DC) | 125 V | 28 V | Standard Round | 17.40mm | Non-Illuminated | - | - | Solder Lug | Circular - 11.94mm Dia | 15/32-32 | - | Epoxy Sealed Terminals | -20°C ~ 80°C |
|
|
D22042PSWITCH TOGGLE 4PDT 0.4VA 48V |
2,589 | 3.61 |
|
Datasheet |
D2 | Bulk | Active | Panel Mount | 4PDT | On-On | 0.4VA (AC/DC) | 48 V | 48 V | Standard Round | 10.50mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | M6 x 0.75 | - | - | -10°C ~ 70°C |
|
|
S338T/USWITCH TOGGLE DPDT 15A 125V |
1,443 | 3.61 |
|
Datasheet |
S300 | Bulk | Active | Panel Mount | DPDT | Mom-Off-Mom | 15A (AC), 20A (DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.50mm Dia | M12 x 1 | - | - | -10°C ~ 70°C |
|
|
HKA271-78SWITCH TOGGLE 3PST 17A 125V |
2,451 | 4.21 |
|
Datasheet |
H | Bulk | Active | Panel Mount | 3PST | On-Off | 17A (AC) | 125 V | - | Standard Round | 17.45mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.70mm Dia | 15/32-32 | - | - | 0°C ~ 85°C |
|
|
A221T1TWZBSWITCH TOGGLE DPDT 0.5VA 28V |
2,927 | - |
|
- |
A | Bulk | Active | Panel Mount | DPDT | On-On | 0.5VA (AC/DC) | 28 V | 28 V | Standard Round | 17.45mm | Non-Illuminated | - | - | Solder Lug | - | 15/32-32 | - | - | - |
|
|
5436ADBX408TOGGLE SWITCH 5000 MINIATURE |
2,282 | - |
|
Datasheet |
5000 | Bulk | Active | Panel Mount | SPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 10.50mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | 1/4-40 | - | - | -40°C ~ 85°C |
|
|
LT-1584-501-012SWITCH TOGGLE |
1,627 | - |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
LT-1584-504-012SWITCH TOGGLE SPDT 15A 125V |
4,293 | 4.15 |
|
Datasheet |
LT | Bulk | Active | Panel Mount | SPDT | Mom-Off-Mom | 15A (AC/DC) | 125 V | 28 V | Standard Round | 18.16mm | Illuminated | - | 12 VAC/DC | Screw Terminal | Circular - 12.70mm Dia | 15/32-32 | - | - | 0°C ~ 85°C |
|
|
LT-1584-601-024SWITCH TOGGLE SPDT 15A 125V |
3,583 | 4.15 |
|
Datasheet |
LT | Bulk | Active | Panel Mount | SPDT | Mom-Off-Mom | 15A (AC/DC) | 125 V | 28 V | Standard Round | 18.16mm | Illuminated | Incandescent, Red | 24 VAC/DC | Screw Terminal | Circular - 12.70mm Dia | 15/32-32 | - | - | 0°C ~ 85°C |
|
|
LT-1584-633-012SWITCH TOGGLE SPDT 15A 125V |
4,038 | 4.15 |
|
Datasheet |
LT | Bulk | Active | Panel Mount | SPDT | Mom-Off-Mom | 15A (AC/DC) | 125 V | 28 V | Standard Round | 18.16mm | Illuminated | Incandescent, Green | 12 VAC/DC | Screw Terminal | Circular - 12.70mm Dia | 15/32-32 | - | - | 0°C ~ 85°C |
