Toggle Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Panel Cutout Dimensions | Bushing Thread | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A25AHSWITCH TOGGLE DPDT 0.4VA 28V |
4,079 | 6.06 |
|
Datasheet |
A | Bulk | Active | Through Hole, Right Angle | DPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 10.00mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded, Square | - | Process Sealed | -30°C ~ 85°C |
|
7101MPCWCGESWITCH TOGGLE SPDT 5A 120V |
3,767 | 8.77 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | SPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Anti-Rotation | 5.08mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
7101SPYZGESWITCH TOGGLE SPDT 5A 120V |
1,595 | 5.92 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | SPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Anti-Rotation | 10.67mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
2M1-DP6-T1-B1-M1GESWITCH TOGGLE SP3T 5A 125V |
3,676 | 7.06 |
|
- |
2M | Bulk | Active | Panel Mount | SP3T | On-On-On | 5A (AC/DC) | 125 V | 28 V | Standard Round | 10.39mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | IP67 - Dust Tight, Waterproof | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
|
2M1-DP6-T2-B3-M2GESWITCH TOGGLE SP3T 5A 125V |
4,597 | 7.06 |
|
- |
2M | Bulk | Active | Panel Mount | SP3T | On-On-On | 5A (AC/DC) | 125 V | 28 V | Standard Round | 5.41mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | IP67 - Dust Tight, Waterproof | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|

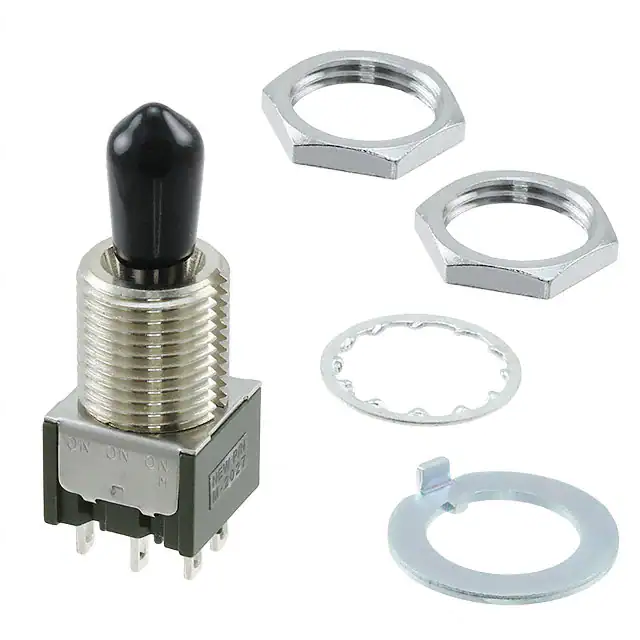

M2027BB1W01-RASWITCH TOGGLE SP3T 6A 125V |
2,080 | 7.67 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SP3T | On-On-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round with Cap | 12.30mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | - | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|

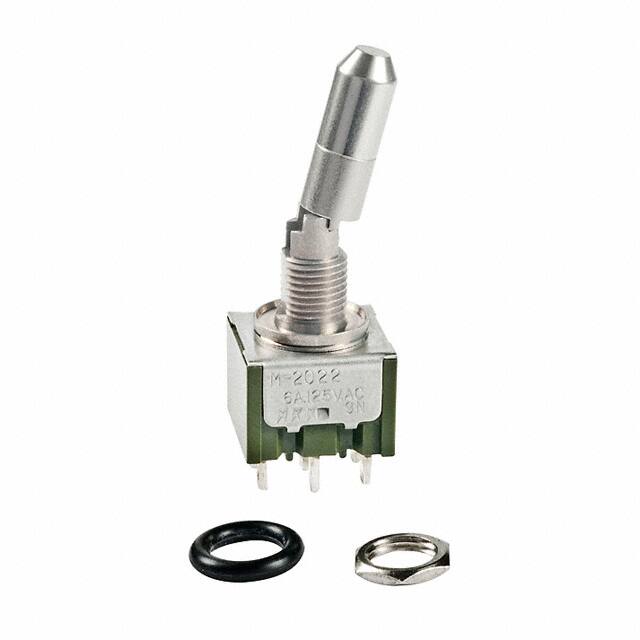

M2022L1L3W01SWITCH TOGGLE DPDT 6A 125V |
2,955 | 7.67 |
|
- |
M | Bulk | Obsolete | Panel Mount | DPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Locking Lever | - | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
7105SD9AQESWITCH TOGGLE SPDT 5A 120V |
3,988 | 5.97 |
|
Datasheet |
7000 | Bulk | Active | Through Hole, Right Angle | SPDT | Mom-Off-Mom | 5A (AC/DC) | 120 V | 28 V | Standard Round | 12.45mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
TL49Y005000TOGGLE SWITCH SMT TL PCB MOUNT |
2,072 | - |
|
- |
TL | Bulk | Active | Through Hole | DPDT | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 5.30mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | - | -30°C ~ 85°C |
|
|
7108TCWZBESWITCH TOGGLE SPDT 0.4VA 20V |
1,397 | 7.90 |
|
Datasheet |
7000 | Tray | Active | Panel Mount | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 17.45mm | Non-Illuminated | - | - | Solder Lug | Circular - 11.91mm Dia | 15/32-32 | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

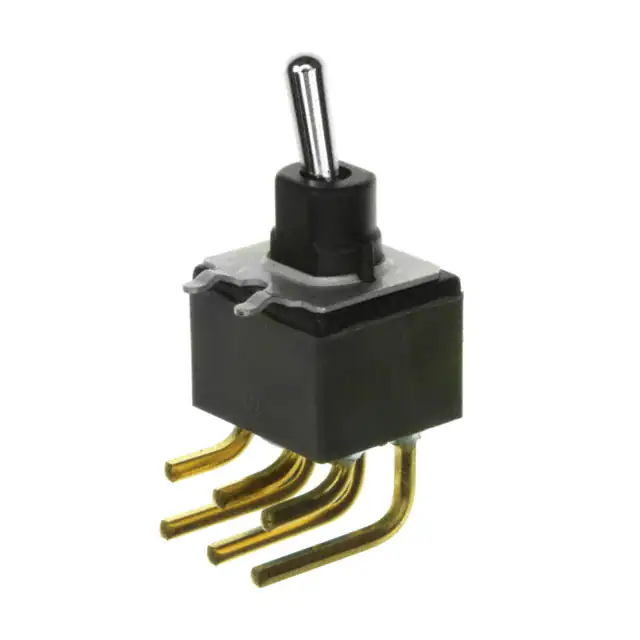

M2T22S4A5G30SWITCH TOGGLE DPDT 0.4VA 28V |
3,083 | 7.43 |
|
Datasheet |
M2 | Bulk | Obsolete | Through Hole, Right Angle | DPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 7.62mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Process Sealed | -30°C ~ 85°C |
|
|
MN12SD8W01SWITCH TOGGLE |
3,769 | - |
|
- |
M | Bulk | Active | Panel Mount | SPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 10.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | M6 x 0.75 | IP67 - Dust Tight, Waterproof | - | -30°C ~ 85°C |
|
|
MN15S3S2W13BRACKET PC MOUNT MINIATURE TOGGL |
1,657 | - |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

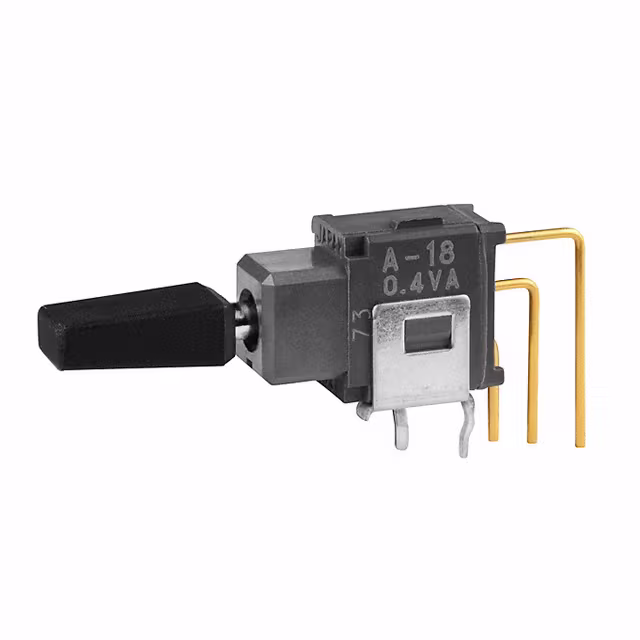

A18KV-AASWITCH TOGGLE SPDT 0.4VA 28V |
3,978 | 6.10 |
|
Datasheet |
A | Tray | Active | Through Hole, Right Angle, Vertical | SPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Snap On Paddle | 9.40mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded, Square | - | Black Actuator | -30°C ~ 85°C |
|

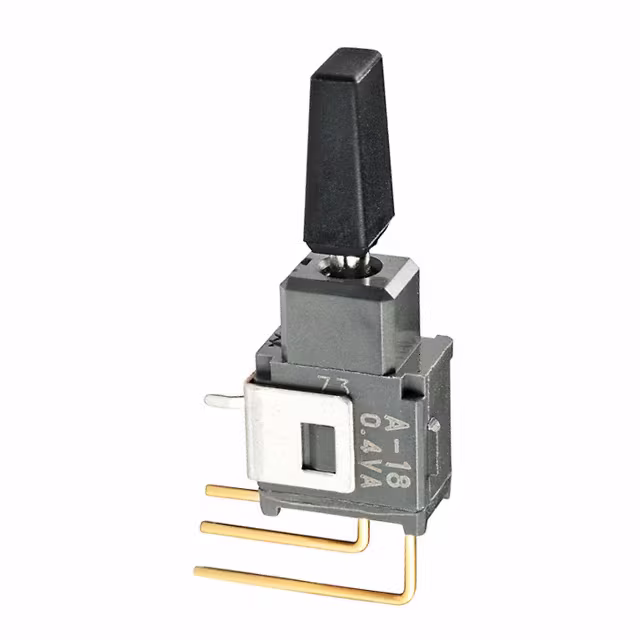

A18KV1-AASWITCH TOGGLE SPDT 0.4VA 28V |
1,920 | 6.10 |
|
Datasheet |
A | Bulk | Active | Through Hole, Right Angle, Vertical | SPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Snap On Paddle | 9.40mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded, Square | - | Black Actuator | -30°C ~ 85°C |
|

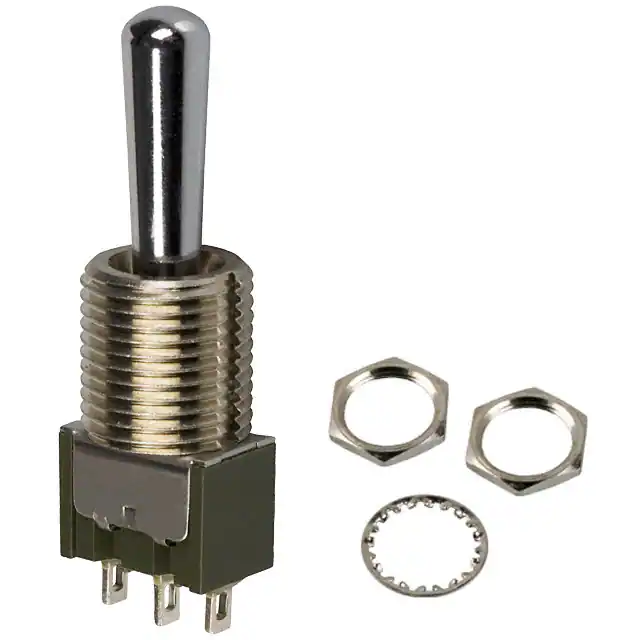

M2012B2B1G01SWITCH TOGGLE SPDT 0.4VA 28V |
4,664 | 7.62 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
A22KHSWITCH TOGGLE DPDT 0.4VA 28V |
4,563 | 6.10 |
|
Datasheet |
A | Bulk | Active | Through Hole, Right Angle | DPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Lever for Cap | 5.00mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded, Square | - | Process Sealed | -30°C ~ 85°C |
|
|
B22KH-BCSWITCH TOGGLE DPDT 0.4VA 28V |
3,823 | 3.98 |
|
Datasheet |
B | Bulk | Active | Through Hole, Right Angle | DPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Snap On Paddle | 14.20mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Red Actuator | -30°C ~ 85°C |
|
|
B23KB-ACSWITCH TOGGLE DPDT 0.4VA 28V |
4,425 | 5.97 |
|
Datasheet |
B | Bulk | Active | Through Hole | DPDT | On-Off-On | 0.4VA (AC/DC) | 28 V | 28 V | Snap On Paddle | 9.40mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Red Actuator | -30°C ~ 85°C |
|
|
7103P3D9AV2BESWITCH TOGGLE SPDT 0.4VA 20V |
1,655 | 7.06 |
|
Datasheet |
7000 | Bulk | Active | Through Hole, Right Angle, Vertical | SPDT | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Flat Anti-Rotation | 13.21mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
