Toggle Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Panel Cutout Dimensions | Bushing Thread | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1004P1T2B5M52RESWITCH TOGGLE 4PDT 0.4VA 20V |
1,030 | 7.52 |
|
Datasheet |
100 | Bulk | Active | Panel Mount | 4PDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 5.08mm | Non-Illuminated | - | - | Wire Wrap | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
7103MPDZQESWITCH TOGGLE SPDT 5A 120V |
1,714 | 5.94 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | SPDT | On-Off-On | 5A (AC/DC) | 120 V | 28 V | Anti-Rotation | 6.86mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
C3902BASWITCH TOGGLE SPST-NC 16A 125V |
4,482 | 6.90 |
|
Datasheet |
3900 | Bulk | Active | Panel Mount | SPST-NC | On-Mom | 16A (AC), 14A (DC) | 125 V | 36 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.70mm Dia | 15/32-32 | - | - | - |
|
|
B28JHSWITCH TOGGLE DPDT 0.4VA 28V |
4,265 | 6.07 |
|
Datasheet |
B | Tray | Active | Through Hole, Right Angle | DPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 6.30mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
A29APSWITCH TOGGLE DPDT 0.4VA 28V |
2,882 | 6.07 |
|
Datasheet |
A | Bulk | Active | Through Hole | DPDT | On-Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 10.00mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded, Square | - | Process Sealed | -30°C ~ 85°C |
|
|
B28JVSWITCH TOGGLE DPDT 0.4VA 28V |
4,616 | 6.07 |
|
Datasheet |
B | Bulk | Active | Through Hole, Right Angle, Vertical | DPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 6.30mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
B29JVSWITCH TOGGLE DPDT 0.4VA 28V |
1,433 | 6.07 |
|
Datasheet |
B | Bulk | Active | Through Hole, Right Angle, Vertical | DPDT | On-Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 6.30mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
T101SK9V3BESWITCH TOGGLE SPDT 0.4VA 20V |
4,317 | 9.70 |
|
Datasheet |
T | Tray | Active | Through Hole | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 7.11mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

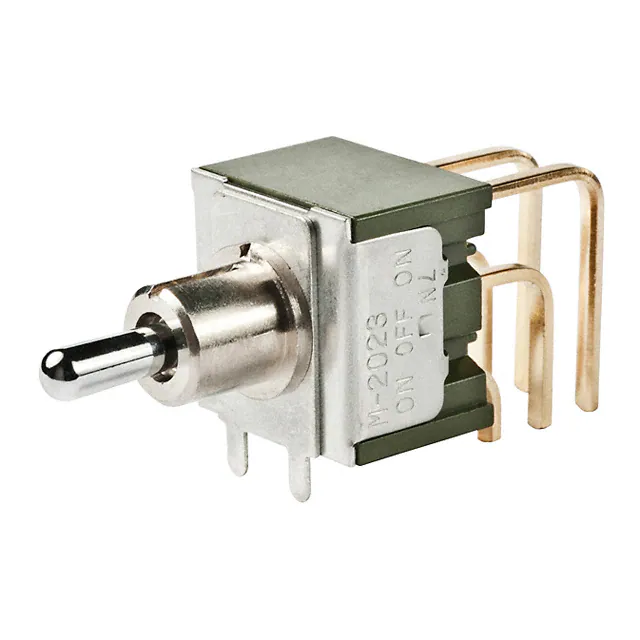

M2023S2A2G40SWITCH TOGGLE DPDT 0.4VA 28V |
4,194 | 7.54 |
|
Datasheet |
M | Tray | Obsolete | Through Hole, Right Angle, Vertical | DPDT | On-Off-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 6.86mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

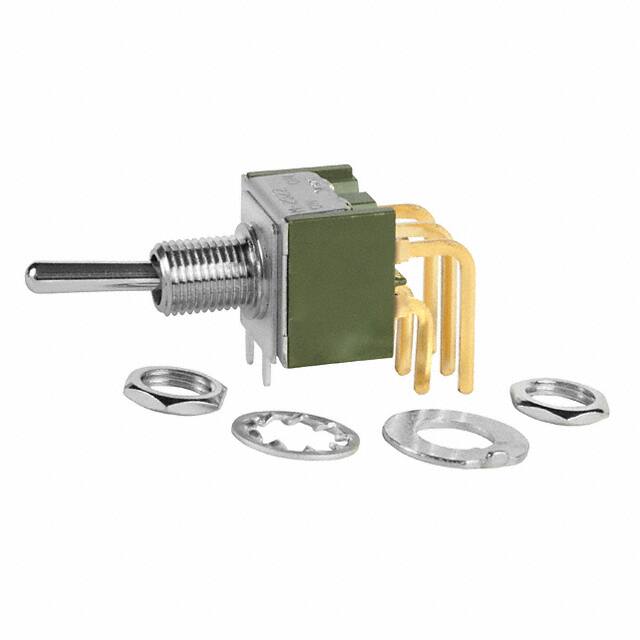

M2022SS1G30SWITCH TOGGLE DPDT 0.4VA 28V |
4,287 | 7.54 |
|
Datasheet |
M | Bulk | Obsolete | Through Hole, Right Angle | DPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 10.50mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
TT11FGPC9T1/4SWITCH TOGGLE SPDT 0.4VA 20V |
3,486 | - |
|
- |
TT | Bulk | Obsolete | Panel Mount | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 10.69mm | Non-Illuminated | - | - | PC Pin | Circular - 6.40mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
1-1571924-6SWITCH TOGGLE 3PDT 6A 125V |
3,570 | 12.64 |
|
Datasheet |
MTE Green | Bulk | Obsolete | Panel Mount | 3PDT | On-On | 6A (AC), 4A (DC) | 125 V | 28 V | Standard Round | 10.49mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.40mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -20°C ~ 80°C |
|
|
3-1571920-7SWITCH TOGGLE 3PDT 6A 125V |
2,390 | - |
|
Datasheet |
MTA Green | Bulk | Obsolete | Panel Mount | 3PDT | On-Off-Mom | 6A (AC), 4A (DC) | 125 V | 28 V | Standard Round | 10.49mm | Non-Illuminated | - | - | PC Pin | Circular - 6.40mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -20°C ~ 80°C |
|
|
2M1-DP6-T6-B1-M2RESWITCH TOGGLE SP3T 0.4VA 20V |
4,240 | 6.94 |
|
- |
2M | Bulk | Active | Panel Mount | SP3T | On-On-On | 0.4VA (AC/DC) | 20 V | 20 V | Flatted | 12.10mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | IP67 - Dust Tight, Waterproof | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
|
1004P3T1B1M7QESWITCH TOGGLE 4PDT 5A 120V |
1,030 | 7.54 |
|
Datasheet |
100 | Bulk | Active | Panel Mount, Right Angle, Vertical | 4PDT | On-Off-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 10.41mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

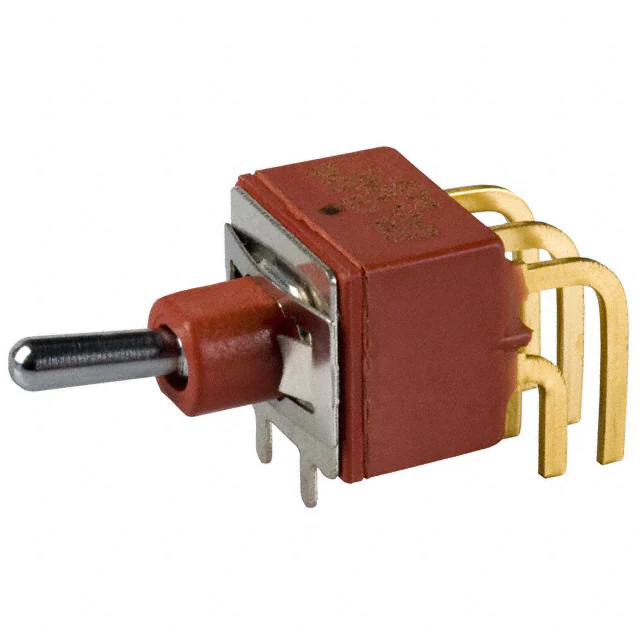

E201MD1ABESWITCH TOGGLE DPDT 0.4VA 20V |
3,430 | 7.97 |
|
Datasheet |
E | Tray | Active | Through Hole, Right Angle | DPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 7.62mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | IP57 - Dust Protected, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
7107P3YWBESWITCH TOGGLE SPDT 0.4VA 20V |
1,062 | - |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | SPDT | On-Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Flat Anti-Rotation | 11.43mm | Non-Illuminated | - | - | Wire Wrap | Circular - 6.35mm Dia | 1/4-40 | - | - | -30°C ~ 85°C |
|
T103MHV3BESWITCH TOGGLE SPDT 0.4VA 20V |
2,022 | 5.96 |
|
Datasheet |
T | Tray | Active | Panel Mount | SPDT | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 5.44mm | Non-Illuminated | - | - | PC Pin | Circular - 4.95mm Dia | 10-48 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
7105MD9AV2GESWITCH TOGGLE SPDT 0.4VA 20V |
1,924 | - |
|
Datasheet |
7000 | Bulk | Active | Through Hole, Right Angle, Vertical | SPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 6.86mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | - | -30°C ~ 85°C |
|
|
7201SDZQESWITCH TOGGLE DPDT 5A 120V |
2,553 | 7.30 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | DPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 12.45mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
