Toggle Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Panel Cutout Dimensions | Bushing Thread | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2GA71-D-4B-BSWITCH TOGGLE SPST 17A 125V |
1,993 | 7.13 |
|
- |
G | Bulk | Active | Panel Mount | SPST | On-Off | 17A (AC) | 125 V | - | Paddle | 17.45mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.70mm Dia | 15/32-32 | - | - | 0°C ~ 85°C |
|

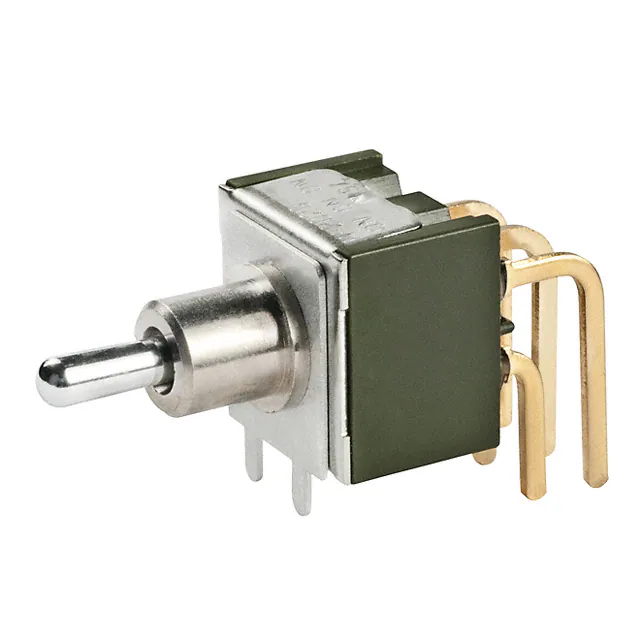

M2024S2A2G30SWITCH TOGGLE SP3T 0.4VA 28V |
1,308 | 7.72 |
|
Datasheet |
M | Bulk | Obsolete | Through Hole, Right Angle | SP3T | On-On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 6.86mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | Unthreaded | - | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
|
7105P3D9V3BETOGGLE SWITCHES |
3,561 | - |
|
Datasheet |
7000 | Bulk | Active | Through Hole | SPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Flat Anti-Rotation | 13.21mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | - | -30°C ~ 85°C |
|
|
1825136-2SWITCH TOGGLE SPDT 0.4VA 20V |
4,882 | 7.55 |
|
Datasheet |
Gemini A | Bulk | Active | Panel Mount, Right Angle | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Locking Lever | 16.28mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | - | -30°C ~ 85°C |
|
|
M-484SWITCH TOGGLE SPST 10A 12V |
4,728 | - |
|
Datasheet |
- | Bulk | Obsolete | Panel Mount | SPST | On-Off | 10A (DC) | - | 12 V | Standard Round | 17.46mm | Non-Illuminated | - | - | Screw Terminal | Circular - 11.90mm Dia | 15/32-32 | - | - | - |
|
7101MPYZQESWITCH TOGGLE SPDT 5A 120V |
3,994 | 6.78 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | SPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Anti-Rotation | 5.08mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
2M1-DP1-T8-B0-VS5GESWITCH TOGGLE DPDT 5A 125V |
4,786 | 6.98 |
|
- |
2M | Bulk | Active | Panel Mount | DPDT | On-On | 5A (AC/DC) | 125 V | 28 V | Anti-Rotation | 17.50mm | Non-Illuminated | - | - | PC Pin | Circular - 11.91mm Dia | 15/32-32 | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
T101MY9CBESWITCH TOGGLE SPDT 0.4VA 20V |
2,947 | 5.03 |
|
Datasheet |
T | Tray | Active | Through Hole | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 5.44mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
MN25SS1W01BUSHING MOUNT MINIATURE TOGGLE |
3,378 | - |
|
Datasheet |
M | Bulk | Active | Panel Mount | DPDT | On-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round | 10.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | IP67 - Dust Tight, Waterproof | - | -30°C ~ 85°C |
|
|
7101P4D9V3GESWITCH TOGGLE SPDT 5A 120V |
3,052 | 8.56 |
|
Datasheet |
7000 | Bulk | Active | Through Hole | SPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Flat Anti-Rotation | 8.13mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
E101SYCRESWITCH TOGGLE SPDT 7.5A 125V |
4,123 | 5.78 |
|
Datasheet |
E | Bulk | Active | Panel Mount | SPDT | On-On | 7.5A (AC/DC) | 125 V | 28 V | Standard Round | 10.16mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | IP57 - Dust Protected, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
A22JH-JASWITCH TOGGLE DPDT 0.4VA 28V |
2,462 | 3.98 |
|
Datasheet |
A | Bulk | Active | Through Hole, Right Angle | DPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round with Cap | 6.30mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded, Square | - | Black Cap | -30°C ~ 85°C |
|
|
D22013VSWITCH TOGGLE SPDT 0.4VA 48V |
2,940 | 6.03 |
|
Datasheet |
D2 | Bulk | Active | Through Hole, Right Angle, Vertical | SPDT | On-Off-On | 0.4VA (AC/DC) | 48 V | 48 V | Standard Round | 10.50mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | - | -10°C ~ 70°C |
|
|
S3A/USWITCH TOGGLE SPDT 15A 125V |
2,316 | 6.13 |
|
Datasheet |
S | Bulk | Active | Panel Mount | SPDT | On-Off-On | 15A (AC), 20A (DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | - | - | -10°C ~ 70°C |
|
|
A18K1P-DBSWITCH TOGGLE SPDT 0.4VA 28V |
1,762 | - |
|
- |
A | Bulk | Active | Through Hole, Right Angle | SPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Snap On Paddle | 5.08mm | Non-Illuminated | - | - | PC Pin | - | - | - | - | -30°C ~ 85°C |
|
|
7103SD9V6QESWITCH TOGGLE SPDT 5A 120V |
4,859 | 5.47 |
|
Datasheet |
7000 | Bulk | Active | Through Hole | SPDT | On-Off-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 12.45mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
MN19SS1W01-CESWITCH TOGGLE |
2,012 | - |
|
- |
M | Bulk | Active | Panel Mount | SPDT | On-Off-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round with Cap | 13.10mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | - | -30°C ~ 85°C |
|
|
MN15SS4W01-BBSWITCH TOGGLE |
2,482 | - |
|
- |
M | Bulk | Active | Panel Mount | SPDT | On-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round with Cap | 13.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | M6 x 0.75 | - | - | -30°C ~ 85°C |
|
|
MN15SS4W01-BASWITCH TOGGLE |
1,376 | - |
|
- |
M | Bulk | Active | Panel Mount | SPDT | On-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round with Cap | 10.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | M6 x 0.75 | - | - | -30°C ~ 85°C |
|
|
MN19SS1W01-BGSWITCH TOGGLE |
2,432 | - |
|
- |
M | Bulk | Active | Panel Mount | SPDT | On-Off-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round with Cap | 13.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | - | -30°C ~ 85°C |
