Toggle Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Panel Cutout Dimensions | Bushing Thread | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
7203SPCWZBETOGGLE SWITCHES |
4,798 | - |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | DPDT | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Anti-Rotation | 10.67mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | IP67 - Dust Tight, Waterproof | - | -30°C ~ 85°C |
|
|
MN12LL1G03BUSHING MOUNT MINIATURE TOGGLE |
4,364 | - |
|
Datasheet |
M | Bulk | Active | Through Hole | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Locking Lever | 5.10mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | 1/4-40 | IP67 - Dust Tight, Waterproof | - | -30°C ~ 85°C |
|
|
5236WCDB7TOGGLE SWITCH 5000 MINIATURE |
2,426 | - |
|
Datasheet |
5000 | Bulk | Active | Through Hole, Right Angle, Vertical | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 13.50mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | - | -40°C ~ 85°C |
|
E103SD1AV2BESWITCH TOGGLE SPDT 0.4VA 20V |
2,039 | 7.43 |
|
Datasheet |
E | Bulk | Active | Through Hole, Right Angle, Vertical | SPDT | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 12.70mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | IP57 - Dust Protected, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
A22KVSWITCH TOGGLE DPDT 0.4VA 28V |
1,916 | 6.10 |
|
Datasheet |
A | Tray | Active | Through Hole, Right Angle, Vertical | DPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Lever for Cap | 5.00mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded, Square | - | Process Sealed | -30°C ~ 85°C |
|
|
U13TCGESWITCH TOGGLE SPDT 5A 120V |
2,463 | 7.36 |
|
Datasheet |
7000 | Tray | Active | Panel Mount | SPDT | On-Off-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 17.45mm | Non-Illuminated | - | - | PC Pin | Circular - 11.91mm Dia | 15/32-32 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
7105P3D9AV2BESWITCH TOGGLE SPDT 0.4VA 20V |
1,570 | - |
|
Datasheet |
7000 | Bulk | Active | Through Hole, Right Angle, Vertical | SPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Flat Anti-Rotation | 13.21mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | - | -30°C ~ 85°C |
|
|
SF32S010000SWITCH TOGGLE SPDT 5A 125V |
3,459 | 7.24 |
|
Datasheet |
SF | Bulk | Active | Panel Mount | SPDT | On-Mom | 5A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 10.70mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -20°C ~ 85°C |
|
|
SF38S010000SWITCH TOGGLE SPDT 5A 125V |
3,588 | 7.24 |
|
Datasheet |
SF | Bulk | Active | Panel Mount | SPDT | On-Off-Mom | 5A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 10.70mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -20°C ~ 85°C |
|

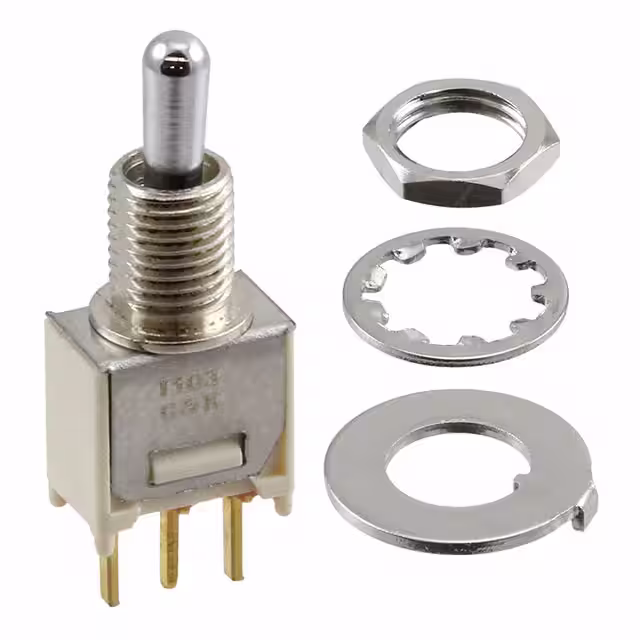

T103MHCBESWITCH TOGGLE SPDT 0.4VA 20V |
2,563 | 7.34 |
|
Datasheet |
T | Tray | Active | Panel Mount | SPDT | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 5.44mm | Non-Illuminated | - | - | PC Pin | Circular - 4.95mm Dia | 10-48 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
1004P3T1B4M7RESWITCH TOGGLE 4PDT 0.4VA 20V |
1,053 | 7.81 |
|
Datasheet |
100 | Bulk | Active | Through Hole, Right Angle, Vertical | 4PDT | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 10.41mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
34ADP3LM2QTSWITCH TOGGLE DPDT 5A 125V |
4,574 | 4.94 |
|
Datasheet |
34A | Bulk | Active | Panel Mount | DPDT | On-Off-On | 5A (AC/DC) | 125 V | 28 V | Locking Lever | 16.26mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | - | -30°C ~ 85°C |
|

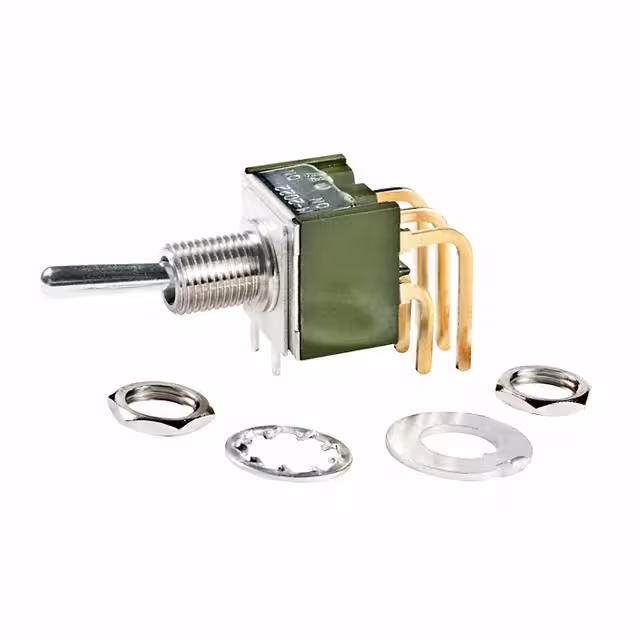

M2022SS1G40SWITCH TOGGLE DPDT 0.4VA 28V |
2,711 | 7.81 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount, Right Angle, Vertical | DPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 10.50mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
M2029B2B3W01SWITCH TOGGLE DPDT 6A 125V |
2,836 | 7.74 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | DPDT | On-Off-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
MN11BB1W03-RCBUSHING MOUNT MINIATURE TOGGLE |
1,048 | - |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
7201MD9V6BESWITCH TOGGLE DPDT 0.4VA 20V |
3,730 | 7.17 |
|
Datasheet |
7000 | Tray | Active | Through Hole | DPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 6.86mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

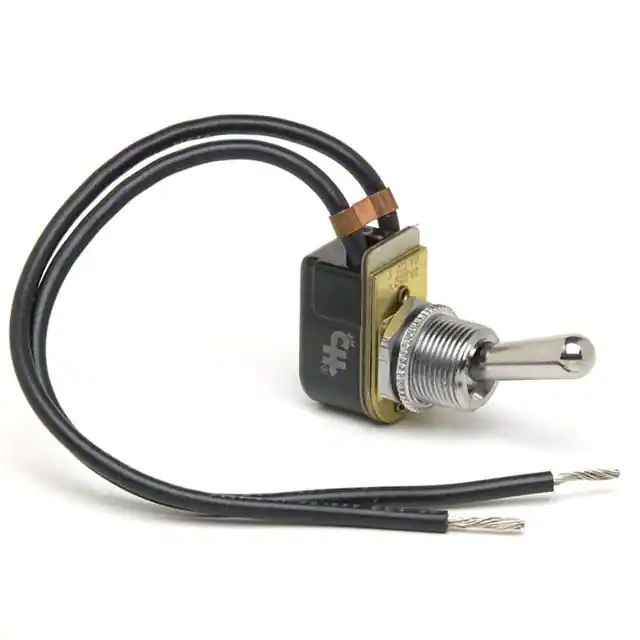

M-584SWITCH TOGGLE SPST 10A 12V |
2,507 | 9.32 |
|
Datasheet |
- | Bulk | Active | Panel Mount | SPST | On-Off | 10A (DC) | - | 12 V | Standard Round | 17.46mm | Non-Illuminated | - | - | Wire Leads | Circular - 11.90mm Dia | 15/32-32 | - | - | - |
|
|
2GA55-73SWITCH TOGGLE SPST 15A 125V |
4,347 | 7.18 |
|
- |
G | Bulk | Active | Panel Mount | SPST | On-Off | 15A (AC) | 125 V | - | Standard Round | 17.45mm | Non-Illuminated | - | - | Wire Leads | Circular - 12.70mm Dia | 15/32-32 | - | - | 0°C ~ 85°C |
|
|
2FB64-73SWITCH TOGGLE SPDT 6A 125V |
1,216 | 7.18 |
|
- |
F | Bulk | Active | Panel Mount | SPDT | On-On | 6A (AC) | 125 V | - | Standard Round | 17.45mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.70mm Dia | 15/32-32 | - | - | -17.8°C ~ 65.6°C |
|
|
2FB64-73/HDW ASSMSWITCH TOGGLE SPDT 6A 125V |
4,037 | 7.18 |
|
- |
F | Bulk | Active | Panel Mount | SPDT | On-On | 6A (AC) | 125 V | - | Standard Round | 17.45mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.70mm Dia | 15/32-32 | - | - | -17.8°C ~ 65.6°C |
