Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ER1641-512JSFIXED IND 5.1UH 335MA 720MOHM TH |
191 | 2.31 |
|
Datasheet |
Military, MIL-PRF-39010/02, ER1641 | Axial | Tape & Reel (TR) | Active | - | Iron | 5.1 µH | ±5% | 335 mA | - | Unshielded | 720mOhm Max | 44 @ 7.9MHz | 65MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
1140-330K-RCFIXED IND 33UH 15.8A 11 MOHM TH |
131 | 2.47 |
|
Datasheet |
1140 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±10% | 15.8 A | 36.5A | Unshielded | 11mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.500" Dia (38.10mm) | 1.030" (26.16mm) |
|
PL8705TFIXED IND 18.5UH 5.2A 23.24MOHM |
5,495 | 2.15 |
|
Datasheet |
POGO | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 18.5 µH | ±20% | 5.2 A | - | Unshielded | 23.24mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.725" L x 0.575" W (18.42mm x 14.61mm) | 0.380" (9.65mm) |
|
IHDM1008BCEV4R7M3AFIXED IND 4.7UH 45A 950 MOHM TH |
345 | 2.47 |
|
Datasheet |
IHDM-1008BC-3A | Nonstandard | Tray | Active | Drum Core, Wirewound | Iron Powder | 4.7 µH | ±20% | 45 A | 70A | Unshielded | 950mOhm Max | - | 15MHz | - | -40°C ~ 180°C | 100 kHz | - | Through Hole | - | 1.005" L x 0.816" W (25.53mm x 20.73mm) | 0.896" (22.75mm) |
|

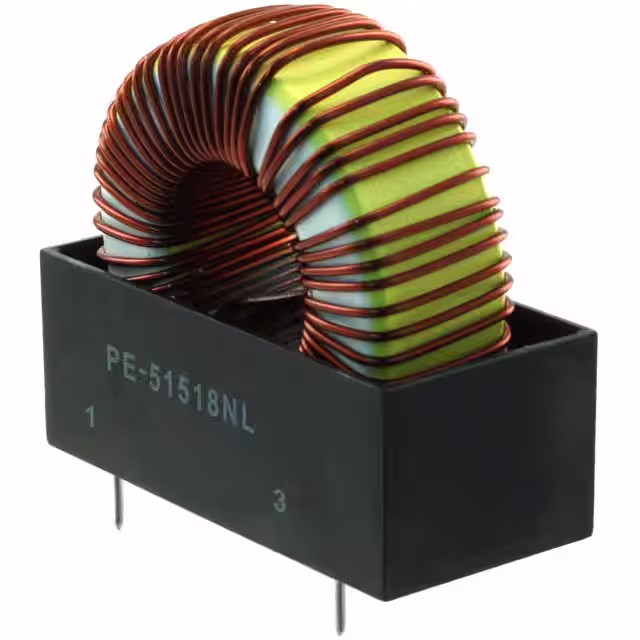

PE-51518NLFIXED IND 335UH 6A 95 MOHM TH |
142 | 2.63 |
|
Datasheet |
- | Radial, Vertical, 4 Leads (Open) | Tray | Active | Toroidal | - | 335 µH | - | 6 A | - | Unshielded | 95mOhm Max | - | - | - | -40°C ~ 130°C | 50 kHz | - | Through Hole | - | 2.300" L x 1.110" W (58.42mm x 28.19mm) | 2.300" (58.42mm) |
|

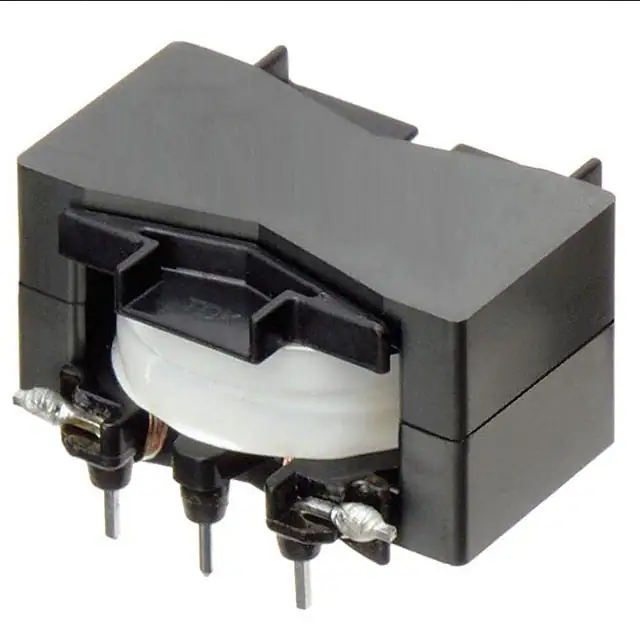

PFC3519QM-301K06B-00CHOKE COMMON MODE |
119 | 2.71 |
|
Datasheet |
PFC | Radial, Horizontal, 8 Leads | Bulk | Not For New Designs | Drum Core, Wirewound | Ferrite | 300 µH | ±10% | 5.5 A | - | Unshielded | - | - | - | - | -30°C ~ 120°C | 50 kHz | Choke Coils for PFC (Pin Terminal Type) | Through Hole | - | 1.457" L x 1.181" W (37.00mm x 30.00mm) | 0.827" (21.00mm) |
|

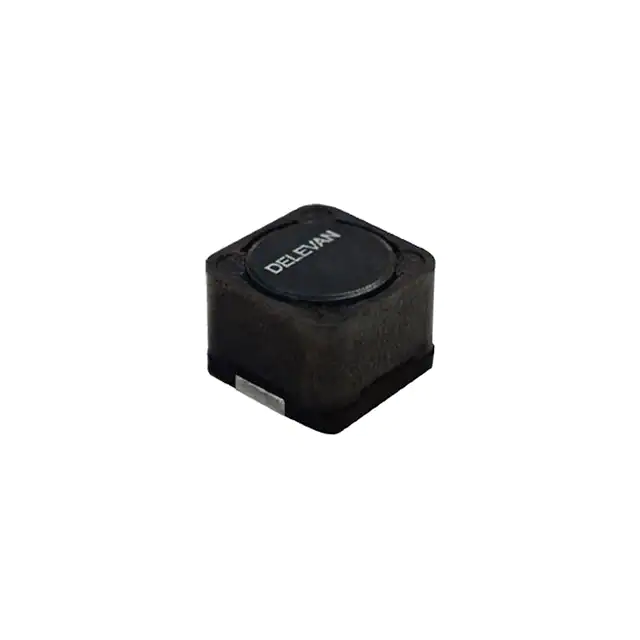

HRSPD127-223MFIXED IND 22UH 3.2A 53 MOHM SMD |
1,000 | 2.76 |
|
Datasheet |
HRSPD127 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 22 µH | ±20% | 3.2 A | 3.71A | Shielded | 53mOhm Max | - | - | - | -55°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.475" L x 0.475" W (12.07mm x 12.07mm) | 0.355" (9.02mm) |
|
|
HRSPD127-103MFIXED IND 10UH 4.2A 35 MOHM SMD |
381 | 2.76 |
|
Datasheet |
HRSPD127 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 10 µH | ±20% | 4.2 A | 5.65A | Shielded | 35mOhm Max | - | - | - | -55°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.475" L x 0.475" W (12.07mm x 12.07mm) | 0.355" (9.02mm) |
|
|
HRSPD127-104MFIXED IND 100UH 1.7A 182MOHM SMD |
250 | 2.76 |
|
Datasheet |
HRSPD127 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 100 µH | ±20% | 1.7 A | 1.78A | Shielded | 182mOhm Max | - | - | - | -55°C ~ 130°C | 10 kHz | - | Surface Mount | - | 0.475" L x 0.475" W (12.07mm x 12.07mm) | 0.355" (9.02mm) |
|
|
HRSPD127-473MFIXED IND 47UH 2.5A 88 MOHM SMD |
250 | 2.76 |
|
Datasheet |
HRSPD127 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 47 µH | ±20% | 2.5 A | 2.55A | Shielded | 88mOhm Max | - | - | - | -55°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.475" L x 0.475" W (12.07mm x 12.07mm) | 0.355" (9.02mm) |
|
|
HRSPD127-563MFIXED IND 56UH 2.3A 110MOHM SMD |
250 | 2.76 |
|
Datasheet |
HRSPD127 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 56 µH | ±20% | 2.3 A | 2.36A | Shielded | 110mOhm Max | - | - | - | -55°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.475" L x 0.475" W (12.07mm x 12.07mm) | 0.355" (9.02mm) |
|
|
HRSPD127-823MFIXED IND 82UH 1.8A 166MOHM SMD |
250 | 2.76 |
|
Datasheet |
HRSPD127 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 82 µH | ±20% | 1.8 A | 1.94A | Shielded | 166mOhm Max | - | - | - | -55°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.475" L x 0.475" W (12.07mm x 12.07mm) | 0.355" (9.02mm) |
|
|
HRSPD127-683MFIXED IND 68UH 2.1A 125MOHM SMD |
249 | 2.76 |
|
Datasheet |
HRSPD127 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 68 µH | ±20% | 2.1 A | 2.13A | Shielded | 125mOhm Max | - | - | - | -55°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.475" L x 0.475" W (12.07mm x 12.07mm) | 0.355" (9.02mm) |
|
|
HRSPD127-333MFIXED IND 33UH 2.8A 69 MOHM SMD |
238 | 2.76 |
|
Datasheet |
HRSPD127 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 33 µH | ±20% | 2.8 A | 3.17A | Shielded | 69mOhm Max | - | - | - | -55°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.475" L x 0.475" W (12.07mm x 12.07mm) | 0.355" (9.02mm) |
|
|
HRSPD127-105MFIXED IND 1MH 550MA 1.86 OHM SMD |
235 | 2.76 |
|
Datasheet |
HRSPD127 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 1 mH | ±20% | 550 mA | 550mA | Shielded | 1.86Ohm Max | - | - | - | -55°C ~ 130°C | 10 kHz | - | Surface Mount | - | 0.475" L x 0.475" W (12.07mm x 12.07mm) | 0.355" (9.02mm) |
|
|
HRSPD127-334MFIXED IND 330UH 1A 540 MOHM SMD |
231 | 2.76 |
|
Datasheet |
HRSPD127 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 330 µH | ±20% | 1 A | 960mA | Shielded | 540mOhm Max | - | - | - | -55°C ~ 130°C | 10 kHz | - | Surface Mount | - | 0.475" L x 0.475" W (12.07mm x 12.07mm) | 0.355" (9.02mm) |
|
|
HRSPD127-222MFIXED IND 2.2UH 6.7A 14MOHM SMD |
223 | 2.76 |
|
Datasheet |
HRSPD127 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 2.2 µH | ±20% | 6.7 A | 11.82A | Shielded | 14mOhm Max | - | - | - | -55°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.475" L x 0.475" W (12.07mm x 12.07mm) | 0.355" (9.02mm) |
|
|
HRSPD127-273MFIXED IND 27UH 2.9A 63 MOHM SMD |
151 | 2.76 |
|
Datasheet |
HRSPD127 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 27 µH | ±20% | 2.9 A | 3.33A | Shielded | 63mOhm Max | - | - | - | -55°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.475" L x 0.475" W (12.07mm x 12.07mm) | 0.355" (9.02mm) |
|
ER1537-02KRFIXED IND 220NH 1.81A 55 MOHM TH |
550 | 3.03 |
|
Datasheet |
Military, MIL-PRF-39010/06, ER1537 | Axial | Tape & Reel (TR) | Active | - | Phenolic | 220 nH | ±10% | 1.81 A | - | Unshielded | 55mOhm Max | 50 @ 25MHz | 460MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.156" Dia x 0.375" L (3.96mm x 9.53mm) | - |
|
ER1537-30KRFIXED IND 5.6UH 495MA 320MOHM TH |
510 | 3.03 |
|
Datasheet |
Military, MIL-PRF-39010/07, ER1537 | Axial | Tape & Reel (TR) | Active | - | Iron | 5.6 µH | ±10% | 495 mA | - | Unshielded | 320mOhm Max | 45 @ 7.9MHz | 60MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.156" Dia x 0.375" L (3.96mm x 9.53mm) | - |
