Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
5500R-106KFIXED IND 10MH 370MA 7.3 OHM SMD |
684 | 1.63 |
|
Datasheet |
5500R | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 10 mH | ±10% | 370 mA | 170mA | Unshielded | 7.3Ohm Max | - | - | - | -55°C ~ 130°C | 1 kHz | - | Surface Mount | - | 1.050" L x 0.495" W (26.67mm x 12.57mm) | 0.520" (13.21mm) |
|
ER1025-14KSFIXED IND 560NH 545MA 500MOHM TH |
362 | 1.78 |
|
Datasheet |
Military, MIL-PRF-39010/08, ER1025 | Axial | Tape & Reel (TR) | Active | - | Phenolic | 560 nH | ±10% | 545 mA | - | Unshielded | 500mOhm Max | 30 @ 25MHz | 300MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
ER1025-04KSFIXED IND 220NH 1.025A 140 MOHM |
325 | 1.78 |
|
Datasheet |
Military, MIL-PRF-39010/08, ER1025 | Axial | Tape & Reel (TR) | Active | - | Phenolic | 220 nH | ±10% | 1.025 A | - | Unshielded | 140mOhm Max | 33 @ 25MHz | 510MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
ER1025-18KSFIXED IND 820NH 415MA 850MOHM TH |
200 | 1.78 |
|
Datasheet |
Military, MIL-PRF-39010/08, ER1025 | Axial | Tape & Reel (TR) | Active | - | Phenolic | 820 nH | ±10% | 415 mA | - | Unshielded | 850mOhm Max | 28 @ 25MHz | 250MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
ER1025-94KSFIXED IND 100NH 1.35A 80 MOHM TH |
140 | 1.78 |
|
Datasheet |
Military, MIL-PRF-39010/08, ER1025 | Axial | Tape & Reel (TR) | Active | - | Phenolic | 100 nH | ±10% | 1.35 A | - | Unshielded | 80mOhm Max | 40 @ 25MHz | 680MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
DC780R-224KFIXED IND 220UH 2.8A 150 MOHM TH |
485 | 1.70 |
|
Datasheet |
DC780R | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±10% | 2.8 A | 7.4A | Unshielded | 150mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.772" Dia (19.60mm) | 0.831" (21.10mm) |
|
M27/367-01FIXED IND 220NH 7A 8 MOHM SMD |
3,110 | 2.02 |
|
Datasheet |
Military, MIL-PRF-27/367, MIL4922 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 220 nH | ±15% | 7 A | 7A | Unshielded | 8mOhm Max | - | - | - | -55°C ~ 130°C | 1 kHz | - | Surface Mount | - | 0.520" L x 0.250" W (13.21mm x 6.35mm) | 0.230" (5.84mm) |
|
|
M27/367-33FIXED IND 100UH 760MA 672MOHM SM |
1,545 | 2.02 |
|
Datasheet |
Military, MIL-PRF-27/367, MIL4922 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 100 µH | ±15% | 760 mA | 760mA | Unshielded | 672mOhm Max | - | - | - | -55°C ~ 130°C | 1 kHz | - | Surface Mount | - | 0.520" L x 0.250" W (13.21mm x 6.35mm) | 0.230" (5.84mm) |
|
|
M27/367-09FIXED IND 1UH 5.5A 13 MOHM SMD |
1,507 | 2.02 |
|
Datasheet |
Military, MIL-PRF-27/367, MIL4922 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 1 µH | ±15% | 5.5 A | 5.5A | Unshielded | 13mOhm Max | - | - | - | -55°C ~ 130°C | 1 kHz | - | Surface Mount | - | 0.520" L x 0.250" W (13.21mm x 6.35mm) | 0.230" (5.84mm) |
|
|
M27/367-15FIXED IND 3.3UH 3.23A 38MOHM SMD |
1,413 | 2.02 |
|
Datasheet |
Military, MIL-PRF-27/367, MIL4922 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 3.3 µH | ±15% | 3.23 A | 3.23A | Unshielded | 38mOhm Max | - | - | - | -55°C ~ 130°C | 1 kHz | - | Surface Mount | - | 0.520" L x 0.250" W (13.21mm x 6.35mm) | 0.230" (5.84mm) |
|
|
M27/367-11FIXED IND 1.5UH 4.45A 20MOHM SMD |
1,072 | 2.02 |
|
Datasheet |
Military, MIL-PRF-27/367, MIL4922 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 1.5 µH | ±15% | 4.45 A | 4.45A | Unshielded | 20mOhm Max | - | - | - | -55°C ~ 130°C | 1 kHz | - | Surface Mount | - | 0.520" L x 0.250" W (13.21mm x 6.35mm) | 0.230" (5.84mm) |
|

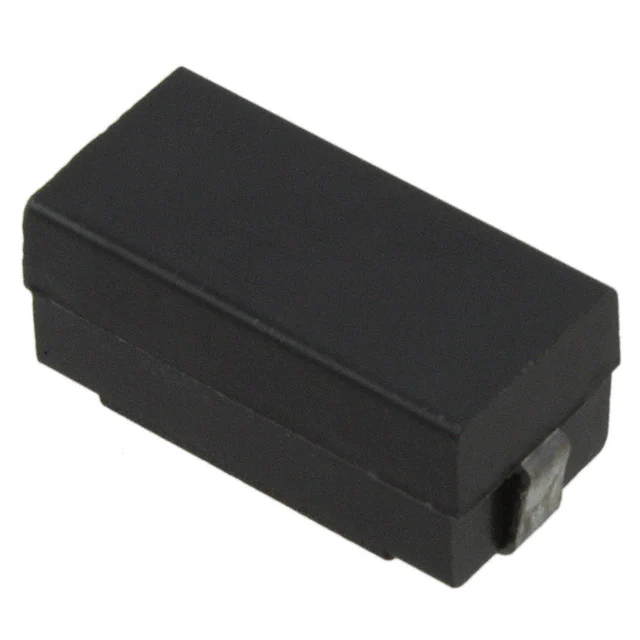

M27/367-27FIXED IND 33UH 1.33A 222MOHM SMD |
949 | 2.02 |
|
Datasheet |
Military, MIL-PRF-27/367, MIL4922 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 33 µH | ±15% | 1.33 A | 1.33A | Unshielded | 222mOhm Max | - | - | - | -55°C ~ 130°C | 1 kHz | - | Surface Mount | - | 0.520" L x 0.250" W (13.21mm x 6.35mm) | 0.230" (5.84mm) |
|
PFC3519QM-451K04E-00CHOKE COMMON MODE |
148 | 2.71 |
|
Datasheet |
PFC | Radial, Horizontal, 8 Leads | Bulk | Active | Drum Core, Wirewound | Ferrite | 450 µH | ±10% | 3.7 A | - | Unshielded | - | - | - | - | -30°C ~ 120°C | 50 kHz | Choke Coils for PFC (Pin Terminal Type) | Through Hole | - | 1.457" L x 1.181" W (37.00mm x 30.00mm) | 0.827" (21.00mm) |
|
750316867FIXED IND 125UH 39.6 MOHM TH |
146 | 2.39 |
|
Datasheet |
- | 11-DIP Module | Tray | Active | - | - | 125 µH | ±10% | - | 12A | Unshielded | 39.6mOhm Max | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 1.400" L x 1.470" W (35.56mm x 37.34mm) | 1.350" (34.29mm) |
|
IHLP8787MZER820M51FIXED IND 82UH 10.2A 34.2MOHM SM |
470 | 2.33 |
|
Datasheet |
IHLP-8787MZ-51 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 82 µH | ±20% | 10.2 A | 9A | Shielded | 34.2mOhm Max | - | 2.07MHz | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.885" L x 0.866" W (22.48mm x 22.00mm) | 0.512" (13.00mm) |
|
ER1641-472KRFIXED IND 4.7UH 380MA 550MOHM TH |
556 | 2.10 |
|
Datasheet |
Military, MIL-PRF-39010/02, ER1641 | Axial | Tape & Reel (TR) | Active | - | Iron | 4.7 µH | ±10% | 380 mA | - | Unshielded | 550mOhm Max | 44 @ 7.9MHz | 70MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
|
ER1641-822KSFIXED IND 8.2UH 245MA 1.32OHM TH |
405 | 2.10 |
|
Datasheet |
Military, MIL-PRF-39010/02, ER1641 | Axial | Tape & Reel (TR) | Active | - | Iron | 8.2 µH | ±10% | 245 mA | - | Unshielded | 1.32Ohm Max | 50 @ 7.9MHz | 50MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
|
ER1641-562KSFIXED IND 5.6UH 335MA 720MOHM TH |
291 | 2.10 |
|
Datasheet |
Military, MIL-PRF-39010/02, ER1641 | Axial | Tape & Reel (TR) | Active | - | Iron | 5.6 µH | ±10% | 335 mA | - | Unshielded | 720mOhm Max | 44 @ 7.9MHz | 65MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
|
M27/367-45FIXED IND 1MH 240MA 6.9 OHM SMD |
677 | 2.21 |
|
Datasheet |
Military, MIL-PRF-27/367, MIL4922 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 1 mH | ±15% | 240 mA | 240mA | Unshielded | 6.9Ohm Max | - | - | - | -55°C ~ 130°C | 1 kHz | - | Surface Mount | - | 0.520" L x 0.250" W (13.21mm x 6.35mm) | 0.230" (5.84mm) |
|
|
ER1641-912JSFIXED IND 9.1UH 220MA 1.62OHM TH |
498 | 2.31 |
|
Datasheet |
Military, MIL-PRF-39010/02, ER1641 | Axial | Tape & Reel (TR) | Active | - | Iron | 9.1 µH | ±5% | 220 mA | - | Unshielded | 1.62Ohm Max | 50 @ 7.9MHz | 46MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
