Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
5712-RCFIXED IND 150UH 4.75A 46 MOHM TH |
318 | 1.36 |
|
Datasheet |
5700 | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 150 µH | ±15% | 4.75 A | - | Unshielded | 46mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.250" Dia x 0.625" W (31.75mm x 15.88mm) | - |
|
78439370047WE-XHMA SMT POWER INDUCTOR 1510; |
125 | 1.37 |
|
Datasheet |
WE-XHMA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 4.7 µH | ±20% | 17 A | 47.4A | Shielded | 3.1mOhm | - | 16MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.646" L x 0.606" W (16.40mm x 15.40mm) | 0.394" (10.00mm) |
|
|
78439370082WE-XHMA SMT POWER INDUCTOR 1510; |
108 | 1.37 |
|
Datasheet |
WE-XHMA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 8.2 µH | ±20% | 13 A | 36.4A | Shielded | 5.5mOhm | - | 11MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.646" L x 0.606" W (16.40mm x 15.40mm) | 0.394" (10.00mm) |
|
SH150C-4.50-19FIXED IND 19UH 4.5A 20 MOHM TH |
146 | 1.29 |
|
Datasheet |
SH150 | Radial, Vertical (Open) | Tray | Active | Toroidal | Iron Powder | 19 µH | ±20% | 4.5 A | - | Unshielded | 20mOhm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.827" L x 0.449" W (21.00mm x 11.40mm) | 0.937" (23.80mm) |
|
78432018003WE-HCIT HIGH CURRENT INDUCTOR TH |
526 | 1.41 |
|
Datasheet |
WE-HCIT | Radial, Vertical | Tape & Reel (TR) | Active | - | - | 300 nH | ±20% | 28.2 A | 27A | Unshielded | 0.44mOhm | - | 320MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Through Hole | Radial Lead | 0.407" L x 0.407" W (10.35mm x 10.35mm) | 0.319" (8.10mm) |
|
HCM1A1707-470-RFIXED IND 47UH 5.5A 47 MOHM SMD |
167 | 1.40 |
|
Datasheet |
HCM1A | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 47 µH | ±20% | 5.5 A | 8A | Shielded | 47mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.677" L x 0.663" W (17.20mm x 16.85mm) | 0.276" (7.00mm) |
|
M83446/39-34FFIXED IND 5.6UH 427MA 1.1OHM SMD |
1,463 | 1.29 |
|
Datasheet |
Military, MIL-PRF-39010, M83446/39 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 5.6 µH | ±5% | 427 mA | - | Unshielded | 1.1Ohm Max | 50 @ 7.9MHz | 33MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
M83446/39-30FFIXED IND 2.7UH 517MA 750MOHM SM |
795 | 1.29 |
|
Datasheet |
Military, MIL-PRF-39010, M83446/39 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 2.7 µH | ±5% | 517 mA | - | Unshielded | 750mOhm Max | 50 @ 7.9MHz | 50MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
M83446/39-29FFIXED IND 2.2UH 535MA 700MOHM SM |
685 | 1.29 |
|
Datasheet |
Military, MIL-PRF-39010, M83446/39 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 2.2 µH | ±5% | 535 mA | - | Unshielded | 700mOhm Max | 50 @ 7.9MHz | 55MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
M83446/39-26FFIXED IND 1.2UH 604MA 550MOHM SM |
528 | 1.29 |
|
Datasheet |
Military, MIL-PRF-39010, M83446/39 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 1.2 µH | ±5% | 604 mA | - | Unshielded | 550mOhm Max | 50 @ 7.9MHz | 80MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
M83446/39-33FFIXED IND 4.7UH 448MA 1 OHM SMD |
455 | 1.29 |
|
Datasheet |
Military, MIL-PRF-39010, M83446/39 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 4.7 µH | ±5% | 448 mA | - | Unshielded | 1Ohm Max | 50 @ 7.9MHz | 35MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
M83446/39-35FFIXED IND 6.8UH 409MA 1.2OHM SMD |
428 | 1.29 |
|
Datasheet |
Military, MIL-PRF-39010, M83446/39 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 6.8 µH | ±5% | 409 mA | - | Unshielded | 1.2Ohm Max | 50 @ 7.9MHz | 27MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
M83446/39-37FFIXED IND 10UH 354MA 1.6 OHM SMD |
406 | 1.29 |
|
Datasheet |
Military, MIL-PRF-39010, M83446/39 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 10 µH | ±5% | 354 mA | - | Unshielded | 1.6Ohm Max | 50 @ 7.9MHz | 20MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
M83446/39-25FFIXED IND 1UH 634MA 500 MOHM SMD |
330 | 1.29 |
|
Datasheet |
Military, MIL-PRF-39010, M83446/39 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 1 µH | ±5% | 634 mA | - | Unshielded | 500mOhm Max | 50 @ 7.9MHz | 100MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
CTX250-1-52M-RFIXED IND 250UH 1.9A 221 MOHM TH |
253 | 1.37 |
|
Datasheet |
CTX | Radial, Vertical, 4 Leads (Open) | Bulk | Active | Toroidal | Iron Powder | 250 µH | ±20% | 1.9 A | 2.2A | Unshielded | 221mOhm Max | - | - | - | -40°C ~ 75°C | 100 kHz | - | Through Hole | - | 1.220" L x 0.630" W (31.00mm x 16.00mm) | 0.886" (22.50mm) |
|
8532R-28LFIXED IND 180UH 990MA 362MOHM SM |
527 | 1.30 |
|
Datasheet |
8532R | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 180 µH | ±15% | 990 mA | 480mA | Unshielded | 362mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.860" L x 0.320" W (21.84mm x 8.12mm) | 0.286" (7.26mm) |
|
SH150S-3.00-38FIXED IND 38UH 3A 50 MOHM SMD |
2,836 | 1.48 |
|
Datasheet |
SH150 | Nonstandard | Tape & Reel (TR) | Active | Toroidal | Iron Powder | 38 µH | ±20% | 3 A | - | Unshielded | 50mOhm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.957" L x 0.925" W (24.30mm x 23.50mm) | 0.427" (10.85mm) |
|
CL1108-2-50TR-RFIXED IND 50NH 80A 0.00028OHM SM |
1,195 | 1.39 |
|
Datasheet |
CL | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 50 nH | ±20% | 80 A | - | - | 0.28mOhm | - | - | - | -40°C ~ 125°C | 1 MHz | 2 Phase | Surface Mount | - | 0.709" L x 0.433" W (18.00mm x 11.00mm) | 0.315" (8.00mm) |
|

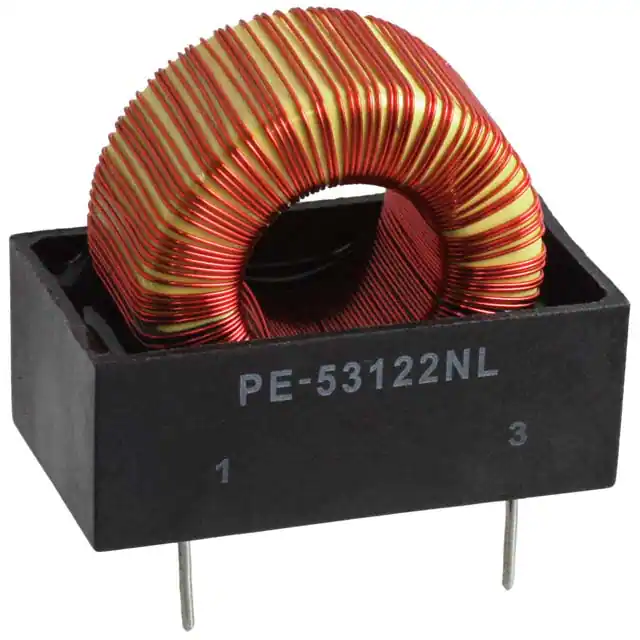

PE-53122NLFIXED IND 2.2MH 420MA 1.8 OHM TH |
245 | 1.49 |
|
Datasheet |
- | Radial, Vertical (Open) | Tray | Active | Toroidal | - | 2.2 mH | ±20% | 420 mA | - | Unshielded | 1.8Ohm Max | - | - | - | -40°C ~ 130°C | - | - | Through Hole | - | 1.440" L x 0.800" W (36.57mm x 20.32mm) | 1.440" (36.57mm) |
|
MGV17073R3M-10FIXED IND 3.3UH 28A 3.9MOHM SMD |
265 | 1.36 |
|
Datasheet |
MGV | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 3.3 µH | ±20% | 28 A | 54A | Shielded | 3.9mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.693" L x 0.665" W (17.60mm x 16.90mm) | 0.276" (7.00mm) |
