Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg)
|
IHLP7575GZER8R2M5AFIXED IND 8.2UH 20.7A 7.74 MOHM |
491 | 1.27 |
|
Datasheet |
IHLP-7575GZ-5A | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 8.2 µH | ±20% | 20.7 A | 33A | Shielded | 7.74mOhm Max | - | 8.7MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.752" L x 0.750" W (19.10mm x 19.05mm) | 0.276" (7.00mm) |
|
B82559B6682A019FIXED IND 6.8UH 12.7A 7.6MOHM SM |
462 | 1.34 |
|
Datasheet |
ERU19 - Flat Wire Inductor | Nonstandard, 3 Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±10% | 12.7 A | 21.3A | Shielded | 7.6mOhm | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.783" L x 0.728" W (19.90mm x 18.50mm) | 0.315" (8.00mm) |
|

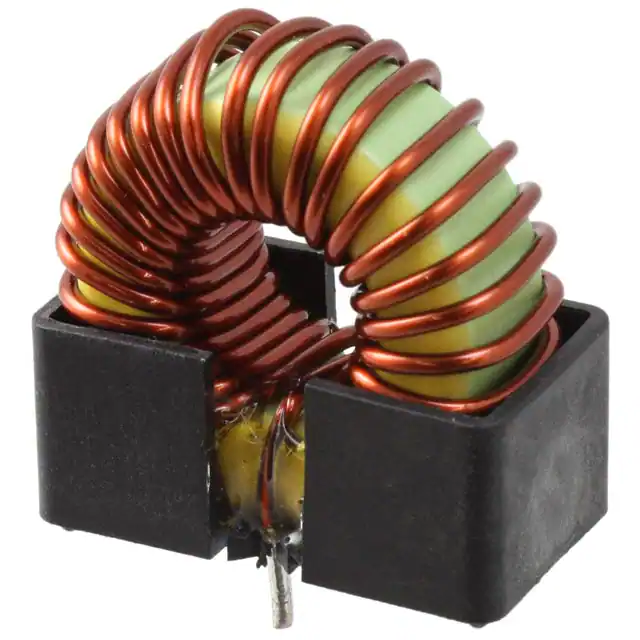

PE-92116KNLFIXED IND 55UH 7A 17 MOHM TH |
1,803 | 1.11 |
|
Datasheet |
- | Radial, Vertical (Open) | Tray | Active | Toroidal | - | 55 µH | ±20% | 7 A | - | Unshielded | 17mOhm Max | - | - | - | -40°C ~ 130°C | 20 kHz | - | Through Hole | - | 1.300" L x 0.700" W (33.02mm x 17.78mm) | 1.400" (35.56mm) |
.jpg)
|
AIRD-03-8R2MFIXED IND 8.2UH 21A 4 MOHM TH |
178 | 1.21 |
|
Datasheet |
AIRD-03 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 8.2 µH | ±20% | 21 A | 42A | Unshielded | 4mOhm Max | - | - | - | -25°C ~ 85°C | 1 Hz | - | Through Hole | - | 1.102" Dia (28.00mm) | 0.827" (21.00mm) |
|
|
B82559B7103A019FIXED IND 10UH 11.7A 8.8MOHM SMD |
467 | 1.36 |
|
Datasheet |
ERU19 - Flat Wire Inductor | Nonstandard, 3 Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±10% | 11.7 A | 15.8A | Shielded | 8.8mOhm | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.783" L x 0.728" W (19.90mm x 18.50mm) | 0.315" (8.00mm) |
|
|
AIRD-03-391KFIXED IND 390UH 4A 169 MOHM TH |
156 | 1.25 |
|
Datasheet |
AIRD-03 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 390 µH | ±10% | 4 A | 6.7A | Unshielded | 169mOhm Max | - | - | - | -25°C ~ 85°C | 1 Hz | - | Through Hole | - | 1.102" Dia (28.00mm) | 0.827" (21.00mm) |
|
HCM1A1305-R33-RFIXED IND 330NH 35A 0.92MOHM SMD |
4,105 | 1.00 |
|
Datasheet |
HCM1A | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 330 nH | ±20% | 35 A | 44A | Shielded | 0.92mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.524" L x 0.480" W (13.30mm x 12.20mm) | 0.197" (5.00mm) |
|
|
HCM1A1305-5R6-RFIXED IND 5.6UH 8.8A 13.8MOHM SM |
3,606 | 1.00 |
|
Datasheet |
HCM1A | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 5.6 µH | ±20% | 8.8 A | 15A | Shielded | 13.8mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.524" L x 0.480" W (13.30mm x 12.20mm) | 0.197" (5.00mm) |
|
|
IHLP7575GZER100M51FIXED IND 10UH 18.7A 0.00996OHM |
533 | 1.21 |
|
Datasheet |
IHLP-7575GZ-51 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 10 µH | ±20% | 18.7 A | 31.1A | Shielded | 9.96mOhm Max | - | 8.4MHz | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.752" L x 0.750" W (19.10mm x 19.05mm) | 0.276" (7.00mm) |
|
SH50S-2.0-150FIXED IND 150UH 2A 100 MOHM SMD |
471 | 1.64 |
|
Datasheet |
SH50 | Nonstandard | Tape & Reel (TR) | Active | Toroidal | Iron Powder | 150 µH | ±20% | 2 A | - | Unshielded | 100mOhm Max | - | - | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.957" L x 0.925" W (24.30mm x 23.50mm) | 0.411" (10.45mm) |
|
SH150S-0.83-248FIXED IND 248UH 830MA 600MOHM SM |
279 | 1.13 |
|
Datasheet |
SH150 | Nonstandard | Tape & Reel (TR) | Active | Toroidal | Iron Powder | 248 µH | ±20% | 830 mA | - | Unshielded | 600mOhm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.614" L x 0.591" W (15.60mm x 15.00mm) | 0.388" (9.85mm) |
|
HCM1A1307-560-RFIXED IND 56UH 4.6A 65 MOHM SMD |
724 | 1.15 |
|
Datasheet |
HCM1A | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 56 µH | ±20% | 4.6 A | 4.6A | Shielded | 65mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.539" L x 0.512" W (13.70mm x 13.00mm) | 0.256" (6.50mm) |
|
ER1840-22KSFIXED IND 4.7UH 745MA 210MOHM TH |
218 | 1.14 |
|
Datasheet |
Military, MIL-PRF-39010/05, ER1840 | Axial | Tape & Reel (TR) | Active | - | Iron | 4.7 µH | ±10% | 745 mA | - | Unshielded | 210mOhm Max | 30 @ 7.9MHz | 60MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.187" Dia x 0.437" L (4.75mm x 11.10mm) | - |
|
5219-RCFIXED IND 4.9UH 15A 16 MOHM TH |
1,515 | 1.55 |
|
Datasheet |
5200 | Axial | Bulk | Active | Drum Core, Wirewound | Iron | 4.9 µH | ±20% | 15 A | - | Unshielded | 16mOhm Max | - | 95MHz | - | -55°C ~ 105°C | 7.96 MHz | - | Through Hole | - | 0.600" Dia x 1.250" L (15.24mm x 31.75mm) | - |
|

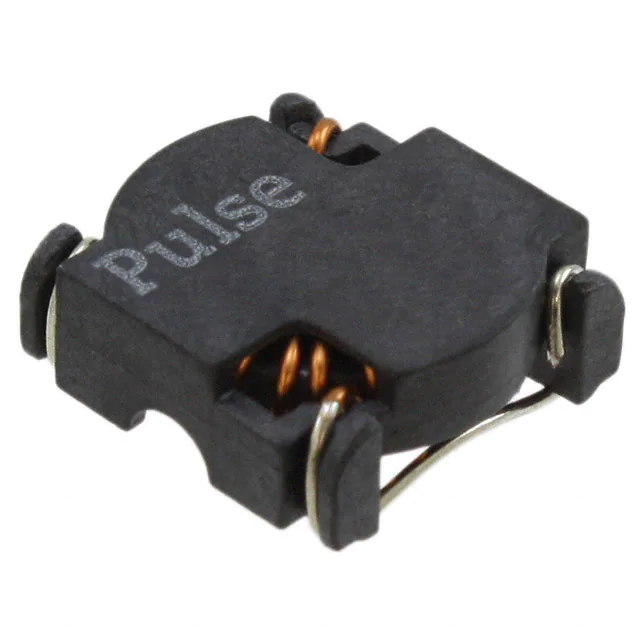

P0144NLTFIXED IND 10.4UH 3.8A 31MOHM SMD |
2,351 | 1.15 |
|
Datasheet |
Bobcat | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 10.4 µH | - | 3.8 A | - | Unshielded | 31mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.500" L x 0.500" W (12.70mm x 12.70mm) | 0.215" (5.46mm) |
|
P0146NLTFIXED IND 25UH 2.43A 75 MOHM SMD |
785 | 1.15 |
|
Datasheet |
Bobcat | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 25 µH | - | 2.43 A | - | Unshielded | 75mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.500" L x 0.500" W (12.70mm x 12.70mm) | 0.215" (5.46mm) |
|
SH50C-3.0-47FIXED IND 47UH 3A 50 MOHM TH |
614 | 1.13 |
|
Datasheet |
SH50 | Radial, Vertical (Open) | Tray | Active | Toroidal | Iron Powder | 47 µH | ±20% | 3 A | - | Unshielded | 50mOhm Max | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.650" L x 0.449" W (16.50mm x 11.40mm) | 0.760" (19.30mm) |
|
HC9-1R0-RFIXED IND 1UH 23.7A 1.87MOHM SMD |
1,198 | 1.04 |
|
Datasheet |
HC9 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 1 µH | ±15% | 23.7 A | 41A | Unshielded | 1.87mOhm Max | - | - | - | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.528" L x 0.516" W (13.40mm x 13.10mm) | 0.295" (7.50mm) |
|
2474R-33LFIXED IND 470UH 590MA 1.03OHM TH |
408 | 1.23 |
|
Datasheet |
2474R | Axial | Bulk | Active | Molded | Ferrite | 470 µH | ±15% | 590 mA | 290mA | Unshielded | 1.03Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.240" Dia x 0.740" L (6.10mm x 18.80mm) | - |
|
4590R-825KFIXED IND 8.2MH 320MA 6.44OHM TH |
387 | 1.13 |
|
Datasheet |
4590R | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 8.2 mH | ±10% | 320 mA | 200mA | Unshielded | 6.44Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.455" Dia x 0.900" L (11.55mm x 22.86mm) | - |
