Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BSCH0010050515NKCSINDUCTOR RF |
67,741 | 0.00 |
|
Datasheet |
BSCH | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 15 nH | ±10% | 300 mA | - | Unshielded | 500mOhm Max | 8 @ 100MHz | 2.8GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.024" (0.60mm) |
|
ASCH001005051N2SCPINDUCTOR RF |
59,950 | 0.00 |
|
Datasheet |
ASCH | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 1.2 nH | ±0.3nH | 400 mA | - | Shielded | 90mOhm Max | 8 @ 100MHz | 10GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.024" (0.60mm) |
|
MLG0603P3N5BT000FIXED IND 3.5NH 450MA 200MOHM SM |
59,430 | 0.00 |
|
Datasheet |
MLG-P | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Non-Magnetic | 3.5 nH | ±0.1nH | 450 mA | - | Unshielded | 200mOhm Max | 14 @ 500MHz | 6.5GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.013" (0.33mm) |
|
MLG0402Q1N2ST000FIXED IND 1.2NH 250MA 500MOHM SM |
58,960 | 0.06 |
|
Datasheet |
MLG-Q | 01005 (0402 Metric) | Tape & Reel (TR) | Active | Multilayer | Non-Magnetic | 1.2 nH | ±0.3nH | 250 mA | - | Unshielded | 500mOhm Max | 2 @ 100MHz | 10GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 01005 (0402 Metric) | 0.016" L x 0.008" W (0.40mm x 0.20mm) | 0.009" (0.22mm) |
|
|
ASCH001005054N7SCPINDUCTOR RF |
58,720 | 0.00 |
|
Datasheet |
ASCH | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 4.7 nH | ±0.3nH | 400 mA | - | Shielded | 180mOhm Max | 8 @ 100MHz | 6GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.024" (0.60mm) |
|
|
MLG0402Q7N5JT000FIXED IND 7.5NH 140MA 1.7OHM SMD |
51,255 | 0.06 |
|
Datasheet |
MLG-Q | 01005 (0402 Metric) | Tape & Reel (TR) | Active | Multilayer | Non-Magnetic | 7.5 nH | ±5% | 140 mA | - | Unshielded | 1.7Ohm Max | 2 @ 100MHz | 5GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 01005 (0402 Metric) | 0.016" L x 0.008" W (0.40mm x 0.20mm) | 0.009" (0.22mm) |
|
|
BSCH0006030333NJ00FIXED IND 33NH 110MA 1.47OHM SMD |
50,594 | 0.02 |
|
Datasheet |
BSCH | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 33 nH | ±5% | 110 mA | - | Unshielded | 1.47Ohm Max | 4 @ 100MHz | 1.7GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0201 | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.013" (0.33mm) |
|
|
MLG0402Q9N1JT000FIXED IND 9.1NH 140MA 1.8OHM SMD |
50,375 | 0.06 |
|
Datasheet |
MLG-Q | 01005 (0402 Metric) | Tape & Reel (TR) | Active | Multilayer | Non-Magnetic | 9.1 nH | ±5% | 140 mA | - | Unshielded | 1.8Ohm Max | 2 @ 100MHz | 4GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 01005 (0402 Metric) | 0.016" L x 0.008" W (0.40mm x 0.20mm) | 0.009" (0.22mm) |
|
BSCH0016080839NJ00FIXED IND 39NH 400MA 600MOHM SMD |
50,216 | 0.02 |
|
Datasheet |
BSCH | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 39 nH | ±5% | 400 mA | - | Unshielded | 600mOhm Max | 12 @ 100MHz | 1.4GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
|
BSCH001005052N2SCPFIXED IND 2.2NH 400MA 120MOHM SM |
50,000 | 0.02 |
|
Datasheet |
BSCH | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 2.2 nH | ±0.3nH | 400 mA | - | Unshielded | 120mOhm Max | 8 @ 100MHz | 8.1GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.024" (0.60mm) |
|
LCCI0402J18NGTARFIXED IND 18NH 300MA 650MOHM SMD |
50,000 | 0.02 |
|
Datasheet |
LCCI | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 18 nH | ±5% | 300 mA | - | Unshielded | 650mOhm Max | 8 @ 100MHz | 2.2GHz | - | -40°C ~ 85°C | 100 MHz | - | Surface Mount | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.024" (0.60mm) |
|
|
BSCH0016080868NJ00FIXED IND 68NH 400MA 850MOHM SMD |
49,810 | 0.02 |
|
Datasheet |
BSCH | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 68 nH | ±5% | 400 mA | - | Unshielded | 850mOhm Max | 12 @ 100MHz | 1.05GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
|
ASCH0010050518NJCPINDUCTOR RF |
49,640 | 0.00 |
|
Datasheet |
ASCH | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 18 nH | ±5% | 300 mA | - | Shielded | 360mOhm Max | 8 @ 100MHz | 2.2GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.024" (0.60mm) |
|

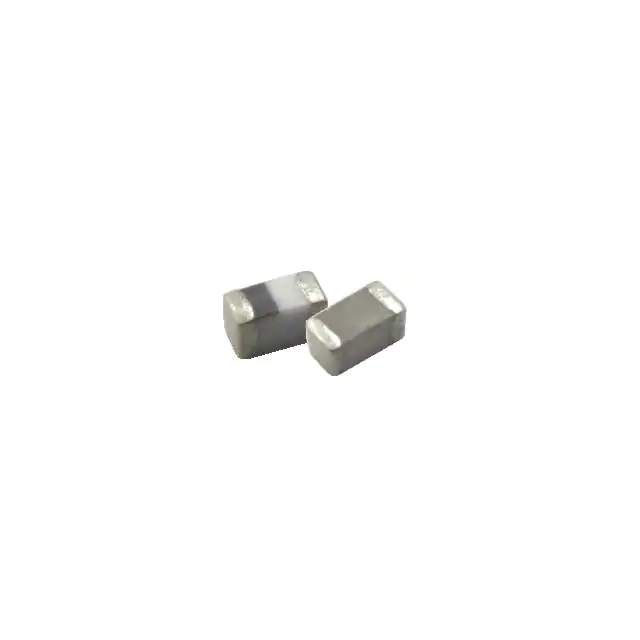

ASCH001005055N6SCPFIXED IND 5.6NH 400MA 200MOHM SM |
49,302 | 0.03 |
|
Datasheet |
ASCH | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 5.6 nH | ±0.3nH | 400 mA | - | Shielded | 200mOhm Max | 8 @ 100MHz | 5.1GHz | AEC-Q200 | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.024" (0.60mm) |
|
|
ASCH0010050547NJCPINDUCTOR RF |
48,245 | 0.00 |
|
Datasheet |
ASCH | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 47 nH | ±5% | 200 mA | - | Shielded | 720mOhm Max | 8 @ 100MHz | 1GHz | AEC-Q200 | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.024" (0.60mm) |
|
|
ASCH0010050510NJCPINDUCTOR RF |
48,008 | 0.00 |
|
Datasheet |
ASCH | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 10 nH | ±5% | 300 mA | - | Shielded | 260mOhm Max | 8 @ 100MHz | 3.9GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.024" (0.60mm) |
|
|
BSCH001608081N0S00FIXED IND 1NH 600MA 100MOHM SMD |
47,955 | 0.02 |
|
Datasheet |
BSCH | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 1 nH | ±0.3nH | 600 mA | - | Unshielded | 100mOhm Max | 8 @ 100MHz | 10GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
|
BSCH0016080815NJ00FIXED IND 15NH 600MA 320MOHM SMD |
45,370 | 0.02 |
|
Datasheet |
BSCH | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 15 nH | ±5% | 600 mA | - | Unshielded | 320mOhm Max | 12 @ 100MHz | 2.5GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
|
MLG0603P36NHT000FIXED IND 36NH 120MA 2.4 OHM SMD |
44,975 | 0.00 |
|
Datasheet |
MLG-P | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Non-Magnetic | 36 nH | ±3% | 120 mA | - | Unshielded | 2.4Ohm Max | 10 @ 300MHz | 1.8GHz | - | -55°C ~ 125°C | 300 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.013" (0.33mm) |
 MHQ Series.jpg)
|
MHQ0603P3N0ST000FIXED IND 3NH 450MA 300 MOHM SMD |
44,700 | 0.01 |
|
Datasheet |
MHQ-P | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic, Non-Magnetic | 3 nH | ±0.3nH | 450 mA | - | Unshielded | 300mOhm Max | 16 @ 500MHz | 8GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.026" L x 0.014" W (0.65mm x 0.35mm) | 0.016" (0.40mm) |
