Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SBCP-14HY332BFIXED IND 3.3MH 330MA 2.42OHM TH |
525 | 0.48 |
|
Datasheet |
SBCP | Radial, Vertical Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | 3.3 mH | ±10% | 330 mA | 570mA | Unshielded | 2.42Ohm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.472" Dia (12.00mm) | 0.591" (15.00mm) |
|
|
SBCP-14HY221BFIXED IND 220UH 1.05A 310MOHM TH |
345 | 0.48 |
|
Datasheet |
SBCP | Radial, Vertical Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±10% | 1.05 A | 2.2A | Unshielded | 310mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.472" Dia (12.00mm) | 0.591" (15.00mm) |
|
PAL6374.800HLTIND POWER BEAD TLVR |
340 | 0.43 |
|
Datasheet |
PAL6374.XXXHLT | Nonstandard | Tape & Reel (TR) | Active | - | - | 80 nH | ±15% | 71 A | 100A | Unshielded | 0.45mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.236" W (12.00mm x 6.00mm) | 0.472" (12.00mm) |
|
|
PAL6374.700HLTIND POWER BEAD TLVR |
340 | 0.43 |
|
Datasheet |
PAL6374.XXXHLT | Nonstandard | Tape & Reel (TR) | Active | - | - | 70 nH | ±15% | 71 A | 114A | Unshielded | 0.45mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.236" W (12.00mm x 6.00mm) | 0.472" (12.00mm) |
|
MWSA1707S-470MTFIXED IND 47UH 47 MOHM SMD |
177 | 0.46 |
|
Datasheet |
MWSA-S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Alloy Powder | 47 µH | ±20% | - | - | Shielded | 47mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | - | - |
|
|
MWSA1707S-6R8MTFIXED IND 6.8UH 7.5 MOHM SMD |
150 | 0.46 |
|
Datasheet |
MWSA-S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Alloy Powder | 6.8 µH | ±20% | - | - | Shielded | 7.5mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | - | - |
|
SBC7-472-281FIXED IND 4.7MH 280MA 4.83OHM TH |
149 | 0.46 |
|
Datasheet |
SBC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 4.7 mH | ±10% | 280 mA | 530mA | Unshielded | 4.83Ohm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.591" Dia (15.00mm) | 0.689" (17.50mm) |
|
83682CFIXED IND 6.8UH 950MA 150MOHM SM |
105 | 0.48 |
|
Datasheet |
8300 | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 6.8 µH | ±20% | 950 mA | 1.3A | Unshielded | 150mOhm Max | - | - | - | -40°C ~ 85°C | - | - | Surface Mount | - | 0.307" L x 0.205" W (7.80mm x 5.20mm) | 0.071" (1.80mm) |
|

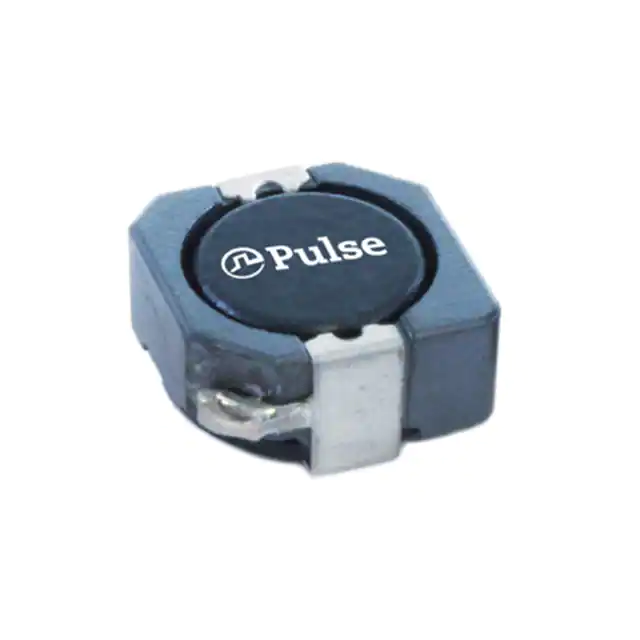

PA4321.152NLTFIXED IND 1.5UH 7.8A 5.1MOHM SMD |
5,442 | 0.48 |
|
Datasheet |
PA4321 | Nonstandard, Corner Terminals | Tape & Reel (TR) | Active | Wirewound | - | 1.5 µH | ±20% | 7.8 A | 5.44A | Shielded | 5.1mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.402" W (10.00mm x 10.20mm) | 0.201" (5.10mm) |
|
PM7232S-1R0M-RCFIXED IND 1UH 11A 10 MOHM SMD |
2,000 | 0.48 |
|
Datasheet |
PM7232S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron | 1 µH | ±20% | 11 A | 15A | Shielded | 10mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.126" (3.20mm) |
|
PG0926.722NLFIXED IND 7.2UH 12A 7 MOHM SMD |
937 | 0.64 |
|
Datasheet |
PG0926NL | Nonstandard | Tray | Active | Wirewound | - | 7.2 µH | ±20% | 12 A | 12.5A | Unshielded | 7mOhm | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.528" L x 0.528" W (13.40mm x 13.40mm) | 0.315" (8.00mm) |
|
7445830FIXED IND 1MH 560MA 1.8 OHM SMD |
835 | 0.30 |
|
Datasheet |
WE-PD4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±20% | 560 mA | 1.1A | Unshielded | 1.8Ohm Max | - | 1.5MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.500" L x 0.398" W (12.70mm x 10.10mm) | 0.280" (7.11mm) |
|
|
PM7232S-R72M-RCFIXED IND 720NH 15.5A 5.5MOHM SM |
744 | 0.48 |
|
Datasheet |
PM7232S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron | 720 nH | ±20% | 15.5 A | 20A | Shielded | 5.5mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.126" (3.20mm) |
|
DRA73-2R2-RFIXED IND 2.2UH 4.18A 16MOHM SMD |
4,303 | 0.59 |
|
Datasheet |
DRA | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 2.2 µH | ±20% | 4.18 A | 4.93A | Shielded | 16mOhm | - | - | AEC-Q200 | -40°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.299" L x 0.299" W (7.60mm x 7.60mm) | 0.140" (3.55mm) |
|
MPIA4020V2-R47-RFIXED IND 470NH 8.5A 13 MOHM SMD |
2,946 | 0.29 |
|
Datasheet |
MPIA40-V2 | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Molded | Metal Composite | 470 nH | ±20% | 8.5 A | 11A | Shielded | 13mOhm Max | - | 95MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.195" L x 0.165" W (4.95mm x 4.20mm) | 0.079" (2.00mm) |
|

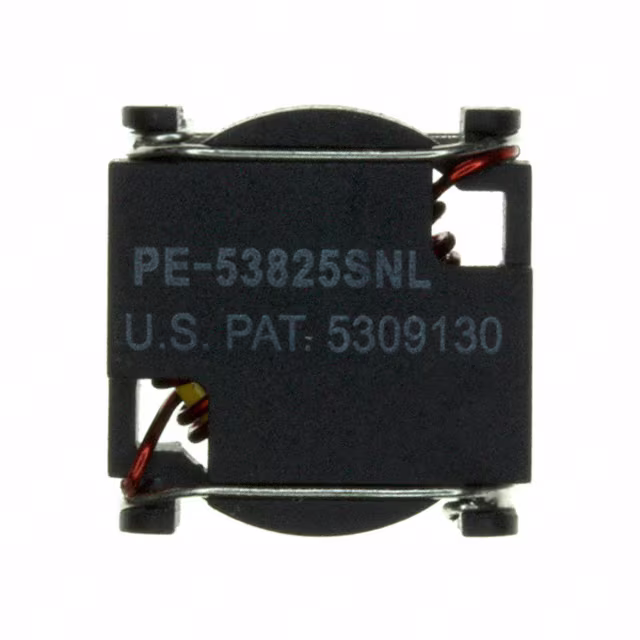

PE-53825SNLFIXED IND 18UH 1.81A 60 MOHM SMD |
1,040 | 0.64 |
|
Datasheet |
- | Nonstandard | Tube | Active | Toroidal | - | 18 µH | ±20% | 1.81 A | - | Shielded | 60mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.570" L x 0.565" W (14.48mm x 14.35mm) | 0.360" (9.14mm) |
|

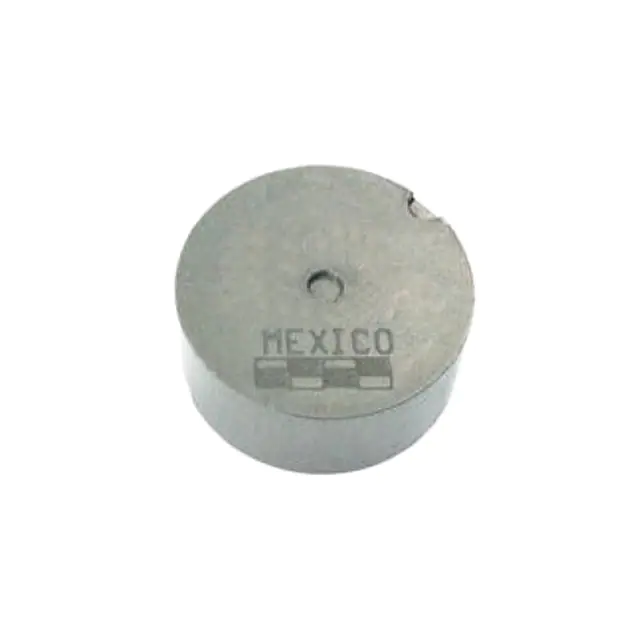

IHTH0750IZEB4R7M5AFIXED IND 4.7UH 30A 3 MOHM TH |
287 | 1.25 |
|
Datasheet |
IHTH-0750IZ-5A | Radial, Vertical Cylinder | Bulk | Active | - | Metal Composite | 4.7 µH | ±20% | 30 A | 26A | Shielded | 3mOhm Max | - | 13.22MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Through Hole | - | 0.755" Dia (19.18mm) | 0.354" (8.99mm) |
|

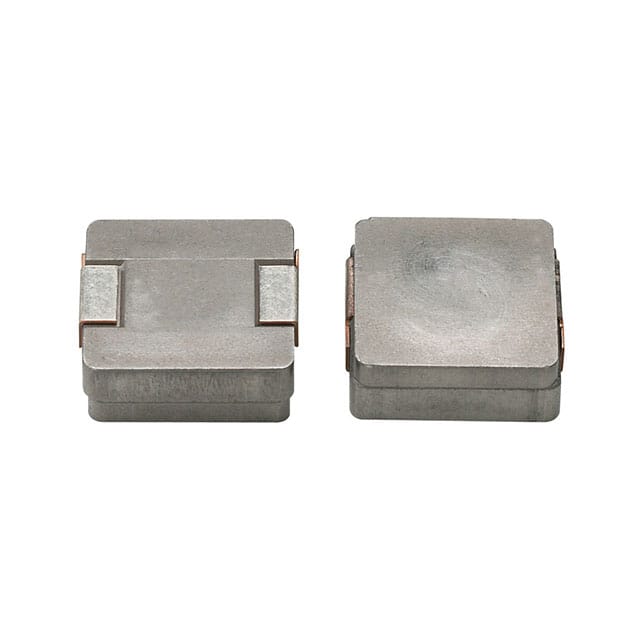

IHLP5050EZER150M01IHLP-5050EZ-01 15 20% ER E3 |
235 | 0.47 |
|
Datasheet |
IHLP-5050EZ-01 | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 15 µH | ±20% | - | - | Shielded | - | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.520" L x 0.508" W (13.20mm x 12.90mm) | 0.197" (5.00mm) |
|
|
MWSA1707S-101MTFIXED IND 100UH 130 MOHM SMD |
150 | 0.46 |
|
Datasheet |
MWSA-S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Alloy Powder | 100 µH | ±20% | - | - | Shielded | 130mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | - | - |
|
SBCP-80HY103HBFIXED IND 10MH 100MA 19.1 OHM TH |
105 | 0.48 |
|
Datasheet |
SBCP | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 10 mH | ±10% | 100 mA | 150mA | Unshielded | 19.1Ohm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.374" Dia (9.50mm) | 0.433" (11.00mm) |
