Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FPT705-190-RFIXED IND 190NH 13A 0.65MOHM SMD |
460 | 0.46 |
|
Datasheet |
FLAT-PAC, FPT705 | 2727 (6868 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 190 nH | ±12% | 13 A | 28A | Unshielded | 0.65mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.295" L x 0.268" W (7.50mm x 6.80mm) | 0.211" (5.35mm) |
|
PA5006.271NLTFIXED IND 270NH 21A 3.5 MOHM SMD |
2,950 | 0.47 |
|
Datasheet |
PA5006.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | Ferrite | 270 nH | ±20% | 21 A | 35A | Shielded | 3.5mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.307" L x 0.299" W (7.80mm x 7.60mm) | 0.081" (2.05mm) |
|

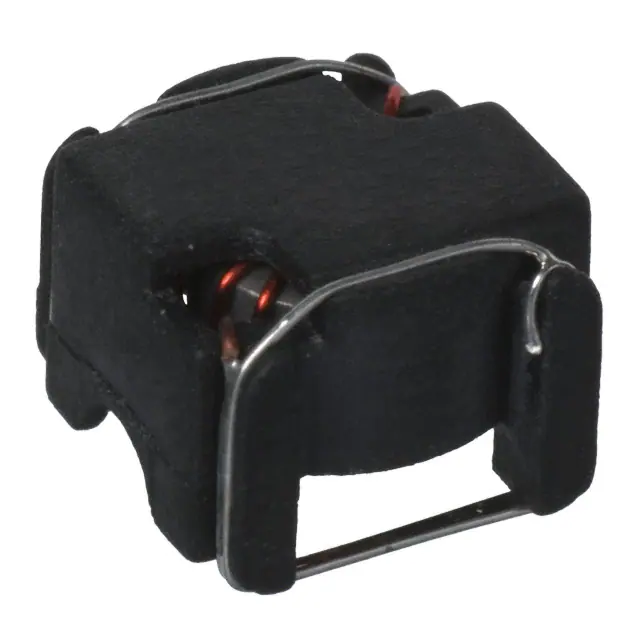

PE-53630NLTFIXED IND 1.01UH 3.4A 11MOHM SMD |
2,799 | 0.45 |
|
Datasheet |
SLIC | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 1.01 µH | - | 3.4 A | - | Unshielded | 11mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.340" L x 0.340" W (8.64mm x 8.64mm) | 0.270" (6.86mm) |
|
CMLB135T-3R3MSFIXED IND 3.3UH 15.5A 7MOHM SMD |
1,782 | 0.43 |
|
Datasheet |
CMLB135T | Nonstandard | Tape & Reel (TR) | Active | - | Metal | 3.3 µH | ±20% | 15.5 A | 19.5A | Shielded | 7mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.530" L x 0.496" W (13.45mm x 12.60mm) | 0.197" (5.00mm) |
|
74434035007FIXED IND 70NH 29A 0.00038OHM SM |
1,665 | 0.47 |
|
Datasheet |
WE-HCM | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 70 nH | ±20% | 29 A | 18.1A | Shielded | 0.38mOhm | - | 85MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 4035 | 0.163" L x 0.122" W (4.15mm x 3.10mm) | 0.138" (3.50mm) |
|
CMLS136E-R68MSFIXED IND 680NH 33A 1.7MOHM SMD |
990 | 0.43 |
|
Datasheet |
CMLS136E | Nonstandard | Tape & Reel (TR) | Active | - | Metal | 680 nH | ±20% | 33 A | 70A | Shielded | 1.7mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.530" L x 0.496" W (13.45mm x 12.60mm) | 0.256" (6.50mm) |
|
|
CMLB136T-150MSFIXED IND 15UH 8A 27.5 OHM SMD |
500 | 0.43 |
|
Datasheet |
CMLB136T | Nonstandard | Tape & Reel (TR) | Active | - | Metal | 15 µH | ±20% | 8 A | 9A | Shielded | 27.5Ohm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.530" L x 0.496" W (13.45mm x 12.60mm) | 0.236" (6.00mm) |
|
MPIA2512V2-1R0-RFIXED IND 1UH 3.3A 44 MOHM SMD |
4,295 | 0.36 |
|
Datasheet |
MPIA25-V2 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Molded | Iron Powder | 1 µH | ±20% | 3.3 A | 4.4A | Shielded | 44mOhm Max | - | 70MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.049" (1.25mm) |
|
MPC1250LR50CFIXED IND 500NH 35A 0.8 MOHM SMD |
4,501 | 0.50 |
|
Datasheet |
MPC | 2-SMD, J-Lead | Tape & Reel (TR) | Active | - | Ferrite | 500 nH | ±20% | 35 A | 40A | Shielded | 0.8mOhm | - | - | - | -20°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.571" L x 0.492" W (14.50mm x 12.50mm) | 0.197" (5.00mm) |
|
FP1008-150-RFIXED IND 150NH 63A 0.17MOHM SMD |
1,950 | 0.43 |
|
Datasheet |
FP1008 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 nH | ±10% | 63 A | - | Unshielded | 0.17mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.425" L x 0.315" W (10.80mm x 8.00mm) | 0.315" (8.00mm) |
|

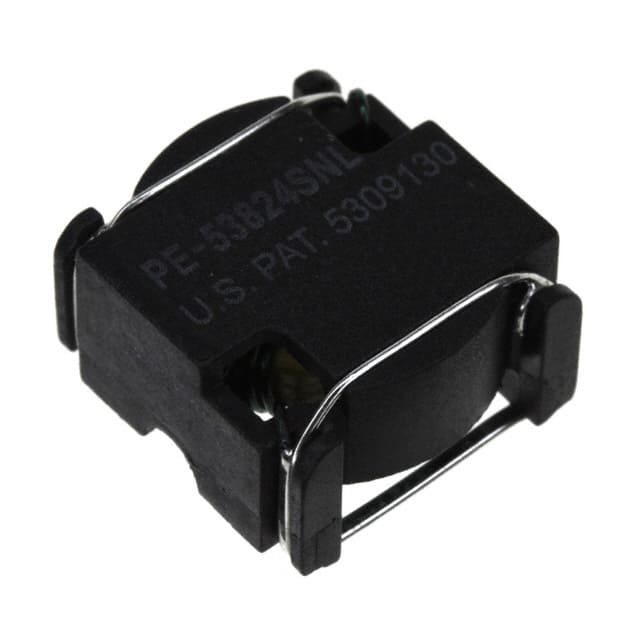

PE-53824SNLTFIXED IND 26UH 1.48A 100MOHM SMD |
958 | 0.63 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 26 µH | ±20% | 1.48 A | - | Shielded | 100mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.570" L x 0.565" W (14.48mm x 14.35mm) | 0.360" (9.14mm) |
|
SPM10054T-4R7M-HZFIXED IND 4.7UH 14.3A 12.15MOHM |
779 | 0.53 |
|
Datasheet |
SPM-HZ | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Metal | 4.7 µH | ±20% | 14.3 A | 6.6A | Shielded | 12.15mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.421" L x 0.394" W (10.70mm x 10.00mm) | 0.213" (5.40mm) |
|
SBC7-332-361FIXED IND 3.3MH 360MA 3.51OHM TH |
1,000 | 0.46 |
|
Datasheet |
SBC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 3.3 mH | ±10% | 360 mA | 630mA | Unshielded | 3.51Ohm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.591" Dia (15.00mm) | 0.551" (14.00mm) |
|
DRA127-151-RFIXED IND 150UH 1.524A 269 MOHM |
202 | 0.47 |
|
Datasheet |
DRA | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 150 µH | ±20% | 1.524 A | 2.83A | Shielded | 269mOhm | - | - | AEC-Q200 | -40°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|
MWSA1707S-220MTFIXED IND 22UH 23 MOHM SMD |
185 | 0.46 |
|
Datasheet |
MWSA-S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Alloy Powder | 22 µH | ±20% | - | - | Shielded | 23mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | - | - |
|
|
MWSA1707S-150MTFIXED IND 15UH 17 MOHM SMD |
172 | 0.46 |
|
Datasheet |
MWSA-S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Alloy Powder | 15 µH | ±20% | - | - | Shielded | 17mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | - | - |
|
|
MWSA1707S-330MTFIXED IND 33UH 37 MOHM SMD |
167 | 0.46 |
|
Datasheet |
MWSA-S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Alloy Powder | 33 µH | ±20% | - | - | Shielded | 37mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | - | - |
|

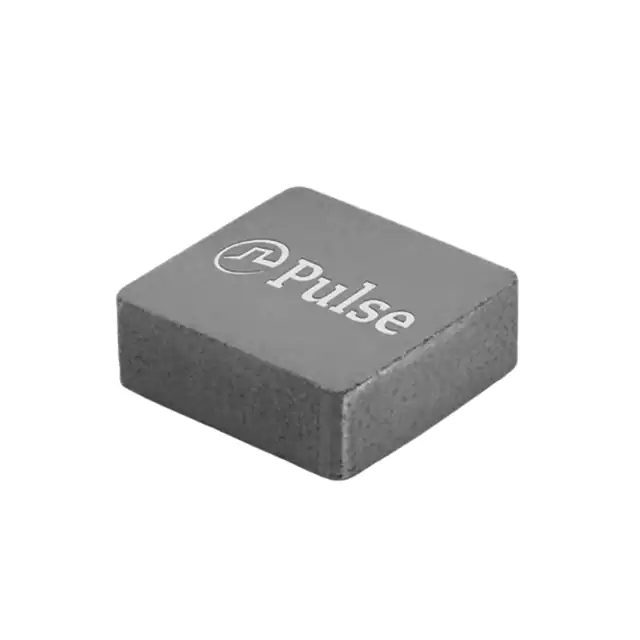

PM2203.222NLTFIXED IND 2.2UH 9.7A 14.5MOHM SM |
6,513 | 0.48 |
|
Datasheet |
PM2203.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | - | - | 2.2 µH | ±20% | 9.7 A | 10A | Unshielded | 14.5mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | SMD | 0.217" L x 0.209" W (5.50mm x 5.30mm) | 0.122" (3.10mm) |
|
7447779218FIXED IND 180UH 510MA 980MOHM SM |
2,852 | 0.47 |
|
Datasheet |
WE-PD Robust | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 180 µH | ±20% | 510 mA | 560mA | Shielded | 980mOhm Max | - | 5.3MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | 7345 | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.177" (4.50mm) |
|
|
7447779118FIXED IND 18UH 1.5A 91 MOHM SMD |
2,790 | 0.47 |
|
Datasheet |
WE-PD Robust | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 18 µH | ±20% | 1.5 A | 2.05A | Shielded | 91mOhm Max | - | 19MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | 7345 | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.177" (4.50mm) |
