Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

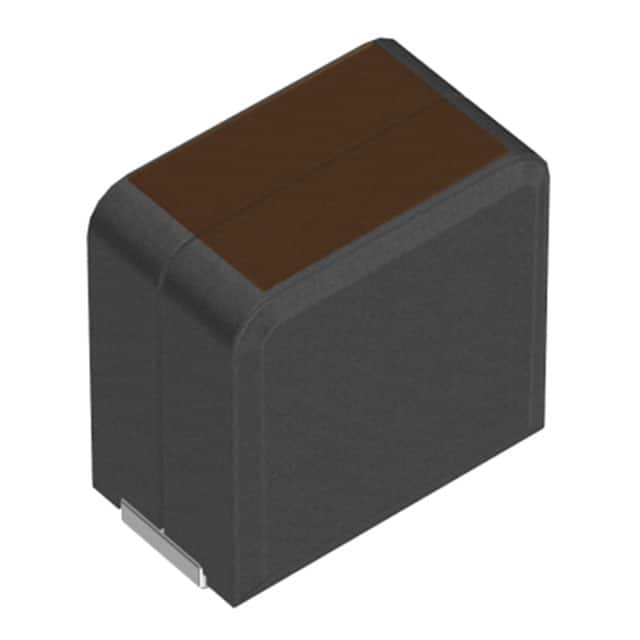

VLBU805080T-R12LFIXED IND 120NH 65A 0.2 MOHM SMD |
1,134 | 0.49 |
|
Datasheet |
VLBU | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 120 nH | ±15% | 65 A | 61A | Unshielded | 0.2mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.197" W (8.00mm x 5.00mm) | 0.315" (8.00mm) |
|

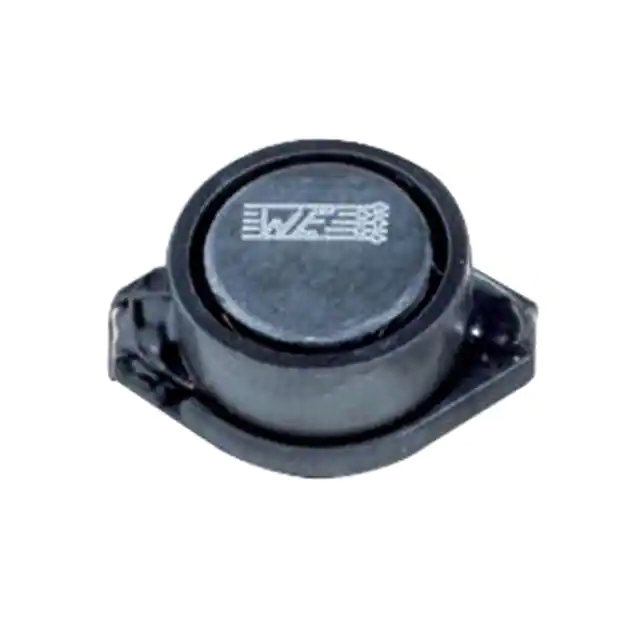

74459247FIXED IND 470UH 800MA 1.08OHM SM |
837 | 0.46 |
|
Datasheet |
WE-PD3 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | - | 470 µH | ±20% | 800 mA | 1.1A | Shielded | 1.08Ohm Max | - | 2.4MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.730" L x 0.600" W (18.54mm x 15.24mm) | 0.300" (7.62mm) |
|
74437349056FIXED IND 5.6UH 3.75A 0.049OHM |
793 | 0.46 |
|
Datasheet |
WE-LHMI | 2-SMD | Tape & Reel (TR) | Active | Molded | Iron Powder | 5.6 µH | ±20% | 3.75 A | 16.5A | Shielded | 49mOhm Max | - | 17MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.197" (5.00mm) |
|
|
744373490082FIXED IND 820NH 11.25A 0.0049OHM |
783 | 0.43 |
|
Datasheet |
WE-LHMI | 2-SMD | Tape & Reel (TR) | Active | Molded | Iron Powder | 820 nH | ±20% | 11.25 A | 31.6A | Shielded | 4.9mOhm Max | - | 70MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.197" (5.00mm) |
|
|
744373490056FIXED IND 560NH 13A 0.0042OHM SM |
710 | 0.43 |
|
Datasheet |
WE-LHMI | 2-SMD | Tape & Reel (TR) | Active | Molded | Iron Powder | 560 nH | ±20% | 13 A | 36.4A | Shielded | 4.2mOhm Max | - | 85MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.197" (5.00mm) |
|

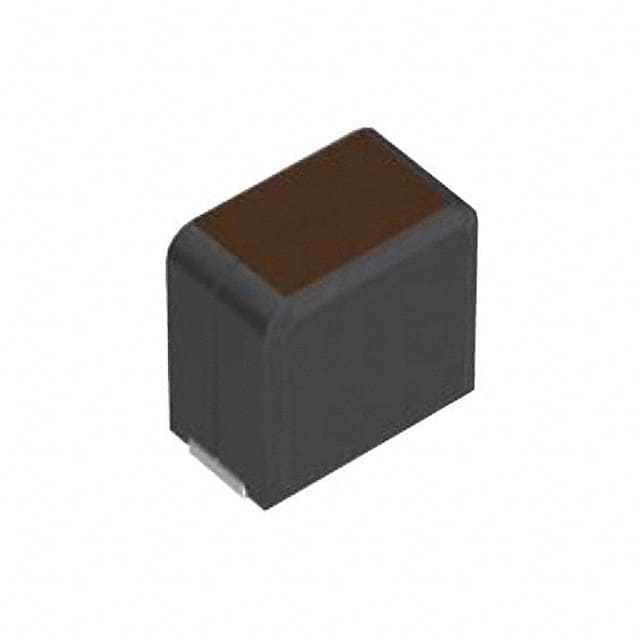

VLBU805080T-R18LFIXED IND 180NH 65A 0.2 MOHM SMD |
576 | 0.49 |
|
Datasheet |
VLBU | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 180 nH | ±15% | 65 A | 34A | Unshielded | 0.2mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.197" W (8.00mm x 5.00mm) | 0.315" (8.00mm) |
|
SPM10054T-6R8M-HZFIXED IND 6.8UH 11A 17.77MOHM SM |
496 | 0.53 |
|
Datasheet |
SPM-HZ | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Metal | 6.8 µH | ±20% | 11 A | 6.2A | Shielded | 17.77mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.421" L x 0.394" W (10.70mm x 10.00mm) | 0.213" (5.40mm) |
|
CMLS136E-2R2MSFIXED IND 2.2UH 22.5A 4.2MOHM SM |
286 | 0.43 |
|
Datasheet |
CMLS136E | Nonstandard | Tape & Reel (TR) | Active | - | Metal | 2.2 µH | ±20% | 22.5 A | 42A | Shielded | 4.2mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.530" L x 0.496" W (13.45mm x 12.60mm) | 0.256" (6.50mm) |
|
UP2B-151-RFIXED IND 150UH 1A 410 MOHM SMD |
249 | 0.46 |
|
Datasheet |
UNI-PAC™ | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±20% | 1 A | 770mA | Unshielded | 410mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.550" L x 0.410" W (13.97mm x 10.41mm) | 0.236" (6.00mm) |
|
PG0936.113NLFIXED IND 11UH 14A 7 MOHM SMD |
950 | - |
|
Datasheet |
PG0936NL | Nonstandard | Tray | Active | Wirewound | - | 11 µH | ±20% | 14 A | 14A | Unshielded | 7mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.689" L x 0.657" W (17.50mm x 16.70mm) | 0.394" (10.00mm) |
|
|
PG0936.682NLFIXED IND 6.8UH 18A 3.5 MOHM SMD |
950 | - |
|
Datasheet |
PG0936NL | Nonstandard | Tray | Active | Wirewound | - | 6.8 µH | ±20% | 18 A | 18A | Unshielded | 3.5mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.689" L x 0.657" W (17.50mm x 16.70mm) | 0.394" (10.00mm) |
|
|
PG0936.282NLFIXED IND 2.8UH 24A 2.2 MOHM SMD |
880 | - |
|
Datasheet |
PG0936NL | Nonstandard | Tray | Active | Wirewound | - | 2.8 µH | ±20% | 24 A | 28A | Unshielded | 2.2mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.689" L x 0.657" W (17.50mm x 16.70mm) | 0.394" (10.00mm) |
|
MPIA2510V2-2R2-RFIXED IND 2.2UH 2.1A 110MOHM SMD |
5,070 | 0.36 |
|
Datasheet |
MPIA25-V2 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Molded | Iron Powder | 2.2 µH | ±20% | 2.1 A | 2.8A | Shielded | 110mOhm Max | - | 45MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.041" (1.05mm) |
|
SBCP-80HY470HFIXED IND 47UH 1.9A 130 MOHM TH |
2,042 | 0.47 |
|
Datasheet |
SBCP | Radial, Vertical Cylinder | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±10% | 1.9 A | 2.2A | Unshielded | 130mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.374" Dia (9.50mm) | 0.433" (11.00mm) |
|
MPLC1040L2R2FIXED IND 2.2UH 10.5A 10MOHM SMD |
1,937 | 0.49 |
|
Datasheet |
MPLC | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Wirewound | - | 2.2 µH | ±20% | 10.5 A | 11A | Shielded | 10mOhm Max | - | - | - | -20°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.157" (4.00mm) |
|

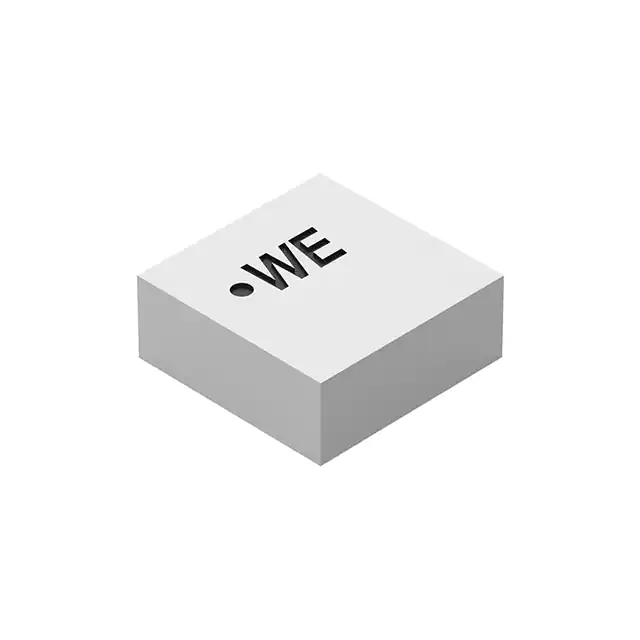

78438366033WE-MAIA SMT POWER INDUCTOR |
1,125 | 0.46 |
|
Datasheet |
WE-MAIA | Nonstandard | Tape & Reel (TR) | Active | - | Iron Alloy | 3.3 µH | ±20% | 5 A | 7A | Shielded | 38.4mOhm Max | - | 23MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.213" L x 0.213" W (5.40mm x 5.40mm) | 0.083" (2.10mm) |
|
|
78438366047WE-MAIA SMT POWER INDUCTOR |
1,000 | 0.46 |
|
Datasheet |
WE-MAIA | Nonstandard | Tape & Reel (TR) | Active | - | Iron Alloy | 4.7 µH | ±20% | 4.1 A | 5.5A | Shielded | 63mOhm Max | - | 20MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.213" L x 0.213" W (5.40mm x 5.40mm) | 0.083" (2.10mm) |
|
|
78438366022WE-MAIA SMT POWER INDUCTOR |
881 | 0.46 |
|
Datasheet |
WE-MAIA | Nonstandard | Tape & Reel (TR) | Active | - | Iron Alloy | 2.2 µH | ±20% | 6 A | 9A | Shielded | 27.3mOhm Max | - | 31.5MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.213" L x 0.213" W (5.40mm x 5.40mm) | 0.083" (2.10mm) |
|
|
784383660082WE-MAIA SMT POWER INDUCTOR |
831 | 0.46 |
|
Datasheet |
WE-MAIA | Nonstandard | Tape & Reel (TR) | Active | - | Iron Alloy | 820 nH | ±20% | 8.8 A | 11A | Shielded | 9.6mOhm Max | - | 53.5MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.213" L x 0.213" W (5.40mm x 5.40mm) | 0.083" (2.10mm) |
|
HCM1103-R12-RFIXED IND 120NH 30A 0.61MOHM SMD |
722 | 0.46 |
|
Datasheet |
HCM1103 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 120 nH | ±20% | 30 A | 75A | Shielded | 0.61mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.437" L x 0.394" W (11.10mm x 10.00mm) | 0.118" (3.00mm) |
