Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HCM1A0503-R47-RFIXED IND 470NH 9.2A 7.2MOHM SMD |
3,455 | 0.39 |
|
Datasheet |
HCM1A | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 470 nH | ±20% | 9.2 A | 12A | Shielded | 7.2mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.203" L x 0.201" W (5.15mm x 5.10mm) | 0.118" (3.00mm) |
|

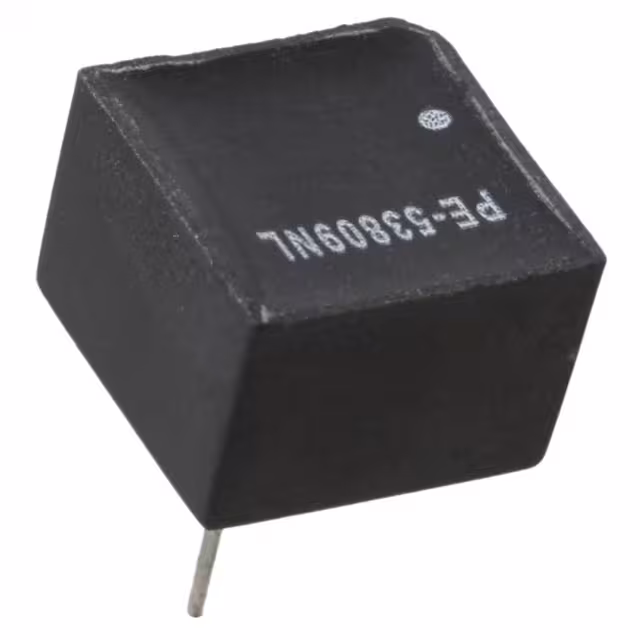

PE-53809NLFIXED IND 256UH 250MA 2.2 OHM TH |
1,646 | 0.56 |
|
Datasheet |
- | Radial, Vertical - Corner Terminals | Tray | Active | Toroidal | - | 256 µH | ±20% | 250 mA | - | Shielded | 2.2Ohm | - | - | - | -40°C ~ 130°C | - | - | Through Hole | - | 0.400" L x 0.400" W (10.16mm x 10.16mm) | 0.300" (7.62mm) |
|
CDRH127NP-820MCFIXED IND 82UH 1.95A 160MOHM SMD |
422 | 0.42 |
|
Datasheet |
CDRH127 | Nonstandard | Tape & Reel (TR) | Active | - | - | 82 µH | ±20% | 1.95 A | - | Shielded | 160mOhm Max | - | - | - | -40°C ~ 100°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|
PGL6312.101HLTINDUCTOR PWR BEAD 100NH 68A |
183 | 0.30 |
|
Datasheet |
PGL6312.XXXHLT | Nonstandard | Tape & Reel (TR) | Active | - | - | 100 nH | ±15% | 68 A | 80A | Shielded | 0.17mOhm | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.256" L x 0.256" W (6.50mm x 6.50mm) | 0.394" (10.00mm) |
|
DRA124-471-RFIXED IND 470UH 568MA 1.32OHM SM |
120 | 0.39 |
|
Datasheet |
DRA | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 470 µH | ±20% | 568 mA | 911mA | Shielded | 1.32Ohm | - | - | AEC-Q200 | -40°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.177" (4.50mm) |
|
SBC7-150-482FIXED IND 15UH 4.8A 30 MOHM TH |
1,000 | 0.39 |
|
Datasheet |
SBC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 4.8 A | 9.6A | Unshielded | 30mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.591" Dia (15.00mm) | 0.551" (14.00mm) |
|
DR124-821-RFIXED IND 820UH 530MA 2.351 OHM |
748 | 0.43 |
|
Datasheet |
DR124 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 820 µH | ±20% | 530 mA | 620mA | Shielded | 2.351Ohm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.177" (4.50mm) |
|

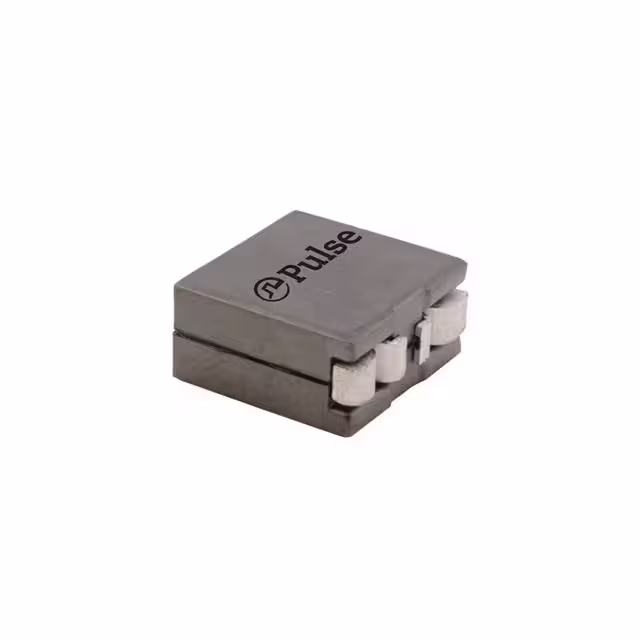

PAL6374.900AHLTIND POWER BEAD TLVR |
340 | 0.38 |
|
- |
PAL6374.XXXAHLT | Nonstandard | Tape & Reel (TR) | Active | - | - | 90 nH | ±15% | 77 A | 90A | Unshielded | 0.135mOhm | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.236" W (12.00mm x 6.00mm) | 0.472" (12.00mm) |
|
|
PAL6374.700AHLTIND POWER BEAD TLVR |
340 | 0.38 |
|
- |
PAL6374.XXXAHLT | Nonstandard | Tape & Reel (TR) | Active | - | - | 70 nH | ±15% | 77 A | 114A | Unshielded | 0.135mOhm | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.236" W (12.00mm x 6.00mm) | 0.472" (12.00mm) |
|
|
PAL6374.101AHLTIND POWER BEAD TLVR |
340 | 0.38 |
|
Datasheet |
PAL6374.XXXAHLT | Nonstandard | Tape & Reel (TR) | Active | - | - | 100 nH | ±15% | 77 A | 82A | Unshielded | 0.135mOhm | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.236" W (12.00mm x 6.00mm) | 0.472" (12.00mm) |
|
|
PAL6374.800AHLTIND POWER BEAD TLVR |
315 | 0.38 |
|
Datasheet |
PAL6374.XXXAHLT | Nonstandard | Tape & Reel (TR) | Active | - | - | 80 nH | ±15% | 77 A | 100A | Unshielded | 0.135mOhm | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.236" W (12.00mm x 6.00mm) | 0.472" (12.00mm) |
|
|
PAL6374.151AHLTIND POWER BEAD TLVR |
296 | 0.38 |
|
- |
PAL6374.XXXAHLT | Nonstandard | Tape & Reel (TR) | Active | - | - | 150 nH | ±15% | 77 A | 50A | Unshielded | 0.135mOhm | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.236" W (12.00mm x 6.00mm) | 0.472" (12.00mm) |
|
|
SBC6-222-351FIXED IND 2.2MH 350MA 2.63OHM TH |
294 | 0.39 |
|
Datasheet |
SBC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 2.2 mH | ±10% | 350 mA | 730mA | Unshielded | 2.63Ohm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.472" Dia (12.00mm) | 0.728" (18.50mm) |
|
B82477P4332M000FIXED IND 3.3UH 8.1A 10 MOHM SMD |
172 | 0.42 |
|
Datasheet |
B82477P4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 8.1 A | 9.6A | Shielded | 10mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.335" (8.50mm) |
|
MPXV1D1235L100FIXED IND 10UH 7.4A 35 MOHM SMD |
990 | 0.42 |
|
Datasheet |
METCOM MPXV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 10 µH | ±20% | 7.4 A | 12A | Shielded | 35mOhm Max | - | 9.5MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.520" L x 0.492" W (13.20mm x 12.50mm) | 0.138" (3.50mm) |
|
B82464P4105M000FIXED IND 1MH 340MA 2.2 OHM SMD |
686 | 0.47 |
|
Datasheet |
B82464P4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±20% | 340 mA | 350mA | Shielded | 2.2Ohm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.409" W (10.40mm x 10.40mm) | 0.189" (4.80mm) |
|
|
MPXV1D1235LR33FIXED IND 330NH 33.4A 1.8MOHM SM |
495 | 0.42 |
|
Datasheet |
METCOM MPXV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 330 nH | ±20% | 33.4 A | 55A | Shielded | 1.8mOhm Max | - | 63MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.520" L x 0.492" W (13.20mm x 12.50mm) | 0.138" (3.50mm) |
|
|
MPXV1D1235L2R2FIXED IND 2.2UH 15.2A 8.4MOHM SM |
481 | 0.42 |
|
Datasheet |
METCOM MPXV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 2.2 µH | ±20% | 15.2 A | 23A | Shielded | 8.4mOhm Max | - | 21MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.520" L x 0.492" W (13.20mm x 12.50mm) | 0.138" (3.50mm) |
|
PM127SH-220M-RCFIXED IND 22UH 4.3A 38.6MOHM SMD |
381 | 0.37 |
|
Datasheet |
PM127SH | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 4.3 A | 4.1A | Shielded | 38.6mOhm Max | 20 @ 2.52MHz | 11MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|
|
B82477P4562M000FIXED IND 5.6UH 7.15A 12.5 MOHM |
216 | 0.43 |
|
Datasheet |
B82477P4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 5.6 µH | ±20% | 7.15 A | 8.3A | Shielded | 12.5mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.335" (8.50mm) |
