Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
744787330FIXED IND 33UH 1.48A 161MOHM SMD |
810 | 0.39 |
|
Datasheet |
WE-PD2SR | 2-SMD | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 1.48 A | 1.3A | Shielded | 161mOhm Max | - | 10MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.177" (4.50mm) |
|
HCMA1305-1R8-RFIXED IND 1.8UH 21A 4.6 MOHM SMD |
696 | 0.38 |
|
Datasheet |
HCMA1305 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 1.8 µH | ±20% | 21 A | 40A | Shielded | 4.6mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.524" L x 0.480" W (13.30mm x 12.20mm) | 0.197" (5.00mm) |
|
UP1B-6R8-RFIXED IND 6.8UH 1.7A 89.7MOHM SM |
677 | 0.38 |
|
Datasheet |
UNI-PAC™ | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 1.7 A | 2.2A | Unshielded | 89.7mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.350" L x 0.240" W (8.89mm x 6.10mm) | 0.197" (5.00mm) |
|
|
744787047FIXED IND 4.7UH 3.3A 29 MOHM SMD |
670 | 0.39 |
|
Datasheet |
WE-PD2SR | 2-SMD | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±30% | 3.3 A | 3.6A | Shielded | 29mOhm Max | - | 42MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.177" (4.50mm) |
|
|
744787012FIXED IND 1.2UH 4.85A 13MOHM SMD |
632 | 0.37 |
|
Datasheet |
WE-PD2SR | 2-SMD | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.2 µH | ±30% | 4.85 A | 6A | Shielded | 13mOhm Max | - | 110MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.177" (4.50mm) |
|
|
744787121FIXED IND 120UH 730MA 643MOHM SM |
483 | 0.37 |
|
Datasheet |
WE-PD2SR | 2-SMD | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 120 µH | ±20% | 730 mA | 800mA | Shielded | 643mOhm Max | - | 4.5MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.177" (4.50mm) |
|
|
744787180FIXED IND 18UH 2.15A 78 MOHM SMD |
387 | 0.39 |
|
Datasheet |
WE-PD2SR | 2-SMD | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 18 µH | ±20% | 2.15 A | 1.9A | Shielded | 78mOhm Max | - | 15MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.177" (4.50mm) |
|
SD7030-3R3-RFIXED IND 3.3UH 3.7A 24 MOHM SMD |
339 | 0.38 |
|
Datasheet |
SD7030 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±30% | 3.7 A | 3A | Shielded | 24mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.118" (3.00mm) |
|

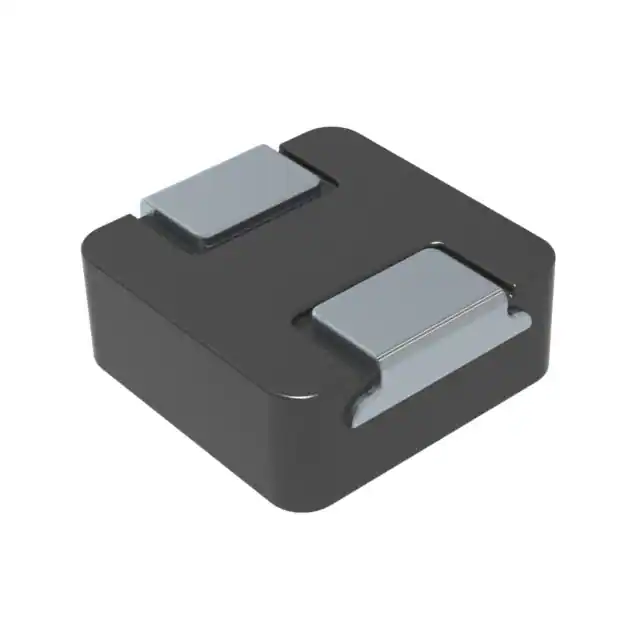

VCMI105T-220MS5FIXED IND 22UH 5.3A 69 MOHM SMD |
245 | 0.40 |
|
Datasheet |
VCMI105T | Nonstandard | Tape & Reel (TR) | Active | - | Metal | 22 µH | ±3% | 5.3 A | 6.6A | Unshielded | 69mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.427" L x 0.394" W (10.85mm x 10.00mm) | 0.197" (5.00mm) |
|
PG0642.472NLFIXED IND 4.7UH 9A 18.4 MOHM SMD |
1,520 | - |
|
Datasheet |
PG0642NL | Nonstandard | Tray | Active | Wirewound | - | 4.7 µH | ±20% | 9 A | 10A | Shielded | 18.4mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.311" L x 0.299" W (7.90mm x 7.60mm) | 0.197" (5.00mm) |
|
MPIA4020V2-6R8-RFIXED IND 6.8UH 2A 192 MOHM SMD |
6,736 | 0.38 |
|
Datasheet |
MPIA40-V2 | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Molded | Metal Composite | 6.8 µH | ±20% | 2 A | 2.6A | Shielded | 192mOhm Max | - | 23MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.195" L x 0.165" W (4.95mm x 4.20mm) | 0.079" (2.00mm) |
|
UP0.4C-470-RFIXED IND 47UH 530MA 820MOHM SMD |
3,746 | 0.38 |
|
Datasheet |
UNI-PAC™ 0.4C | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 530 mA | 530mA | Unshielded | 820mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|
CDRH127NP-102MCFIXED IND 1MH 550MA 1.82 OHM SMD |
1,491 | 0.42 |
|
Datasheet |
CDRH127 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 1 mH | ±20% | 550 mA | - | Shielded | 1.82Ohm Max | - | - | - | -40°C ~ 100°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|

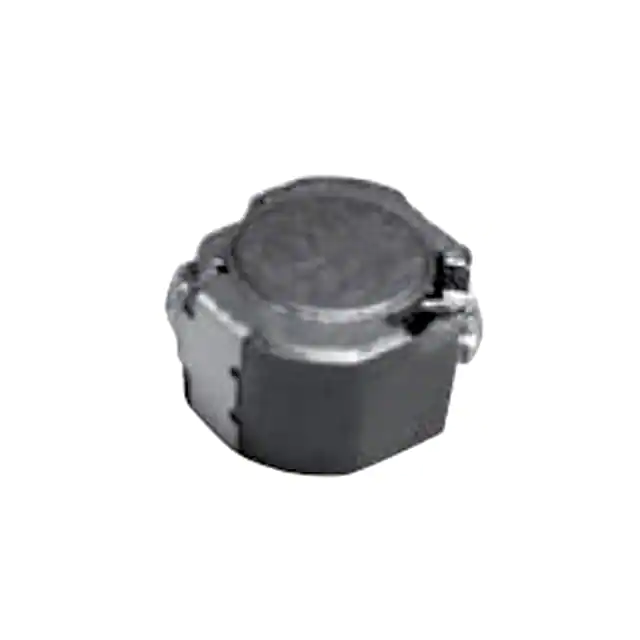

CDRH70D45BT150NP-101MCFIXED IND 100UH 1.23A 300MOHM SM |
1,480 | 0.57 |
|
Datasheet |
CDRH70D45B/T150 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 100 µH | ±20% | 1.23 A | 920mA | Shielded | 300mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.303" L x 0.287" W (7.70mm x 7.30mm) | 0.189" (4.80mm) |
|
PE-53634NLFIXED IND 50UH 2.6A 133 MOHM SMD |
1,208 | 0.49 |
|
Datasheet |
SLIC | Nonstandard | Bulk | Active | Toroidal | - | 50 µH | - | 2.6 A | - | Unshielded | 133mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.700" L x 0.670" W (17.78mm x 17.02mm) | 0.390" (9.91mm) |
|
|
HCMA1305-4R7-RFIXED IND 4.7UH 12A 12.7 MOHM |
1,039 | 0.38 |
|
Datasheet |
HCMA1305 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 4.7 µH | ±20% | 12 A | 27A | Shielded | 12.7mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.524" L x 0.480" W (13.30mm x 12.20mm) | 0.197" (5.00mm) |
|
|
HCMA1305-3R3-RFIXED IND 3.3UH 15A 9.2 MOHM SMD |
828 | 0.38 |
|
Datasheet |
HCMA1305 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 3.3 µH | ±20% | 15 A | 32A | Shielded | 9.2mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.524" L x 0.480" W (13.30mm x 12.20mm) | 0.197" (5.00mm) |
|
|
HCMA1305-5R6-RFIXED IND 5.6UH 11.5A 13.8 MOHM |
802 | 0.38 |
|
Datasheet |
HCMA1305 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 5.6 µH | ±20% | 11.5 A | 22A | Shielded | 13.8mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.524" L x 0.480" W (13.30mm x 12.20mm) | 0.197" (5.00mm) |
|
B82477P2103M000FIXED IND 10UH 4.3A 25 MOHM SMD |
480 | 0.42 |
|
Datasheet |
B82477P2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 4.3 A | 4A | Shielded | 25mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.256" (6.50mm) |
|
|
HCMA1305-R10-RFIXED IND 100NH 55A 0.59MOHM SMD |
374 | 0.37 |
|
Datasheet |
HCMA1305 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 100 nH | ±20% | 55 A | 118A | Shielded | 0.59mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.524" L x 0.480" W (13.30mm x 12.20mm) | 0.197" (5.00mm) |
