Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
7440700150FIXED IND 15UH 1.65A 140MOHM SMD |
368 | 0.38 |
|
Datasheet |
WE-TPC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±30% | 1.65 A | 1.25A | Shielded | 140mOhm Max | - | 25MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.079" (2.00mm) |
|
HCMA1305-R68-RFIXED IND 680NH 34A 1.33MOHM SMD |
239 | 0.37 |
|
Datasheet |
HCMA1305 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 680 nH | ±20% | 34 A | 54A | Shielded | 1.33mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.524" L x 0.480" W (13.30mm x 12.20mm) | 0.197" (5.00mm) |
|
60A163CFIXED IND 16UH 9.6A 9 MOHM SMD |
181 | 0.84 |
|
Datasheet |
6000A | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 16 µH | ±10% | 9.6 A | 13A | Unshielded | 9mOhm Max | - | 17MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.866" L x 0.748" W (22.00mm x 19.00mm) | 0.472" (12.00mm) |
|
78438356056FIXED IND 5.6UH 2.8A 81 MOHM SMD |
1,602 | 0.39 |
|
Datasheet |
WE-MAIA | Nonstandard | Tape & Reel (TR) | Active | Molded | Iron Alloy | 5.6 µH | ±20% | 2.8 A | 4.6A | Shielded | 81mOhm Max | - | 20MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.161" L x 0.161" W (4.10mm x 4.10mm) | 0.083" (2.10mm) |
|
MPI2512V2-2R2-RFIXED IND 2.2UH 2.2A 87MOHM SMD |
1,101 | 0.31 |
|
Datasheet |
MPI25-V2 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | - | - | 2.2 µH | ±20% | 2.2 A | 3.5A | Shielded | 87mOhm Max | - | 30MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.049" (1.25mm) |
|
|
78438357018FIXED IND 1.8UH 5.8A 21MOHM SMD |
706 | 0.39 |
|
Datasheet |
WE-MAIA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Alloy | 1.8 µH | ±20% | 5.8 A | 8A | Shielded | 21mOhm Max | - | 42MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 4030 | 0.161" L x 0.161" W (4.10mm x 4.10mm) | 0.122" (3.10mm) |
|

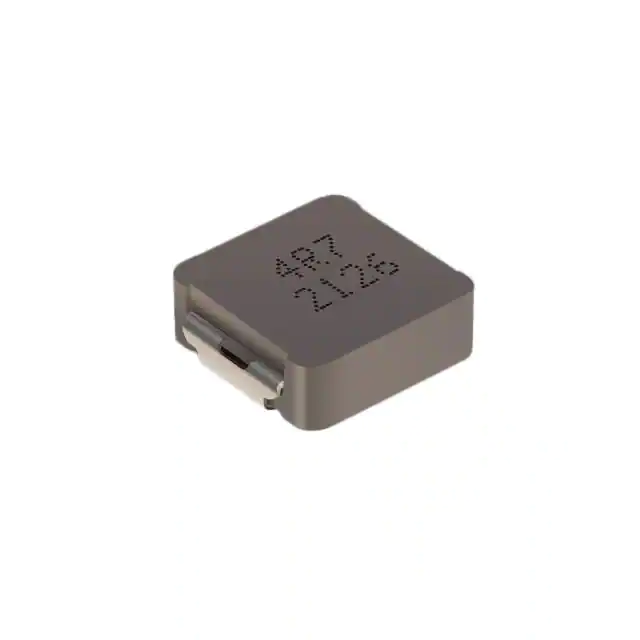

SRP1038WA-R47MIND,11X10X3.8MM,0.47UH20%,34A,SH |
438 | 0.33 |
|
Datasheet |
SRP1038WA | Nonstandard | Tape & Reel (TR) | Active | - | Metal | 470 nH | ±20% | 34 A | 31A | Shielded | 1.63mOhm Max | 15 @ 100kHz | 60MHz | AEC-Q200 | -55°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.157" (4.00mm) |
|
|
SRP1038WA-5R6MIND,11X10X3.8MM,5.6UH20%,10.5A,S |
348 | 0.33 |
|
Datasheet |
SRP1038WA | Nonstandard | Tape & Reel (TR) | Active | - | Metal | 5.6 µH | ±20% | 10.5 A | 12A | Shielded | 17mOhm Max | 20 @ 100kHz | 13MHz | AEC-Q200 | -55°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.157" (4.00mm) |
|

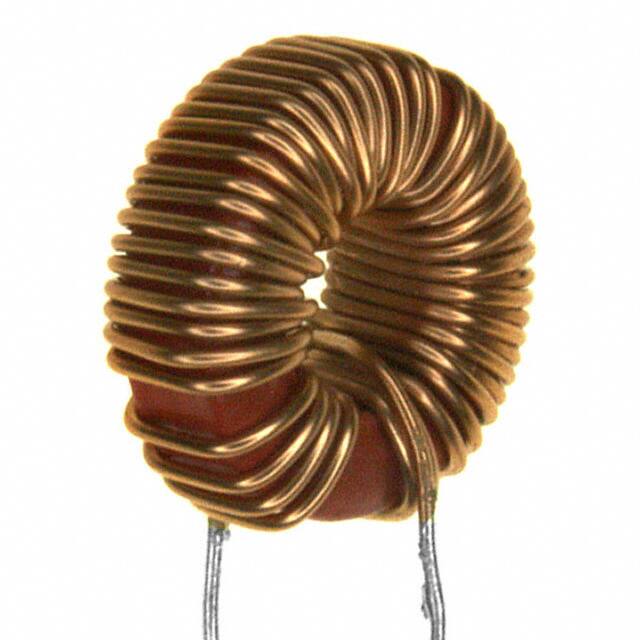

7447041FIXED IND 68UH 800MA 100 MOHM TH |
288 | 0.39 |
|
Datasheet |
WE-FI | Radial, Vertical (Open) | Bulk | Active | Toroidal | Ferrite | 68 µH | ±20% | 800 mA | - | Unshielded | 100mOhm Max | - | - | - | -40°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.472" Dia x 0.217" W (12.00mm x 5.50mm) | - |
|
|
SRP1038WA-120MIND,11X10X3.8MM,12UH20%,7.4A,SHD |
271 | 0.33 |
|
Datasheet |
SRP1038WA | Nonstandard | Tape & Reel (TR) | Active | - | Metal | 12 µH | ±20% | 7.4 A | 7.5A | Shielded | 33.4mOhm Max | 20 @ 100kHz | 10MHz | AEC-Q200 | -55°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.157" (4.00mm) |
|
|
SRP1038WA-220MIND,11X10X3.8MM,22UH20%,5.5A,SHD |
216 | 0.33 |
|
Datasheet |
SRP1038WA | Nonstandard | Tape & Reel (TR) | Active | - | Metal | 22 µH | ±20% | 5.5 A | 6A | Shielded | 68mOhm Max | 20 @ 100kHz | 7MHz | AEC-Q200 | -55°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.157" (4.00mm) |
|
|
SRP1038WA-2R2MIND,11X10X3.8MM,2.2UH20%,18A,SHD |
200 | 0.33 |
|
Datasheet |
SRP1038WA | Nonstandard | Tape & Reel (TR) | Active | - | Metal | 2.2 µH | ±20% | 18 A | 19A | Shielded | 6.1mOhm Max | 20 @ 100kHz | 26MHz | AEC-Q200 | -55°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.157" (4.00mm) |
|
|
SRP1038WA-R68MIND,11X10X3.8MM,0.68UH20%,31A,SH |
119 | 0.33 |
|
Datasheet |
SRP1038WA | Nonstandard | Tape & Reel (TR) | Active | - | Metal | 680 nH | ±20% | 31 A | 28A | Shielded | 2.3mOhm Max | 15 @ 100kHz | 51MHz | AEC-Q200 | -55°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.157" (4.00mm) |
|

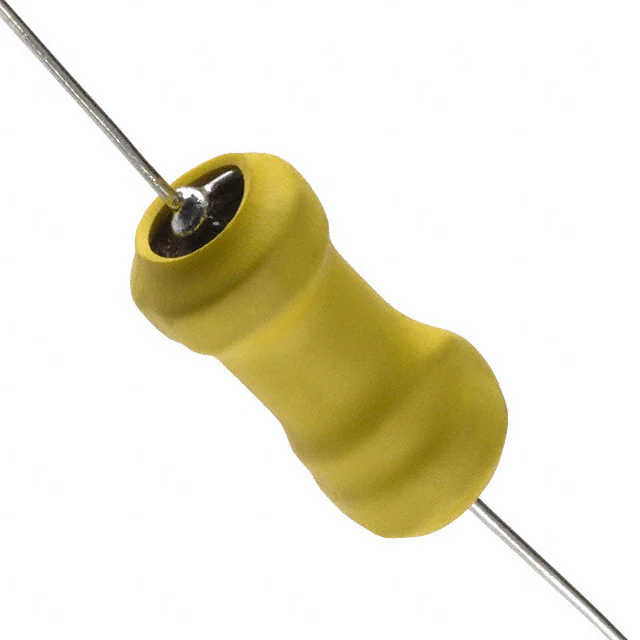

4590R-564KFIXED IND 560UH 1.15A 504MOHM TH |
2,470 | 0.99 |
|
Datasheet |
4590R | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 560 µH | ±10% | 1.15 A | 740mA | Unshielded | 504mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.455" Dia x 0.900" L (11.55mm x 22.86mm) | - |
|
MPX1D0650L2R2FIXED IND 2.2UH 11.2A 11.6 MOHM |
2,000 | 0.40 |
|
Datasheet |
METCOM MPX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 2.2 µH | ±20% | 11.2 A | 10A | Shielded | 11.6mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.256" W (7.00mm x 6.50mm) | 0.197" (5.00mm) |
|

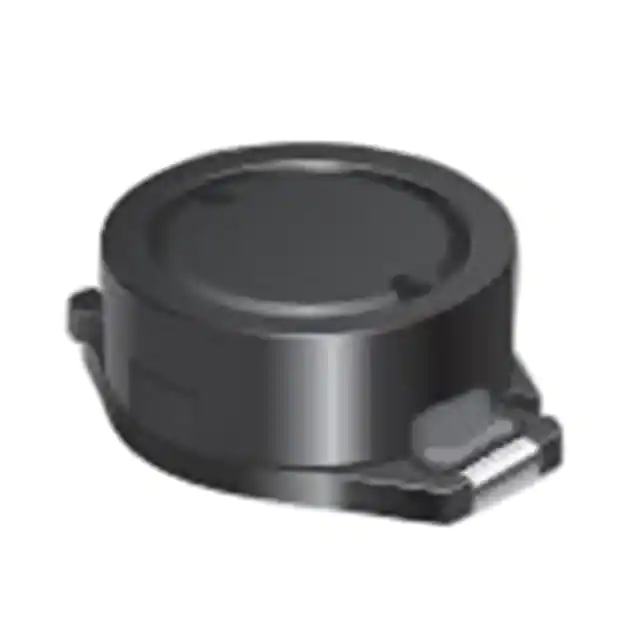

PM1608S-1R5M-RCFIXED IND 1.5UH 2.8A 45 MOHM SMD |
1,100 | 0.42 |
|
Datasheet |
PM1608S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±20% | 2.8 A | - | Shielded | 45mOhm Max | 30 @ 200kHz | 125MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.173" W (6.60mm x 4.40mm) | 0.118" (3.00mm) |
|
VLBU6565100T-R22LFIXED IND 220NH 70A 0.18MOHM SMD |
965 | 0.47 |
|
Datasheet |
VLBU | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 nH | ±15% | 70 A | 33A | Unshielded | 0.18mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.256" L x 0.256" W (6.50mm x 6.50mm) | 0.394" (10.00mm) |
|
|
PM1608S-102M-RCFIXED IND 1MH 150MA 3.4 OHM SMD |
540 | 0.42 |
|
Datasheet |
PM1608S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±20% | 150 mA | - | Shielded | 3.4Ohm Max | 40 @ 100kHz | 2MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.173" W (6.60mm x 4.40mm) | 0.118" (3.00mm) |
|
MPX1D0630LR47FIXED IND 470NH 18.7A 4 MOHM SMD |
448 | 0.40 |
|
Datasheet |
METCOM MPX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 470 nH | ±20% | 18.7 A | 21A | Shielded | 4mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.256" W (7.00mm x 6.50mm) | 0.118" (3.00mm) |
|
SBC2-272-101FIXED IND 2.7MH 100MA 11.6OHM TH |
119 | 0.38 |
|
Datasheet |
SBC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 2.7 mH | ±10% | 100 mA | 130mA | Unshielded | 11.6Ohm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.276" Dia (7.00mm) | 0.413" (10.50mm) |
