Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HCMA1305-7R8-RFIXED IND 7.8UH 10A 19.4MOHM SMD |
360 | 0.38 |
|
Datasheet |
HCMA1305 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 7.8 µH | ±20% | 10 A | 18.5A | Shielded | 19.4mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.524" L x 0.480" W (13.30mm x 12.20mm) | 0.197" (5.00mm) |
|
|
HCMA1305-R82-RFIXED IND 820NH 31A 1.61MOHM SMD |
236 | 0.38 |
|
Datasheet |
HCMA1305 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 820 nH | ±20% | 31 A | 53A | Shielded | 1.61mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.524" L x 0.480" W (13.30mm x 12.20mm) | 0.197" (5.00mm) |
|
MPX1D0650L100FIXED IND 10UH 4.8A 61.4MOHM SMD |
217 | 0.40 |
|
Datasheet |
METCOM MPX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 10 µH | ±20% | 4.8 A | 4.5A | Shielded | 61.4mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.256" W (7.00mm x 6.50mm) | 0.197" (5.00mm) |
|
SD7030-220-RFIXED IND 21UH 1.4A 128 MOHM SMD |
153 | 0.38 |
|
Datasheet |
SD7030 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 21 µH | ±30% | 1.4 A | 1.2A | Shielded | 128mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.118" (3.00mm) |
|

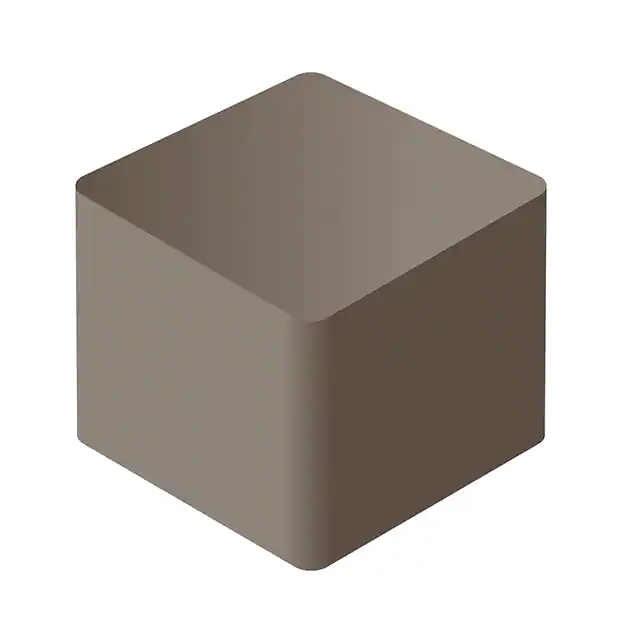

SRP6050CA-4R3MFIXED IND 4.3UH 9A 16.2 MOHM SMD |
2,260 | 0.41 |
|
Datasheet |
SRP6050CA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 4.3 µH | ±20% | 9 A | 11A | Shielded | 16.2mOhm Max | - | 23MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.252" W (6.60mm x 6.40mm) | 0.197" (5.00mm) |
|

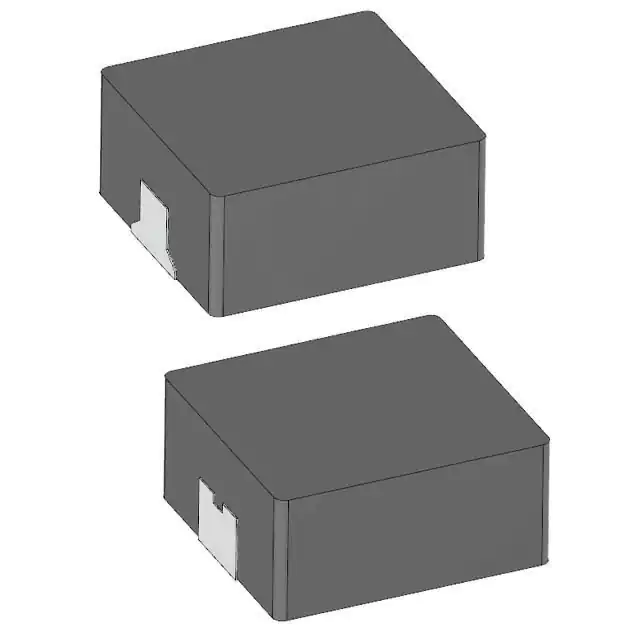

AMDLA1306S-3R3MTFIXED IND 3.3UH 19A 6.2MOHM SMD |
847 | 0.50 |
|
Datasheet |
AMDLA1306S | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 3.3 µH | ±20% | 19 A | 22.5A | Shielded | 6.2mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.496" W (13.50mm x 12.60mm) | 0.256" (6.50mm) |
|
HCM1A1104V2-100-RFIXED IND 10UH 6A 30 MOHM SMD |
840 | 0.35 |
|
Datasheet |
HCM1AV2 | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 10 µH | ±20% | 6 A | 6A | Shielded | 30mOhm Max | - | 10MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.425" L x 0.394" W (10.80mm x 10.00mm) | 0.157" (4.00mm) |
|

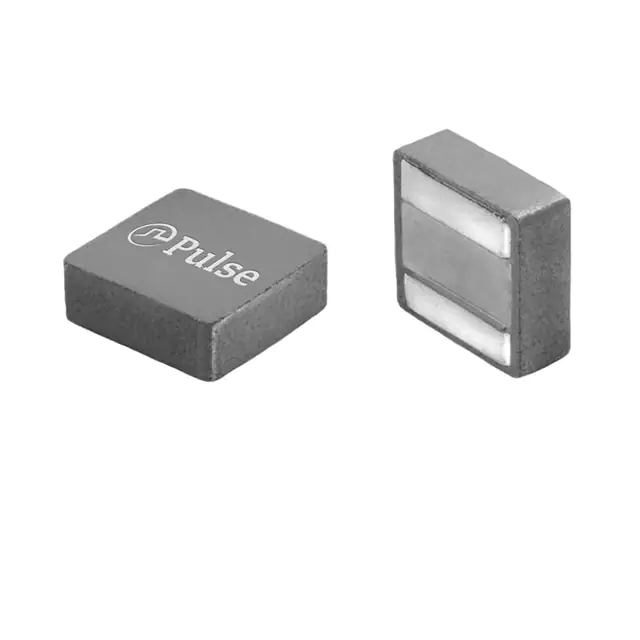

PA2240.682NLTFIXED IND 6.8UH 9.5A 19.6MOHM SM |
601 | 0.67 |
|
Datasheet |
PA2240.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | - | - | 6.8 µH | ±20% | 9.5 A | 11A | Unshielded | 19.6mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.307" L x 0.299" W (7.80mm x 7.60mm) | 0.276" (7.00mm) |
|
DRA74-8R2-RFIXED IND 8.2UH 2.66A 40MOHM SMD |
551 | 0.39 |
|
Datasheet |
DRA | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 8.2 µH | ±20% | 2.66 A | 3.17A | Shielded | 40mOhm | - | - | AEC-Q200 | -40°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.299" L x 0.299" W (7.60mm x 7.60mm) | 0.171" (4.35mm) |
|
B82477P4202M000FIXED IND 2UH 8.9A 8 MOHM SMD |
321 | 0.43 |
|
Datasheet |
B82477P4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2 µH | ±20% | 8.9 A | 11A | Shielded | 8mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.335" (8.50mm) |
|

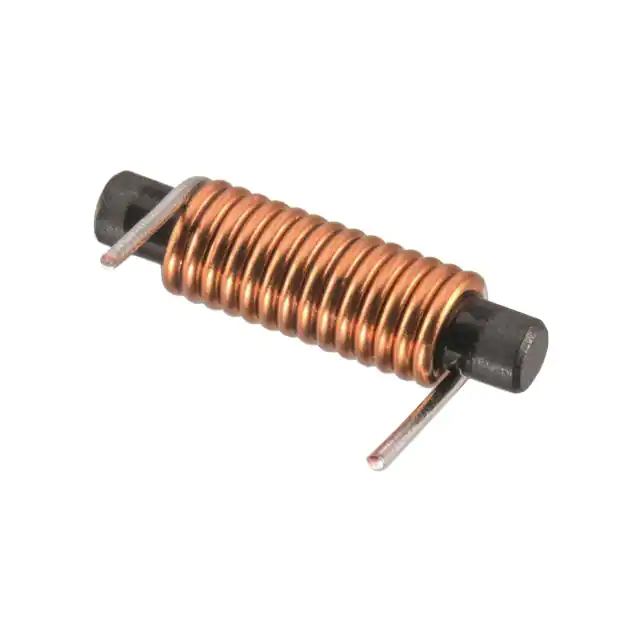

7847120060WE-RCIT ROD CORE INDUCTOR THT 6. |
192 | 0.40 |
|
Datasheet |
WE-RCIT | Radial, Horizontal Cylinder (Open) | Tray | Active | Wirewound | - | 6 µH | ±25% | 3.4 A | 6.5A | Unshielded | 22mOhm | - | 140MHz | AEC-Q200 | -40°C ~ 150°C | 10 kHz | - | Through Hole | Radial | 0.165" Dia x 0.606" L (4.20mm x 15.40mm) | - |
|
SBC2-332-900FIXED IND 3.3MH 90MA 13.8 OHM TH |
169 | 0.39 |
|
Datasheet |
SBC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 3.3 mH | ±10% | 90 mA | 110mA | Unshielded | 13.8Ohm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.276" Dia (7.00mm) | 0.413" (10.50mm) |
|
|
SBC2-681-211FIXED IND 680UH 210MA 3.1 OHM TH |
150 | 0.39 |
|
Datasheet |
SBC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 680 µH | ±10% | 210 mA | 260mA | Unshielded | 3.1Ohm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.276" Dia (7.00mm) | 0.413" (10.50mm) |
|

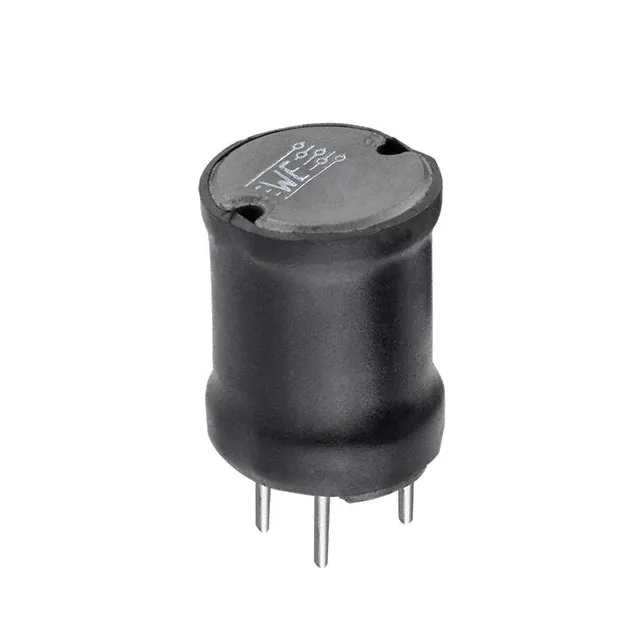

7447231332FIXED IND 3.3MH 430MA 2.8 OHM TH |
109 | 0.40 |
|
Datasheet |
WE-TI | Radial, Vertical Cylinder, 4 Leads | Tray | Active | Wirewound | - | 3.3 mH | ±5% | 430 mA | 550mA | Unshielded | 2.8Ohm Max | - | 580kHz | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.433" Dia (11.00mm) | 0.748" (19.00mm) |
|
FP0705R2-R10-RFIXED IND 105NH 38A 0.32MOHM SMD |
1,327 | 0.37 |
|
Datasheet |
FLAT-PAC, FP0705 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 105 nH | ±10% | 38 A | 44A | Unshielded | 0.32mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.195" (4.95mm) |
|
MPXV1D1235L6R8FIXED IND 6.8UH 9.4A 21.7MOHM SM |
990 | 0.42 |
|
Datasheet |
METCOM MPXV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 6.8 µH | ±20% | 9.4 A | 14A | Shielded | 21.7mOhm Max | - | 12MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.520" L x 0.492" W (13.20mm x 12.50mm) | 0.138" (3.50mm) |
|
|
SRP6050CA-1R8MFIXED IND 1.8UH 12A 7.1 MOHM SMD |
763 | 0.41 |
|
Datasheet |
SRP6050CA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 1.8 µH | ±20% | 12 A | 16A | Shielded | 7.1mOhm Max | - | 33MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.252" W (6.60mm x 6.40mm) | 0.197" (5.00mm) |
|

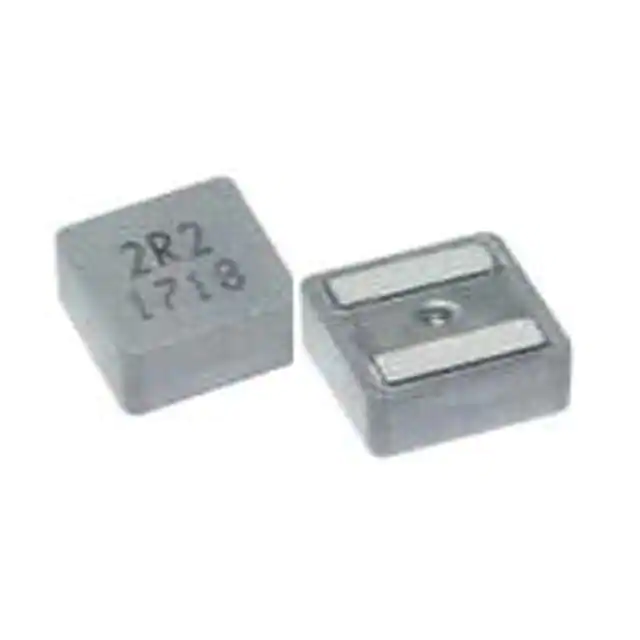

ASPIAIG-Q7050-2R2M-TFIXED IND 2.2UH 14A 6.4MOHM SMD |
678 | 0.51 |
|
Datasheet |
ASPIAIG-Q7050 | Nonstandard | Tape & Reel (TR) | Active | Molded | Alloy Powder | 2.2 µH | ±20% | 14 A | 17A | Shielded | 6.4mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.331" L x 0.315" W (8.40mm x 8.00mm) | 0.201" (5.10mm) |
|
MPX1D0840L1R5FIXED IND 1.5UH 16.2A 6.8MOHM SM |
402 | 0.41 |
|
Datasheet |
METCOM MPX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 1.5 µH | ±20% | 16.2 A | 19A | Shielded | 6.8mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.341" L x 0.315" W (8.65mm x 8.00mm) | 0.157" (4.00mm) |
|
|
MPX1D0840L4R7FIXED IND 4.7UH 8.7A 23.5MOHM SM |
191 | 0.41 |
|
Datasheet |
METCOM MPX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 4.7 µH | ±20% | 8.7 A | 11A | Shielded | 23.5mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.341" L x 0.315" W (8.65mm x 8.00mm) | 0.157" (4.00mm) |
